Carbon Steel Concentric Reducers

Carbon Steel Seamless Concentric Reducers, ASTM A234 Carbon Steel Concentric Reducer, ASTM A420 LTCS Concentric Reducers, CS Concentric Reducers, Carbon Steel Concentric Reducers Suppliers, CS Buttweld Concentric Reducer, Carbon Steel Butt weld Concentric Reducers Manufacturers in India.

Carbon Steel Concentric Reducers are commonly used in plumbing and pipe fitting applications. They allow for a gradual reduction of pipe size at the connection point, which helps balance pressure and reduce turbulence while also providing an aesthetically pleasing look to the setup. Carbon steel is known for its strength, machinability, and resistance to wear and tear, making it a great choice for any industrial piping system.

Table of Content
Manufacturing of Butt weld Concentric Reducers in Factory

Carbon Steel BW Concentric Reducer, Low Temperature Carbon Steel A420 WPL6 Concentric Reducers, ASTM A234 WPB Concentric Reducers, Carbon Steel Concentric Reducer Manufacturer, Carbon Steel Concentric Reducers Suppliers In Mumbai.

Our Carbon Steel Concentric Reducer features include:

  • High-quality carbon steel alloy construction
  • Corrosion resistant finish in multiple sizes ranging from 2" x 1" up to 12" x 10”
  • Meets ASTM A234 WPB standards
  • UL-listed and FM approved
  • Available with a wide variety of connection options

When it comes to applications, our Carbon Steel Concentric Reducers are suitable for:

  • HVAC systems
  • Water supply lines and irrigation systems
  • Compressed air systems
  • Oil & gas pipelines
  • Chemical processing plants
  • Industrial manufacturing operations
  • Heavy-duty equipment construction and repair

Our Carbon Steel Concentric Reducers offer superior performance and durability in any type of industrial environment. Contact us today to find out more! We’re here to help you find the right solution for your application needs.

ANSI B16.9 CS Concentric Reducer, CS SMLS Concentric Reducer, ASTM A860 High Yield Carbon Steel Concentric Reducer, Carbon Steel Concentric Reducers Exporter in India, Manufacturer of Carbon Steel Buttweld Concentric Reducers in Mumbai, India.

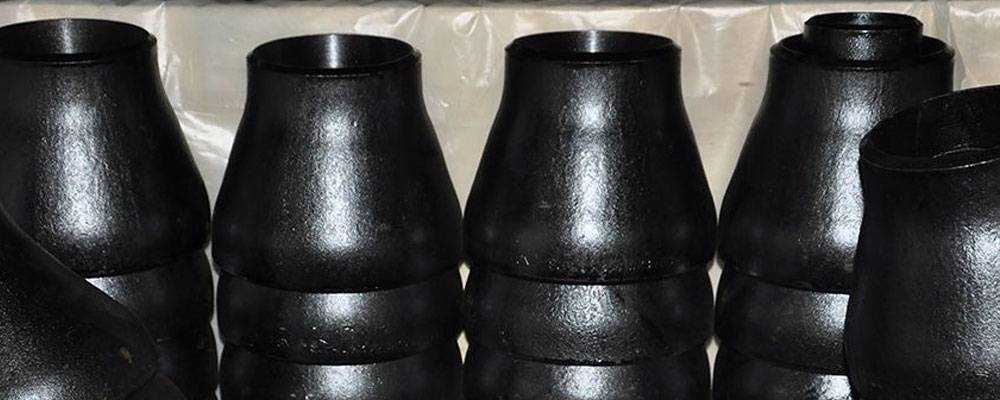

CS Concentric Reducer
Rajdhan Metal

Carbon Steel Concentric Reducer Material Specification

Specifications ASTM A234, A860, A420 / ASME SA234, SA860, SA420
Dimensions ANSI/ ASME B16.9, MSS-SP-43, BS4504, BS1560, BS4504, BS10
Size 1/2"NB TO 48"NB IN
Schedule Sch 20, STD, Sch 40, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS
Technical Seamless and Weld Eccentric Reducer
Type Seamless / ERW / Welded / Fabricated
Carbon Steel Grades ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9
Call us to get the latest price list for Carbon Steel Buttweld Concentric Reducer in Mumbai, Maharashtra. We have special offers available for Carbon Steel Concentric Reducers with the best price.

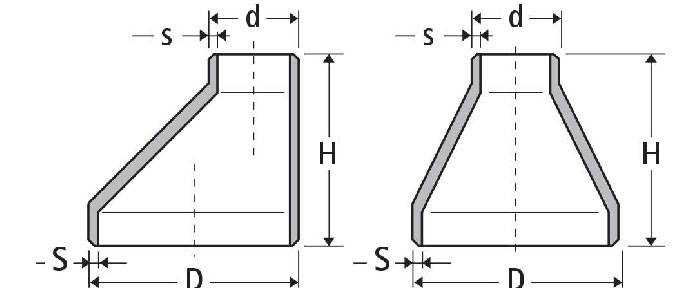

Carbon Steel Concentric Reducer Dimensions

CS Concentric Reducer Dimensions
Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1"1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1"1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 2"1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1"1/4 42.4 2.6 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1"1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2"1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

CS ASME B16.9 Concentric Reducer Weight Chart

NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1.1/4 0.7 0.32
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-2 1.5 0.68
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79
NPS LBS KG

Carbon Steel Dimensional Tolerances of ASME B16 9 Concentric Reducers

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Searching for a trusted ASME B16.9 Concentric Reducers manufacturer in India? buy from oldest Carbon Steel Concentric Reducers manufacturers in Mumbai. Check Carbon Steel Buttweld Concentric Reducer, CS Butt Weld Concentric Reducers Suppliers

Specialized in Following ASME B16.9 Carbon Steel Concentric Reducers

  • Carbon Steel Industrial Concentric Reducers
  • ASTM A234 CS Concentric Reducers Manufacturer
  • Carbon Steel BW Concentric Reducers Supplier
  • Stockist of Carbon Steel Concentric Reducers
  • Carbon Steel Butt Weld Sch 40 (Std) Concentric Reducer
  • Carbon Steel Concentric Reducer Manufacturers in Mumbai
  • CS Buttweld Pipe Concentric Reducer
  • High Yield CS A860 Butt weld Concentric Reducer
  • Buy Carbon Steel Concentric Reducer
  • Carbon Steel ASTM A234 Concentric Reducers Suppliers
  • Buttweld Carbon Steel Concentric Reducer
  • A234 Gr.WPB Carbon Steel Concentric Reducers
  • Carbon Steel Schedule 40 Concentric Reducer
  • Standard Carbon Steel Butt Weld Concentric Reducer
  • Carbon Steel Concentric Reducers Manufacturer In India
  • ASTM A420 LTCS Concentric Reducers Wholesaler
  • Carbon Steel SMLS Concentric Reducers
  • Carbon Steel Buttweld Concentric Reducers Supplier in India
  • A860 High-Yield CS Concentric Reducers Suppliers
  • Carbon Steel Dimensions Concentric Reducers ASME B16.9
  • Supplier of Carbon Steel Buttweld Concentric Reducers
  • Carbon Steel Pipe Concentric Reducers Dealer
  • Exporter of Carbon Steel Buttweld Concentric Reducers
  • A234 Carbon Steel Concentric Reducers Supplier
  • Carbon Steel Buttweld Concentric Reducers Manufacturer
  • CS ANSI/ASME B16.9 Buttweld Concentric Reducers
  • Low Temperature Carbon Steel A420 WPL3 Concentric Reducer

Carbon Steel Concentric Reducers Price List

low temperture carbon steel concentric reducers FOB Price: US$ 5.00 - 3.00 / Piece
carbon steel asme b16.9 concentric reducer sch 40 FOB Price: US$ 6.00 - 8.00 / Piece
asme b16.9 dimension of cs concentric reducers FOB Price: US$ 2.00 - 200.00 / Piece
astm a234 wpb butt weld dn50 sch40 carbon steel concentric reducers FOB Price: US$ 0.20 - 88.00 / Piece
2" x 3/4" asme b16.9 cs butt weld concentric reducer FOB Price: US$ 12.00 - 19.00 / Piece
carbon steel a234 wpb concentric reducer dimensions FOB Price: US$ 5.70 - 15.00 / Piece
carbon steel concentric reducer sch40 pipe fittings FOB Price: US$ 3.00 - 150.00 / Piece
1/2" to 24" concentric carbon steel reducers FOB Price: US$ 4.00 - 180.00 / Piece
a234 gr.wpb carbon steel concentric reducers FOB Price: US$ 2.00 - 120.00 / Piece
astm a420 wpl6 low temperature carbon steel concentric reducers FOB Price: US$ 3.00 - 400.00 / Piece
concentric reducer sch 40 high yield carbon steel FOB Price: US$ 18.00 / 240.00 Piece
schedule xxs astm a234 dn50 carbon steel concentric reducer FOB Price: US$ 17.00 / 240.00 Piece

Carbon Steel Concentric Reducers Schedule Std

NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1.1/4 0.7 0.32
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-2 1.5 0.68
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79

Carbon Steel Concentric Reducers Schedule XS

NPS LBS KG
3/4-1/2 0.22 0.1
3/4-3/8 0.2 0.09
1-3/4 0.45 0.2
1-1/2 0.45 0.2
1.1/4-1 0.5 0.23
1.1/4-3/4 0.5 0.23
1.1/4-1/2 0.5 0.23
1.1/2-1.1/4 0.78 0.35
1.1/2-1 0.75 0.34
1.1/2-3/4 0.7 0.32
1.1/2-1/2 0.65 0.29
2-1.1/2 1.2 0.54
2-1.1/4 1.15 0.52
2-1 1.1 0.5
2-3/4 1 0.45
2.1/2-2 2 0.91
2.1/2-1.1/2 1.9 0.86
2.1/2-1.1/4 1.85 0.84
2.1/2-1 1.75 0.79
3-2.1/2 2.75 1.25
3-2 2.6 1.18
3-1.1/2 2.5 1.13
3-1.1/4 2.4 1.09
3.1/2-3 4 1.81
3.1/2-2.1/2 3.5 1.59
3.1/2-2 3.5 1.59
3.1/2-1.1/2 3.25 1.47
3.1/2-1.1/4 3.25 1.47
4-3.1/2 4.75 2.15
4-3 4.5 2.04
4-2.1/2 4.38 1.99
4-2 4.25 1.93
4-1.1/2 4 1.81
5-4 8.25 3.74
5-3.1/2 7.75 3.52
5-3 7.5 3.4
5-2.1/2 7 3.18
5-2 6.5 2.95
6-5 12 5.44
6-4 11.5 5.22
6-3.1/2 11 4.99
6-3 10.5 4.76
6-2.1/2 10 4.54
8-6 18.7 8.48
8-5 18 8.16
8-4 17 7.71
8-3.1/2 16.5 7.48
10-8 29.5 13.38
10-6 29.5 13.38
10-5 28 12.7
10-4 25.5 11.57
12-10 43.5 19.73
12-8 42 19.05
12-6 40 18.14
12-5 39 17.69
14-12 80 36.29
14-10 79.2 35.92
14-8 78.5 35.61
14-6 78 35.38
16-14 91 41.28
16-12 90 40.82
16-10 89 40.37
16-8 88.5 40.14
16-6 - -
18-16 115 52.16
18-14 114 51.71
18-12 113 51.26
18-10 112 50.8
18-8 - -
20-18 170 77.11
20-16 169 76.66
20-14 168 76.2
20-12 167 75.75
20-10 - -
20-8 - -
22-20 186 84.37
22-18 182 82.55
22-16 173 78.47
22-14 163 73.94
22-12 - -
22-10 - -
24-22 - -
24-20 200 90.72
24-18 195 88.45
24-16 190 86.18
24-14 - -
24-12 - -
24-10 - -
26-24 276 125.19
26-22 272 123.38
26-20 253 114.76
26-18 242 109.77
26-16 - -
26-14 - -
26-12 - -
28-26 299 135.62
28-24 288 130.63
28-22 250 113.4
28-20 264 119.75
30-28 322 146.06
30-26 310 140.61
30-24 299 135.62
30-22 285 129.27
30-20 274 124.28

Carbon Steel Concentric Reducers Schedule 160

NPS LBS KG
3/4-1/2 0.28 0.13
3/4-3/8 0.24 0.11
1-3/4 0.5 0.23
1-1/2 0.5 0.23
1.1/4-1 0.65 0.29
1.1/4-3/4 0.65 0.29
1.1/4-1/2 0.6 0.27
1.1/2-1.1/4 0.95 0.43
1.1/2-1 0.8 0.36
1.1/2-3/4 0.75 0.34
1.1/2-1/2 0.73 0.33
2-1.1/2 1.6 0.73
2-1.1/4 1.5 0.68
2-1 1.5 0.68
2-3/4 1.45 0.66
2.1/2-2 2.5 1.13
2.1/2-1.1/2 2.25 1.02
2.1/2-1.1/4 2.25 1.02
2.1/2-1 2.2 1
3-2.1/2 3.7 1.68
3-2 3.4 1.54
3-1.1/2 3.2 1.45
3-1.1/4 3.1 1.41
3.1/2-3 - -
3.1/2-2.1/2 - -
3.1/2-2 - -
3.1/2-1.1/2 - -
3.1/2-1.1/4 - -
4-3.1/2 - -
4-3 6.4 2.9
4-2.1/2 5.5 2.49
4-2 5.4 2.45
4-1.1/2 5.25 2.38
5-4 12.5 5.67
5-3.1/2 - -
5-3 11 4.99
5-2.1/2 10.5 4.76
5-2 10 4.54
6-5 18.75 8.5
6-4 16.5 7.48
6-3.1/2 - -
6-3 15.5 7.03
6-2.1/2 15 6.8
8-6 31 14.06
8-5 27.2 12.34
8-4 23.5 10.66
8-3.1/2 - -
10-8 57.5 26.08
10-6 54 24.49
10-5 52 23.59
10-4 50 22.68
12-10 96 43.54
12-8 87 39.46
12-6 83 37.65
12-5 80 36.29

Carbon Steel Concentric Reducers Schedule XXS

NPS LBS KG
1-3/4 0.8 0.36
1-1/2 0.75 0.34
1.1/4-1 1 0.45
1.1/4-3/4 1 0.45
1.1/4-1/2 1 0.45
1.1/2-1.1/4 1.5 0.68
1.1/2-1 1.5 0.68
1.1/2-3/4 1.38 0.63
1.1/2-1/2 1.25 0.57
2-1.1/2 2.38 1.08
2-1.1/4 2.25 1.02
2-1 2.15 0.98
2-3/4 2 0.91
2.1/2-2 4 1.81
2.1/2-1.1/2 3.9 1.77
2.1/2-1.1/4 3.6 1.63
2.1/2-1 3.5 1.59
3-2.1/2 6 2.72
3-2 5 2.27
3-1.1/2 4.9 2.22
3-1.1/4 4.75 2.15
3.1/2-3 8 3.63
3.1/2-2.1/2 8 3.63
3.1/2-2 7 3.18
3.1/2-1.1/2 7 3.18
3.1/2-1.1/4 7 3.18
4-3.1/2 9 4.08
4-3 9 4.08
4-2.1/2 8.5 3.86
4-2 8.25 3.74
4-1.1/2 8 3.63
5-4 16 7.26
5-3.1/2 15 6.8
5-3 14.5 6.58
5-2.1/2 13.75 6.24
5-2 14 6.35
6-5 23 10.43
6-4 22 9.98
6-3.1/2 21 9.53
6-3 20 9.07
6-2.1/2 19 8.62
8-6 36 16.33
8-5 35 15.88
8-4 33 14.97
8-3.1/2 32 14.51
Industrial Applications

Carbon Steel Concentric Reducer Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
Are you in search of a reliable manufacturer of Carbon Steel Concentric Reducer in Mumbai, India? We offer high-quality Carbon Steel Buttweld Concentric Reducer at competitive prices.

Carbon Steel Buttweld Concentric Reducer Manufacturing Process

Buttweld Equal Tee Manufacturing Process
whatsapp

Talk to us?
