Carbon Steel Eccentric Reducers

ASTM A234 Carbon Steel Eccentric Reducer, CS Buttweld Eccentric Reducer, Carbon Steel Seamless Eccentric Reducers, CS Eccentric Reducers, ASTM A420 LTCS Eccentric Reducers, Carbon Steel Eccentric Reducers Suppliers, Carbon Steel Butt weld Eccentric Reducers Manufacturers in India.

Carbon Steel Eccentric Reducer is a pipe fitting that is used in the process piping system to reduce pressure from one side of the pipe to another. It provides an alternative to using two separate concentric reducers and offers many advantages, making it an attractive alternative for many industrial applications.

Table of Content

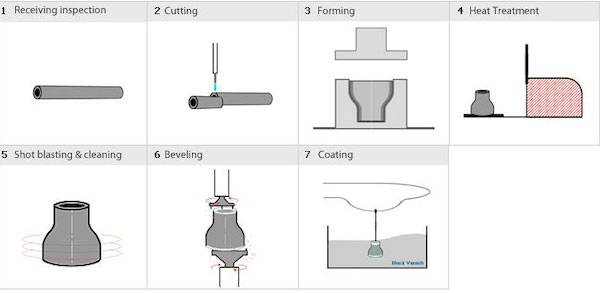

Manufacturing of Butt weld Eccentric Reducers in Factory

ASTM A234 WPB Eccentric Reducers, Carbon Steel BW Eccentric Reducer, Low Temperature Carbon Steel A420 WPL6 Eccentric Reducers, Carbon Steel Eccentric Reducer Manufacturer, Carbon Steel Eccentric Reducers Suppliers In Mumbai.

The use of Carbon Steel Eccentric Reducers can provide significant cost savings, as they are designed to be more compact than their concentric counterparts while providing greater flexibility in terms of installation. They also come in various grades depending on the application at hand, such as stainless steel or low-temperature carbon steels that may be necessary for specific operations like oil refineries or chemical plants.

In addition, these fittings offer excellent corrosion resistance, making them suitable for many applications where traditional materials cannot be used. They are also easy to install and can be joined together quickly with a simple welding process. This reduces the need for additional time spent on installation and minimizes maintenance costs in the long run.

Overall, Carbon Steel Eccentric Reducers offers an ideal solution for many industrial applications requiring specialized fittings that provide cost savings while maintaining quality standards. Their ease of installation, robust construction, and high quality make them an attractive choice for those looking to reduce their operating costs without sacrificing performance.

At Rajdhan Metal, we manufacture and stock these CS Eccentric Reducers in various sizes and specifications and also customize these as per the requirements of the clients at the most reasonable prices.

Manufacturer of Carbon Steel Buttweld Eccentric Reducers in Mumbai, India, CS SMLS Eccentric Reducer, Carbon Steel Eccentric Reducers Exporter in India, ANSI B16.9 CS Eccentric Reducer, ASTM A860 High Yield Carbon Steel Eccentric Reducer.

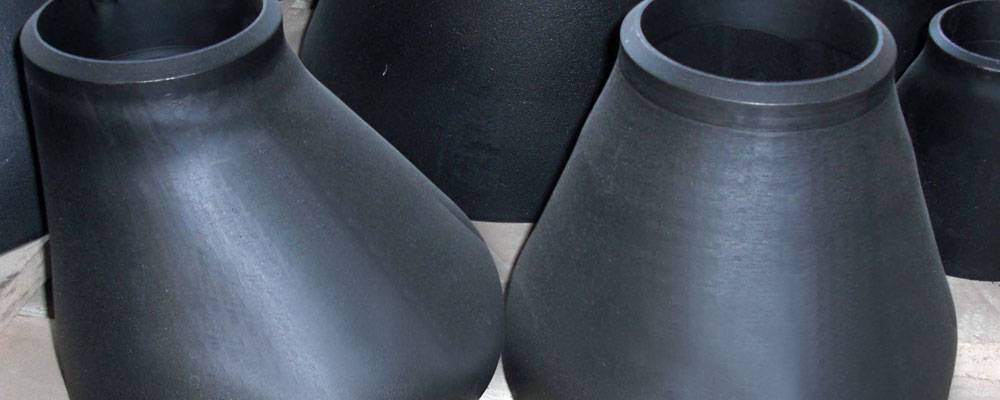

CS Eccentric Reducer
Rajdhan Metal

Carbon Steel Eccentric Reducer Material Specification

Specifications ASTM A234, A860, A420 / ASME SA234, SA860, SA420
Dimensions ANSI/ ASME B16.9, MSS-SP-43, BS4504, BS1560, BS4504, BS10
Size 1/2"NB TO 48"NB IN
Schedule Sch 20, STD, Sch 40, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS
Technical Seamless and Weld Eccentric Reducer
Type Seamless / ERW / Welded / Fabricated
Carbon Steel Grades ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9
Call us to get the latest price list for Carbon Steel Buttweld Eccentric Reducer in Mumbai, Maharashtra. We have special offers available for Carbon Steel Eccentric Reducers with the best price.

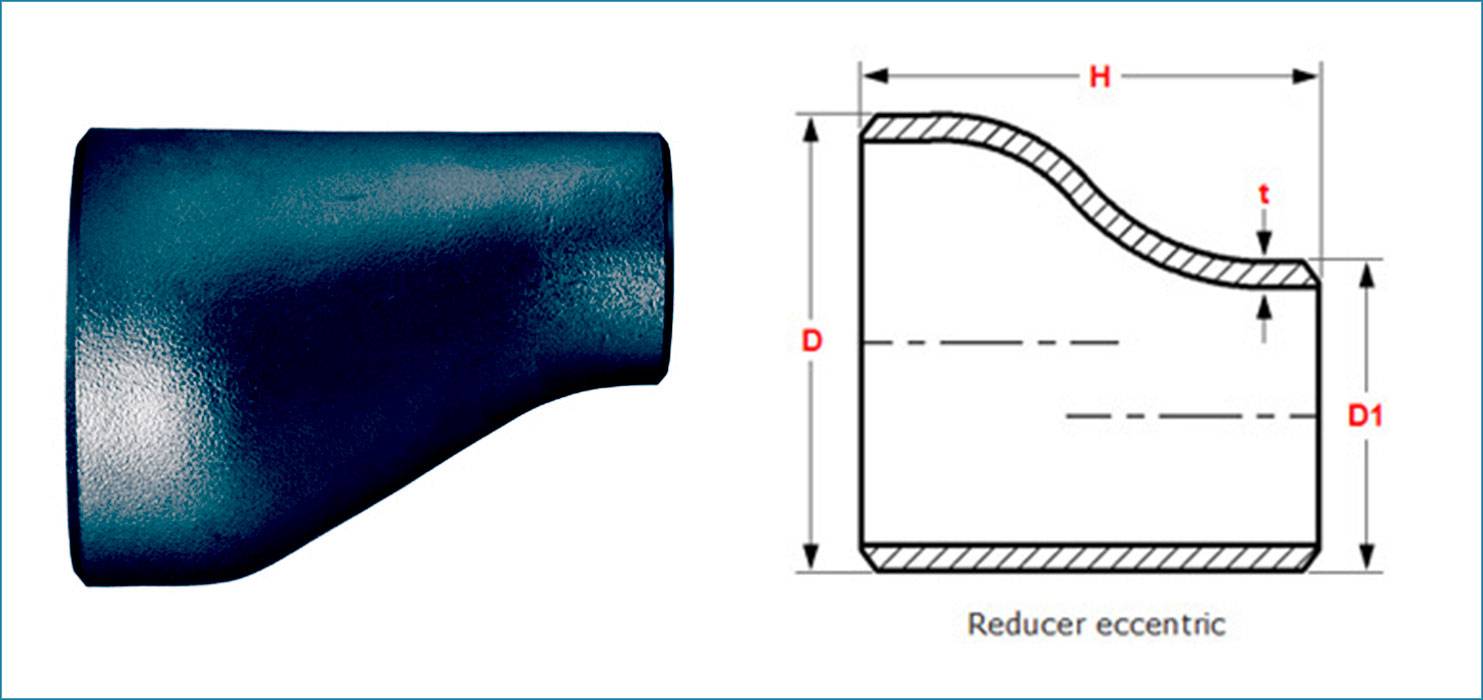

Carbon Steel Eccentric Reducer Dimensions

CS Eccentric Reducer Dimensions
Code RCD REISO Ø BIG Ø SMALL HEIGHT H mm THEORETICAL WEIGHT KG
DN D mm Thickness S mm DN d mm Thickness s mm
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1"1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1"1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 2"1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1"1/4 42.4 2.6 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1"1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2"1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

CS ASME B16.9 Eccentric Reducer Weight Chart


Nominal Diameter		 Outside Diameter
End to End
D1*D2
DN NPS Series A Series B H
20*15 3/4*1/2 26.9*21.3 25*18 38
20*10 3/4*3/8 26.9*17.3 25*14 38
25*20 1*3/4 33.7*26.9 32*25 51
25*15 1*1/2 33.7*21.3 32*18 51
32*25 1.1/4*1 42.4*33.7 38*32 51
32*20 1.1/4*3/4 42.4*26.9 38*25 51
32*15 1.1/4*1/2 42.4*21.3 38*18 51
40*32 1.1/2*1.1/4 48.3*42.4 45*38 64
40*25 1.1/2*1 48.3*33.7 45*32 64
40*20 1.1/2*3/4 48.3*26.9 45*25 64
40*15 1.1/2*1/2 48.3*21.3 45*18 64
50*40 2*1.1/2 60.3*48.3 57*45 76
50*32 2*1.1/4 60.3*42.4 57*38 76
50*25 2*1 60.3*33.7 57*32 76
50*20 2*3/4 60.3*26.9 57*25 76
65*50 2.1/2*2 73.0*60.3 76*57 89
65*40 2.1/2*1.1/2 73.0*48.3 76*45 89
65*32 2.1/2*1.1/4 73.0*42.4 76*38 89
65*25 2.1/2*1 73.0*33.7 76*32 89
80*65 3*2.1/2 88.9*73.0 89*76 89
80*50 3*2 88.9*60.3 89*57 89
80*40 3*1.1/2 88.9*48.3 89*45 89
80*32 3*1.1/4 88.9*42.4 89*38 89
90*80 3.1/2*3 101.6*88.9 - 102
90*65 3.1/2*2.1/2 101.6*73.0 - 102
90*50 3.1/2*2 101.6*60.3 - 102
90*40 3.1/2*1.1/2 101.6*48.3 - 102
90*32 3.1/2*1.1/4 101.6*42.4 - 102
100*90 4*3.1/2 114.3*101.6 - 102
100*80 4*3 114.3*88.9 108*89 102
100*65 4*2.1/2 114.3*73.0 108*76 102
100*50 4*2 114.3*60.3 108*57 102
100*40 4*1.1/2 114.3*48.3 108*45 102
125*100 5*4 141.3*114.3 133*108 127
125*90 5*3.1/2 141.3*101.6 - 127
125*80 5*3 141.3*88.9 133*89 127
125*65 5*2.1/2 141.3*73.0 133*76 127
125*50 5*2 141.3*60.3 133*57 127
150*125 6*5 168.3*141.3 159*133 140
150*100 6*5 168.3*114.3 159*108 140
150*90 6*3.1/2 168.3*101.6 - 140
150*80 6*3 168.3*88.9 159*89 140
150*65 6*2.1/2 168.3*73.0 159*76 140
200*150 8*6 219.1*168.3 219*159 152
200*125 8*5 219.1*141.3 219*133 152
200*100 8*4 219.1*114.3 219*108 152
200*90 8*3.1/2 219.1*101.6 - 152
250*200 10*8 273.0*219.1 273*219 178
250*150 10*6 273.0*168.3 273*159 178
250*125 10*5 273.0*141.3 273*133 178
250*100 10*4 273.0*114.3 273*108 178
300*250 12*10 323.9*273.1 325*273 203
300*200 12*8 323.9*219.1 325*219 203
300*150 12*6 323.9*168.3 325*159 203
300*125 12*5 323.9*141.3 325*133 203
350*300 14*12 355.6*323.9 377*325 330
350*250 14*10 355.6*273.0 377*273 330
350*200 14*8 355.6*219.1 377*219 330
350*150 14*6 355.6*168.3 377*159 330
400*350 16*14 406.4*355.6 426*377 356
400*300 16*12 406.4*323.9 426*325 356
400*250 16*10 406.4*273.0 426*273 356
400*200 16*8 406.4*219.1 426*219 356
450*400 18*16 457*406.4 478*426 381
450*350 18*14 457*355.6 478*377 381
450*300 18*12 457*323.9 478*325 381
450*250 18*10 457*273.0 478*273 381
500*450 20*18 508*457 529*478 508
500*400 20*16 508*406.4 529*426 508
500*350 20*14 508*355.6 529*377 508
500*300 20*12 508*323.9 529*325 508
550*500 22*20 559*508 - 508
550*450 22*18 559*457 - 508
550*400 22*16 559×406.4 - 508
550*350 22*14 559*355.6 - 508
600*550 24*22 610*559 - 508
600*500 24*20 610*508 630*529 508
600*450 24*18 610*457 630*478 508
600*400 24*22 610*406.4 630*426 508
650*600 26*24 660*610 - 610
650*550 26*22 660*559 - 610
650*500 26*20 660*508 - 610
650*450 26*18 660*457 - 610
700*650 28*26 711*660 - 610
700*600 28*24 711*610 720*630 610
700*550 28*22 711*559 - 610
700*500 28*20 711*508 720*530 610
750*700 30*28 762*711 - 610
750*650 30*26 762*660 - 610
750*600 30*24 762*610 - 610
750*550 30*22 762*559 - 610
800*750 32*30 813*762 - 610
800*700 32*28 813*711 820*720 610
800*650 32*26 813*660 - 610
800*600 32*24 813*610 820*630 610
850*800 34*32 864*813 - 610
850*750 34*30 864*762 - 610
850*700 34*28 864*711 - 610
850*650 34*26 864*660 - 610
900*850 36*34 914*864 - 610
900*800 36*32 914*813 920*820 610
900*750 36*30 914*762 - 610
900*700 36*28 914*711 920*720 610
950*900 38*36 965*914 - 610
950*850 38*34 965*864 - 610
950*800 38*32 965*813 - 610
950*750 38*30 965*762 - 610
1000*950 40*38 1016*965 - 610
1000*900 40*36 1016*914 1020*920 610
1000*850 40*34 1016*864 - 610
1000*800 40*32 1016*813 1020*820 610
1050*1000 42*40 1067*1016 - 610
1050*950 42*38 1067*965 - 610
1050*900 42*36 1067*914 - 610
1050*850 42*34 1067*864 - 610
1100*1050 44*42 1118*1067 - 610
1100*1000 44*40 1118*1016 1120*1020 610
1100*950 44*38 1118*965 - 610
1100*900 44*36 1118*914 1220*920 610
1150*1100 46*44 1168*1118 - 711
1150*1050 46*42 1168*1067 - 711
1150*1000 46*40 1168*1016 - 711
1150*950 46*38 1168*965 - 711
1200*1150 48*46 1220*1168 - 711
1200*1100 48*44 1220*1118 1220*1120 711
1200*1050 48*42 1220*1067 - 711
1200*1000 48*40 1220*1016 1220*1020 711

Carbon Steel Dimensional Tolerances of ASME B16 9 Eccentric Reducers

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Searching for a trusted ASME B16.9 Eccentric Reducers manufacturer in India? buy from oldest Carbon Steel Eccentric Reducers manufacturers in Mumbai. Check Carbon Steel Buttweld Eccentric Reducer, CS Butt Weld Eccentric Reducers Suppliers

Specialized in Following ASME B16.9 Carbon Steel Eccentric Reducers

  • Carbon Steel BW Eccentric Reducers Supplier
  • Stockist of Carbon Steel Eccentric Reducers
  • Carbon Steel Butt Weld Sch 40 (Std) Eccentric Reducer
  • Carbon Steel Schedule 40 Eccentric Reducer
  • Standard Carbon Steel Butt Weld Eccentric Reducer
  • Buy Carbon Steel Eccentric Reducer
  • Carbon Steel Eccentric Reducer Manufacturers in Mumbai
  • Carbon Steel Industrial Eccentric Reducers
  • ASTM A234 CS Eccentric Reducers Manufacturer
  • CS Buttweld Pipe Eccentric Reducer
  • High Yield CS A860 Butt weld Eccentric Reducer
  • A234 Gr.WPB Carbon Steel Eccentric Reducers
  • Carbon Steel ASTM A234 Eccentric Reducers Suppliers
  • Buttweld Carbon Steel Eccentric Reducer
  • Carbon Steel Buttweld Eccentric Reducers Supplier in India
  • Supplier of Carbon Steel Buttweld Eccentric Reducers
  • Carbon Steel Pipe Eccentric Reducers Dealer
  • Exporter of Carbon Steel Buttweld Eccentric Reducers
  • A860 High-Yield CS Eccentric Reducers Suppliers
  • Carbon Steel Dimensions Eccentric Reducers ASME B16.9
  • A234 Carbon Steel Eccentric Reducers Supplier
  • Carbon Steel Buttweld Eccentric Reducers Manufacturer
  • Carbon Steel SMLS Eccentric Reducers
  • CS ANSI/ASME B16.9 Buttweld Eccentric Reducers
  • Low Temperature Carbon Steel A420 WPL3 Eccentric Reducer
  • Carbon Steel Eccentric Reducers Manufacturer In India
  • ASTM A420 LTCS Eccentric Reducers Wholesaler

Carbon Steel Eccentric Reducers Price List

astm a234 wpb butt weld dn50 sch40 carbon steel Eccentric reducers FOB Price: US$ 0.30 - 55.00 / Piece
2" x 3/4" asme b16.9 cs butt weld Eccentric reducer FOB Price: US$ 13.00 - 18.00 / Piece
carbon steel a234 wpb Eccentric reducer dimensions FOB Price: US$ 2.70 - 14.00 / Piece
low temperture carbon steel Eccentric reducers FOB Price: US$ 3.00 - 4.00 / Piece
carbon steel asme b16.9 Eccentric reducer sch 40 FOB Price: US$ 5.00 - 7.00 / Piece
asme b16.9 dimension of cs Eccentric reducers FOB Price: US$ 3.00 - 500.00 / Piece
carbon steel Eccentric reducer sch40 pipe fittings FOB Price: US$ 2.00 - 160.00 / Piece
1/2" to 24" Eccentric carbon steel reducers FOB Price: US$ 5.00 - 150.00 / Piece
Eccentric reducer sch 40 high yield carbon steel FOB Price: US$ 20.00 / 180.00 Piece
schedule xxs astm a234 dn50 carbon steel Eccentric reducer FOB Price: US$ 15.00 / 330.00 Piece
a234 gr.wpb carbon steel Eccentric reducers FOB Price: US$ 3.00 - 220.00 / Piece
astm a420 wpl6 low temperature carbon steel Eccentric reducers FOB Price: US$ 4.00 - 500.00 / Piece

Carbon Steel Eccentric Reducers Schedule Std

NPS LBS KG
3/4-1/2 0.17 0.08
3/4-3/8 0.15 0.07
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1.1/4 0.7 0.32
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-2 1.5 0.68
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79

Carbon Steel Eccentric Reducers Schedule XS

NPS LBS KG
3/4-1/2 0.22 0.1
3/4-3/8 0.2 0.09
1-3/4 0.45 0.2
1-1/2 0.45 0.2
1.1/4-1 0.5 0.23
1.1/4-3/4 0.5 0.23
1.1/4-1/2 0.5 0.23
1.1/2-1.1/4 0.78 0.35
1.1/2-1 0.75 0.34
1.1/2-3/4 0.7 0.32
1.1/2-1/2 0.65 0.29
2-1.1/2 1.2 0.54
2-1.1/4 1.15 0.52
2-1 1.1 0.5
2-3/4 1 0.45
2.1/2-2 2 0.91
2.1/2-1.1/2 1.9 0.86
2.1/2-1.1/4 1.85 0.84
2.1/2-1 1.75 0.79
3-2.1/2 2.75 1.25
3-2 2.6 1.18
3-1.1/2 2.5 1.13
3-1.1/4 2.4 1.09
3.1/2-3 4 1.81
3.1/2-2.1/2 3.5 1.59
3.1/2-2 3.5 1.59
3.1/2-1.1/2 3.25 1.47
3.1/2-1.1/4 3.25 1.47
4-3.1/2 4.75 2.15
4-3 4.5 2.04
4-2.1/2 4.38 1.99
4-2 4.25 1.93
4-1.1/2 4 1.81
5-4 8.25 3.74
5-3.1/2 7.75 3.52
5-3 7.5 3.4
5-2.1/2 7 3.18
5-2 6.5 2.95
6-5 12 5.44
6-4 11.5 5.22
6-3.1/2 11 4.99
6-3 10.5 4.76
6-2.1/2 10 4.54
8-6 18.7 8.48
8-5 18 8.16
8-4 17 7.71
8-3.1/2 16.5 7.48
10-8 29.5 13.38
10-6 29.5 13.38
10-5 28 12.7
10-4 25.5 11.57
12-10 43.5 19.73
12-8 42 19.05
12-6 40 18.14
12-5 39 17.69
14-12 80 36.29
14-10 79.2 35.92
14-8 78.5 35.61
14-6 78 35.38
16-14 91 41.28
16-12 90 40.82
16-10 89 40.37
16-8 88.5 40.14
16-6 - -
18-16 115 52.16
18-14 114 51.71
18-12 113 51.26
18-10 112 50.8
18-8 - -
20-18 170 77.11
20-16 169 76.66
20-14 168 76.2
20-12 167 75.75
20-10 - -
20-8 - -
22-20 186 84.37
22-18 182 82.55
22-16 173 78.47
22-14 163 73.94
22-12 - -
22-10 - -
24-22 - -
24-20 200 90.72
24-18 195 88.45
24-16 190 86.18
24-14 - -
24-12 - -
24-10 - -
26-24 276 125.19
26-22 272 123.38
26-20 253 114.76
26-18 242 109.77
26-16 - -
26-14 - -
26-12 - -
28-26 299 135.62
28-24 288 130.63
28-22 250 113.4
28-20 264 119.75
30-28 322 146.06
30-26 310 140.61
30-24 299 135.62
30-22 285 129.27
30-20 274 124.28

Carbon Steel Eccentric Reducers Schedule 160

NPS LBS KG
3/4-1/2 0.28 0.13
3/4-3/8 0.24 0.11
1-3/4 0.5 0.23
1-1/2 0.5 0.23
1.1/4-1 0.65 0.29
1.1/4-3/4 0.65 0.29
1.1/4-1/2 0.6 0.27
1.1/2-1.1/4 0.95 0.43
1.1/2-1 0.8 0.36
1.1/2-3/4 0.75 0.34
1.1/2-1/2 0.73 0.33
2-1.1/2 1.6 0.73
2-1.1/4 1.5 0.68
2-1 1.5 0.68
2-3/4 1.45 0.66
2.1/2-2 2.5 1.13
2.1/2-1.1/2 2.25 1.02
2.1/2-1.1/4 2.25 1.02
2.1/2-1 2.2 1
3-2.1/2 3.7 1.68
3-2 3.4 1.54
3-1.1/2 3.2 1.45
3-1.1/4 3.1 1.41
3.1/2-3 - -
3.1/2-2.1/2 - -
3.1/2-2 - -
3.1/2-1.1/2 - -
3.1/2-1.1/4 - -
4-3.1/2 - -
4-3 6.4 2.9
4-2.1/2 5.5 2.49
4-2 5.4 2.45
4-1.1/2 5.25 2.38
5-4 12.5 5.67
5-3.1/2 - -
5-3 11 4.99
5-2.1/2 10.5 4.76
5-2 10 4.54
6-5 18.75 8.5
6-4 16.5 7.48
6-3.1/2 - -
6-3 15.5 7.03
6-2.1/2 15 6.8
8-6 31 14.06
8-5 27.2 12.34
8-4 23.5 10.66
8-3.1/2 - -
10-8 57.5 26.08
10-6 54 24.49
10-5 52 23.59
10-4 50 22.68
12-10 96 43.54
12-8 87 39.46
12-6 83 37.65
12-5 80 36.29

Carbon Steel Eccentric Reducers Schedule XXS

NPS LBS KG
1-3/4 0.8 0.36
1-1/2 0.75 0.34
1.1/4-1 1 0.45
1.1/4-3/4 1 0.45
1.1/4-1/2 1 0.45
1.1/2-1.1/4 1.5 0.68
1.1/2-1 1.5 0.68
1.1/2-3/4 1.38 0.63
1.1/2-1/2 1.25 0.57
2-1.1/2 2.38 1.08
2-1.1/4 2.25 1.02
2-1 2.15 0.98
2-3/4 2 0.91
2.1/2-2 4 1.81
2.1/2-1.1/2 3.9 1.77
2.1/2-1.1/4 3.6 1.63
2.1/2-1 3.5 1.59
3-2.1/2 6 2.72
3-2 5 2.27
3-1.1/2 4.9 2.22
3-1.1/4 4.75 2.15
3.1/2-3 8 3.63
3.1/2-2.1/2 8 3.63
3.1/2-2 7 3.18
3.1/2-1.1/2 7 3.18
3.1/2-1.1/4 7 3.18
4-3.1/2 9 4.08
4-3 9 4.08
4-2.1/2 8.5 3.86
4-2 8.25 3.74
4-1.1/2 8 3.63
5-4 16 7.26
5-3.1/2 15 6.8
5-3 14.5 6.58
5-2.1/2 13.75 6.24
5-2 14 6.35
6-5 23 10.43
6-4 22 9.98
6-3.1/2 21 9.53
6-3 20 9.07
6-2.1/2 19 8.62
8-6 36 16.33
8-5 35 15.88
8-4 33 14.97
8-3.1/2 32 14.51
Industrial Applications

Carbon Steel Eccentric Reducer Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
Are you in search of a reliable manufacturer of Carbon Steel Eccentric Reducer in Mumbai, India? We offer high-quality Carbon Steel Buttweld Eccentric Reducer at competitive prices.

Carbon Steel Buttweld Eccentric Reducer Manufacturing Process

Buttweld Equal Tee Manufacturing Process
whatsapp

Talk to us?
