Carbon Steel Equal Cross

Carbon Steel Buttweld Equal Cross, ASTM A420 LTCS Equal Cross, Carbon Steel Equal Pipe Cross Suppliers, ASTM A234 Carbon Steel Equal Cross, Carbon Steel Seamless Equal Cross, Carbon Steel Butt weld Pipe Equal Cross Manufacturers in India.

Rajdhan Metal is a well-known leader in the manufacturing, exporting, distributing, and providing of Carbon Steel Equal Cross, which have advantages such as minimal maintenance and high strength. We are one of the leading manufacturers, exporters, and traders of Carbon Steel Equal Cross, which is widely used for fluid conveyance in critical high temperatures and general applications. Our Carbon Steel Equal Cross are utilised in process instrumentation and general engineering and is available in a variety of sizes and diameters.

Table of Content
Manufacturing of Pipe Equal Cross in Factory

ASTM A234 WPB Equal Cross, CS Equal Cross, Carbon Steel Equal Cross Manufacturer, Carbon Steel BW Equal Cross, CS Equal Pipe Cross, Low Temperature Carbon Steel A420 WPL3 Equal Cross, Carbon Steel Equal Cross Suppliers In Mumbai.

These CS Equal Cross are created with the assistance of our skilled specialists utilising high-grade steel and cutting-edge machines following industry quality requirements. We are fabricators of Equal Cross based on the specifications supplied by our clients, and we supply them within the time limit specified by our clients. We provide the whole spectrum of Equal Cross in various customizable choices and at market-leading pricing, by industry standards.

Advantages of Carbon Steel Equal Cross:

  • High-temperature resistance: the maximum sustained working temperature of Carbon Steel Equal Cross is up to 70 degrees Fahrenheit, and the maximum transient temperature is up to 95 degrees Fahrenheit.
  • Heat conservation: poor thermal conductivity results in heat conservation.
  • Non-toxic: no heavy metal additions, no dirt accumulation, no bacterial contamination
  • Lower installation costs: Because of the lightweight and simplicity of installation, installation expenses can be reduced.
  • Smooth inner walls result in reduced pressure loss and great flow capacity.

Uses of Carbon Steel Equal Cross:

Carbon Steel Equal Cross are utilised in a variety of sectors including mining, paint and food processing, chemical and effluent treatment, distilleries, sugar, dairies and breweries, paper, ceramics, cosmetics, paper coating plant, pharmaceuticals, and others. Carbon Steel Equal Cross are also utilised in the air conditioning industry, boiler industries, aluminium industries, iron and steel industries, construction industries, cement industries, nuclear, thermal, and power plants, and so on.

ASTM A860 High Yield CS Equal Cross, Carbon Steel Equal Cross Exporter in India, CS SMLS Equal Cross, Low Temperature Steel A420 WPL6 Equal Cross, ANSI B16.9 Carbon Steel Equal Cross, Manufacturer of Carbon Steel Butt weld Equal Cross in Mumbai, India.

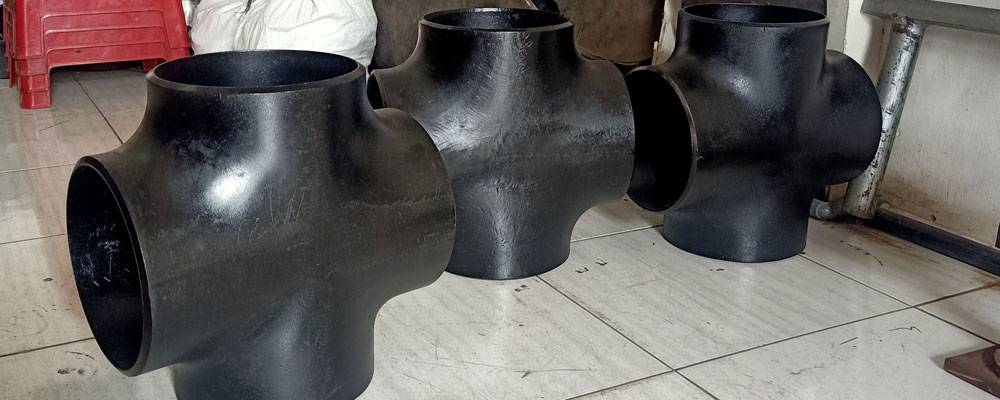

CS Buttweld Equal Cross
Rajdhan Metal

Carbon Steel Equal Cross Material Specification

Specifications ASTM A234, A860, A420 / ASME SA234, SA860, SA420
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size 1/2"~24"
Schedule Sch 20, STD, Sch 40, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS
Type Seamless / ERW / Welded / Fabricated
Carbon Steel Grades ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9
ERW / Welded / Fabricated Equal Cross Size 1/2" (15 NB) to 48" (1200NB)
Call us to get the latest price list for Carbon Steel Buttweld Equal Cross in Mumbai, Maharashtra. We have special offers available for CS Equal Cross with the best price.

Carbon Steel ASME B16.9 Buttweld Equal Cross Dimensions

Nominal Pipe Size (NPS)

DN

 Outside Diameter at Bevel

Center- to-End

Run.C

 Outlet. M[Notes(1) and (2)]
1/2 15 21.3 25 25
3/4 20 26.7 29 29
1 25 33.4 38 38
1-1/4 32 42.2 48 48
1-1/2 40 48.3 57 57
2 50 60.3 64 64
2-1/2 65 73.0 76 76
3 80 88.9 86 86
3-1/2 90 101.6 95 95
4 100 114.3 105 105
5 125 141.3 124 124
6 150 168.3 143 143
8 200 219.1 178 178
10 250 273.0 216 216
12 300 323.8 254 254
14 350 355.6 279 279
16 400 406.4 305 305
18 450 457 343 343
20 500 508 381 381
22 550 559 419 419
24 600 610 432 432
26 650 660 495 495
28 700 711 521 521
30 750 762 559 559
32 800 813 597 597
34 850 864 635 635
36 900 914 673 673
38 950 965 711 711
40 1000 1016 749 749
42 1050 1067 762 711
44 1100 1118 813 762
46 1150 1168 851 800
48 1200 1219 889 838

Carbon Steel ASME B16.9 Equal Cross Dimensional Tolerance

Nominal Pipe Size 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)		 + 1.6
– 0.8		 1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)		 + 4
– 3.2		 + 6.4
– 4.8		 + 6.4
– 4.8		 + 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8		 + 6.4
– 4.8
Overall Length (H) 2 2 5 5
Wall Thickness (t) Not less than 87.5% of Nominal Wall Thickness

Carbon Steel ASME B16.9 Reducing Cross Dimensions

Carbon Steel Reducing Cross
Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
1*15 1/*1/2 21.3 18 21.3 18 25 25
1*10 1/*3/8 21.3 18 17.3 14 25 25
1*8 1/*1/4 21.3 18 13.7 10 25 25
2*20 3/*3/4 26.9 25 26.9 25 29 29
2*15 3/*1/2 26.9 25 21.3 18 29 29
2*10 3/*3/8 26.9 25 17.3 14 29 29
2*25 *1 33.7 32 33.7 32 38 38
2*20 *3/4 33.7 32 26.9 25 38 38
2*15 *1/2 33.7 32 21.3 18 38 38
3*32 1.1/*1.1/4 42.4 38 42.4 38 48 48
3*25 1.1/*1 42.4 38 33.7 32 48 48
3*20 1.1/*3/4 42.4 38 26.9 25 48 48
3*15 1.1/*1/2 42.4 38 21.3 18 48 48
4*40 1.1/*1.1/2 48.3 45 48.3 45 57 57
4*32 1.1/*1.1/4 48.3 45 42.4 38 57 57
4*25 1.1/*1 48.3 45 33.7 32 57 57
4*20 1.1/*3/4 48.3 45 26.9 25 57 57
4*15 1.1/*1/2 48.3 45 21.3 18 57 57
5*50 *2 60.3 57 60.3 57 64 64
5*40 *1.1/2 60.3 57 48.3 45 64 60
5*32 *1.1/4 60.3 57 42.4 38 64 57
5*25 *1 60.3 57 33.7 32 64 51
5*20 *3/4 60.3 57 26.9 25 64 44
6*65 2/1/*2.1/2 73.0 76 73.0 76 76 76
6*50 2/1/*2 73.0 76 60.3 57 76 70
6*40 2/1/*1.1/2 73.0 76 48.3 45 76 67
6*32 2/1/*1.1/4 73.0 76 42.4 38 76 64
6*25 2/1/*1 73.0 76 33.7 32 76 57
8*80 *3 88.9 89 88.9 89 86 86
8*65 *2.1/2 88.9 89 73.0 76 86 83
8*50 *2 88.9 89 60.3 57 86 76
8*40 *1.1/2 88.9 89 48.3 45 86 73
8*32 *1.1/4 88.9 89 42.4 38 86 70
9*90 3.1/*3.1/2 101.6 – 101.6 – 95 95
9*80 3.1/*3 101.6 – 88.9 89 95 92
9*65 3.1/*2.1/2 101.6 – 73.0 76 95 89
9*50 3.1/*2 101.6 – 60.3 57 95 83
9*40 3.1/*1.1/2 101.6 – 48.3 45 95 79
10*100 *4 114.3 108 114.3 108 105 105
10*90 *3.1/2 114.3 108 101.6 – 105 102
10*80 *3 114.3 108 88.9 89 105 98
10*65 *2.1/2 114.3 108 73.0 76 105 95
10*50 *2 114.3 108 60.3 57 105 89
10*40 *1.1/2 114.3 108 48.3 45 105 86
12*125 *5 141.3 133 141.3 133 124 124
12*100 *4 141.3 133 114.3 108 124 117
12*90 *3.1/2 141.3 – 101.6 – 124 114
12*80 *3 141.3 133 88.9 89 124 111
12*65 *2.1.2 141.3 133 73.0 76 124 108
12*50 *2 141.3 133 60.3 57 124 105
15*150 *6 168.3 159 168.3 159 143 143
15*125 *5 168.3 159 141.3 133 143 137
15*100 *4 168.3 159 114.3 108 143 130
15*90 *3.1/2 168.3 – 101.6 – 143 127
15*80 *3 168.3 159 88.9 89 143 124
15*65 *2.1/2 168.3 159 73.0 76 143 121
20*200 *8 219.1 219 219.1 219 178 178
20*150 *6 219.1 219 168.3 159 178 168
20*125 *5 219.1 219 141.4 133 178 162
20*100 *4 219.1 219 114.3 108 178 156
20*90 *3.1/2 219.1 – 101.6 – 178 152
25*250 1*10 273.0 273 273.0 273 216 216
25*200 1*8 273.0 273 219.1 219 216 203
25*150 1*6 273.0 273 168.3 159 216 194
25*125 1*5 273.0 273 141.3 133 216 191
25*100 1*4 273.0 273 114.3 108 216 184
30*300 1*12 323.9 325 323.9 325 254 254
30*250 1*10 323.9 325 273.0 273 254 241
30*200 1*8 323.9 325 219.1 219 254 229
30*150 1*6 323.9 325 168.3 159 254 219
30*125 1*5 323.9 325 141.3 133 254 216
35*350 1*14 355.6 377 355.6 377 279 279
35*300 1*12 355.6 377 323.9 325 279 270
35*250 1*10 355.6 377 273.0 273 279 257
35*200 1*8 355.6 377 219.1 219 279 248
35*150 1*6 355.6 377 168.3 159 279 238
40*400 1*16 406.4 426 406.4 426 305 305
40*350 1*14 406.4 426 355.6 377 305 305
40*300 1*12 406.4 426 323.9 325 305 295
40*250 1*10 406.4 426 273.0 273 305 283
40*200 1*8 406.4 426 219.1 219 305 273
40*150 1*6 406.4 426 168.3 159 305 264
45*450 1*18 457 480 457 480 343 343
45*400 1*16 457 480 406.4 426 343 330
45*350 1*14 457 480 355.6 377 343 330
45*300 1*12 457 480 323.9 325 343 321
45*250 1*10 457 480 273.0 273 343 308
45*200 1*8 457 480 219.1 219 343 298
50*500 2*20 508 530 508 530 381 381
50*450 2*20 508 530 457 480 381 368
50*400 2*20 508 530 406.4 426 381 356
50*350 2*20 508 530 355.6 377 381 356
50*300 2*20 508 530 323.9 325 381 346
50*250 2*20 508 530 273.0 273 381 333
50*200 2*20 508 530 219.1 219 381 324

Looking to buy from ASME B16.9 Buttweld Equal Cross manufacturer in India? buy from oldest Carbon Steel Equal Cross manufacturers in Mumbai. A leading Carbon Steel Equal Cross, CS Equal Cross supplier

Specialized in Following ASME B16.9 Carbon Steel Buttweld Equal Cross

  • Carbon Steel Schedule 40 Seamless Equal Cross
  • Carbon Steel Sch 40 Equal Cross
  • CS Buttweld Pipe Equal Cross
  • High Yield CS A860 Buttweld Equal Cross
  • Buy Carbon Steel Butt weld Pipe Equal Cross
  • Carbon Steel Industrial Buttweld Equal Cross
  • ASTM A234 CS Pipe Equal Cross Manufacturer
  • Carbon Steel Butt Weld Sch 40 (Std) Equal Cross
  • Stockist of Carbon Steel Buttweld Equal Cross
  • Carbon Steel ASTM A234 Pipe Equal Cross Suppliers
  • Buttweld Carbon Steel Equal Cross
  • A234 Gr.WPB Carbon Steel Equal Cross
  • Dimensions Butt Weld Equal Cross ASME B16.9
  • A234 Carbon Steel Equal Cross Supplier
  • Carbon Steel Buttweld Equal Cross Manufacturer
  • ANSI/ASME B16.9 Buttweld Equal Cross
  • Supplier of Carbon Steel Buttweld Pipe Equal Cross
  • Carbon Steel Equal Pipe Cross Dealer
  • Exporter of Carbon Steel Buttweld Equal Cross
  • Carbon Steel Pipe Equal Cross Manufacturer In India
  • ASTM A420 LTCS Equal Cross Wholesaler
  • Carbon Steel Equal Pipe Cross
  • Carbon Steel Buttweld Equal Cross Supplier in India
  • A860 High-Yield CS Equal Cross Suppliers

Carbon Steel Buttweld Equal Cross Price List


SCH40 Equal Cross Price Carbon Steel Pipe Fittings FOB Price: US$ 5.80 - 10.00 / Piece
3 inch Carbon Steel Seamless Equal Cross FOB Price: US$ 4.00 - 500.00 / Piece
Buttweld 1/2" - 24" Carbon Steel Equal Cross FOB Price: US$ 0.85 / Piece
CS Butt Weld Pipe Equal Cross FOB Price: US$ 4.00 - 150.00 / Piece
a234 wpb Carbon Steel Equal Cross FOB Price: US$ 4.00 - 3.00 / Piece
ANSI B16.9 Dimension of CS Equal Cross FOB Price: US$ 3.00 - 300.00 / Piece
A106 Dn50 Sch80 Equal Balck Carbon Steel Cross FOB Price: US$ 0.40 - 78.00 / Piece
ASTM A420 WPL6 Low Temperature Carbon Steel Equal Cross FOB Price: US$ 4.00 - 500.00 / Piece
High Yield Carbon Steel Butt weld Equal Cross Big Size FOB Price: US$ 3.00 - 4.00 / Piece
Carbon Steel Large Diameter Pipe Equal Cross FOB Price: US$ 2.00 - 5.00 / Piece

Carbon Steel Buttweld Equal Cross Weight Chart

  Nominal pipe size in SCH 10 SCH 20 SCH 30

SCH 40
wall thk mm weight kg weight kg wall thk mm weight kg weight kg wall thk mm weight kg weight kg wall thk mm weight kg weight kg
  T     T     T

T




1″

3.38



0.34
1.1/4″

3.68



0.92
1/2″

2.77



0.21
3/4″

2.87



0.21







1.1/2″

3.56



0.63
2″

3.91



1.49
2.1/2″

5.16



2.68
3″

5.49



3.75
3.1/2″

5.74



5
4″

6.02



6.5
5″

6.55



10
6″

7.11



16
8″       6.35   23 7.04   24.6

8.18



27
10″       6.35   34.7 7.8   40

9.27



41
12″       6.35   43.4 8.38   56.6

10.31



70.5
14″ 6.35   68 7.92   84 9.53   102

11.13



105
16″ 6.35   90.8 7.92   100 9.53   110

12.7



167







18″ 6.35   93.1 9.53   127 11.13   164

14.27



237.45
20″ 6.35   112 9.53   168 12.7   245

15.09



320
22″ 6.35   146 9.53   220 12.7   280






24″ 6.35   160 12.7   240 14.27   373

17.48



570.65
26″ 7.92   293.28 12.7   360.2






28″ 7.92   280.98 12.7   421 15.88   526.25






30″ 7.92   322.64 12.7   483.1 15.88   603.75






32″ 7.92   375.23 12.7   559 15.88   698.75

17.48



768.6
34″ 7.92   482.72 12.7   644.1 15.88   805.13

17.48



885.65
36″ 7.92   488.3 12.7   730.3 15.88   912.88

19.05



1004.17
Industrial Applications

Carbon Steel Pipe Equal Cross Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
Are you in search of a reliable manufacturer of Carbon Steel Pipe Equal Cross in Mumbai, India? We offer high-quality Carbon Steel Buttweld Equal Cross at competitive prices.
