Carbon Steel Pipe Elbow
Carbon Steel Long Radius Pipe Elbows, CS Short Radius Pipe Elbows, Carbon Steel Pipe Elbows Suppliers, Carbon Steel Seamless Elbow, Carbon Steel Buttweld Elbow, ASTM A234 Carbon Steel Pipe Elbow, Carbon Steel Pipe Elbow Manufacturers in India.
Carbon steel pipe elbow is an essential component in many piping systems and its features & applications make this product a must-have for any industry. This material has excellent mechanical properties, making it the ideal choice for high-pressure and temperature applications. Its flexibility allows for easy installation, while its corrosion resistance provides long-term protection against weather elements. Carbon steel pipe elbows are widely used in petrochemical plants, oil refineries, power plants, and water treatment facilities due to their versatility and strength. Moreover, they can be custom designed to suit the specific needs of various industries. These products are available in a variety of diameters and wall thicknesses to meet the requirements of different projects. With our carbon steel pipe elbow solutions, you can ensure reliable performance and efficient operations for years to come.
Table of Content
- What is Carbon Steel Elbow?
- Carbon Steel Pipe Elbow Specification
- Carbon Steel Pipe Elbow Types
- Carbon Steel ASME / ANSI B16.9 Dimension
- Carbon Steel ASTM A420 Elbow
- Dimensions of CS 90 Deg. Elbow & 45 Deg. Pipe Elbow
- Dimensional Tolerances Of Pipe Elbows - 45° / 90° - LR and 3D - ASME B16.9
- Standard Carbon Steel Long Radius Elbow Dimensions
- ASME B16.9 Carbon Steel Long Radius Elbow Dimensions
- CS 22.5 Degree Elbow Carbon Steel Dimensions
- Specialized in Following ASME B16.9 Elbows
- Carbon Steel Pipe Elbow Price List
- Weight of Carbon Steel Pipe Elbow
- CS Pipe Elbow Industrial Applications
- Carbon Steel Pipe Elbow Manufacturing Process
SMLS SCH 80 Carbon Steel Elbow, ASTM A234 WPB Elbow, CS Pipe Elbow, ASTM A420 LTCS Pipe Elbow Manufacturer in Mumbai, Carbon Steel Reducing Elbow, Carbon Steel Pipe Elbows Suppliers In Mumbai.
These custom-designed pipe elbows combine the strength of carbon steel with a corrosion-resistant coating, making them suitable for even the harshest environments. Our products are perfect for heavy-duty applications such as oil refineries, power plants, and water treatment facilities due to their high impact resistance and durability. In addition, our team can manufacture your desired pipe elbow in various shapes and sizes to meet all of your specifications.
No matter what kind of project you have in mind, we guarantee that our carbon steel pipe elbow solutions will provide reliable performance and long-term protection against weather elements. With its superior mechanical properties and flexible installation options, this product is sure to be an excellent choice for any industry.
Manufacturer of Carbon Steel Butt weld Pipe Elbow in Mumbai, India, ASTM A860 High Yield Carbon Steel Elbow, Carbon Steel ANSI / ASME B16.9 Long Radius Elbow, Carbon Steel Butt weld Elbow Exporter in India.
Carbon Steel Pipe Elbow Material Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Carbon Steel Pipe Elbow Sizes | 1/2 to 56 inches (DN 15 to DN 1,400mm), 22.5 Deg, 45 Deg, 90 Deg, 180 Deg |
| Schedule | Sch 20, 40, STD, 80, 160, XXS |
| Carbon Steel Grades | ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9 |
| Types of Elbow in Piping | Seamless Elbow and Weld Elbow |
Carbon Steel Pipe Elbow Types
Check Price List and Dimensions of Carbon Steel Seamless Pipe Elbow.
ASME / ANSI B16.9 Dimension of Carbon Steel Elbow
| Nominal | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
| Pipe Size |
Long Radius | Short Radius | Long Radius | Long Radius | ||||
| (inches) | (mm) | (inches) | Center to Face | Center to Face | Center to Face | Radius | Center to Center | Back to face |
| (inches) | (inches) | (inches) | (inches) | (inches) | (inches) | |||
| 1/2 | 21.3 | 0.84 | 1.5 | – | 5/8 | 2 | 1.875 | |
| 3/4 | 26.7 | 1.05 | 1.125 | – | 7/16 | 2.25 | 1.6875 | |
| 1 | 33.4 | 1.315 | 1.5 | 1 | 7/8 | 3 | 2.1875 | |
| 1.25 | 42.2 | 1.66 | 1.875 | 1.25 | 1 | 3.75 | 2.75 | |
| 1.5 | 48.3 | 1.9 | 2.25 | 1.5 | 1.125 | 3 | 4.5 | 3.25 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1.375 | 4 | 6 | 4.1875 |
| 2.5 | 73 | 2.875 | 3.75 | 2.5 | 1.75 | 5 | 7.5 | 5.1875 |
| 3 | 88.9 | 3.5 | 4.5 | 3 | 2 | 6 | 9 | 6.25 |
| 3.5 | 101.6 | 4 | 5.25 | 3.5 | 2.25 | 7 | 10.5 | 7.25 |
| 4 | 114.3 | 4.5 | 6 | 4 | 2.5 | 8 | 12 | 8.25 |
| 5 | 141.3 | 5.563 | 7.5 | 5 | 3.125 | 10 | 15 | 10.3125 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3.75 | 12 | 18 | 12.3125 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16.3125 |
| 10 | 273.1 | 10.75 | 15 | 10 | 6.25 | 15 | 30 | 20.375 |
| 12 | 323.9 | 12.75 | 18 | 12 | 7.5 | 18 | 36 | 24.375 |
Carbon Steel ASTM A420 Elbow
| Carbon Steel Elbow Material Grade | Type | CS Elbow Seamless Chemical composition | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | S | P | Mn | Cr | Ni | Mo | Other | ób | ós | ||
| WPL6 Elbow | 0.3 | 0.15-0.3 | 0.04 | 0.035 | 0.6-1.35 | 0.3 | 0.4 | 0.12 | Cb:0.02;V:0.08 | 415-585 | 240 | 22 |
| WPL9 Elbow | 0.2 | 0.03 | 0.03 | 0.4-1.06 | 1.6-2.24 | 435-610 | 315 | 20 | ||||
| WPL3 Elbow | 0.2 | 0.13-0.37 | 0.05 | 0.05 | 0.31-0.64 | 3.2-3.8 | 450-620 | 240 | 22 | |||
| WPL8 Elbow | 0.13 | 0.13-0.37 | 0.03 | 0.03 | 0.9 | 8.4-9.6 | 690-865 | 515 | 16 | |||

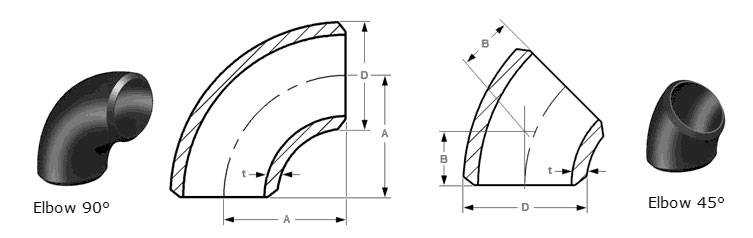

Dimensions of Carbon Steel 90 Degree Elbow & 45 Degree Elbow
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B |
90° 3D Center to End A |
45° 3D Center to End B |
|---|---|---|---|---|---|
| 1/2 | 21.3 | 38 | 16 | ||
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1.1/4 | 42.2 | 48 | 25 | 95 | 39 |
| 1.1/2 | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2.1/2 | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3.1/2 | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 946 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
Dimensional Tolerances Of Butt Weld Elbows - 45° And 90° - LR and 3D - ASME B16.9
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 |
| Outside Diameter at Bevel (D) |
+ 1.6 - 0.8 |
1.6 | 1.6 | + 2.4 - 1.6 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 |
| Center to End LR (A/B) | 2 | 2 | 2 | 2 |
| Center to End 3D (A/B) | 3 | 3 | 3 | 3 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 - 3.2 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Inside Diameter at End | 3.2 | 4.8 | + 6.4 - 4.8 |
+ 6.4 - 4.8 |
| Center to End LR (A/B) | 2 | 2 | 3 | 5 |
| Center to End 3D (A/B) | 3 | 3 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||

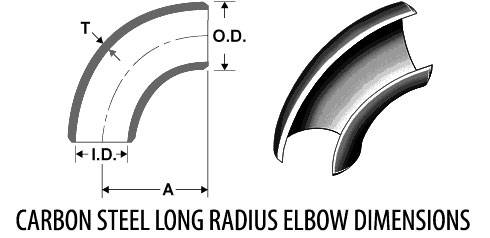

Standard Carbon Steel Long Radius Elbow Dimensions
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Center To End |
Pipe Schedule |
Weight Pounds |
|---|---|---|---|---|---|---|
| 1/2 | 0.84 | 0.622 | 0.109 | 1.5 | 40 | 0.16 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.5 | 40 | 0.17 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.4 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 40 | 0.55 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0.154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 3.75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0.216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0.226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0.237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.05 | 0.258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0.28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0.322 | 12 | 40 | 47.8 |
| 10 | 10.75 | 10.02 | 0.365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0.375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0.375 | 21 | 30 | 155 |
| 16 | 16 | 15.25 | 0.375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0.375 | 30 | 20 | 324 |
| 24 | 24 | 23.25 | 0.375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0.375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0.375 | 54 | * | 1,039 |
| 42 | 42 | 41.25 | 0.375 | 63 | * | 1,420 |
| 48 | 48 | 47.25 | 0.375 | 72 | * | 2,000 |
ASME B16.9 Carbon Steel Long Radius Elbow Dimensions
| Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness |
Center To End |
Pipe Schedule |
Weight Pounds |
|---|---|---|---|---|---|---|
| 1/2 | 0.84 | 0.546 | 0.147 | 1.5 | 80 | 0.26 |
| 3/4 | 1.05 | 0.742 | 0.154 | 1.5 | 80 | 0.29 |
| 1 | 1.32 | 0.957 | 0.179 | 1.5 | 80 | 0.48 |
| 1 1/4 | 1.66 | 1.27 | 0.191 | 1.88 | 80 | 0.79 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 2.25 | 80 | 1.2 |
| 2 | 2.37 | 1.93 | 0.218 | 3 | 80 | 2.1 |
| 2 1/2 | 2.88 | 2.32 | 0.276 | 3.75 | 80 | 3.8 |
| 3 | 3.5 | 2.9 | 0.3 | 4.5 | 80 | 6.3 |
| 3 1/2 | 4 | 3.36 | 0.318 | 5.25 | 80 | 8.6 |
| 4 | 4.5 | 3.82 | 0.337 | 6 | 80 | 12.5 |
| 5 | 5.56 | 4.81 | 0.375 | 7.5 | 80 | 21.2 |
| 6 | 6.63 | 5.76 | 0.432 | 9 | 80 | 34.4 |
| 8 | 8.63 | 7.63 | 0.5 | 12 | 80 | 71.3 |
| 10 | 10.75 | 9.75 | 0.5 | 15 | 60 | 111 |
| 12 | 12.75 | 11.75 | 0.5 | 18 | * | 158 |
| 14 | 14 | 13 | 0.5 | 21 | * | 201 |
| 16 | 16 | 15 | 0.5 | 24 | 40 | 270 |
| 18 | 18 | 17 | 0.5 | 27 | * | 348 |
| 20 | 20 | 19 | 0.5 | 30 | 30 | 422 |
| 24 | 24 | 23 | 0.5 | 36 | * | 604 |
| 30 | 30 | 29 | 0.5 | 45 | 20 | 997 |
| 36 | 36 | 35 | 0.5 | 54 | 20 | 1,380 |
| 42 | 42 | 41 | 0.5 | 63 | * | 1,880 |
| 48 | 48 | 47 | 0.5 | 72 | * | 2,502 |
Carbon Steel 22.5 Degree Elbow Carbon Steel Dimensions
| TRADE SIZE | STD PKG |
| 1/2" | 50 |
| 3/4'' | 50 |
| 1'' | 25 |
| 1-1/4'' | 20 |
| 1-1/2'' | 15 |
| 2'' | 10 |
| 2-1/2" | BULK |
| 3'' | BULK |
| 3-1/2'' | BULK |
| 4'' | BULK |
Carbon Steel Elbows suppliers in India offer best price of Carbon Steel Elbow Material Seamless CS Elbow Suppliers in Mumbai, Carbon Steel Pipe Elbow manufacturer in India, Carbon Steel Buttweld Elbow distributor
Specialized in Following ASME B16.9 Carbon Steel Buttweld Elbow
- Carbon Steel Industrial Buttweld Elbows
- ASTM A234 Pipe Elbow Manufacturer
- Carbon Steel Pipe Elbow Sizes
- Stockist of SA 234 Buttweld Elbow
- Carbon Steel Schedule 40 Seamless Elbow
- Manufacturer Of Pipe Elbow CS Sch 40
- CS Elbow Long Radius 90deg and 45deg
- High Yield CS A860 Buttweld Elbow
- Buy Carbon Steel Butt weld Pipe Elbow
- Carbon Steel ASTM A234 Pipe Elbows Suppliers
- Carbon Steel Pipe Elbow Manufacturer In India
- ASTM A420 LTCS Elbow Wholesaler
- Carbon Steel Pipe Elbow 45 Degree
- Carbon Steel Buttweld Elbow Supplier in India
- A860 WPHY 60 Elbow Suppliers
- 6 Inch Long Radius Elbow Dimensions,
- Supplier of Carbon Steel Buttweld Pipe Elbows
- Carbon Steel Pipe Elbows Dealer
- Exporter of Carbon Steel Buttweld Elbow
- A234 Carbon Steel Elbows Supplier
Carbon Steel Pipe Elbow Price List
| Carbon Steel Large Diameter Pipe Elbow | FOB Price: US$ 3.00 - 4.00 / Piece |
| 5 inch 90 Degree Carbon Steel Pipe Elbow | FOB Price: US$ 2.00 - 5.00 / Piece |
| Carbon Steel 2D, 3D, 5D Elbow | FOB Price: US$ 1.00 - 100.00 / Piece |
| DN50 Carbon Steel Pipe Elbow | FOB Price: US$ 0.10 - 99.00 / Piece |
| DIN DN15-DN2000 carbon steel Buttweld elbow | FOB Price: US$ 15.00 - 20.00 / Piece |
| Carbon Steel ASTM A234 wpb seamless elbows | FOB Price: US$ 5.80 - 10.00 / Piece |
| 3 inch Carbon Steel Pipe Elbow | FOB Price: US$ 1.00 - 100.00 / Piece |
| Carbon Steel Butt Weld Reducing elbow | FOB Price: US$ 0.85 / Piece |
| Carbon steel butt weld elbow 45 degree | FOB Price: US$ 3.00 - 100.00 / Piece |
| ASTM A420 WPL6 Low Temperature Carbon Steel Pipe Elbow | FOB Price: US$ 5.00 - 400.00 / Piece |
| Carbon Steel 90 Degree Pipe Elbow Big Size | FOB Price: US$ 15.00 / Piece |
Weight of Carbon Steel Pipe Elbow
|
APPROXIMATES WEIGHTS
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Nominal PipeSize |
90°LR ELBOW
|
45°LR ELBOW
|
90°SR ELBOW
|
|||||||||
|
5S
|
10S
|
40S
|
80S
|
5S
|
10S
|
40S
|
80S
|
5S
|
10S
|
40S
|
80S
|
|
|
1/2
|
0.049
|
0.060
|
0.075
|
0.110
|
0.024
|
0.030
|
0.038
|
0.090
|
–
|
–
|
–
|
–
|
|
3/4
|
0.062
|
0.060 |
0.075
|
0.110
|
0.031
|
0.030
|
0.037
|
0.090
|
–
|
–
|
–
|
–
|
|
1
|
0.078
|
0.140
|
0.160
|
0.230
|
0.039
|
0.100
|
0.120
|
0.140
|
0.077
|
0.094
|
0.118
|
0.180
|
|
11/4
|
0.125
|
0.240
|
0.260
|
0.400
|
0.063
|
0.140
|
0.170
|
0.230
|
0.101
|
0.152
|
0.204
|
0.280
|
|
11/2
|
0.170
|
0.280
|
0.350
|
0.500
|
0.085
|
0.180
|
0.200
|
0.310
|
0.114
|
0.189
|
0.245
|
0.340
|
|
2
|
0.286
|
0.460
|
0.660
|
1.000
|
0.143
|
0.310
|
0.400
|
0.540
|
0.191
|
0.318
|
0.434
|
0.680
|
|
21/2
|
0.576
|
0.800
|
1.300
|
1.800
|
0.288
|
0.450
|
0.700
|
0.960
|
0.383
|
0.541
|
0.909
|
1.300
|
|
3
|
0.810
|
1.200
|
2.150
|
3.000
|
0.405
|
0.650
|
1.100
|
1.600
|
0.540
|
0.761
|
1.360
|
1.900
|
|
31/2
|
1.080
|
1.530
|
2.820
|
3.800
|
0.540
|
0.760
|
1.410
|
2.000
|
0.719
|
1.020
|
1.880
|
2.700
|
|
4
|
1.390
|
2.000
|
4.000
|
6.100
|
0.696
|
1.050
|
1.950
|
2.800
|
0.928
|
1.310
|
2.560
|
3.800
|
|
5
|
2.830
|
3.420
|
6.480
|
10.00
|
1.420
|
1.710
|
3.240
|
4.800
|
1.890
|
2.280
|
4.320
|
6.300
|
|
6
|
4.030
|
5.250
|
9.940
|
15.80
|
2.010
|
2.430
|
4.970
|
7.900
|
2.680
|
3.240
|
6.630
|
10.40
|
|
8
|
7.060
|
10.00
|
20.10
|
32.00
|
3.530
|
5.010
|
10.10
|
15.80
|
4.710
|
6.680
|
13.40
|
21.55
|
|
10
|
13.20
|
15.50
|
35.40
|
48.00
|
6.620
|
7.770
|
17.70
|
23.90
|
8.830
|
10.40
|
23.60
|
31.75
|
|
12
|
22.30
|
25.90
|
56.20
|
72.00
|
11.10
|
12.50
|
28.10
|
38.00
|
14.80
|
16.70
|
37.50
|
47.17
|

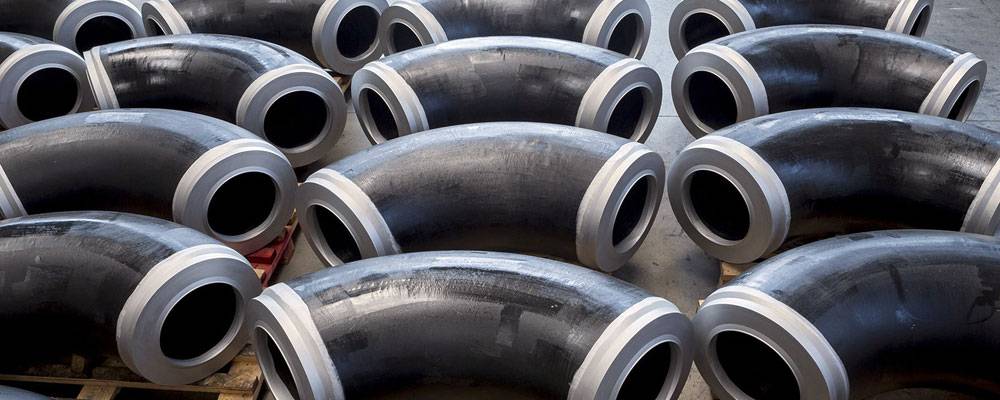

Are you in search of a reliable manufacturer of Carbon Steel Pipe Elbows in Mumbai, India? We offer high-quality Carbon Steel Buttweld Elbows at competitive prices.
Carbon Steel Buttweld Pipe Elbow Manufacturing Process
