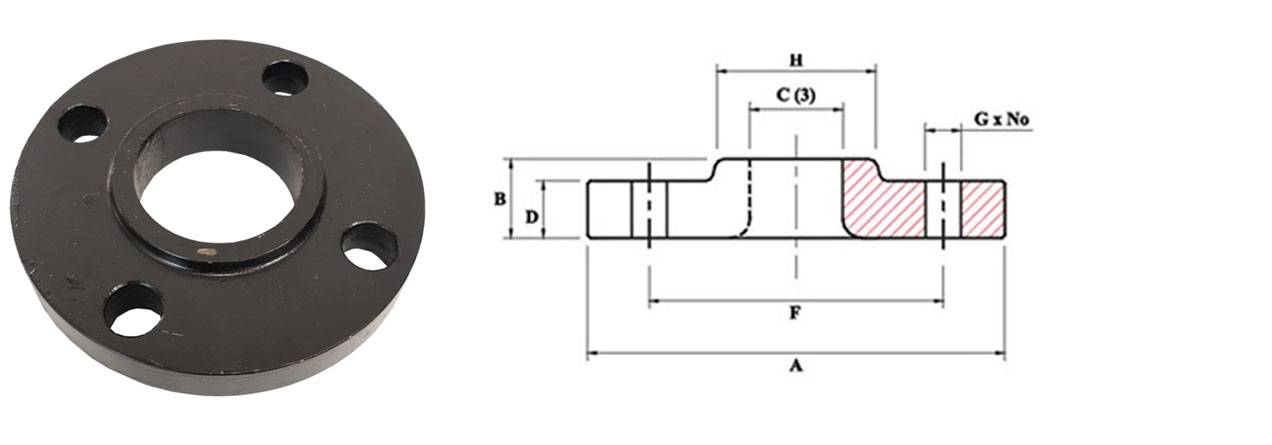

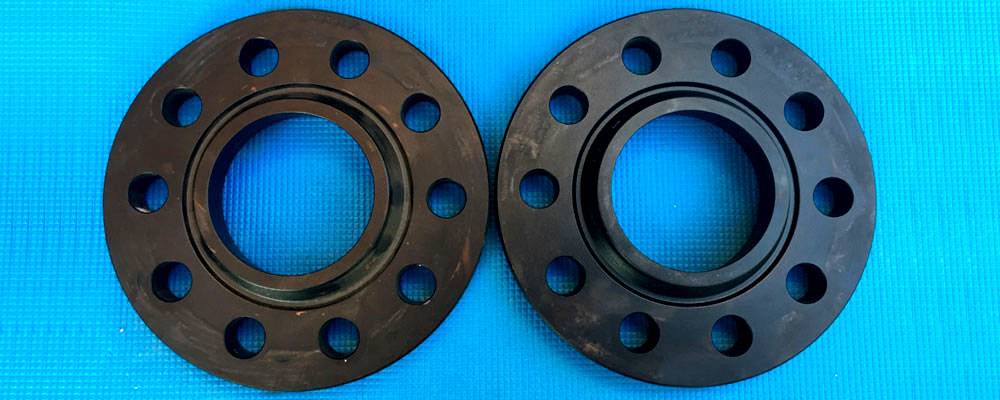

Rajdhan Metal is a leading supplier of Carbon Steel Slip On flanges of the highest quality in India.
There are many different types of carbon steel flanges, some of which slide and are frequently referred to as carbon steel slip on flanges. This kind of flange is inexpensive and simple to install. Carbon Steel Slip on Flanges are renowned for being simple to install and using inexpensive materials. If Type B or Type C ends are being handled, one of the additional benefits of these flanges is that they can also be used as lap-joint flanges. There are numerous diameters and low-pressure model options available. Carbon Steel Slip on Flange requires double welding since it lacks a neck to rest on the pipe, in contrast to welding neck flanges. Before welding, Carbon Steel Slip on Flanges must be slid into the pipe. In this instance, the inside and exterior of the joint are both double-welded, giving them the resilience, they need to prevent leaks. They are rated to have a pressure resistance that is around 2/3 that of a welding neck flange. Slip-on flanges are simple to install and weld onto various pipes, making them ideal for low-pressure applications. Additionally, welding lowers the cost of manufacturing. Carbon Steel Slip on Flanges can be fitted on lines with only a small amount of longitudinal space. They are also simpler to align and do not require a precise cut in the pipe. They are primarily utilised with low pressure or leakage-risk fluids. These flanges are widely used today in process lines for substances like steam, oil, gas, condensates, etc., as well as cooling water lines, firefighting water lines, low-pressure compressed air lines. However, it should be kept in mind that the working circumstances are not difficult and the material needs to be spread under minimal pressure.
Specifications | ASTM A105, A694, A350 / ASME SA105, SA694, SA350 |
Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Size | 1/2″ (15 NB) to 48″ (1200NB) |
Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Call us to get the latest price list for Carbon Steel Slip on Flanges in Mumbai, Maharashtra. We have special offers available for CS Raised Face Slip On Flange with the best price.
Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Diameter | Outside Daimeter (O.D.) | BC (Circle Of Bolt) | Raised Face (R) |
RF (Raised Face) |
H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) |
Bolts Holes Numbers |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 0.88 | 3.50 | 2.38 | 1.38 | .063 | 1.19 | .62 | .38 | .56 | .62 | 4 |
3/4 | 1.09 | 3.88 | 2.75 | 1.69 | .063 | 1.50 | .62 | .44 | .56 | .62 | 4 |
1 | 1.36 | 4.25 | 3.12 | 2.00 | .063 | 1.94 | .69 | .50 | .63 | .62 | 4 |
1-1/4 | 1.70 | 4.62 | 3.50 | 2.50 | .063 | 2.31 | .81 | .56 | .75 | .62 | 4 |
1-1/2 | 1.97 | 5.00 | 3.88 | 2.88 | .063 | 2.56 | .88 | .62 | .82 | .62 | 4 |
2 | 2.44 | 6.00 | 4.75 | 3.62 | .063 | 3.06 | 1.00 | .69 | .94 | .75 | 4 |
2-1/2 | 2.94 | 7.00 | 5.50 | 4.12 | .063 | 3.56 | 1.12 | .82 | 1.06 | .75 | 4 |
3 | 3.57 | 7.50 | 6.00 | 5.00 | .063 | 4.25 | 1.19 | .88 | 1.13 | .75 | 4 |
3-1/2 | 4.07 | 8.50 | 7.00 | 5.50 | .063 | 4.81 | 1.25 | .88 | 1.19 | .75 | 8 |
4 | 4.57 | 9.00 | 7.50 | 6.19 | .063 | 5.31 | 1.31 | .88 | 1.25 | .75 | 8 |
5 | 5.66 | 10.00 | 8.50 | 7.31 | .063 | 6.44 | 1.44 | .88 | 1.38 | .88 | 8 |
6 | 6.72 | 11.00 | 9.50 | 8.50 | .063 | 7.56 | 1.56 | .94 | 1.50 | .88 | 8 |
8 | 8.72 | 13.50 | 11.75 | 10.62 | .063 | 9.69 | 1.75 | 1.06 | 1.69 | .88 | 8 |
10 | 10.88 | 16.00 | 14.25 | 12.75 | .063 | 12.00 | 1.94 | 1.13 | 1.88 | 1.00 | 12 |
12 | 12.88 | 19.00 | 17.00 | 15.00 | .063 | 14.38 | 2.19 | 1.19 | 2.13 | 1.00 | 12 |
14 | 14.14 | 21.00 | 18.75 | 16.25 | .063 | 15.75 | 2.25 | 1.32 | 2.19 | 1.12 | 12 |
16 | 16.16 | 23.50 | 21.25 | 18.50 | .063 | 18.00 | 2.50 | 1.38 | 2.44 | 1.12 | 16 |
18 | 18.18 | 25.00 | 22.75 | 21.00 | .063 | 19.88 | 2.69 | 1.50 | 2.63 | 1.25 | 16 |
20 | 20.20 | 27.50 | 25.00 | 23.00 | .063 | 22.00 | 2.88 | 1.63 | 2.83 | 1.25 | 20 |
22 | 22.22 | 29.50 | 27.25 | 25.25 | .063 | 24.25 | 3.13 | 1.75 | 3.07 | 1.38 | 20 |
24 | 24.25 | 32.00 | 29.50 | 27.25 | .063 | 26.12 | 3.25 | 1.82 | 3.19 | 1.38 | 20 |
Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Diameter | Outside Daimeter (O.D.) | BC (Circle Of Bolt) | Raised Face (R) |
RF (Raised Face) |
H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) |
Bolts Holes Numbers |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 0.88 | 3.75 | 2.62 | 1.38 | .063 | 1.50 | 0.88 | 0.50 | 0.82 | 0.62 | 4 |
3/4 | 1.09 | 4.62 | 3.25 | 1.69 | .063 | 1.88 | 1.00 | .056 | 0.94 | 0.75 | 4 |
1 | 1.36 | 4.88 | 3.50 | 2.00 | .063 | 2.12 | 1.06 | 0.63 | 1.00 | 0.75 | 4 |
1-1/4 | 1.70 | 5.25 | 3.88 | 2.50 | .063 | 2.50 | 1.06 | 0.69 | 1.00 | 0.75 | 4 |
1-1/2 | 1.95 | 6.12 | 4.50 | 2.88 | .063 | 2.75 | 1.19 | 0.75 | 1.13 | 0.88 | 4 |
2 | 2.44 | 6.50 | 5.00 | 3.62 | .063 | 3.31 | 1.31 | 0.82 | 1.25 | 0.75 | 8 |
2-1/2 | 2.94 | 7.50 | 5.88 | 4.12 | .063 | 3.94 | 1.50 | 0.94 | 1.44 | 0.88 | 8 |
3 | 3.57 | 8.25 | 6.62 | 5.00 | .063 | 4.62 | 1.69 | 1.06 | 1.63 | 0.88 | 8 |
3-1/2 | 4.07 | 9.00 | 7.25 | 5.50 | .063 | 5.25 | 1.75 | 1.13 | 1.69 | 0.88 | 8 |
4 | 4.57 | 10.00 | 7.88 | 6.19 | .063 | 5.75 | 1.88 | 1.19 | 1.82 | 0.88 | 8 |
5 | 5.66 | 11.00 | 9.25 | 7.31 | .063 | 7.00 | 2.00 | 1.32 | 1.94 | 0.88 | 8 |
6 | 6.72 | 12.50 | 10.62 | 8.50 | .063 | 8.12 | 2.06 | 1.38 | 2.00 | 0.88 | 12 |
8 | 8.72 | 15.00 | 13.00 | 10.62 | .063 | 10.25 | 2.44 | 1.56 | 2.38 | 1.00 | 12 |
10 | 10.88 | 17.50 | 15.25 | 12.75 | .063 | 12.62 | 2.62 | 1.82 | 2.56 | 1.12 | 16 |
12 | 12.88 | 20.50 | 17.75 | 15.00 | .063 | 14.75 | 2.88 | 1.94 | 2.82 | 1.25 | 16 |
14 | 14.14 | 23.00 | 20.25 | 16.25 | .063 | 16.75 | 3.00 | 2.06 | 2.94 | 1.25 | 20 |
16 | 16.16 | 25.50 | 22.50 | 18.50 | .063 | 19.00 | 3.25 | 2.19 | 3.19 | 1.38 | 20 |
18 | 18.18 | 28.00 | 24.75 | 21.00 | .063 | 21.00 | 3.50 | 2.32 | 3.44 | 1.38 | 24 |
20 | 20.20 | 30.50 | 27.00 | 23.00 | .063 | 23.12 | 3.75 | 2.44 | 3.69 | 1.38 | 24 |
22 | 22.22 | 33.00 | 29.25 | 25.25 | .063 | 25.25 | 4.00 | 2.57 | 3.94 | 1.63 | 24 |
24 | 24.25 | 36.00 | 32.00 | 27.25 | .063 | 27.62 | 4.19 | 2.69 | 4.13 | 1.62 | 24 |
Normal Pipe Size (NPS) Of Flanges | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) | BC (Circle Of Bolts) | Raised Face (R) | RF (Raised Face) | H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) | Numbers of Bolts Holes |
1/2 | 0.88 | 3.75 | 2.62 | 1.38 | .250 | 1.50 | 1.13 | 0.56 | 0.88 | 0.62 | 4 |
3/4 | 1.09 | 4.62 | 3.25 | 1.69 | .250 | 1.88 | 1.25 | 0.62 | 1.00 | 0.75 | 4 |
1 | 1.36 | 4.88 | 3.50 | 2.00 | .250 | 2.12 | 1.31 | 0.69 | 1.06 | 0.75 | 4 |
1-1/4 | 1.70 | 5.25 | 3.88 | 2.50 | .250 | 2.50 | 1.37 | 0.81 | 1.12 | 0.75 | 4 |
1-1/2 | 1.95 | 6.12 | 4.50 | 2.88 | .250 | 2.75 | 1.50 | 0.88 | 1.25 | 0.88 | 4 |
2 | 2.44 | 6.50 | 5.00 | 3.62 | .250 | 3.31 | 1.69 | 1.00 | 1.44 | 0.75 | 8 |
2-1/2 | 2.94 | 7.50 | 5.88 | 4.12 | .250 | 3.94 | 1.87 | 1.12 | 1.62 | 0.88 | 8 |
3 | 3.57 | 8.25 | 6.62 | 5.00 | .250 | 4.62 | 2.06 | 1.25 | 1.81 | 0.88 | 8 |
3-1/2 | 4.07 | 9.00 | 7.25 | 5.50 | .250 | 5.25 | 2.19 | 1.38 | 1.94 | 1.00 | 8 |
4 | 4.57 | 10.00 | 7.88 | 6.19 | .250 | 5.75 | 2.25 | 1.38 | 2.00 | 1.00 | 8 |
5 | 5.66 | 11.00 | 9.25 | 7.31 | .250 | 7.00 | 2.37 | 1.50 | 2.12 | 1.00 | 8 |
6 | 6.72 | 12.50 | 10.62 | 8.50 | .250 | 8.12 | 2.50 | 1.62 | 2.25 | 1.00 | 12 |
8 | 8.72 | 15.00 | 13.00 | 10.62 | .250 | 10.25 | 2.94 | 1.88 | 2.69 | 1.12 | 12 |
10 | 10.88 | 17.50 | 15.25 | 12.75 | .250 | 12.62 | 3.13 | 2.12 | 2.88 | 1.25 | 16 |
12 | 12.88 | 20.50 | 17.75 | 15.00 | .250 | 14.75 | 3.37 | 2.25 | 3.12 | 1.38 | 16 |
14 | 14.14 | 23.00 | 20.25 | 16.25 | .250 | 16.75 | 3.56 | 2.38 | 3.31 | 1.38 | 20 |
16 | 16.16 | 25.50 | 22.50 | 18.50 | .250 | 19.00 | 3.94 | 2.50 | 3.69 | 1.50 | 20 |
18 | 18.18 | 28.00 | 24.75 | 21.00 | .250 | 21.00 | 4.13 | 2.62 | 3.88 | 1.50 | 24 |
20 | 20.20 | 30.50 | 27.00 | 23.00 | .250 | 23.12 | 4.25 | 2.75 | 4.00 | 1.62 | 24 |
22 | 22.22 | 33.00 | 29.25 | 25.25 | .250 | 25.25 | 4.50 | 2.88 | 4.25 | 1.75 | 24 |
24 | 24.25 | 36.00 | 32.00 | 27.25 | .250 | 27.62 | 4.75 | 3.00 | 4.50 | 1.88 | 24 |
Normal Pipe Size (NPS) Of Flanges | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) | BC (Circle Of Bolts) | Raised Face (R) | RF (Raised Face) | H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) | Numbers of Bolts Holes |
1/2 | 0.88 | 3.75 | 2.62 | 1.38 | .250 | 1.50 | 1.13 | 0.56 | 0.88 | 0.62 | 4 |
Normal Pipe Size (NPS) Of Flanges | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) | BC (Circle Of Bolts) | Raised Face (R) | RF (Raised Face) | H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) | Numbers of Bolts Holes |
1/2 | 0.88 | 3.75 | 2.62 | 1.38 | .250 | 1.50 | 1.13 | 0.56 | 0.88 | 0.62 | 4 |
3/4 | 1.09 | 4.62 | 3.25 | 1.69 | .250 | 1.88 | 1.25 | 0.62 | 1.00 | 0.75 | 4 |
1 | 1.36 | 4.88 | 3.50 | 2.00 | .250 | 2.12 | 1.31 | 0.69 | 1.06 | 0.75 | 4 |
1-1/4 | 1.7 | 5.25 | 3.88 | 2.50 | .250 | 2.50 | 1.37 | 0.81 | 1.12 | 0.75 | 4 |
1-1/2 | 1.95 | 6.12 | 4.50 | 2.88 | .250 | 2.75 | 1.50 | 0.88 | 1.25 | 0.88 | 4 |
2 | 2.44 | 6.50 | 5.00 | 3.62 | .250 | 3.31 | 1.69 | 1.00 | 1.44 | 0.75 | 8 |
2-1/2 | 2.94 | 7.50 | 5.88 | 4.12 | .250 | 3.94 | 1.87 | 1.12 | 1.62 | 0.88 | 8 |
3 | 3.57 | 8.25 | 6.62 | 5.00 | .250 | 4.62 | 2.06 | 1.25 | 1.81 | 0.88 | 8 |
3-1/2 | 4.07 | 9.00 | 7.25 | 5.50 | .250 | 5.25 | 2.19 | 1.38 | 1.94 | 1.00 | 8 |
4 | 4.57 | 10.75 | 8.50 | 6.19 | .250 | 6.00 | 2.37 | 1.5 | 2.12 | 1.00 | 8 |
5 | 5.66 | 13.00 | 10.50 | 7.31 | .250 | 7.44 | 2.63 | 1.75 | 2.38 | 1.12 | 8 |
6 | 6.72 | 14.00 | 11.50 | 8.50 | .250 | 8.75 | 2.87 | 1.88 | 2.62 | 1.12 | 12 |
8 | 8.72 | 16.50 | 13.75 | 10.62 | .250 | 10.75 | 3.25 | 2.19 | 3.00 | 1.25 | 12 |
10 | 10.88 | 20.00 | 17.00 | 12.75 | .250 | 13.5 | 3.63 | 2.50 | 3.38 | 1.38 | 16 |
12 | 12.88 | 22.00 | 19.25 | 15.00 | .250 | 15.75 | 3.87 | 2.62 | 3.62 | 1.38 | 20 |
14 | 14.14 | 23.75 | 20.75 | 16.25 | .250 | 17.00 | 3.94 | 2.75 | 3.69 | 1.50 | 20 |
16 | 16.16 | 27.00 | 23.75 | 18.50 | .250 | 19.50 | 4.44 | 3.00 | 4.19 | 1.62 | 20 |
18 | 18.18 | 29.25 | 25.75 | 21.00 | .250 | 21.50 | 4.87 | 3.25 | 4.62 | 1.75 | 20 |
20 | 20.20 | 32.00 | 28.50 | 23.00 | .250 | 24.00 | 5.25 | 3.50 | 5.00 | 1.75 | 24 |
22 | 22.22 | 34.25 | 30.63 | 25.25 | .250 | 26.25 | 5.50 | 3.75 | 5.25 | 1.75 | 24 |
24 | 24.25 | 37.00 | 33.00 | 27.25 | .250 | 28.25 | 5.75 | 4.00 | 5.50 | 2.00 | 24 |
Normal Pipe Size (NPS) Of Flanges | Inside Daimeter (I.D.) | Outside Daimeter (O.D.) | BC (Circle Of Bolts) | Raised Face (R) | RF (Raised Face) | H | Thickness Of Raised Face (RF) (T) |
T1 | Thickness Of Flat Face (FF) (T2) |
Holes Of Bolts (B) | Numbers of Bolts Holes |
3 | 3.57 | 9.50 | 7.50 | 5.00 | .250 | 5.00 | 2.38 | 1.50 | 2.13 | 1.00 | 8 |
4 | 4.57 | 11.50 | 9.25 | 6.19 | .250 | 6.25 | 3.00 | 1.75 | 2.75 | 1.25 | 8 |
5 | 5.66 | 13.75 | 11.00 | 7.31 | .250 | 7.50 | 3.38 | 3.00 | 3.13 | 1.38 | 8 |
6 | 6.72 | 15.00 | 12.50 | 8.50 | .250 | 9.25 | 3.63 | 2.19 | 3.38 | 1.25 | 12 |
8 | 8.72 | 18.50 | 15.50 | 10.63 | .250 | 11.75 | 4.25 | 2.50 | 4.00 | 1.50 | 12 |
10 | 10.88 | 21.50 | 18.50 | 12.75 | .250 | 14.50 | 4.50 | 2.75 | 4.25 | 1.50 | 16 |
12 | 12.88 | 24.00 | 21.00 | 15.00 | .250 | 16.50 | 4.88 | 3.13 | 4.63 | 1.50 | 20 |
14 | 14.14 | 25.25 | 22.00 | 16.25 | .250 | 17.75 | 5.38 | 3.38 | 5.13 | 1.63 | 20 |
16 | 16.16 | 27.75 | 24.25 | 18.50 | .250 | 20.00 | 5.50 | 3.50 | 5.25 | 1.75 | 20 |
18 | 18.18 | 31.00 | 27.00 | 21.00 | .250 | 22.25 | 6.25 | 4.00 | 6.00 | 2.00 | 20 |
20 | 20.20 | 33.75 | 29.50 | 23.00 | .250 | 24.50 | 6.50 | 4.25 | 6.25 | 2.13 | 20 |
24 | 24.25 | 41.00 | 35.50 | 27.25 | .250 | 29.50 | 8.25 | 5.50 | 8.00 | 2.63 | 20 |
Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Daimeter | (O.D.) Outside Daimeter | BC (Bolt Circle) | Raised Face (R) | Raised Face (RF) | H | Thickness Of (RF) Raised Face (T) | T1 | Thickness Of (FF) Flat Face (T2) | Bolts Holes (B) | Numbers of Bolts Holes |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 0.88 | 4.75 | 3.25 | 1.38 | .250 | 1.50 | 1.50 | 0.88 | 1.25 | 0.88 | 4 |
3/4 | 1.09 | 5.13 | 3.50 | 1.69 | .250 | 1.75 | 1.63 | 1.00 | 1.38 | 0.88 | 4 |
1 | 1.36 | 5.88 | 4.00 | 2.00 | .250 | 2.06 | 1.88 | 1.13 | 1.63 | 1.00 | 4 |
1-1/4 | 1.70 | 6.25 | 4.38 | 2.50 | .250 | 2.50 | 1.88 | 1.13 | 1.63 | 1.00 | 4 |
1-1/2 | 1.95 | 7.00 | 4.88 | 2.88 | .250 | 2.75 | 2.00 | 1.25 | 1.75 | 1.13 | 4 |
2 | 2.44 | 8.50 | 6.50 | 3.63 | .250 | 4.13 | 2.50 | 1.50 | 2.25 | 1.00 | 8 |
2-1/2 | 2.94 | 9.63 | 7.50 | 4.13 | .250 | 4.88 | 2.75 | 1.63 | 2.50 | 1.13 | 8 |
3 ** | 3.57 | 10.50 | 8.00 | 5.00 | .250 | 5.25 | 3.13 | 1.88 | 2.88 | 1.25 | 8 |
4 ** | 4.57 | 12.25 | 9.50 | 6.19 | .250 | 6.38 | 3.81 | 2.13 | 3.56 | 1.38 | 8 |
5 ** | 5.66 | 14.75 | 11.50 | 7.31 | .250 | 7.75 | 4.38 | 2.88 | 4.13 | 1.63 | 8 |
6 ** | 6.72 | 15.50 | 12.50 | 8.50 | .250 | 9.00 | 4.94 | 3.25 | 4.69 | 1.50 | 12 |
8 ** | 8.72 | 19.00 | 15.50 | 10.63 | .250 | 11.50 | 5.88 | 3.63 | 5.63 | 1.75 | 12 |
10 ** | 10.88 | 23.00 | 19.00 | 12.75 | .250 | 14.50 | 6.50 | 4.25 | 6.25 | 2.00 | 12 |
12 ** | 12.88 | 26.50 | 22.50 | 15.00 | .250 | 17.75 | 7.38 | 4.88 | 7.13 | 2.13 | 16 |
Normal Pipe Size (NPS) Of Flanges | (I.D.) Inside Daimeter | Outside Diameter (O.D.) | BC (Circle Of Bolt) | Raised Face (R) | RF (Raised Face) | H | Thickness Of Raised Face (T) | T1 | Thickness Of Flat Face (T2) | Bolt Hole (B) | Numbers of Bolts Holes |
---|---|---|---|---|---|---|---|---|---|---|---|
1/2 | 0.88 | 5.25 | 3.50 | 1.38 | .250 | 1.69 | 1.81 | 1.19 | 1.56 | 0.88 | 4 |
3/4 | 1.09 | 5.50 | 3.75 | 1.69 | .250 | 2.00 | 1.94 | 1.25 | 1.69 | 0.88 | 4 |
1 | 1.36 | 6.25 | 4.25 | 2.00 | .250 | 2.25 | 2.13 | 1.38 | 1.88 | 1.00 | 4 |
1-1/4 | 1.70 | 7.25 | 5.13 | 2.50 | .250 | 2.88 | 2.31 | 1.50 | 2.06 | 1.13 | 4 |
1-1/2 | 1.95 | 8.00 | 5.75 | 2.88 | .250 | 3.13 | 2.63 | 1.75 | 2.38 | 1.25 | 4 |
2 | 2.44 | 9.25 | 6.75 | 3.63 | .250 | 3.75 | 3.00 | 2.00 | 2.75 | 1.13 | 8 |
2-1/2 | 2.94 | 10.50 | 7.75 | 4.13 | .250 | 4.50 | 3.38 | 2.25 | 3.13 | 1.25 | 8 |
3 | 3.57 | 12.00 | 9.00 | 5.00 | .250 | 5.25 | 3.88 | 2.63 | 3.63 | 1.38 | 8 |
4 | 4.57 | 14.00 | 10.75 | 6.19 | .250 | 6.50 | 4.50 | 3.00 | 4.25 | 1.63 | 8 |
5 | 5.66 | 16.50 | 12.75 | 7.31 | .250 | 8.00 | 5.38 | 3.63 | 5.13 | 1.88 | 8 |
6 | 6.72 | 19.00 | 14.50 | 8.50 | .250 | 9.25 | 6.25 | 4.25 | 6.00 | 2.13 | 8 |
8 | 8.72 | 21.75 | 17.25 | 10.63 | .250 | 12.00 | 7.25 | 5.00 | 7.00 | 2.13 | 12 |
10 | 10.88 | 26.50 | 21.25 | 12.75 | .250 | 14.75 | 9.25 | 6.50 | 9.00 | 2.63 | 12 |
12 | 12.88 | 30.00 | 24.38 | 15.00 | .250 | 17.38 | 10.25 | 7.25 | 10.00 | 2.88 | 12 |
Wall Thickness Of Stainless Steel Slip On Flange | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Normal Pipe Size (NPS) | O.D. (Outside Daimeter) | Sch 10 | Sch 20 | Sch 30 | STD Wall Outside Daimeter | Sch 40 | Sch 60 | EXT Hvy Outside Daimeter | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 140 | Schedule 160 | XX Hvy |
½ | 0.84 | 0.083 | ... | ... | 0.109 | 0.109 | ... | 0.147 | 0.147 | ... | ... | ... | 0.188 | 0.294 |
¾ | 1.05 | 0.083 | ... | ... | 0.113 | 0.113 | ... | 0.154 | 0.154 | ... | ... | ... | 0.219 | 0.308 |
1 | 1.315 | 0.109 | ... | ... | 0.133 | 0.133 | ... | 0.179 | 0.179 | ... | ... | ... | 0.25 | 0.358 |
1 ¼ | 1.66 | 0.109 | ... | ... | 0.14 | 0.14 | ... | 0.191 | 0.191 | ... | ... | ... | 0.25 | 0.382 |
1 ½ | 1.9 | 0.109 | ... | ... | 0.145 | 0.145 | ... | 0.2 | 0.2 | ... | ... | ... | 0.281 | 0.4 |
2 | 2.375 | 0.109 | ... | ... | 0.154 | 0.154 | ... | 0.218 | 0.218 | ... | ... | ... | 0.344 | 0.436 |
2 ½ | 2.875 | 0.12 | ... | ... | 0.203 | 0.203 | ... | 0.276 | 0.276 | ... | ... | ... | 0.375 | 0.552 |
3 | 3.5 | 0.12 | ... | ... | 0.216 | 0.216 | ... | 0.3 | 0.3 | ... | ... | ... | 0.438 | 0.6 |
3 ½ | 4 | 0.12 | ... | ... | 0.226 | 0.226 | ... | 0.318 | 0.318 | ... | ... | ... | ... | 0.636 |
4 | 4.5 | 0.12 | ... | ... | 0.237 | 0.237 | ... | 0.337 | 0.337 | ... | 0.438 | ... | 0.531 | 0.674 |
5 | 5.563 | 0.134 | ... | ... | 0.258 | 0.258 | ... | 0.375 | 0.375 | ... | 0.5 | ... | 0.625 | 0.75 |
6 | 6.625 | 0.134 | ... | ... | 0.28 | 0.28 | ... | 0.432 | 0.432 | ... | 0.562 | ... | 0.719 | 0.864 |
8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | ... |
16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | ... |
18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | ... |
20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | ... |
22 | 22 | 0.25 | ... | ... | 0.375 | ... | ... | 0.5 | ... | ... | .... | .... | .... | .... |
24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | .... |
26 | 26 | .... | .... | .... | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
36 | 36 | 0.312 | 0.5 | 0.625 | 0.375 | 0.75 | .... | 0.5 | .... | .... | .... | .... | .... | .... |
40 | 40 | .... | .... | .... | 0.375 | .... | .... | 0.5 | .... | .... | .... | .... | .... | .... |
42 | 42 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
48 | 48 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
Sizes In inch | Dimension | ASME B16.5 Stainless Steel Slip On Flange Dimensional Sizes 1/2 inch. to 2 1/2 inch. | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Class 125 Class 150 |
Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | ||||||||||
inch. | mm | inch. | millimeter | inch. | mm | inch. | mm | inch. | mm | inch. | mm | inch | mm | |||
1/2 | A | 3 1/2 | 88.9 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 3 3/4 | 95.2 | 4 3/4 | 121 | 4 3/4 | 121 | 5 1/4 | 133.4 | |
b | 7/16 | 11.1 | 9/16 | 14.3 | 9/16 | 14.3 | 9/16 | 14.3 | 7/8 | 22.2 | 7/8 | 22.2 | 1 3/16 | 30.2 | ||
D2 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | 1 3/8 | 34.9 | ||
D1 | 2 3/8 | 60.3 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 2 5/8 | 66.7 | 3 1/4 | 82.6 | 3 1/4 | 82.6 | 3 1/2 | 88.9 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | 4 | 44 | ||
d | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
3/4 | A | 3 7/8 | 98.4 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 4 5/8 | 117.5 | 5 1/8 | 130 | 5 1/8 | 130 | 5 1/2 | 139.7 | |
b | 1/2 | 12.7 | 5/8 | 15.9 | 5/8 | 15.9 | 5/8 | 15.9 | 1 | 25.4 | 1 | 25.4 | 1 1/4 | 31.8 | ||
D2 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | 1 11/16 | 42.9 | ||
D1 | 2 3/4 | 69.8 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/4 | 82.5 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 3/4 | 95.2 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | 4 | 44 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | ||
1 | A | 4 1/4 | 108 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 4 7/8 | 123.8 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 6 1/4 | 159 | |
b | 9/16 | 14.3 | 11/16 | 17.5 | 11/16 | 17.5 | 11/16 | 17.5 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 3/8 | 34.9 | ||
D2 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | 2 | 50.8 | ||
D1 | 3 1/8 | 79.4 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 3 1/2 | 88.9 | 4 | 102 | 4 | 102 | 4 1/4 | 108 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 | 25.4 | ||
1 1/4 | A | 4 5/8 | 117.5 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 5 1/4 | 133.4 | 6 1/4 | 159 | 6 1/4 | 159 | 7 1/4 | 184.2 | |
b | 5/8 | 15.9 | 3/4 | 19 | 13/16 | 20.6 | 13/16 | 20.6 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/2 | 38.1 | ||
D2 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | 2 1/2 | 63.5 | ||
D1 | 3 1/2 | 88.9 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 3 7/8 | 98.4 | 4 3/8 | 111 | 4 3/8 | 111 | 5 1/8 | 130 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | 15.9 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
1 1/2 | A | 5 | 127 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 6 1/8 | 155.6 | 7 | 177.8 | 7 | 177.8 | 8 | 203 | |
b | 11/16 | 17.5 | 13/16 | 20.6 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/4 | 31.8 | 1 1/4 | 31.8 | 1 3/4 | 44.5 | ||
D2 | 2 7/8 | 73 98 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | 2 7/8 | 73 | ||
D1 | 3 7/8 | 4 | 4 1/2 | 114 | 4 1/2 | 114 | 4 1/2 | 114 | 4 7/8 | 124 | 4 7/8 | 124 | 5 3/4 | 146 | ||
n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
d | 5/8 | . 15.9 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 | ||
2 | A | 6 | 152.4 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 8 1/2 | 215.9 | 8 1/2 | 215.9 | 9 1/4 | 234.9 | |
b | 3/4 | 19 | 7/8 | 22.2 | 1 | 25.4 | 1 | 25.4 | 1 1/2 | 38.1 | 1 1/2 | 38.1 | 2 | 50.8 | ||
D2 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | 3 5/8 | 92.1 | ||
D1 | 4 3/4 | 121 | 5 | 127 | 5 | 127 | 5 | 127 | 6 1/2 | 165.1 | 6 1/2 | 165.1 | 6 3/4 | 171 | ||
n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
d | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 3/4 | 19 | 1 | 25.4 | 1 | 25.4 | 1 1/8 | 28.6 | ||
2 1/2 | A | 7 | 177.8 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 9 5/8 | 244 | 9 5/8 | 244 | 10 1/2 | 266.7 | |
b | 7/8 | 22.2 | 1 | 25.4 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 5/8 | 41.3 | 1 5/8 | 41.3 | 2 1/4 | 57.2 | ||
D2 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 104.8 | 4 1/8 | 105 | 4 1/8 | 105 | 4 1/8 | 105 | ||
D1 | 5 1/2 | 139.7 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 5 7/8 | 149.2 | 7 1/2 | 190.5 | 7 1/2 | 190.5 | 7 3/4 | 197 | ||
n | 4 | 4 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
d | 3/4 | 19 | 7/8 | 22.2 | 7/8 | 22.2 | 7/8 | 22.2 | 1 1/8 | 28.6 | 1 1/8 | 28.6 | 1 1/4 | 31.8 |
Slip On Flange | Pressure And Temperature Ratings | ||||||
Temperature °F | Class 150 As Per ASME B16.5 | Class 300 As Per ASME B16.5 | Class 400 As Per ASME B16.5 | Class 600 As Per ASME B16.5 | Class 900 As Per ASME B16.5 | Class 1500 As Per ASME B16.5 | Class 2500 As Per ASME B16.5 |
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
3 inch class 150 carbon steel slip on flange | FOB Price: US $4-5 / Piece |
dn80 pn25 carbon steel slip on flange | FOB Price: US $0.18-15 / Piece |
slip on carbon steel flange | FOB Price: US $5-9 / Kilogram |
astm a694 high yield carbon steel soff flange | FOB Price: US $1200-1500 / Ton |
astm a350 low temperature carbon steel sortj flange | FOB Price: US $2.5-400 / Piece |
astm a105 class 1500lbs sorf flange | FOB Price: US $900-2000 / Ton |
asme b16.5 high yield cs slip on flanges | FOB Price: US $2000-4000 / Ton |
carbon steel sortj flange manufacturer | FOB Price: US $4.37-5.22 / Kilogram |
carbon steel a105 raised face slip on flange | FOB Price: US $0.14-1800 / Piece |
high quality carbon steel rfso flanges | FOB Price: US $0.12-1400 / Piece |
different sizes of carbon steel slip on flanges | FOB Price: US $0.13-1100 / Piece |
low temperature steel a350 lf3 sorf flange | FOB Price: US $0.4-900 / Piece |
ansi b16.5 carbon steel class 900 slip-on flanges | FOB Price: US $0.10-2000 / Piece |
astm a350 lf6 ltcs slip on pipe flanges | FOB Price: US $0.9-800 / Piece |
