Rajdhan Metal creates and provides Carbon Steel socket weld Half Coupling in accordance with the guidelines as well as a variety of other universal measurements and various measures, grades, specifications, and thicknesses as required by the client. In the global marketplace, our Half Coupling product line is quite popular. These Carbon Steel Socket Weld Half Couplings are available in all common grades and dimensions to satisfy the requirements of our esteemed customers.
An internal stop or minor ridge can be found in a standard carbon steel socket weld coupling. The Carbon Steel socket weld Half Coupling has a ridge that helps prevent under-insertion of the other pipe segment and over-insertion of one pipe. An unreliable connection would occur from a mismatch in these fittings.
What is a Carbon Steel Socket weld Half Coupling?
It is deliberate for a Carbon Steel socket weld Half Coupling to be designed without this internal stop so that it can fit into small spaces. For example, if a pipe has to be temporarily shut off for any reason or has a small leak from corrosion or freeze bursting, a socket weld Half Coupling Class 3000 may be utilised. Because the socket weld half coupling lacks an alignment stop, it is up to the installer to precisely measure the slip coupling fitting's final location to make sure it has been installed correctly.
Which Pressure Class Does A Carbon Steel socket weld Half Coupling Use In?
The application requirements and the piping to fit in can also account for variations in Carbon Steel socket weld Half Coupling dimensions. In order to guarantee particular mechanical properties, several materials are employed during production, such as Carbon Steel or Steel Socket Weld Coupling. Higher pressure classifications should be followed for larger couplings, such as the Class 3000 Socket Weld Half Coupling which can withstand 3000 lbs of pressure.
Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB |
Types | Socketweld Fittings, Screwed-Threaded Fittings |
Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |

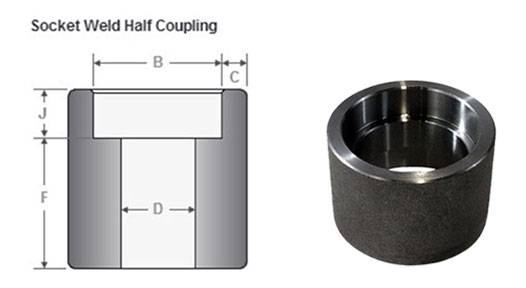

Supplier, exporter and distributor of black forged steel SW half couplings in Mumbai, India. Check socket weld half coupling dimensions as per ASME B16.11
NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
Laying lengths Half coupling |
B | J | D | C | F | |
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
22.5 |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
23.5 |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
29 |
1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
30 |
1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
32 |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
41 |
2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
42.5 |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
44.5 |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
47.5 |
NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
Laying lengths Half coupling |
B | J | D | C | F | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
22.5 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
23.5 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
29 |
1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
30 |
1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
32 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
41 |
CS Socket Weld Half Coupling Price Per Piece | Price in INR | Price in Saudi Riyal | Price in UAE Dirham |
Carbon Steel Half Coupling 3000 lbs Socketweld End | Rs. 75.63 | Saudi Riyal 36.53 | UAE Dirham 38.45 |
Half Coupling Connection Socket Weld Carbon Steel | Rs. 113.54 | Saudi Riyal 33.20 | UAE Dirham 20.03 |
Rate of Forged Carbon Steel SW Half Coupling | Rs. 876.44 | Saudi Riyal 49.65 | UAE Dirham 47.74 |
6000# CS Socket Weld Half Coupling Cost | Rs. 409.54 | Saudi Riyal 24.87 | UAE Dirham 27.42 |
DN | NPS | 3000 | 6000 | 9000 |
6 | 1/8 | 0.03 | 0.03 | – |
8 | 1/4 | 0.03 | 0.04 | – |
10 | 3/8 | 0.04 | 0.05 | – |
15 | 1/2 | 0.07 | 0.08 | 0.2 |
20 | 3/4 | 0.1 | 0.14 | 0.3 |
25 | 1 | 0.14 | 0.24 | 0.4 |
32 | 1 1/4 | 0.24 | 0.33 | 0.5 |
40 | 1 1/2 | 0.26 | 0.42 | 0.6 |
50 | 2 | 0.5 | 0.8 | 1 |
65 | 2 1/2 | 0.8 | 1.1 | – |
80 | 3 | 0.9 | 1.2 | – |
100 | 4 | 1.4 | – | – |
