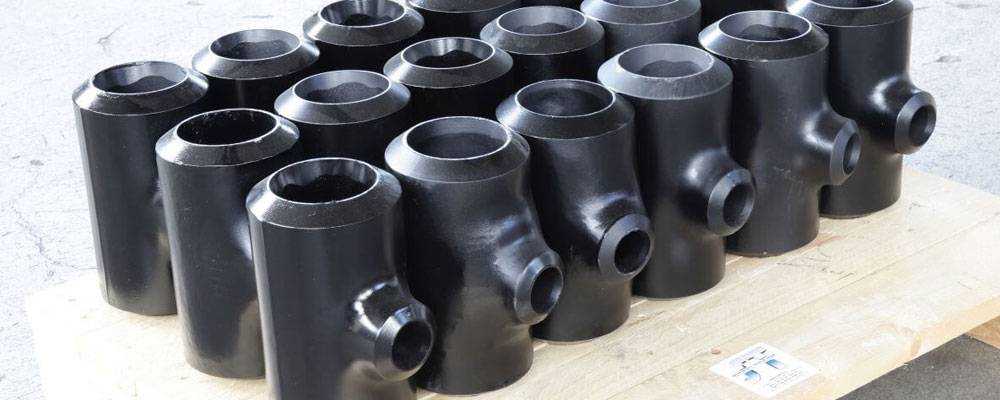

Carbon Steel Pipe Tees are ideal for almost any industrial application. They provide an economical, reliable, and easy-to-install connection to the piping system. The tee allows for two pipes of different sizes to be connected together in a single junction, while still maintaining a secure seal. Furthermore, the wide variety of Carbon Steel Pipe Tee sizes available suits most industry needs.
Carbon Steel Pipe Tees can be used in many industrial applications such as power plants, water treatment systems, gas pipelines, and chemical processing equipment. Additionally, they are often found in commercial and residential plumbing installations due to their cost-effective nature and superior sealing properties. Additionally, these tees offer superior corrosion resistance due to their deep black finish that is able to withstand harsh environmental conditions.
Overall, Carbon Steel Pipe Tees are a great choice for industrial and commercial applications that require an efficient and cost-effective connection between two pipes of different sizes. They provide superior sealing properties, corrosion resistance, and ease of installation making them a great choice for any industrial application. With a wide variety of sizes to choose from, you can be sure that there is the perfect tee size to meet your needs. Additionally, they come with a 100% satisfaction guarantee so you can trust in their quality.
Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size | 1/2″, 1″, 2″, 3″, 4″, 6″, 8″, 10″, 12″, 16″, 20″, 24″ to 60″ |
Schedule | Sch 20, STD, Sch 40, XS, Sch 80, Sch 100, Sch 120, Sch 140, Sch 160, XXS |
Carbon Steel Grades | ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9 |

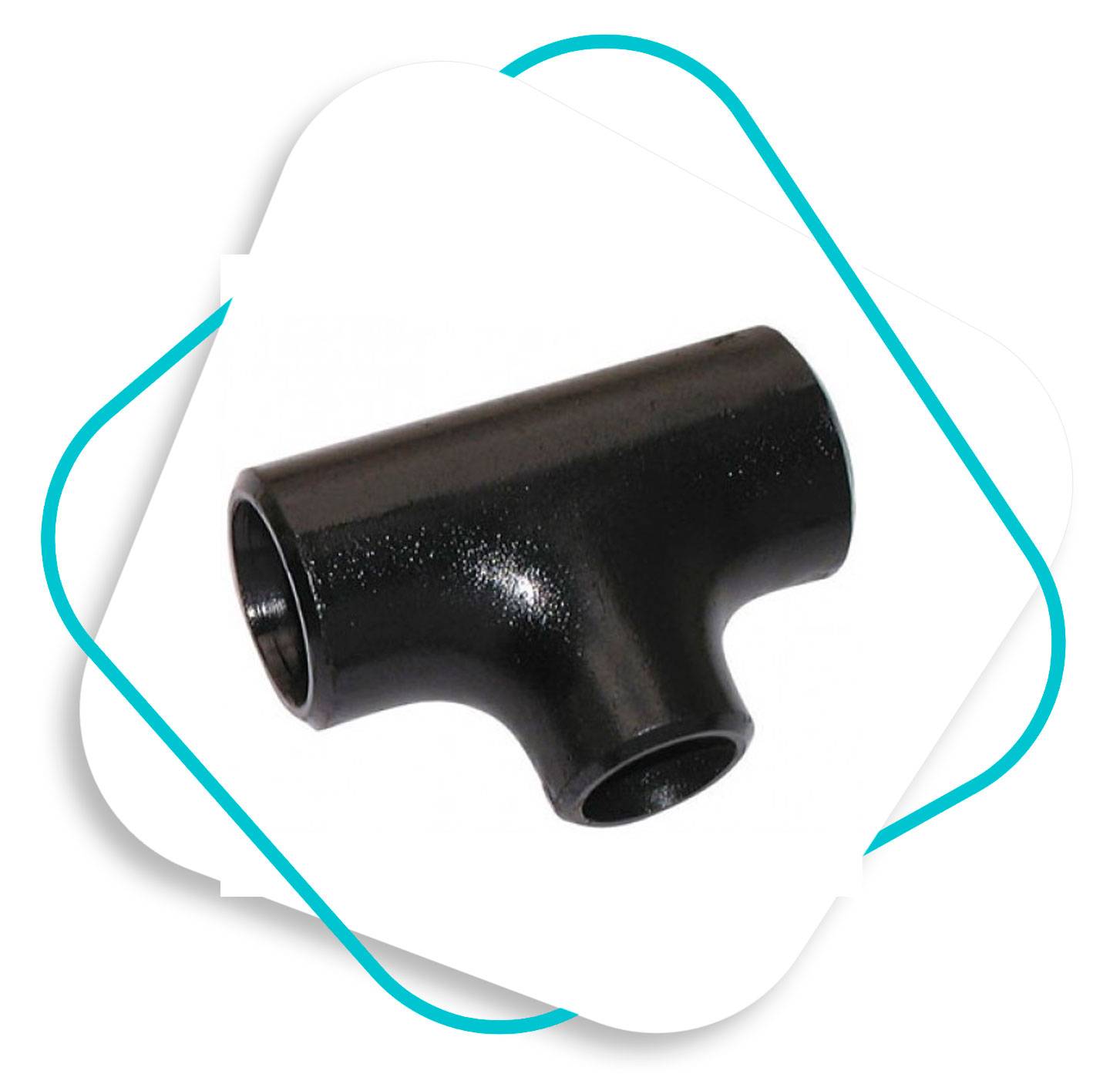

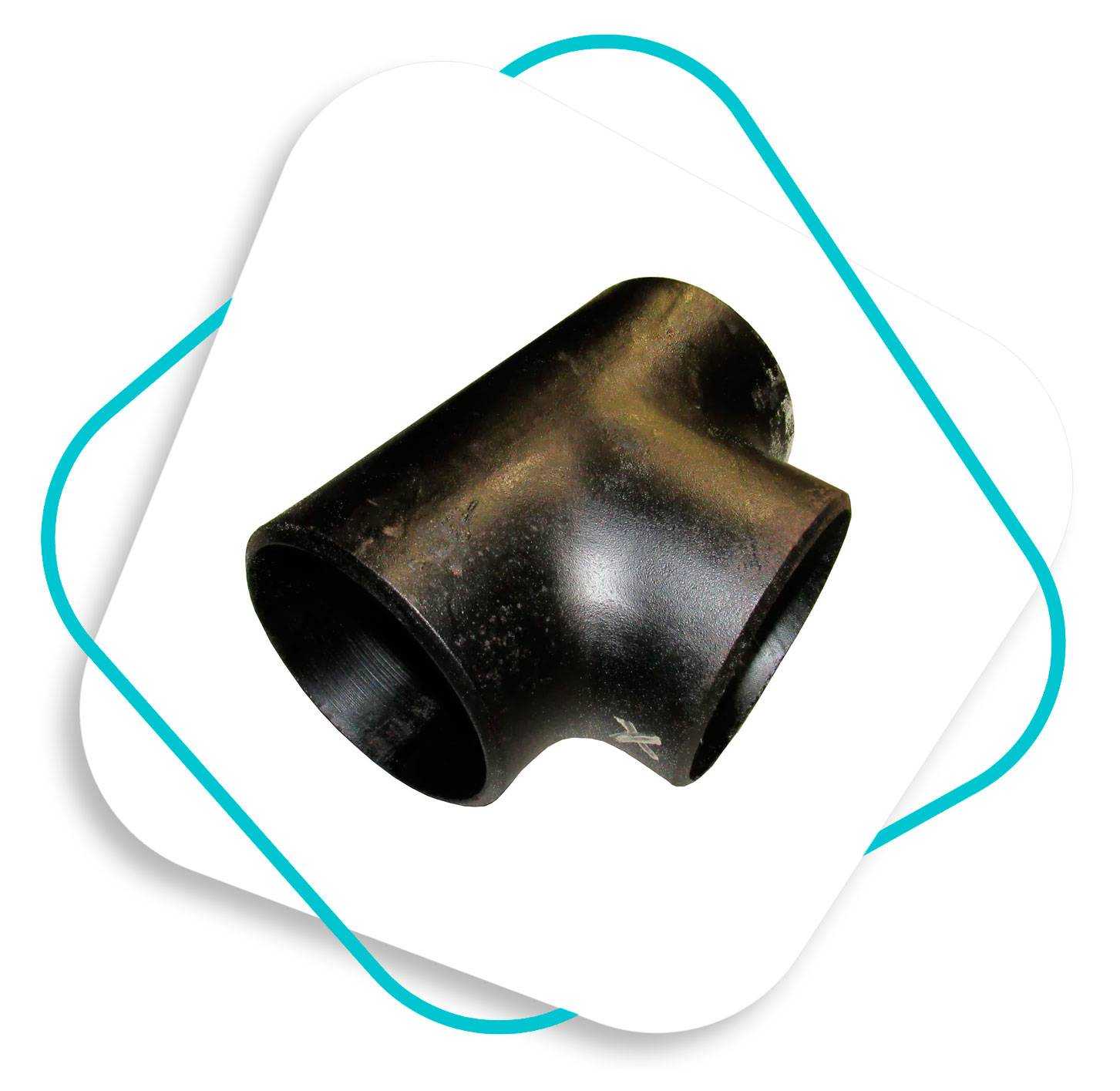

Types | Equal Tee, Unequal Tee, Reducing Tee |
Call us to get the latest price list for Carbon Steel Buttweld Tee in Mumbai, Maharashtra. We have special offers available for Carbon Steel Tee with the best price.

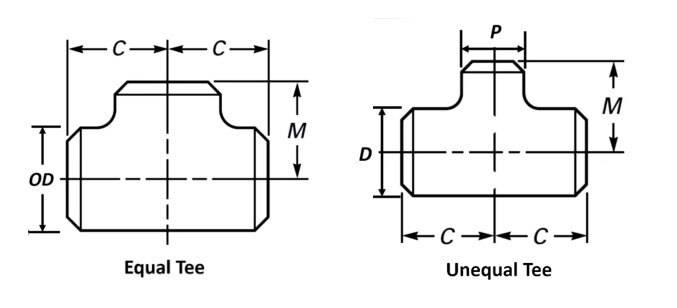

Pipe Tee Dimensions As Per ASME B16.9 | |||||||||
Straight / Equal Tee | Unequal Tee | ||||||||
NOMINAL PIPE SIZE | OUTSIDE DIAMETER | CENTER TO END | LENGTH | NOMINAL PIPE SIZE | OUTSIDE DIAMETER | CENTER TO END | |||
Inch. | OD | C | M | Inch | D | P | C | M | |
1/2 | 21.3 | 25 | 25 | 1/2 x 3/8 | 21.3 | 17.1 | 25 | 25 | |
3/4 | 26.7 | 29 | 29 | 1/2 x 1/4 | 21.3 | 13.7 | 25 | 25 | |
1 | 33.4 | 38 | 38 | 3/4 x 1/2 | 26.7 | 21.3 | 29 | 29 | |
1 1/4 | 42.2 | 48 | 48 | 3/4 x 3/8 | 26.7 | 17.1 | 29 | 29 | |
1 1/2 | 48.3 | 57 | 57 | 1 x 3/4 | 33.4 | 26.7 | 38 | 38 | |
2 | 60.3 | 64 | 64 | 1 x 1/2 | 33.4 | 21.3 | 38 | 38 | |
2 1/2 | 73 | 76 | 76 | 1 1/4 x 1 | 42.2 | 33.4 | 48 | 48 | |
3 | 88.9 | 86 | 86 | 1 1/4 x 3/4 | 42.2 | 26.7 | 48 | 48 | |
3 1/2 | 101.6 | 95 | 95 | 1 1/4 x 1/2 | 42.2 | 21.3 | 48 | 48 | |
4 | 114.3 | 105 | 105 | 1 1/2 x 1 1/2 | 48.3 | 42.2 | 57 | 57 | |
5 | 141.3 | 124 | 124 | 1 1/2 x 1 | 48.3 | 33.4 | 57 | 57 | |
6 | 168.3 | 143 | 143 | 1 1/2 x 3/4 | 48.3 | 26.7 | 57 | 57 | |
8 | 219.1 | 178 | 178 | 1 1/2 x 1/2 | 48.3 | 21.3 | 57 | 57 | |
10 | 273.1 | 216 | 216 | 2 x 1 1/2 | 60.3 | 48.2 | 64 | 60 | |
12 | 323.9 | 254 | 254 | 2 x 1 1/4 | 60.3 | 42.2 | 64 | 57 | |
14 | 355.6 | 279 | 279 | 2 x 1 | 60.3 | 33.4 | 64 | 51 | |
16 | 406.4 | 305 | 305 | 2 x 3/4 | 60.3 | 26.7 | 64 | 44 | |
18 | 457.2 | 343 | 343 | 2 1/2 x 2 | 73 | 60.3 | 76 | 70 | |
20 | 508 | 381 | 381 | 2 1/2 x 1 1/2 | 73 | 48.3 | 76 | 67 | |
22 | 559 | 419 | 419 | 2 1/2 x 1 1/4 | 73 | 42.2 | 76 | 64 | |
24 | 610 | 432 | 432 | 2 1/2 x 1 | 73 | 33.4 | 76 | 57 | |
26 | 660 | 495 | 495 | 3 x 2 1/2 | 88.9 | 73 | 86 | 83 | |
28 | 711 | 521 | 521 | 3 x 2 | 88.9 | 60.3 | 86 | 76 | |
30 | 762 | 559 | 559 | 3 x 1 1/2 | 88.9 | 48.3 | 86 | 73 | |
32 | 813 | 597 | 597 | 3 x 1 1/4 | 88.9 | 42.2 | 86 | 70 | |
34 | 864 | 635 | 635 | 3 1/2 x 3 | 101.6 | 88.9 | 95 | 92 | |
36 | 914 | 673 | 673 | 3 1/2 x 21/2 | 101.6 | 73 | 95 | 89 | |
38 | 965 | 711 | 711 | 3 1/2 x 2 | 101.6 | 60.3 | 95 | 83 | |
40 | 1016 | 749 | 749 | 3 1/2 x 1 1/2 | 101.6 | 48.3 | 95 | 79 | |
42 | 1067 | 762 | 711 | 4 x 3 1/2 | 114.3 | 101.6 | 105 | 102 | |
44 | 1118 | 813 | 762 | 4 x 3 | 114.3 | 88.9 | 105 | 98 | |
46 | 1168 | 851 | 800 | 4 x 2 1/2 | 114.3 | 73 | 105 | 95 | |
48 | 1219 | 889 | 838 | 4 x 2 | 114.3 | 60.3 | 105 | 89 | |
4 x 1 1/2 | 114.3 | 48.3 | 105 | 86 | |||||
5 x 4 | 141.3 | 114.3 | 124 | 117 | |||||
5 x 3 1/2 | 141.3 | 101.6 | 124 | 114 | |||||
5 x 3 | 141.3 | 88.9 | 124 | 111 | |||||
5 x 2 1/2 | 141.3 | 73 | 124 | 108 | |||||
5 x 2 | 141.3 | 60.3 | 124 | 105 | |||||
6 x 5 | 168.3 | 141.3 | 143 | 137 | |||||
6 x 4 | 168.3 | 114.3 | 143 | 130 | |||||
6 x 3 1/2 | 168.3 | 101.6 | 143 | 127 | |||||
6 x 3 | 168.3 | 88.9 | 143 | 124 | |||||
6 x 2 1/2 | 168.3 | 73 | 143 | 121 | |||||
8 x 6 | 219.1 | 168.3 | 178 | 168 | |||||
8 x 5 | 219.1 | 141.3 | 178 | 162 | |||||
8 x 4 | 219.1 | 114.3 | 178 | 156 | |||||
8 x 3 1/2 | 219.1 | 101.6 | 178 | 152 | |||||
10 x 8 | 273.1 | 219.1 | 216 | 203 | |||||
10 x 6 | 273.1 | 168.1 | 216 | 194 | |||||
10 x 5 | 273.1 | 141.3 | 216 | 191 | |||||
10 x 4 | 273.1 | 114.3 | 216 | 184 | |||||
12 x 10 | 323.9 | 273.1 | 254 | 241 | |||||
12 x 8 | 323.9 | 219.1 | 254 | 229 | |||||
12 x 6 | 323.9 | 168.3 | 254 | 219 | |||||
12 x 5 | 323.9 | 141.3 | 254 | 216 | |||||
14 x 12 | 355.6 | 323.9 | 279 | 270 | |||||
14 x 10 | 355.6 | 273.1 | 279 | 257 | |||||
14 x 8 | 355.6 | 219.1 | 279 | 248 | |||||
14 x 6 | 355.6 | 168.3 | 279 | 238 | |||||
16 x 14 | 406.4 | 355.6 | 305 | 305 | |||||
16 x 12 | 406.4 | 323.9 | 305 | 295 | |||||
16 x 10 | 406.4 | 273.1 | 305 | 283 | |||||
16 x 8 | 406.4 | 219.1 | 305 | 273 | |||||
16 x 6 | 406.4 | 168.3 | 305 | 264 | |||||
18 x 16 | 457 | 406.4 | 343 | 330 | |||||
18 x 14 | 457 | 355.6 | 343 | 330 | |||||
18 x 12 | 457 | 323.9 | 343 | 321 | |||||
18 x 10 | 457 | 273.1 | 343 | 308 | |||||
18 x 8 | 457 | 219.1 | 343 | 298 | |||||
20 x 18 | 508 | 457 | 381 | 368 | |||||
20 x 16 | 508 | 406.4 | 381 | 356 | |||||
20 x 14 | 508 | 355.6 | 381 | 356 | |||||
20 x 12 | 508 | 323.9 | 381 | 346 | |||||
20 x 10 | 508 | 273.1 | 381 | 333 | |||||
20 x 8 | 508 | 219.1 | 381 | 324 | |||||
22 x 20 | 559 | 508 | 419 | 406 | |||||
22 x 18 | 559 | 457 | 419 | 394 | |||||
22 x 16 | 559 | 406.4 | 419 | 381 | |||||
22 x 14 | 559 | 355.6 | 419 | 381 | |||||
22 x 12 | 559 | 323.9 | 419 | 371 | |||||
24 x 10 | 559 | 273.1 | 419 | 359 | |||||
24 x 22 | 610 | 559 | 432 | 432 | |||||
24 x 20 | 610 | 508 | 432 | 432 | |||||
24 x 18 | 610 | 457 | 432 | 419 | |||||
24 x 16 | 610 | 406.4 | 432 | 406 | |||||
24 x 14 | 610 | 355.6 | 432 | 406 | |||||
24 x 12 | 610 | 323.9 | 432 | 397 | |||||
24 x 10 | 610 | 273.1 | 432 | 384 |
Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
---|---|---|---|---|---|
Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
1/2" | 1/4" 3/8" |
21.3 | 13.7 17.3 |
25 | 25 |
3/4" | 3/8" 1/2" |
26.7 | 17.3 21.3 |
29 | 29 |
1" | 1/2" 3/4" |
33.4 | 21.3 26.7 |
38 | 38 |
1 1/4" | 1/2" 3/4" 1" |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
1 1/2" | 1/2" 3/4" 1" 1 1/4" |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
2" | 3/4" 1" 1 1/4" 1 1/2" |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
2 1/2" | 1" 1 1/4" 1 1/2" 2" |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
3" | 1 1/4" 1 1/2" 2" 2 1/2" |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
3 1/2" | 1 1/2" 2" 2 1/2" 3" |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
4" | 1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
5" | 2" 2 1/2" 3" 3 1/2" 4" |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
6" | 2 1/2" 3" 3 1/2" 4" 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
8" | 3 1/2" 4" 5" 6" |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
10" | 4" 5" 6" 8" |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
12" | 5" 6" 8" 10" |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
14" | 6" 8" 10" 12" |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
16" | 6" 8" 10" 12" 14" |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
18" | 8" 10" 12" 14" 16" |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
20" | 8" 10" 12" 14" 16" 18" |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
22" | 10" 12" 14" 16" 18" 20" |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
24" | 10" 12" 14" 16" 18" 20" 22" |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |
NPS | O.D. D |
Center to End C |
Center to End M |
4 | 114.3 | 105 | 105 |
5 | 141.3 | 124 | 124 |
6 | 168.3 | 143 | 143 |
8 | 219.1 | 178 | 178 |
10 | 273 | 216 | 216 |
12 | 323.8 | 254 | 254 |
14 | 355.6 | 279 | 279 |
16 | 406.4 | 305 | 305 |
18 | 457 | 343 | 343 |
20 | 508 | 381 | 381 |
22 | 559 | 419 | 419 |
24 | 610 | 432 | 432 |
Carbon Steel Large Diameter Pipe Tee | FOB Price: US$ 3.00 - 4.00 / Piece |
5 inch Carbon Steel Pipe Tee | FOB Price: US$ 2.00 - 5.00 / Piece |
ASME B16.9 Dimension of CS Tee | FOB Price: US$ 1.00 - 100.00 / Piece |
DN50 Carbon Steel Pipe Tee | FOB Price: US$ 0.10 - 99.00 / Piece |
DIN DN15-DN2000 Carbon Steel Tee | FOB Price: US$ 15.00 - 20.00 / Piece |
SCH40 Reducing Tees Price Carbon Steel Pipe Fittings | FOB Price: US$ 5.80 - 10.00 / Piece |
3 inch Carbon Steel Seamless Pipe Tee | FOB Price: US$ 1.00 - 100.00 / Piece |
1/2" to 24" Equal & Reducing Carbon Steel Butt Weld Tee | FOB Price: US$ 0.85 / Piece |
Carbon Steel Butt Weld Pipe Tee | FOB Price: US$ 3.00 - 100.00 / Piece |
ASTM A420 WPL6 Low Temperature Carbon Steel Pipe Tee | FOB Price: US$ 2.00 - 300.00 / Piece |
High Yield Carbon Steel Butt weld Tee Big Size | FOB Price: US$ 15.00 / 250.00 Piece |
DN | NPS | Series A | Series B | C | M |
15 | 1/2 | 21.3 | 18 | 25 | 25 |
20 | 3/4 | 26.9 | 25 | 29 | 29 |
25 | 1 | 33.7 | 32 | 38 | 38 |
32 | 1 1/4 | 42.4 | 38 | 48 | 48 |
40 | 1 1/2 | 48.3 | 45 | 57 | 57 |
50 | 2 | 60.3 | 57 | 64 | 64 |
65 | 2 1/2 | 73 | 76 | 76 | 76 |
80 | 3 | 88.9 | 89 | 86 | 86 |
90 | 3 1/2 | 101.6 | – | 95 | 95 |
100 | 4 | 114.3 | 108 | 105 | 105 |
125 | 5 | 141.3 | 133 | 124 | 124 |
150 | 6 | 168.3 | 159 | 143 | 143 |
200 | 8 | 219.1 | 219 | 178 | 178 |
250 | 10 | 273 | 273 | 216 | 216 |
300 | 12 | 323.9 | 325 | 254 | 254 |
350 | 14 | 355.6 | 377 | 279 | 279 |
400 | 16 | 406.4 | 426 | 305 | 305 |
450 | 18 | 457 | 480 | 343 | 343 |
500 | 20 | 508 | 530 | 381 | 381 |
550 | 22 | 559 | – | 419 | 419 |
600 | 24 | 610 | 630 | 432 | 432 |
DN | NPS | STD | 40 | XS | 80 | 160 | XXS |
15 | 1/2 | 0.21 | 0.2 | 0.2 | 0.2 | ||
20 | 3/4 | 0.2 | 0.2 | 0.3 | 0.3 | ||
25 | 1 | 0.3 | 0.3 | 0.5 | 0.5 | ||
32 | 1 1/4 | 0.6 | 0.6 | 0.7 | 0.7 | ||
40 | 1 1/2 | 0.9 | 0.9 | 1.3 | 1.3 | 1.5 | 1.3 |
50 | 2 | 1.5 | 1.5 | 2.2 | 2.2 | 2.7 | 3.4 |
65 | 2 1/2 | 2.7 | 2.7 | 3.0 | 3.0 | 3.1 | 3.8 |
80 | 3 | 3.8 | 3.8 | 4.4 | 4.4 | 5.6 | 6.1 |
90 | 3 1/2 | 4.6 | 4.6 | 5.9 | 5.9 | ||
100 | 4 | 6.5 | 6.5 | 7.7 | 7.7 | 10.2 | 12.9 |
125 | 5 | 9.7 | 9.7 | 13.5 | 13.5 | 19.8 | 25.7 |
150 | 6 | 14 | 14 | 19.3 | 19.3 | 34 | 30.6 |
200 | 8 | 24.5 | 24.5 | 34.5 | 34.5 | 50 | 47.7 |
250 | 10 | 41.3 | 41.3 | 58.4 | 67.5 | 111.2 | 84.7 |
300 | 12 | 65 | 69 | 76.5 | 105 | 158 | 129 |
350 | 14 | 83 | 96 | 104 | 142 | 232 | |
400 | 16 | 110 | 120 | 120 | 187 | 335 | |
450 | 18 | 132 | 170 | 159 | 263 | 564 | |
500 | 20 | 168 | 240 | 192 | 356 | 756 | |
550 | 22 | 185 | 209 | 416 | 1002 | ||
600 | 24 | 222 | 345 | 251 | 548 | 1215 |
