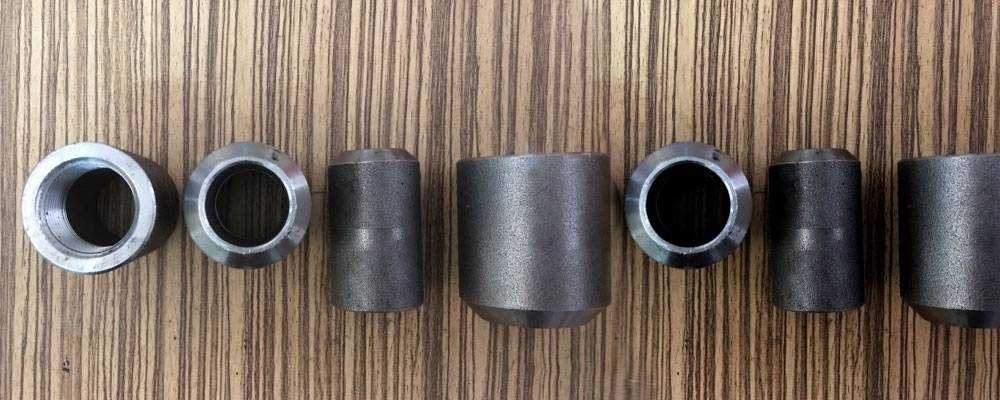

Rajdhan Metal is well-known across the world for being the leading manufacturer, exporter, and supplier of high-quality Carbon Steel A105 Forged Boss. We are dealing with a large number of consumers to meet all of their demands. As a result, we are considering offering the same to our consumers in various sizes and specifications. We ensure that the boss that we supply to customers complies with national and worldwide product standards. Because of its superior qualities, this product is now worldwide favoured and widely employed in a variety of industrial applications.
What is A105 Boss?
Our Carbon Steel A105 Forged Boss may be utilised in a variety of ambient conditions and critical applications. We provide bosses with remarkable characteristics such as high tensile strength, tough construction, smoothness in surface finishes, high hardness, accurate dimensional precision, long-lastingness and flexibility, resistance to general corrosion, and so on. Rajdhan Metal has a large and sophisticated production operation equipped with cutting-edge technology to create Carbon Steel A105 Forged Boss. We also modify and improve our gear regularly to provide the greatest services. Our specialists and personnel create bosses with high-quality raw materials and modern production techniques. To ensure precise and high-performance manufacturing, we rigorously verify each welding boss using several forms of quality checks.
Carbon steel is heated to molten temperatures and put in dies before being machined into forged steel fittings. High-strength Forged products are incredibly robust and resistant to environmental variables, generating a superb seal in your pipe systems that reduces the chance of leaks using forged fittings that offer a fatigue strength that is 37% greater.
The following benefits come with Carbon Steel A105 Forged Boss:
Specifications | ASTM A105, ASME SA 105 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Thread | NPT, BSPT, BSPP |
Connection | Socket Welded, Screwed-Threaded Fittings |

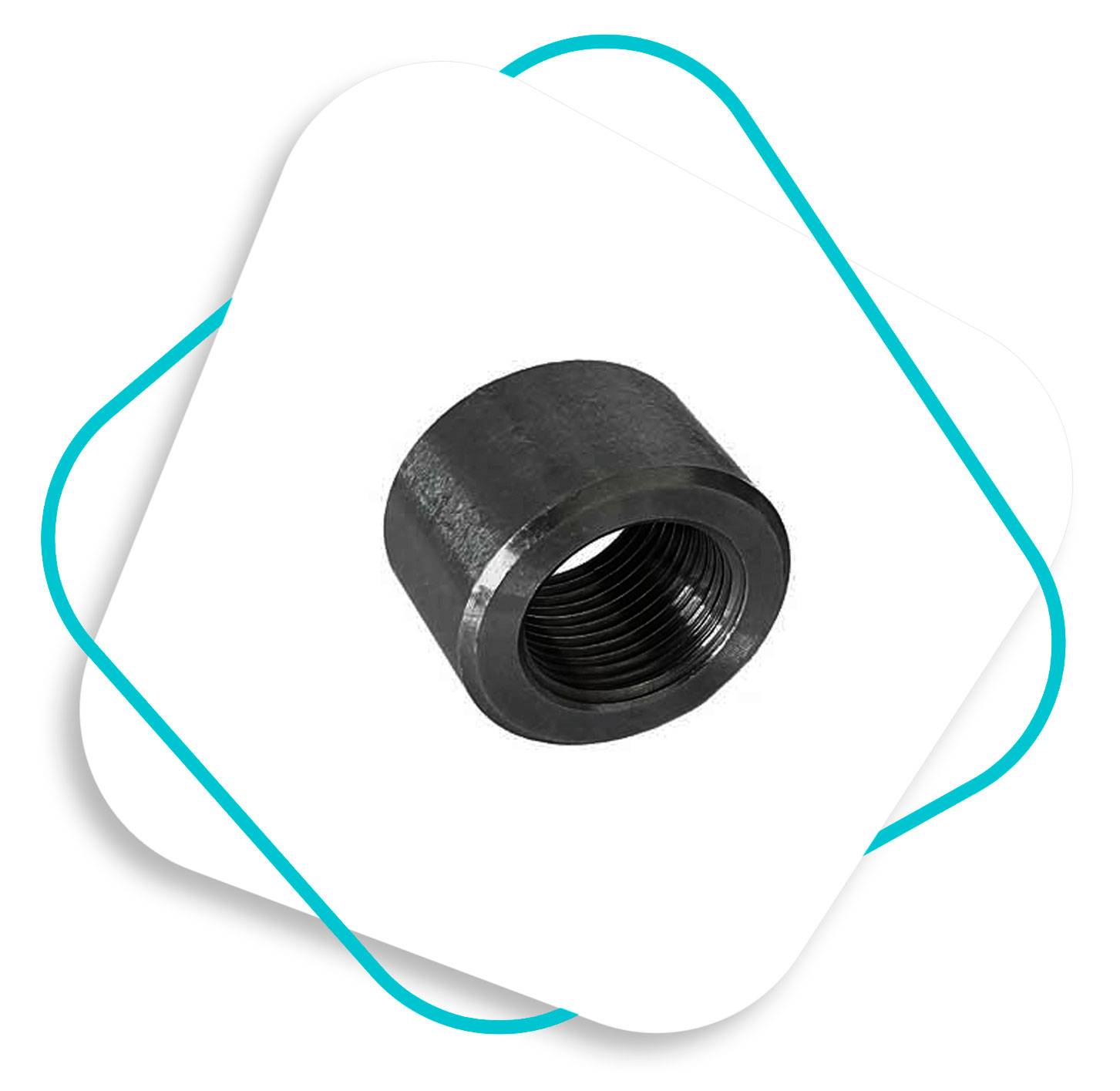

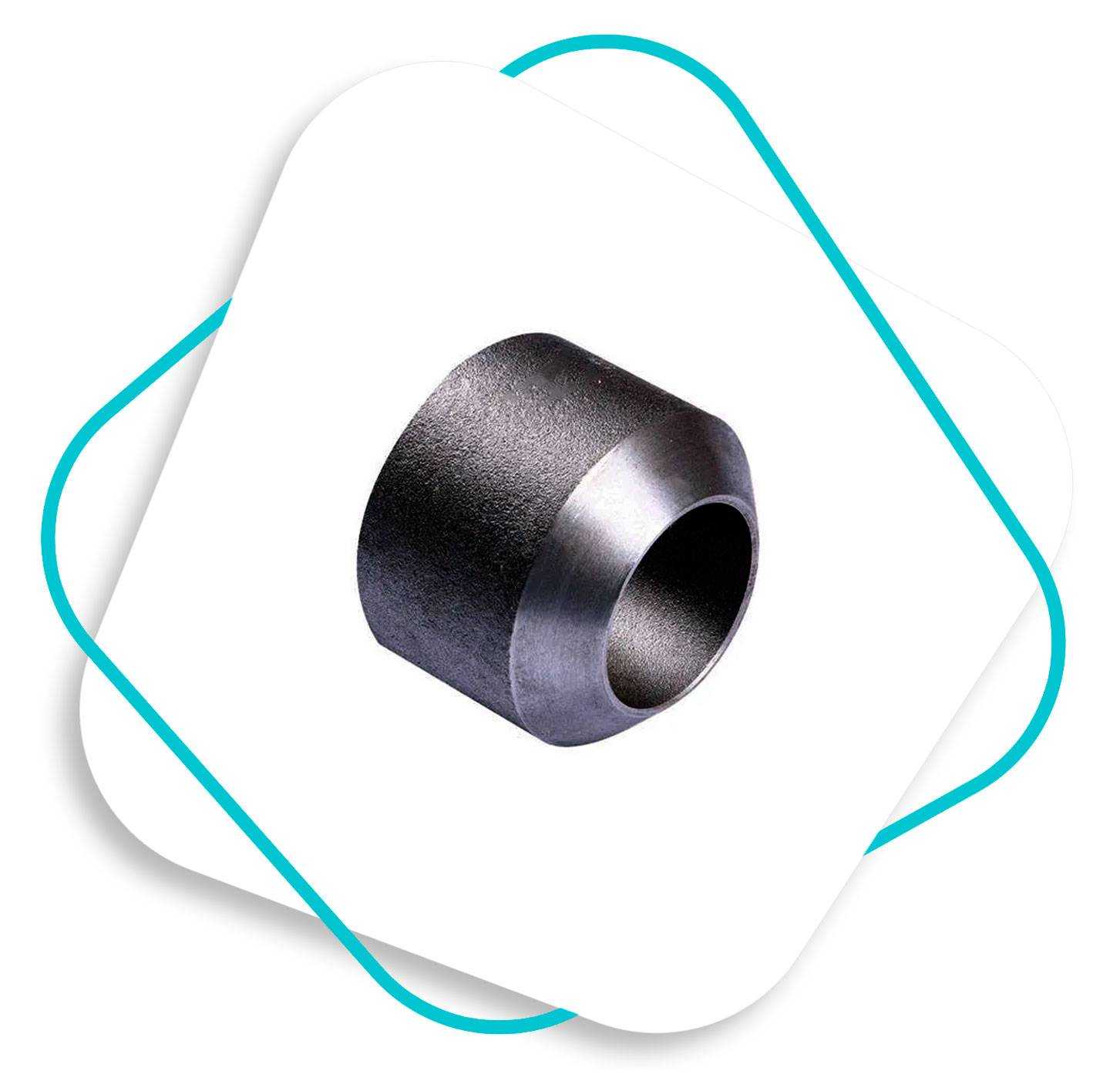

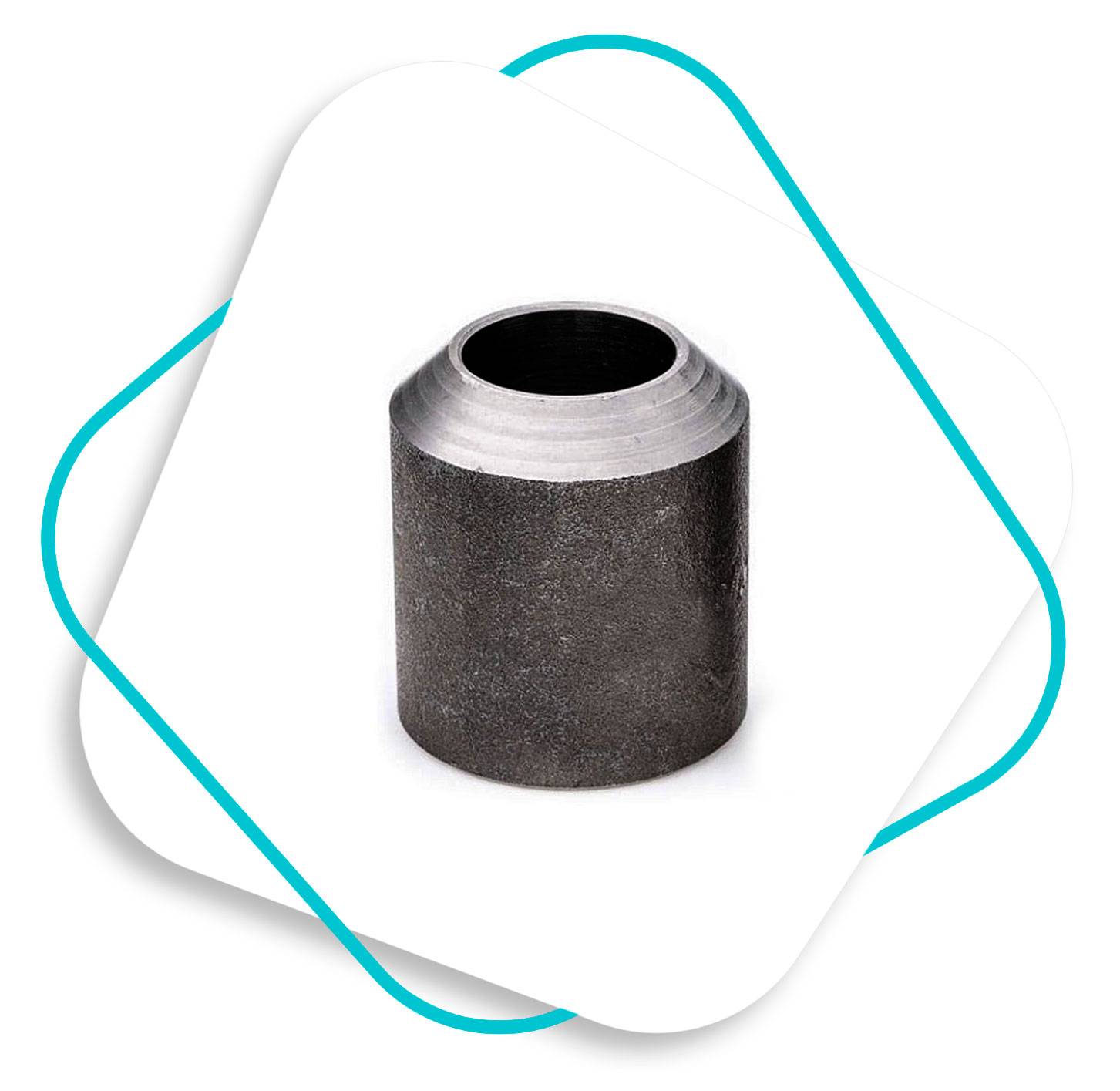

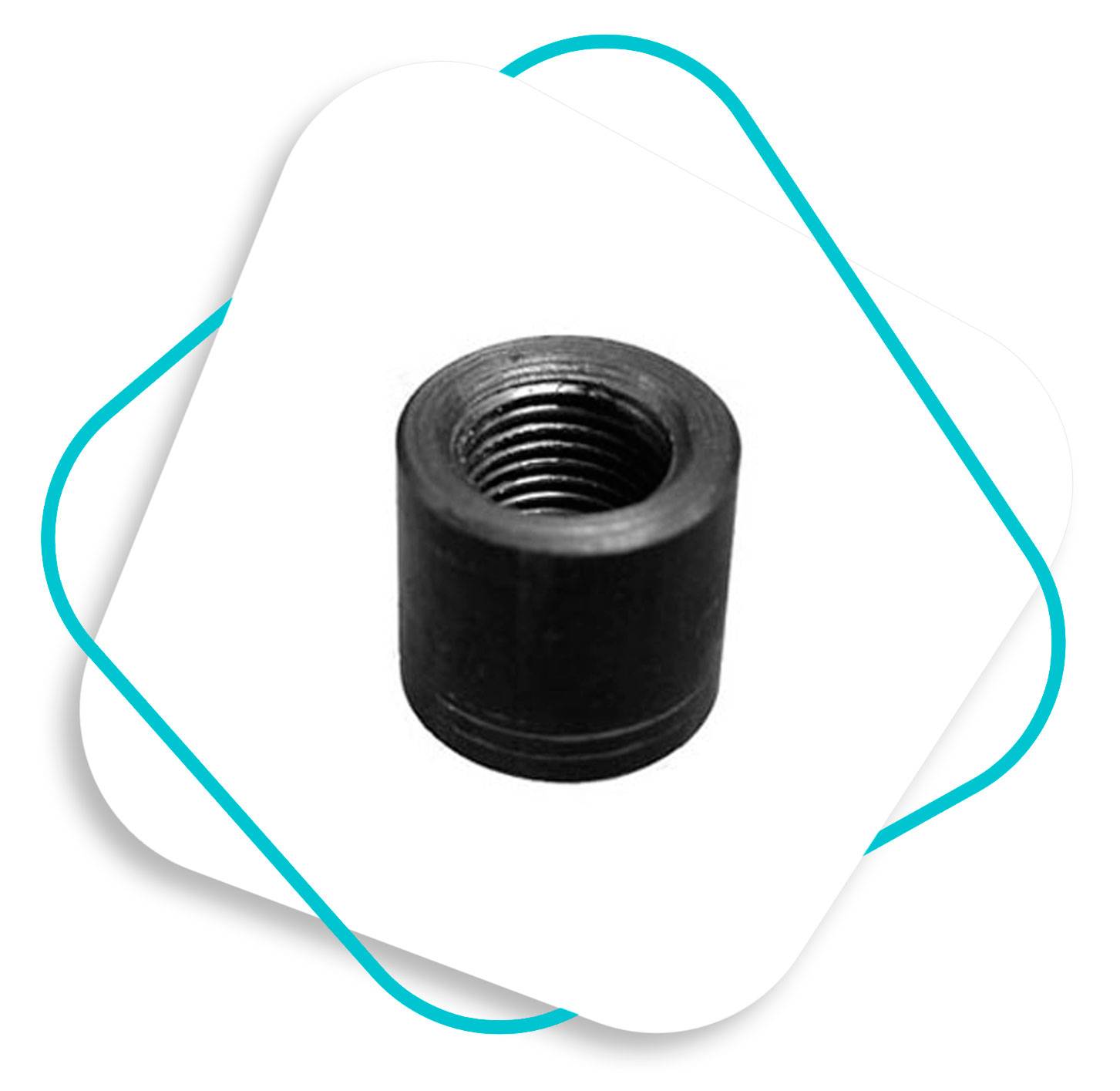

Types of Boss in Piping | Threaded Boss, Socket Weld Boss, Forged Welding Boss |
Pressure Rating | Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS Socket welding 3000, 6000, 9000 LBS |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
View the dimension for A/SA105N NPT black steel Boss, in accordance with ASME B16.11 standards

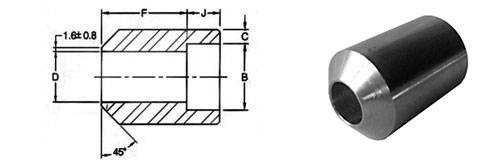

NPS | Socket bore dia B | depth min J | End to End R | End to End L | End to End L1 | socket wall thickness min – C | Bore diameter of fitting – D |
---|---|---|---|---|---|---|---|
1 | 33.80-34.30 | 13 | 40 | 41 | 96 | 5 | 25.9-27.4 |
1/2 | 21.70-22.20 | 10 | 30 | 32 | 82 | 4.1 | 15.0-16.6 |
1/4 | 14.10-14.60 | 10 | 25 | 26 | 62 | 3.3 | 8.5-10.0 |
1.5 | 48.65-49.15 | 13 | 55 | 45 | 112 | 5.55 | 40.1-41.7 |
1.25 | 42.55-43.05 | 13 | 45 | 43 | 105 | 5.3 | 34.3-35.8 |
2 | 61.10-61.60 | 16 | 55 | 57 | 125 | 6.05 | 51.7-53.5 |
3/8 | 17.55-18.05 | 10 | 30 | 27 | 66 | 3.5 | 11.8-13.3 |
3/4 | 27.05-27.55 | 13 | 30 | 37 | 88 | 4.25 | 20.2-21.7 |

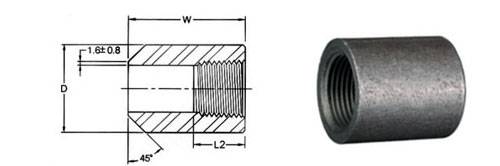

DN | Nom. Pipe Size | D | W | L2 (min) | |||||
3000lb | 6000lb | 3000lb | 6000lb | 3000lb | 6000lb | ||||
6 | 1/8” | 16.0 | 22.0 | 38.0 | 6.70 | ||||
8 | ¼” | 19.0 | 26.0 | 41.0 | 10.21 | ||||
10 | 3/8” | 22.0 | 32.0 | 45.0 | 10.36 | ||||
15 | ½” | 29.0 | 38.0 | 51.0 | 13.56 | ||||
20 | ¾” | 35.0 | 45.0 | 51.0 | 13.86 | ||||
25 | 1” | 45.0 | 60.0 | 51.0 | 17.34 | ||||
40 | 1 ½” | 64.0 | 76.0 | 51.0 | 18.38 | ||||
50 | 2” | 76.0 | 95.0 | 51.0 | 19.22 | ||||
65 | 2 ½” | 95.0 | - | 51.0 | - | 28.89 | - | ||
80 | 3” | 110.0 | - | 57.0 | - | 30.48 | - | ||
100 | 4” | 140.0 | - | 64.0 | - | 33.02 | - |
ASME B16.11 Pressure-Temperature | |||||
Temperature | Class | ||||
150 | 300 | ||||
1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
(oF) | (oC) | ||||
-20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
200 | 93 | 265 | 1785 | 1350 | 910 |
250 | 121 | 225 | 1575 | 1200 | 825 |
300 | 149 | 185 | 1360 | 1050 | 735 |
350 | 177 | 150 | 1150 | 900 | 650 |
400 | 204 | - | 935 | 750 | 560 |
450 | 232 | - | 725 | 600 | 475 |
500 | 260 | - | 510 | 450 | 385 |
550 | 288 | - | 300 | 300 | 300 |
|
|
Size | Class | Grade | Type Of Forged Boss | Price In INR (Per Piece) |
1/3 NPS | Class 3000 | ASTM A105 | Socket Weld | 69.00 |
1 NPS | Class 3000 | ASTM A105 | Socket Weld | 179.00 |
2 NPS | Class 3000 | ASTM A105 | Threaded | 245.00 |
3 NPS | Class 6000 | ASTM A105 | Threaded | 326.00 |
