Carbon Steel Swage Nipple
ANSI B16.11 CS NPT Thread Swage Nipple, ASTM A105 Forged Threaded Swage Nipple, CS Screwed Swage Nipples, Carbon Steel Swage Nipple Manufacturers in India, Carbon Steel Swage Nipple Supplier in Mumbai,

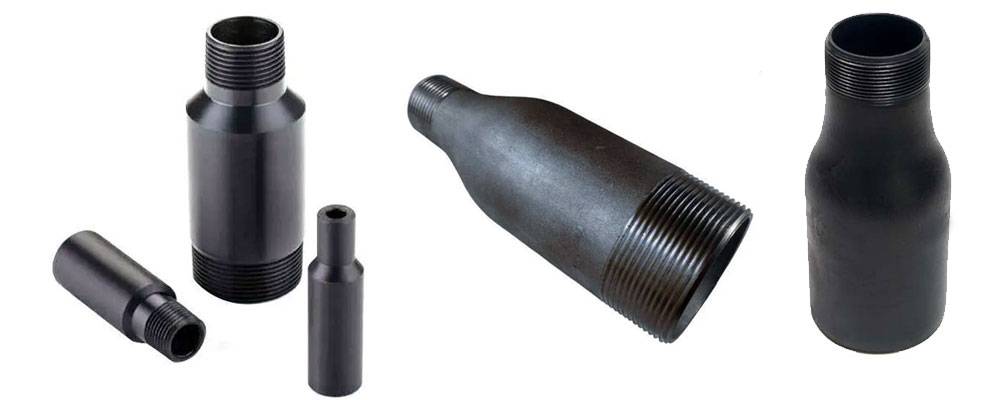

Rajdhan Metal takes pride in in its production of Carbon Steel Swage Nipple. Swage nipples are utilized to transfer fluid flow from one pipe size to another. Swage nipples with threaded ends, bevelled ends, or plain ends are available for the customer. Swage nipples can join two pipes of various sizes while also changing the diameter of the pipe. Concentric and eccentric swage nipples are two types of pipe swage nipples. For vertical pipes, concentric swage nipples are typically used, while eccentric swage nipples are typically used for horizontal pipelines. Eccentric reducers can be mounted with their top flat or bottom flat surfaces facing outward. For example, flat top installation can be utilized at the suction side of pumps to prevent air buildup in the pipe. A big bubble that eventually causes the pump to stop or produce cavitation when sucked into the pump could form as a result of the steady buildup of air in a concentric reducer. Condensed water or oil can drain at low spots because horizontal gas reducers are usually eccentric and oriented with their bottoms flat.
- What is a Swage Nipple?
- Carbon Steel Swage Nipple Specification
- Carbon Steel Swage Nipple Dimensions
- Specialized in Following ASME B16.11 Carbon Steel Swage Nipple
- Carbon Steel Threaded Swage Nipple Price List
- Carbon Steel Swage Nipple Weight Chart
- Carbon Steel Screwed Swage Nipple Industrial Applications
Class 3000 CS NPTF Thread Swage Nipple, Price List of Carbon Steel Swage Nipple, Black Carbon Steel Eccentric Swage Nipple, ASME B16.11 6000# Carbon Steel Concentric Swage Nipple Exporter in India.
What is Swage Nipple?
Swage Nipple Threaded Fittings are made of carbon and are intended for use in high-temperature applications, such as furnace parts and heat treatment machinery. As a result, situations, where temperatures might reach up to 1150°C for continuous service and 1035°C for intermittent service, could be employed with carbon threaded swage nipples. A low carbon variant of the carbon steel form is the BS3799 Screwed Forged Swage Nipple. In locations where the Screwed Swage Nipple is exposed to extreme or high temperatures, the low carbon version of the Threaded Swage Nipple dimensions can be utilized.
These steel fittings can be used in settings where the Forged Threaded Swage Nipple is exposed to reducing sulphur atmospheres including H2S due to the high chromium and medium nickel content in the threaded eccentric swage nipple. Therefore, swage nipples with a threaded end are frequently employed in environments with moderate carburising conditions. We advise utilizing the ASTM A105 CS Threaded Swage Nipples in petrochemical facilities, which frequently face mildly carburising atmospheres.
ASTM A350 LTCS Swage Nipple, Carbon Steel Swage Nipple Suppliers, Carbon Steel Swage Nipple Manufacturer, CS Threaded Forged Swage Nipples, Black Steel Threaded Swage Nipple Supplier in India.
Carbon Steel Swage Nipple Specification
| Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Thread | NPT, BSPT, BSPP (Male / Female) |
| Types | Screwed-Threaded Fittings |
| Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
| Surface | Anti-rust Oil or Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
NPT, ISO/BSP, SAE threads carbon steel swage nipples manufacturers, asme B16.11 pipe swage stockist in Mumbai, check forged screwed swage nipple price in India.
MSS SP-95/ BS 3799 Carbon Steel Swage Nipple Dimensions
| Nominal Diameter | L | E | |
| DN | NPS | ||
| 10×8 | 3/8×1/4 | 64 | 1.7 |
| 15×8 | 1/2×1/4 | 70 | 1.9 |
| 15×10 | 1/2×3/8 | 70 | 1.05 |
| 20×8 | 3/4×1/4 | 76 | 6.5 |
| 20×10 | 3/4×3/8 | 76 | 4.8 |
| 20×15 | 3/4×1/2 | 76 | 2.7 |
| 25×8 | 1×1/4 | 89 | 10.2 |
| 25×10 | 1×3/8 | 89 | 8.6 |
| 25×15 | 1×1/2 | 89 | 6.5 |
| 25×20 | 1×3/4 | 89 | 3.0 |
| 32×8 | 1.1/4×1/4 | 102 | 14.2 |
| 32×10 | 1.1/4×3/8 | 102 | 12.5 |
| 32×15 | 1.1/4×1/2 | 102 | 10.4 |
| 32×20 | 1.1/4×3/4 | 102 | 7.7 |
| 32×25 | 1.1/4×1 | 102 | 3.9 |
| 32×8 | 1.1/4×1/4 | 114 | 17.3 |
| 40×10 | 1.1/2×3/8 | 114 | 15.6 |
| 40×15 | 1.1/2×1/2 | 114 | 13.5 |
| 40×20 | 1.1/2×3/4 | 114 | 12.6 |
| 40×25 | 1.1/2×1 | 114 | 6.9 |
| 40×32 | 1.1/2×1.1/4 | 114 | 3.0 |
| 50×8 | 2×1/4 | 165 | 23.3 |
| 50×10 | 2×3/8 | 165 | 21.6 |
| 50×15 | 2×1/2 | 165 | 19.5 |
| 50×20 | 2×3/4 | 165 | 16.8 |
| 50×25 | 2×1 | 165 | 13.0 |
| 50×32 | 2×1.1/4 | 165 | 9.1 |
| 50×40 | 2×1.1/2 | 165 | 6.0 |
| 65×15 | 2.1/2×1/2 | 178 | 25.1 |
| 65×20 | 2.1/2×3/4 | 178 | 23.2 |
| 65×25 | 2.1/2×1 | 178 | 19.4 |
| 65×32 | 2.1/2×1.1/4 | 178 | 15.5 |
| 65×40 | 2.1/2×1.1/2 | 178 | 12.4 |
| 65×50 | 2.1/2×12 | 178 | 6.4 |
| 80×15 | 3×1/2 | 203 | 33.8 |
| 80×20 | 3×3/4 | 203 | 31.1 |
| 80×25 | 3×1 | 203 | 27.3 |
| 80×32 | 3×1.1/4 | 203 | 23.4 |
| 80×40 | 3×1.1/2 | 203 | 20.3 |
| 80×50 | 3×2 | 203 | 14.3 |
| 80×65 | 3×2.1/2 | 203 | 7.9 |
| 100×15 | 4×1/2 | 229 | 6.5 |
| 100×20 | 4×3/4 | 229 | 3.8 |
| 100×25 | 4×1 | 229 | 0.0 |
| 100×32 | 4×1.1/4 | 229 | 36.1 |
| 100×40 | 4×1.1/2 | 229 | 33.0 |
| 100×50 | 4×2 | 229 | 27.0 |
| 100×65 | 4×2.1/2 | 229 | 20.6 |
| 100×80 | 4×3 | 229 | 12.7 |

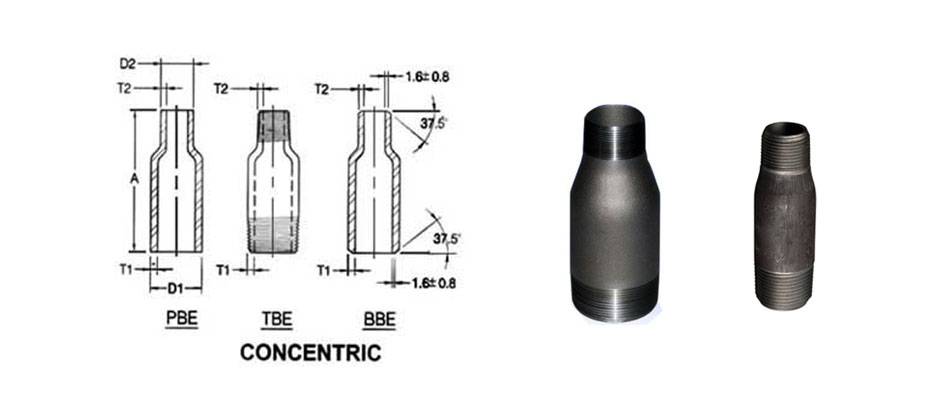

Carbon Steel Concentric Swage Nipple Dimensions
| NPS | O.D. | End To End “A” | Thickness Of Wall | ||||||||
| Large End D1 | Small End D2 | T1 | T2 | ||||||||
| Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | ||||
| 2”x3/4” | 60.3 | 26.7 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2”x1” | 60.3 | 33.4 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2”x1-1/4” | 60.3 | 42.2 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2”x1-1/2” | 60.3 | 48.3 | 165 | 3.9 | 5.5 | 8.7 | 11.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2”x1/8” | 73.0 | 10.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 1.7 | 2.4 | ||
| 2-1/2”x1/4” | 73.0 | 13.7 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.2 | 3.0 | ||
| 2-1/2”x3/8” | 73.0 | 17.1 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.3 | 3.2 | ||
| 2-1/2”x1/2” | 73.0 | 21.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.8 | 3.7 | 4.8 | 7.5 |
| 2-1/2”x3/4” | 73.0 | 26.7 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 2.9 | 3.9 | 5.6 | 7.8 |
| 2-1/2”x1” | 73.0 | 33.4 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.4 | 4.5 | 6.4 | 9.1 |
| 2-1/2”x1-1/4” | 73.0 | 42.2 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.6 | 4.9 | 6.4 | 9.7 |
| 2-1/2”x1-1/2” | 73.0 | 48.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.7 | 5.1 | 7.1 | 10.2 |
| 2-1/2”x2” | 73.0 | 60.3 | 178 | 5.2 | 7.0 | 9.5 | 14.0 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3”x1/8” | 88.9 | 10.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 1.7 | 2.4 | 3.2 | 4.8 |
| 3”x1/4” | 88.9 | 13.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.2 | 3.0 | 3.7 | 6.1 |
| 3”x3/8” | 88.9 | 17.1 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.3 | 3.2 | 4.0 | 6.4 |
| 3”x1/2” | 88.9 | 21.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.8 | 3.7 | 4.8 | 7.5 |
| 3”x3/4” | 88.9 | 26.7 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 2.9 | 3.9 | 5.6 | 7.8 |
| 3”x1” | 88.9 | 33.4 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.4 | 4.5 | 6.4 | 9.1 |
| 3”x1-1/4” | 88.9 | 42.2 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.6 | 4.9 | 6.4 | 9.7 |
| 3”x1-1/2” | 88.9 | 48.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.7 | 5.1 | 7.1 | 10.2 |
| 3”x2” | 88.9 | 60.3 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 3.9 | 5.5 | 8.7 | 11.1 |
| 3”x2-1/2” | 88.9 | 73.0 | 203 | 5.5 | 7.6 | 11.1 | 15.2 | 5.2 | 7.0 | 9.5 | 14.0 |
| 3-1/2”x1/8” | 101.6 | 10.3 | 203 | 5.7 | 8.1 | 1.7 | 2.4 | ||||
| 3-1/2”x1/4” | 101.6 | 13.7 | 203 | 5.7 | 8.1 | 2.2 | 3.0 | ||||
| 3-1/2”x3/8” | 101.6 | 17.1 | 203 | 5.7 | 8.1 | 2.3 | 3.2 | ||||
| 3-1/2”x1/2” | 101.6 | 21.3 | 203 | 5.7 | 8.1 | 2.8 | 3.7 | 4.8 | 7.5 | ||
| 3-1/2”x3/4” | 101.6 | 26.7 | 203 | 5.7 | 8.1 | 2.9 | 3.9 | 5.6 | 7.8 | ||
| 3-1/2”x1” | 101.6 | 33.4 | 203 | 5.7 | 8.1 | 3.4 | 4.5 | 6.4 | 9.1 | ||
| 3-1/2”x1-1/4” | 101.6 | 42.2 | 203 | 5.7 | 8.1 | 3.6 | 4.9 | 6.4 | 9.7 | ||

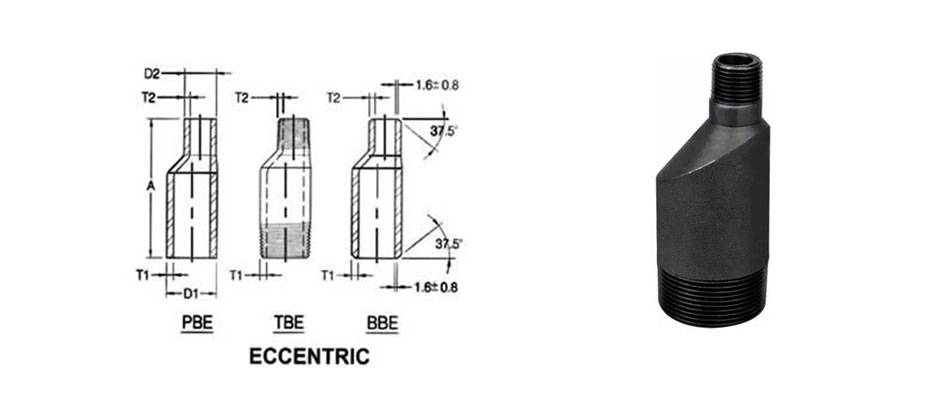

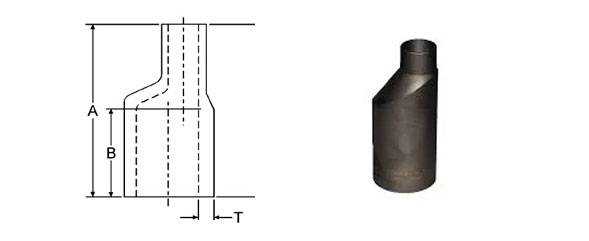

Carbon Steel Eccentric Swage Nipple Dimensions
| NPS | O.D. | End To End “A” |
Thickness Of Wall | ||||||||
| Large End D1 | Small End D2 | T1 | T2 | ||||||||
| Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | Schedule 40 (STD) | Schedule 80 (XS) | Schedule 160 | XXS | ||||
| 3-1/2”x1-1/2” | 101.6 | 48.3 | 203 | 5.7 | 8.1 | 3.7 | 5.1 | 7.1 | 10.2 | ||
| 3-1/2”x2” | 101.6 | 60.3 | 203 | 5.7 | 8.1 | 3.9 | 5.5 | 8.7 | 11.1 | ||
| 3-1/2”x2-1/2” | 101.6 | 73.0 | 203 | 5.7 | 8.1 | 5.2 | 7.0 | 9.5 | 14.0 | ||
| 3-1/2”x3” | 101.6 | 88.9 | 203 | 5.7 | 8.1 | 5.5 | 7.6 | 11.1 | 15.2 | ||
| 4”x1/4” | 114.3 | 13.7 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.2 | 3.0 | ||
| 4”x3/8” | 114.3 | 17.1 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.3 | 3.2 | ||
| 4”x1/2” | 114.3 | 21.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.8 | 3.7 | 4.8 | 7.5 |
| 4”x3/4” | 114.3 | 26.7 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 2.9 | 3.9 | 5.6 | 7.8 |
| 4”x1” | 114.3 | 33.4 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.4 | 4.5 | 6.4 | 9.1 |
| 4”x1-1/4” | 114.3 | 42.2 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.6 | 4.9 | 6.4 | 9.7 |
| 4”x1-1/2” | 114.3 | 48.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.7 | 5.1 | 7.1 | 10.2 |
| 4”x2” | 114.3 | 60.3 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 3.9 | 5.5 | 8.7 | 11.1 |
| 4”x2-1/2” | 114.3 | 73.0 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.2 | 7.0 | 9.5 | 14.0 |
| 4”x3” | 114.3 | 88.9 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.5 | 7.6 | 11.1 | 15.2 |
| 4”x3-1/2” | 114.3 | 101.6 | 229 | 6.0 | 8.6 | 13.5 | 17.1 | 5.7 | 8.1 | ||
Rajdhan Metal is a supplier of carbon steel swage pipe nipple in India. View our price and weight of threaded swage nipple.
Specialized in Following ASME B16.11 Carbon Steel Swage Nipple
- Carbon Steel Industrial Swage Nipple
- CS MSS SP 95 Swage Nipple Trader
- Carbon Steel NPT Threaded Swage Nipple
- Black Carbon Steel 1" BSPT Swage Nipple
- ASME B16.11 CS Swage Nipple Female Threaded
- A350 LF2 Low Temperature Steel Swage Nipple
- Stockists of Carbon Steel BSPT Swage Nipple
- Carbon Steel Swage Pipe Nipple Suppliers
- Carbon Steel Screwed BSPP Swage Nipples
- Threaded Black Iron Swage Nipple Stockist
- Low Carbon Steel Swage Nipples
- Galvanised Carbon Steel NPTF thread Swage Nipple
- Carbon Steel Swage Nipple for Piping Connection
- Buy Black Steel 2" NPT Swage Nipple Threaded, 3000lb
- Carbon Steel Class 6000 Concentric Swage Nipple
- Carbon Steel Swage Nipple Threaded One End
- Exporter of Carbon Steel Swage Nipple
- CS High Pressure Forged Threaded Swage Nipple
- Manufacturers of CS NPT Threaded Swage Nipple
- Carbon Steel Swage Nipple Threaded Both Ends
- Carbon Steel Swage Nipples Stock
- Class 2000, Carbon Steel Screwed Swage Nipple
- Carbon Steel NPT Swage Nipples
- ASME B16.11 Black Swage Nipple Wholesaler
- Black Iron Threaded Swage Nipple Distributor
- CS Eccentric Swage Nipples Stockholder
- Cast Iron Swage Nipples Dealer
- Carbon Steel BSP Threaded Forged Swage Nipple
- Carbon Steel BSPP Threaded Swage Nipple
- High Carbon Steel Swage Nipple
- Carbon Steel BSP Screwed Swage Nipple Supplier
- Carbon Steel ASTM A105 Swage Nipple
Carbon Steel Swage Nipple Price List
| Swage Nipple Sizes | Type | Material | Class | Price In US($) |
| Swage Nipple: 2 NPS X 1/2 NPS | Concentric | ASTM A105 | Class 3000 | $2.78 |
| Swage Nipple: 2 NPS X 1 NPS | Concentric | ASTM A105N | Class 3000 | $3.68 |
| Swage Nipple: 1 NPS X 1/2 NPS | Concentric | ASTM A105 | Class 3000 | $1.79 |
| Swage Nipple: 1 X 1/3 NPS | Concentric | ASTM A350 | Class 3000 | $2.5 |
| Swage Nipple: 2 NPS X 1/2 NPS | Concentric | A350 LF2 | Class 3000 | $3,2 |
| Swage Nipple: 2 NPS X 1 NPS | Eccentric | ASTM A105N | Class 6000 | $3.50 |
| Swage Nipple: 2 NPS X 1/3 NPS | Eccentric | ASME SA 105 | Class 6000 | $3.94 |
| Swage Nipple: 2NPS X 1-1/2 NPS | Eccentric | SA 105N | Class 6000 | $4.10 |
Carbon Steel Swage Nipple Weight Chart
| Normal Pipe Size | A | B | QTY | Weight In KG |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⅜ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
