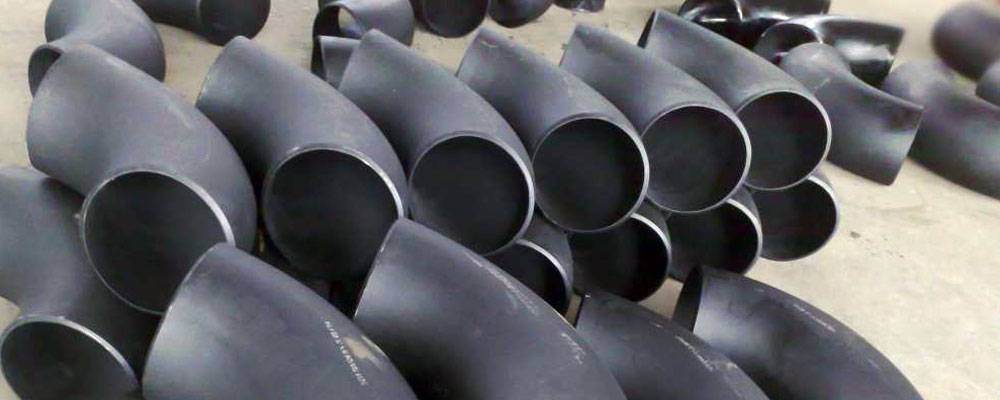

Carbon Steel 90 Deg Long Radius Elbow
Carbon Steel 90 Deg. Long Radius Pipe Elbows, CS 90 Deg. Long Radius Elbow Suppliers, Carbon Steel 90 Degree LR Elbows, ASTM A234 CS 90 Deg. LR Butt weld Elbow, Carbon Steel 90 Degree Long Radius Elbow Manufacturers in India.
Rajdhan Metal is a global leader in producing and providing units of Carbon Steel 90 Degree Long Radius Elbow. Brewing, Chemical Industry, Dairy, Food processing, Marine equipment, Petrochemicals, Pharmaceuticals, and other industries frequently employ CS 90 Degree Long Radius Elbow. We are one of the most effective companies in the development of special Carbon Steel 90 Degree Long Radius Elbow Pipe Fittings that can endure high temperatures and pressure.
Table of Content
- What is Carbon Steel 90 Deg. Long Radius Elbow?
- CS 90 Degree Long Radius Pipe Elbow Specification
- Carbon Steel 90° Long Radius Pipe Elbow Types
- Carbon Steel Pipe Fitting - Elbow 90 Long Radius
- Carbon Steel 90 Degree Long Radius Elbow Dimensions
- Dimensional Tolerances Of Carbon Steel 90 Degree Long Radius Elbow
- Carbon Steel Butt Weld 90 Deg Short Radius Elbow Weight Chart
- Specialized in Following CS 90 Deg Long Radius Elbows
- Carbon Steel 90 Deg Long Radius Pipe Elbow Price List
- CS 90° Long Radius Elbow Industrial Applications
- CS 90 Deg. Long Radius Elbow Manufacturing Process
CS LR Butt Weld Pipe Elbow 90°, ASTM A420 LTCS 90° Long Radius Elbow Manufacturer in Mumbai, CS 90 Degree Long Radius Seamless Elbow, ASTM A234 WPB 90 Degree LR BW Elbow, CS 90 Deg. Long Radius Pipe Elbow Suppliers In Mumbai.
The entire collection of high quality CS 90 Degree Long Radius Elbow Pipe Fittings supplied by us is extensively acclaimed among the consumers we have due to its durability and resistance to oxidation. Carbon Steel 90 Degree Long Radius Elbows are available in a variety of sizes, standards, classes, and specifications. We are committed to meeting the needs and expectations of our valued customers, therefore we provide these CS 90 Degree Long Radius Elbow in a variety of forms and sizes.
What exactly is Carbon Steel 90 Degree Long Radius Elbow?
The Carbon Steel 90 Degree Long Radius Elbow made of heavy materials may be utilised for stiff applications where temperatures in these climatic conditions might be exceptionally high or low. Because Carbon Steel 90 Degree Long Radius Weld Elbow, has strong resistance to high temperatures, it may be utilised in these applications because it can sustain extreme temperatures without losing mechanical or physical qualities.
Pressure-temperature ratings, materials, dimensions, tolerances, labelling, testing, and methods of identifying fitting apertures are all covered by the Carbon Steel 90 Degree Long Radius Elbow.
Uses of Carbon Steel 90 Degree Long Radius Elbow:
Carbon Steel 90 Degree Long Radius Elbow are used in industries such as fertiliser plants, petrochemical plants, sugar mills, pharmaceuticals, oil refineries, textile machinery, chemical plants, industrial machinery, power industry, and cement industry due to their high corrosion resistance.
Carbon Steel 90° Long Radius Buttweld Elbow, Manufacturer of Carbon Steel 90° LR Butt weld Pipe Elbow in Mumbai, India, CS 90 Deg. Long Radius SMLS Elbow, ASTM A860 High Yield Carbon Steel Elbow, CS ASME B16.9 Long Radius 90° Elbow Exporter in India.
Carbon Steel 90° Long Radius Elbow Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Seamless 90° Short Radius Elbow Size | 1/2"~24" |
| ERW / Welded / Fabricated 90° Short Radius Elbow Size | 1/2" (15 NB) to 48" (1200NB) |
| DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | EN10253-1, EN10253-2 |
| 90 Deg Elbow LR Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| 90 Deg Elbow Long Radius Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Carbon Steel 90 Degree Elbow Fitting Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Form | 90° Short Radius Elbow |
| Material | A234 – WPB A420 – WPL6 / WPL3 A860-WPHY 52-60/42-46/65-70 |
| Application | Electric Power, Water Disposal, Chemical Engineering, Nuclear Energy, Ship Building, Garbage Disposal, Petroleum Oil, Natural Gas |
Carbon Steel 90 Degree Pipe Elbow Types
Check Carbon Steel 90 Degree Long Radius Pipe Elbow Price List, Sizes and Dimensions.
Carbon Steel Pipe Fitting - Elbow 90 Long Radius
| Nominal
Pipe Size | Outside
Diameter | Inside
Diameter | Wall
Thickness | Center
To End | Pipe
Schedule | Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1.5 | 40 | 0.16 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.5 | 40 | 0.17 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.4 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 40 | 0.55 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 40 | 0.8 |
| 2 | 2.38 | 2.07 | 0.154 | 3 | 40 | 1.6 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 3.75 | 40 | 3.2 |
| 3 | 3.5 | 3.07 | 0.216 | 4.5 | 40 | 4.8 |
| 3 1/2 | 4 | 3.55 | 0.226 | 5.25 | 40 | 6.6 |
| 4 | 4.5 | 4.03 | 0.237 | 6 | 40 | 8.9 |
| 5 | 5.56 | 5.05 | 0.258 | 7.5 | 40 | 15.1 |
| 6 | 6.62 | 6.07 | 0.28 | 9 | 40 | 24 |
| 8 | 8.62 | 7.98 | 0.322 | 12 | 40 | 47.8 |
| 10 | 10.75 | 10.02 | 0.365 | 15 | 40 | 83.4 |
| 12 | 12.75 | 12 | 0.375 | 18 | * | 123 |
| 14 | 14 | 13.25 | 0.375 | 21 | 30 | 155 |
| 16 | 16 | 15.25 | 0.375 | 24 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 27 | * | 262 |
| 20 | 20 | 19.25 | 0.375 | 30 | 20 | 324 |
| 24 | 24 | 23.25 | 0.375 | 36 | 20 | 466 |
| 30 | 30 | 29.25 | 0.375 | 45 | * | 720 |
| 36 | 36 | 35.25 | 0.375 | 54 | * | 1,039 |
| 42 | 42 | 41.25 | 0.375 | 63 | * | 1,420 |
| 48 | 48 | 47.25 | 0.375 | 72 | * | 2,000 |

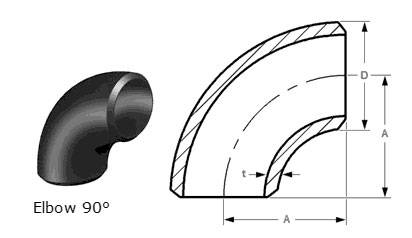

Carbon Steel 90 Degree Long Radius Elbow Dimensions
| 90 DEG LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions | ||||||
| inches | ND | mm | Center to center | Radius | Center to end | Back to face |
| D | O | A | B | K | ||
| 1/2 | 15 | 21,34 | 76,20 | 38,10 | 15,87 | 47,62 |
| 3/4 | 20 | 26,67 | 57,15 | 28,57 | 11,11 | 42,86 |
| 1 | 25 | 33,40 | 76,20 | 38,10 | 22,22 | 55,56 |
| 1 1/4 | 32 | 42,16 | 95,25 | 47,60 | 25,40 | 69,85 |
| 1 1/2 | 40 | 48,26 | 114,30 | 57,15 | 28,57 | 82,55 |
| 2 | 50 | 60,32 | 152,40 | 76,20 | 34,92 | 106,40 |
| 2 1/2 | 65 | 73,02 | 190,50 | 95,25 | 44,45 | 131,80 |
| 3 | 80 | 88,90 | 228,60 | 114,30 | 50,80 | 158,75 |
| 3 1/2 | 90 | 101,60 | 266,70 | 133,35 | 57,15 | 184,15 |
| 4 | 100 | 114,30 | 304,80 | 152,40 | 63,50 | 209,55 |
| 5 | 125 | 141,30 | 381,00 | 190,50 | 79,38 | 261,90 |
| 6 | 150 | 168,27 | 457,20 | 228,60 | 95,25 | 312,70 |
| 8 | 200 | 219,07 | 609,60 | 304,80 | 127,00 | 414,30 |
| 10 | 250 | 273,05 | 762,00 | 381,00 | 158,75 | 517,50 |
| 12 | 300 | 323,85 | 914,40 | 457,20 | 190,50 | 619,10 |
| 14 | 350 | 355,60 | 1066,80 | 533,40 | 222,25 | 711,20 |
| 16 | 400 | 406,40 | 1219,20 | 609,60 | 254,00 | 812,80 |
| 18 | 450 | 457,20 | 1371,60 | 685,80 | 285,74 | 914,40 |
| 20 | 500 | 508,00 | 1524,00 | 762,00 | 317,50 | 1016,00 |
| 22 | 550 | 558,80 | 1676,40 | 838,20 | 342,90 | 1117,60 |
| 24 | 600 | 609,60 | 1828,80 | 914,40 | 381,00 | 1219,20 |
| 28 | 700 | 711,20 | 2133,60 | 1066,80 | 441,90 | 1422,40 |
| Dimensions in mm. | ||||||
Dimensional Tolerances Of Carbon Steel 90 Degree Long Radius Elbow
| DIMENSIONAL TOLERANCES – ELBOWS | |||||||
| For all fittings | Elbows 45 deg | ||||||
| Nominal Pipe Size (NPS) | Outside Ø
at Bevel |
Inside Ø
at End |
Wall Thickness
t / t1 |
Center to End Dim. A-B-C-M | |||
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | |||
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | |||
| 4 | +2 -1 | 1,6 | than | 2 | |||
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | |||
| 8 | 2 | 1,6 | of nominal | 2 | |||
| 10 | +4 -3 | 3,2 | tickness | 2 | |||
| 12 a 18 | +4 -3 | 3,2 | 3 | ||||
| 20 a 24 | +6 -5 | 4,8 | 3 | ||||
| 26 a 30 | +7 -5 | 4,8 | 3 | ||||
| 32 a 48 | +7 -5 | 4,8 | 5 | ||||
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Carbon Steel Butt Weld 90 Deg Short Radius Elbow Weight Chart
| WEIGHTS OF FITTINGS | ||||||||
|---|---|---|---|---|---|---|---|---|
| NPS inches |
ELBOWS LR 90° |
ELBOWS SR 90° |
||||||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.05 | 0.06 | 0.08 | 0.10 | 0.03 | 0.04 | 0.05 | 0.07 |
| 3/4 | 0.06 | 0.07 | 0.09 | 0.11 | 0.04 | 0.05 | 0.06 | 0.07 |
| 1 | 0.09 | 0.15 | 0.18 | 0.20 | 0.06 | 0.10 | 0.12 | 0.13 |
| 1 1/4 | 0.13 | 0.20 | 0.25 | 0.35 | 0.09 | 0.13 | 0.17 | 0.12 |
| 1 1/2 | 0.18 | 0.30 | 0.40 | 0.50 | 0.12 | 0.20 | 0.27 | 0.33 |
| 2 | 0.30 | 0.50 | 0.70 | 0.90 | 0.20 | 0.33 | 0.47 | 0.60 |
| 2 1/2 | 0.60 | 0.85 | 1.35 | 1.80 | 0.40 | 0.60 | 0.90 | 1.20 |
| 3 | 0.90 | 1.30 | 2.00 | 2.90 | 0.60 | 0.90 | 1.35 | 1.90 |
| 4 | 1.40 | 2.00 | 4.00 | 5.90 | 0.90 | 1.35 | 2.65 | 3.90 |
| 5 | 2.90 | 3.60 | 6.50 | 9.70 | 1.95 | 2.40 | 4.35 | 6.50 |
| 6 | 4.00 | 5.00 | 10.5 | 16.0 | 2.70 | 3.35 | 7.00 | 10.5 |
| 8 | 7.40 | 10.0 | 21.5 | 33.5 | 4.90 | 6.70 | 14.5 | 22.5 |
| 10 | 13.6 | 16.8 | 38.5 | 52.5 | 9.10 | 11.2 | 25.6 | 35.0 |
| 12 | 23.4 | 27.0 | 59.0 | 79.0 | 15.6 | 18.0 | 39.5 | 53.0 |
| 14 | 29.0 | 35.0 | 70.0 | 94.0 | 19.3 | 23.5 | 47.0 | 63.0 |
| 16 | 41.3 | 47.0 | 95.0 | 125 | 27.5 | 31.5 | 63.5 | 84.0 |
| 18 | 51.8 | 59.0 | 120 | 158 | 34.5 | 39.5 | 80.0 | 105 |
| 20 | 73.0 | 85.0 | 146 | 194 | 49.0 | 57.0 | 98.0 | 129 |
| 24 | 122 | 140 | 210 | 282 | 82.0 | 94.0 | 140 | 188 |
| Approximate weights in kg, density 8 kg/dm3 | ||||||||
Looking for DIN 2605 90 Deg Elbow manufacturer in India? buy from oldest Carbon Steel 90 Degree Elbow manufacturers in Mumbai. Check 90 Deg Elbow Long Radius Specification, ASME B16.9 90 Deg Elbow & Butt Weld 90 Deg Elbow LR supplier
Specialized in Following ASME B16.9 CS 90° Long Radius Buttweld Elbow
- ASTM A234 CS 90° Long Radius Elbow Manufacturer
- Carbon Steel 90 Degree Long Radius Elbow Dimensions
- Carbon Steel 90 Degree Long Radius Elbow ANSI B16.9
- Carbon Steel Schedule 40 90° Long Radius Elbow
- Carbon Steel 90° Long Radius Elbow Dimensions
- Carbon Steel 90° Long Radius Elbow Material
- CS A234 WPB 90 Deg Long Radius Elbow Supplier
- High Yield CS A860 90 Degree LR Buttweld Elbow
- CS A234 90° Long Radius Elbows Suppliers
- Manufacturer Of CS Sch 60 90 Deg Long Radius Elbow
- Buy Carbon Steel Buttweld 90 Deg LR Seamless Elbow
- Stockist of CS ASTM A234 90 Degree LR Buttweld Elbow
- Carbon Steel Industrial 90 Degree Long Radius Elbow
- CS Butt Weld 90 Deg Long Radius Elbow
- LTCS ASTM A420 90 Deg Long Radius Elbow
- Carbon Steel 90° LR Buttweld Elbow Supplier in India
- A234 Gr.WPB 90 Degree LR Carbon Steel Elbow
- A860 High Yield Carbon Steel 90 Deg. LR Elbow Suppliers
- CS ASME B16.9 Buttweld 90° Long Radius Elbow
- Long Radius Carbon Steel 90 Degree Elbow
- Carbon Steel Long Radius Elbow 90 Degree
- CS 90° Long Radius Elbow Manufacturer In India
- Carbon Steel 90 Degree Long Radius Pipe Elbows Dealer
- Supplier of CS 90 Deg Long Radius Elbows
- Exporter of Carbon Steel 90° Long Radius Buttweld Elbow
- ASTM A420 LTCS 90° Long Radius Elbow Wholesaler
- CS 90 Degree Long Radius Elbow
- Carbon Steel Butt Weld Elbow 90 Degree LR Manufacturer
- Carbon Steel 90 Degree Long Radius Weight Chart
- Carbon Steel 90 Deg. LR Elbow Manufacturers in India
Carbon Steel 90° Long Radius Pipe Elbow Price List
| DIN DN15-DN2000 Carbon Steel 90 Deg. LR Buttweld Elbow | FOB Price: US$ 20.00 - 25.00 / Piece |
| Carbon Steel Butt Weld Long Radius Elbow 90 Degree | FOB Price: US$ 4.00 - 200.00 / Piece |
| Carbon Steel ASTM A234 WPB 90° LR Seamless Elbows | FOB Price: US$ 3.80 - 8.00 / Piece |
| 3 inch Long Radius Schedule 80 90 Degree Carbon Steel Elbow | FOB Price: US$ 2.00 - 400.00 / Piece |
| CS 90 Degree Long Radius Elbow Buttweld Fittings | FOB Price: US$ 5.00 - 7.00 / Piece |
| Carbon Steel 90 Degree LR Pipe Elbow Big Size | FOB Price: US$ 3.00 - 500.00 / Piece |
| 5 inch 90 Deg. Long Radius Carbon Steel Pipe Elbow | FOB Price: US$ 5.00 - 8.00 / Piece |
| ASTM A420 WPL6 Low Temperature Carbon Steel 90° Long Radius Elbow | FOB Price: US$ 2.00 - 300.00 / Piece |
| Carbon Steel 90 Degree Long Radius Elbow 4″ | FOB Price: US$ 2.00 - 300.00 / Piece |
| DN50 Carbon Steel LR Pipe Elbow 90 Degree | FOB Price: US$ 0.20 - 88.00 / Piece |
| Carbon Steel Buttweld 90° Long Radius Elbow | FOB Price: US$ 10.00 - 9.00 / Piece |
Are you in search of a reliable manufacturer of Carbon Steel 90 Degree Long Radius Pipe Elbows in Mumbai, India? We offer high-quality CS 90° Long Radius Buttweld Elbows at competitive prices.
Carbon Steel 90 Deg. LR Buttweld Pipe Elbow Manufacturing Process
