Carbon Steel 45 Deg Long Radius Elbow
CS 45 Deg. Long Radius Elbow Suppliers, Carbon Steel 45 Deg. Long Radius Pipe Elbows, ASTM A234 CS 45 Deg. LR Butt weld Elbow, Carbon Steel 45 Degree LR Elbows, Carbon Steel 45 Degree Long Radius Elbow Manufacturers in India.
Rajdhan Metal are appropriate for systems dealing with high temperatures and pressures compounds such as Carbon Steel 45 Deg Long Radius Elbow. Rajdhan Metal is a speciality alloy system provider for industrial, sanitary, and biopharmaceutical (BPE) applications. Pipe, fittings, and tubing are offered in diameters ranging from 1/8" to 48" in all schedules, classes, and gauges. We also offer industry-leading stainless steel pipe systems and fittings to clients.
- What is Carbon Steel 45 Deg. Long Radius Elbow?
- CS 45 Degree Long Radius Pipe Elbow Specification
- Carbon Steel 45° Long Radius Pipe Elbow Types
- Carbon Steel Pipe Fitting - Elbow 45 Long Radius
- Carbon Steel 45 Deg Elbow Long Radius Schedule
- Dimensional Tolerances Of ASME B16.9 Buttweld Elbows- 45 Degree CS Pipe Elbow
- Specialized in Following CS 45 Deg Long Radius Elbows
- Carbon Steel 45 Deg Long Radius Pipe Elbow Price List
- CS 45° Long Radius Elbow Industrial Applications
- CS 45 Deg. Long Radius Elbow Manufacturing Process
CS 45 Degree Long Radius Seamless Elbow, ASTM A234 WPB 45 Degree LR BW Elbow, CS LR Butt Weld Pipe Elbow 45°, ASTM A420 LTCS 45° Long Radius Elbow Manufacturer in Mumbai, CS 45 Deg. Long Radius Pipe Elbow Suppliers In Mumbai.
Pipe Fittings Made of Carbon Steel Elbow is a popular type of CS fitting used to join pipe or tubing to allow a change in direction, often at a 90° or 45° angle. Carbon steel is also used in the construction of pipe systems. Carbon Steel Elbows can be machined for butt welding, threaded, or socketed, therefore the elbows can be butt welded, thread elbow, attachment elbow, or other configurations.

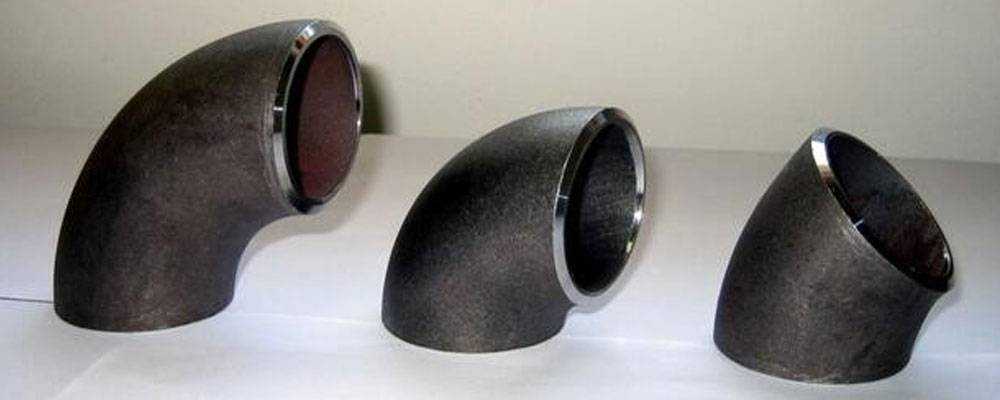

What is Carbon Steel 45 Deg Long Radius Elbow?
It appears to be half of a 90-degree elbow in the field of butt-welding steel elbows. The 45-degree elbows are typically either seamless or welded. A Carbon Steel 45 Deg Long Radius Elbow is formed by bending the two ends of the pipe to a 45-degree angle. Long radius 45-degree elbows are typically constructed (LR). People only utilise the short radius elbow on rare occasions, such as in a very confined space (SR). Because almost no factories create such 45-degree small radius elbows, engineers or employees would instead cut a 90-degree elbow into two 45-degree elbows.
Best-selling CS 45 Degree Long Radius Elbow Pipe Fittings in low-temperature carbon steel, in full size and with a good reputation, to satisfy your needs. Carbon Steel Long radius elbows with a radius of 45° are the most often used. If no radius is specified, the 45 Deg long radius type is commonly used. It provides a gradual and safe direction shift for high-pressure or high-flow-rate pipes.
Manufacturer of Carbon Steel 45° LR Butt weld Pipe Elbow in Mumbai, India, Carbon Steel 45° Long Radius Buttweld Elbow, ASTM A860 High Yield Carbon Steel Elbow, CS 45 Deg. Long Radius SMLS Elbow, CS ASME B16.9 Long Radius 45° Elbow Exporter in India.
Carbon Steel 45° Long Radius Elbow Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Seamless 45° Short Radius Elbow Size | 1/2"~24" |
| ERW / Welded / Fabricated 45° Short Radius Elbow Size | 1/2" (15 NB) to 48" (1200NB) |
| DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | EN10253-1, EN10253-2 |
| 45 Deg Elbow LR Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| 45 Deg Elbow Long Radius Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Carbon Steel 45 Degree Elbow Fitting Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Form | 45° Short Radius Elbow |
| Material | A234 – WPB A420 – WPL6 / WPL3 A860-WPHY 52-60/42-46/65-70 |
| Application | Electric Power, Water Disposal, Chemical Engineering, Nuclear Energy, Ship Building, Garbage Disposal, Petroleum Oil, Natural Gas |
Carbon Steel 45 Degree Pipe Elbow Types
Check Carbon Steel 45 Degree Long Radius Pipe Elbow Price List, Sizes and Dimensions.
Carbon Steel Pipe Fitting - Elbow 45 Deg. Long Radius
| Nominal
Pipe Size | Outside
Diameter | Inside
Diameter | Wall
Thickness | Center
To End | Pipe
Schedule | Weight Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 0.62 | 40 | 0.09 |
| 3/4 | 1.05 | 0.824 | 0.113 | 0.75 | 40 | 0.1 |
| 1 | 1.32 | 1.05 | 0.133 | 0.88 | 40 | 0.22 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.12 | 40 | 0.43 |
| 2 | 2.38 | 2.07 | 0.154 | 1.38 | 40 | 0.85 |
| 2 1/2 | 2.88 | 2.47 | 0.203 | 1.75 | 40 | 1.7 |
| 3 | 3.5 | 3.07 | 0.216 | 2 | 40 | 2.5 |
| 3 1/2 | 4 | 3.55 | 0.226 | 2.25 | 40 | 3.4 |
| 4 | 4.5 | 4.03 | 0.237 | 2.5 | 40 | 4.5 |
| 5 | 5.56 | 5.05 | 0.258 | 3.12 | 40 | 7.5 |
| 6 | 6.62 | 6.06 | 0.28 | 3.75 | 40 | 11.7 |
| 8 | 8.62 | 7.98 | 0.322 | 5 | 40 | 23.3 |
| 10 | 10.75 | 10.02 | 0.365 | 6.25 | 40 | 40.9 |
| 12 | 12.75 | 12 | 0.375 | 7.5 | * | 61.4 |
| 14 | 14 | 13.25 | 0.375 | 8.75 | 30 | 78.1 |
| 16 | 16 | 15.25 | 0.375 | 10 | 30 | 101 |
| 18 | 18 | 17.25 | 0.375 | 11.25 | * | 128 |
| 20 | 20 | 19.25 | 0.375 | 12.5 | 20 | 159 |
| 24 | 24 | 23.25 | 0.375 | 15 | 20 | 231 |
| 30 | 30 | 29.25 | 0.375 | 18.5 | * | 358 |
| 36 | 36 | 35.25 | 0.375 | 22.25 | * | 518 |
| 42 | 42 | 41.25 | 0.375 | 26 | * | 707 |
| 48 | 48 | 47.25 | 0.375 | 29.88 | * | 1,000 |
Carbon Steel 45 Deg Elbow Long Radius Schedule
| NPS | LBS | KG |
| 1/2 | 0.09 | 0.04 |
| 3/4 | 0.09 | 0.04 |
| 1 | 0.25 | 0.11 |
| 1.1/4 | 0.38 | 0.17 |
| 1.1/2 | 0.4 | 0.18 |
| 2 | 0.81 | 0.37 |
| 2.1/2 | 1.75 | 0.79 |
| 3 | 2.63 | 1.19 |
| 3.1/2 | 3.5 | 1.59 |
| 4 | 4.5 | 2.04 |
| 5 | 7.5 | 3.4 |
| 6 | 12 | 5.44 |
| 8 | 23 | 10.43 |
| 10 | 43 | 19.5 |
| 12 | 62 | 28.12 |
| 14 | 80 | 36.29 |
| 16 | 100 | 45.36 |
| 18 | 126 | 57.15 |
| 20 | 160 | 72.57 |
| 22 | 197 | 89.36 |
| 24 | 238 | 107.95 |
| 26 | 275 | 124.74 |
| 30 | 367 | 166.47 |
| 36 | 531 | 240.86 |
Dimensional Tolerances Of ASME B16.9 Buttweld Elbow- 45 Degree LR Pipe Elbow
| DIMENSIONAL TOLERANCES – ELBOWS | |||||||
| For all fittings | Elbows 45 deg | ||||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
Center to End Dim. A-B-C-M | |||
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | |||
| 3 a 3 1/2 | 1 | 1,6 | less | 2 | |||
| 4 | +2 -1 | 1,6 | than | 2 | |||
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | |||
| 8 | 2 | 1,6 | of nominal | 2 | |||
| 10 | +4 -3 | 3,2 | tickness | 2 | |||
| 12 a 18 | +4 -3 | 3,2 | 3 | ||||
| 20 a 24 | +6 -5 | 4,8 | 3 | ||||
| 26 a 30 | +7 -5 | 4,8 | 3 | ||||
| 32 a 48 | +7 -5 | 4,8 | 5 | ||||
Looking for DIN 2605 45 Deg Long Radius Elbow manufacturer in India? buy from oldest Carbon Steel 45 Degree LR Elbow manufacturers in Mumbai. Check 45 Deg Long Radius Elbow Long Radius Specification, ASME B16.9 45 Deg Long Radius Elbow & Butt Weld 45 Deg Elbow LR supplier
Specialized in Following ASME B16.9 CS 45° Long Radius Buttweld Elbow
- High Yield CS A860 45 Degree LR Buttweld Elbow
- Carbon Steel Industrial 45 Degree Long Radius Elbow
- CS Butt Weld 45 Deg Long Radius Elbow
- LTCS ASTM A420 45 Deg Long Radius Elbow
- ASTM A234 CS 45° Long Radius Elbow Manufacturer
- Carbon Steel 45 Degree Long Radius Elbow Dimensions
- Carbon Steel 45 Degree Long Radius Elbow ANSI B16.9
- Carbon Steel Schedule 40 45° Long Radius Elbow
- CS A234 45° Long Radius Elbows Suppliers
- Manufacturer Of CS Sch 60 45 Deg Long Radius Elbow
- Buy Carbon Steel Buttweld 45 Deg LR Seamless Elbow
- Stockist of CS ASTM A234 45 Degree LR Buttweld Elbow
- Carbon Steel 45° Long Radius Elbow Dimensions
- Carbon Steel 45° Long Radius Elbow Material
- CS A234 WPB 45 Deg Long Radius Elbow Supplier
- CS 45° Long Radius Elbow Manufacturer In India
- Carbon Steel 45 Degree Long Radius Pipe Elbows Dealer
- Carbon Steel 45 Deg. LR Elbow Manufacturers in India
- Carbon Steel 45° LR Buttweld Elbow Supplier in India
- A234 Gr.WPB 45 Degree LR Carbon Steel Elbow
- A860 High Yield Carbon Steel 45 Deg. LR Elbow Suppliers
- Supplier of CS 45 Deg Long Radius Elbows
- Exporter of Carbon Steel 45° Long Radius Buttweld Elbow
- ASTM A420 LTCS 45° Long Radius Elbow Wholesaler
- CS 45 Degree Long Radius Elbow
- Carbon Steel Butt Weld Elbow 45 Degree LR Manufacturer
- Carbon Steel 45 Degree Long Radius Weight Chart
- CS ASME B16.9 Buttweld 45° Long Radius Elbow
- Long Radius Carbon Steel 45 Degree Elbow
- Carbon Steel Long Radius Elbow 45 Degree
Carbon Steel 45° Long Radius Pipe Elbow Price List
| DIN DN15-DN2000 Carbon Steel 45 Deg. LR Buttweld Elbow | FOB Price: US$ 15.00 - 20.00 / Piece |
| CS 45 Degree Long Radius Elbow Buttweld Fittings | FOB Price: US$ 3.00 - 4.00 / Piece |
| Carbon Steel ASTM A234 WPB 45° LR Seamless Elbows | FOB Price: US$ 5.80 - 10.00 / Piece |
| 3 inch Long Radius Schedule 80 45 Degree Carbon Steel Elbow | FOB Price: US$ 1.00 - 100.00 / Piece |
| Carbon Steel 45 Degree LR Pipe Elbow Big Size | FOB Price: US$ 15.00 / Piece |
| 5 inch 45 Deg. Long Radius Carbon Steel Pipe Elbow | FOB Price: US$ 2.00 - 5.00 / Piece |
| Carbon Steel Buttweld 45° Long Radius Elbow | FOB Price: US$ 0.85 / Piece |
| Carbon Steel Butt Weld Long Radius Elbow 45 Degree | FOB Price: US$ 3.00 - 100.00 / Piece |
| ASTM A420 WPL6 Low Temperature Carbon Steel 45° Long Radius Elbow | FOB Price: US$ 5.00 - 400.00 / Piece |
| Carbon Steel 45 Degree Long Radius Elbow 4″ | FOB Price: US$ 1.00 - 100.00 / Piece |
| DN50 Carbon Steel LR Pipe Elbow 45 Degree | FOB Price: US$ 0.10 - 99.00 / Piece |
Are you in search of a reliable manufacturer of Carbon Steel 45 Degree Long Radius Pipe Elbows in Mumbai, India? We offer high-quality CS 45° Long Radius Buttweld Elbows at competitive prices.
Carbon Steel 45 Deg. LR Buttweld Pipe Elbow Manufacturing Process
