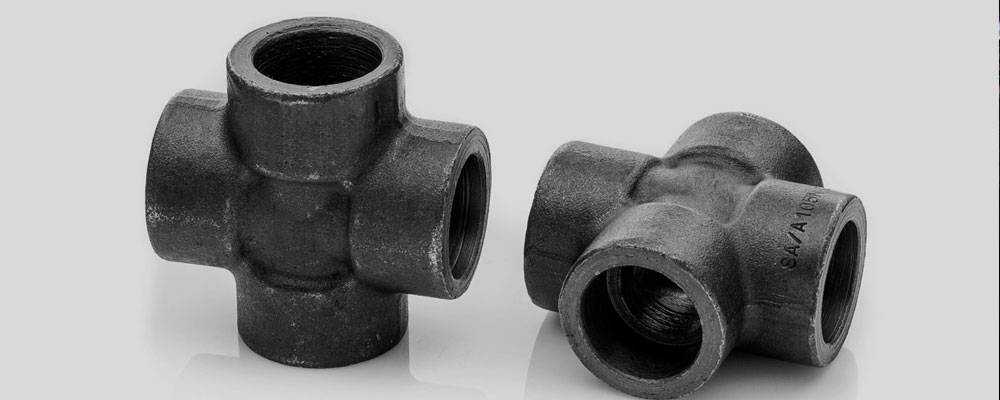

Carbon Steel A105 Forged Cross are manufactured by Rajdhan Metal. We carry forged fittings in a variety of designs, including reducers, crosses, odd shapes, elbows, tees, and stub bends. For demanding applications, these forged fittings are useful. These goods are created in compliance with international and national standards. These items are created with advanced technology and high-quality raw materials. A diverse selection of items is available in a variety of designs and specifications to meet the demands of the client.
What is A105 Cross?
As low carbon reducers, Carbon Steel A105 Forged Cross reduce excessive weldability and machinability. Fittings with minimal carbon, manganese, and silicon content are used for non-critical compression applications such as refrigerator fittings at a constant temperature. These steel forged fittings have several unique characteristics. They are corrosion-resistant, have a solid structure, are properly constructed, have optimal performance, have high strength, require less maintenance, and so on. These carbon steel forged cross are created by modern equipment using high-quality raw materials. Heat treatment is used to achieve the desired hardness. It is additionally coated with a strong black polish and a satin finish to preserve the surface of the fitting.
Carbon forged fittings are both magnetic and non-magnetic. At higher temperatures, A105 Carbon Steel Forged Cross have strong resistance to abrasion and oxidation. It is excellent for crevice cracking and stability in pitting conditions. For uses, an ASTM carbon steel forged threaded tee is oxidation-resistant ferrite steel. A105 carbon steel forged cross is designed for use in severe chloride environments. Cu and W elements have been added. Carbon Steel Forged Cross have outstanding mechanical strength and great resistance to confined oxidation and stress oxidation cracking.
Applications of Carbon Steel A105 Forged Cross:
Carbon Steel A105 Forged Cross is used in power generation, gas processing, offshore oil drilling businesses, petrochemicals, specialised chemicals, pharmaceuticals, pharmaceutical equipment, chemical equipment, seawater equipment, heat exchangers, condensers, and the pulp and paper industry.
Specifications | ASTM A105, ASME SA 105 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
Thread | NPT, BSPT, BSPP |
Connection | Socket Welded (male or female), Screwed-Threaded Fittings |
Types of Crosses in Piping | Threaded Cross, Socket Weld Cross, Equal Cross, Unequal Cross |
Pressure Rating | Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS Socket welding 3000, 6000, 9000 LBS |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Check Price List and Dimensions of Black Steel A/SA105N NPT Forged Cross.
Dimensions of a typical ASTM A105 Forged Cross

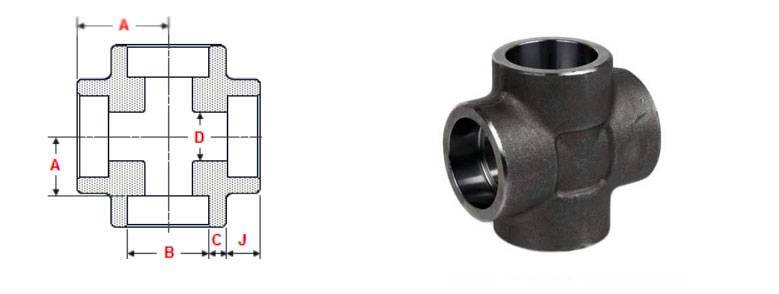

Class 3000 Socket Weld Cross Dimensions NPS 1/2 to 4
Normal Pipe Sizes | Socket Bore | Socket Depth | Bore Diameter |
B | J | D | |
1/2 | 21.95 21.70 | 10 | 16.6 15 |
3/4 | 27.30 27.05 | 13 | 21.7 20.2 |
1 | 34.05 33.80 | 13 | 27.4 25.9 |
1.1/4 | 42.80 42.55 | 13 | 35.8 34.3 |
1.1/2 | 48.90 48.65 | 13 | 41.7 40.1 |
2 | 61.35 61.10 | 16 | 53.5 51.7 |
2.1/2 | 74.20 73.80 | 16 | 64.2 61.2 |
3 | 90.15 89.80 | 16 | 79.5 46.4 |
4 | 115.80 115.45 | 19 | 103.8 100.7 |
1/2 | 4.65 4.10 | 3.75 | 15.5 |
3/4 | 4.90 4.25 | 3.90 | 19.5 |
1 | 5.70 5.00 | 4.55 | 22 |
1.1/4 | 6.05 5.30 | 4.85 | 27 |
1.1/2 | 6.35 5.55 | 5.10 | 32 |
2 | 6.95 6.05 | 5.55 | 38 |
2.1/2 | 8.75 7.65 | 7.00 | 41.5 |
3 | 9.50 8.30 | 7.60 | 57.5 |
4 | 10.70 9.35 | 8.55 | 66.5 |
Class 6000 Socket Weld Cross Dimensions NPS 1/2 to 2
Normal Pipe Sizes | Socket Bore | Socket Depth | Bore Diameter |
B | J | D | |
1/2 | 21.95 21.70 | 10 | 12.5 11 |
3/4 | 27.30 27.05 | 13 | 16.3 14.8 |
1 | 34.05 33.80 | 13 | 21.5 19.9 |
1.1/4 | 42.80 42.55 | 13 | 30.2 28.7 |
1.1/2 | 48.90 48.65 | 13 | 34.7 33.2 |
2 | 61.35 61.10 | 16 | 43.6 42.1 |
1/2 | 5.95 5.20 | 4.80 | 19.5 |
3/4 | 6.95 6.05 | 5.55 | 22.5 |
1 | 7.90 6.95 | 6.35 | 27 |
1.1/4 | 7.90 6.95 | 6.35 | 32 |
1.1/2 | 8.90 7.80 | 7.15 | 38 |
2 | 10.90 9.50 | 8.75 | 41 |
Class 2000 Threaded Cross Dimensions NPS 1/2 to 4
Normal Pipe Sizes | Minimum Length of Thread | Outside Diameter of Band D | Center to End A | Minimum Weight |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
2 | 19 | 19.2 | 75 | 60 | 4.27 |
2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
4 | 27.7 | 33 | 146 | 106 | 6.55 |
Class 3000 Threaded Cross Dimensions NPS 1/2 to 4
Normal Pipe Sizes | Minimum Length of Thread | Outside Diameter of Band D | Center to End A | Minimum Weight |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
2 | 19 | 19.2 | 84 | 64 | 7.14 |
2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
4 | 27.7 | 33 | 152 | 114 | 11.18 |
Class 6000 Threaded Cross Dimensions NPS 1/2 to 4
Normal Pipe Sizes | Minimum Length of Thread | Outside Diameter of Band D | Center to End A | Minimum Weight |
|
B | J | ||||
1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
2 | 19 | 19.2 | 102 | 83 | 12.09 |
2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
4 | 27.7 | 33 | 152 | 114 | 18.67 |
ASME B16.11 Pressure-Temperature | |||||
Temperature | Class | ||||
150 | 300 | ||||
1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
(oF) | (oC) | ||||
-20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
200 | 93 | 265 | 1785 | 1350 | 910 |
250 | 121 | 225 | 1575 | 1200 | 825 |
300 | 149 | 185 | 1360 | 1050 | 735 |
350 | 177 | 150 | 1150 | 900 | 650 |
400 | 204 | - | 935 | 750 | 560 |
450 | 232 | - | 725 | 600 | 475 |
500 | 260 | - | 510 | 450 | 385 |
550 | 288 | - | 300 | 300 | 300 |
|
|
Type | Forged Socket Welding Fitting ANSI B16.11 - BS 3799 Classes 3000 - 6000 - 9000 LBS Weight (kg) |
|||||||||||
Crosses | Class | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 ¼" | 1 ½" | 2" | 2 ½" | 3" | 4" |
3000 | 0.135 | 0.205 | 0.340 | 0.470 | 0.800 | 1.25 | 1.50 | 2.23 | 3.95 | 6.50 | 16.00 | |
6000 | 0.260 | 0.495 | 0.670 | 1.06 | 1.79 | 2.15 | 4.45 | 5.40 | 7.75 | 12.80 | 21.00 | |
9000 | 1.29 | 2.25 | 2.85 | 4.30 | 5.60 | 5.90 |
Type | Forged Screwed-Threaded Fitting ANSI B16.11 - Classes 2000 - 3000 - 6000 LBS Weight (kg) |
|||||||||||
Crosses | Class | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 ¼" | 1 ½" | 2" | 2 ½" | 3" | 4" |
2000 | 0.140 | 0.190 | 0.335 | 0.420 | 0.750 | 1.15 | 1.45 | 2.25 | 4.50 | 7.15 | 15.00 | |
3000 | 0.220 | 0.400 | 0.630 | 0.990 | 1.63 | 1.97 | 3.70 | 4.90 | 10.50 | 11.50 | 21.70 | |
6000 | 0.450 | 0.700 | 1.16 | 1.80 | 2.50 | 4.10 | 5.20 | 12.30 | 14.00 | 25.00 | 23.00 |
