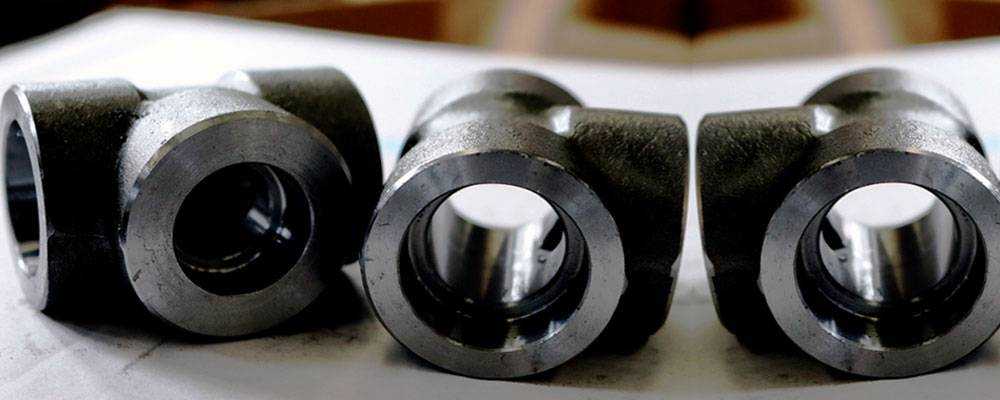

Rajdhan Metal is a very well-known manufacturer, exporter, and supplier of an extensive supply of Carbon Steel socket weld Equal Tee. These fittings are useful for adjusting the direction of streams, connecting support equipment, and adjusting the bore distance in channeling and tube frameworks. To help with that, we provide these Socket Weld Tee in a variety of forms, groups, shapes, sizes, and specifics. The high-quality, corrosion-resistant carbon steel used in socket weld Equal Tee allows them to handle more weight and temperature.
Three branches with the same size specifications can be provided by a carbon Steel socket weld Equal Tee so that pipes or fittings can be inserted before welding. Additionally, we specialize in producing bespoke equal tees following customer specifications; orders in small or large quantities are always appreciated. Carbon Steel socket weld Equal Tee is a crucial industrial need with several uses.
What is a Carbon Steel Socket weld Equal Tee?
A form of pipe fitting called a Carbon Steel socket weld Equal Tee is used to join three pipes, either of the same size or different sizes, and it contains socket weld at the margins of the apertures. The sockets on the margins of the Carbon Steel socket weld Equal Tee allow the pipe to be inserted and welded for the best grip. Smaller size pipes are used with these Tee fittings.
Where is the Carbon Steel socket weld Equal Tee used?
The Carbon Steel socket weld Equal Tee can be applied to a variety of projects, including desalination projects, water purification piping, gas and oil pipelines, and water pipe linings. CS socket weld Equal Tee is frequently used in low-cost applications. However, depending on the needs, the Tee could also be employed in high-pressure and expensive systems. In a piping system, Carbon Steel socket weld Equal Tee are typically utilized to unite or separate liquid flow.
Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB |
Types | Socketweld Fittings |
Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Supplier and exporter of black forged steel SW equal tees in Mumbai, India. Check Socket weld tee types, dimensions as per ASME B16.11

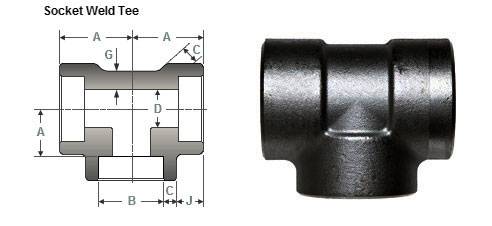

NPS 1/2 to 4 – Class 3000 Socket Weld Equal Tee Dimensions
NPS | Socket Bore | Depth Socket | Bore dia |
B | J | D | |
1/2 | 21.95 21.70 |
10 | 16.6 15 |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
1/2 | 4.65 4.10 |
3.75 | 15.5 |
3/4 | 4.90 4.25 |
3.90 | 19.5 |
1 | 5.70 5.00 |
4.55 | 22 |
1.1/4 | 6.05 5.30 |
4.85 | 27 |
1.1/2 | 6.35 5.55 |
5.10 | 32 |
2 | 6.95 6.05 |
5.55 | 38 |
2.1/2 | 8.75 7.65 |
7.00 | 41.5 |
3 | 9.50 8.30 |
7.60 | 57.5 |
4 | 10.70 9.35 |
8.55 | 66.5 |
NPS 1/2 to 2 – Class 6000 Socket Weld Equal Tee Dimensions
NPS | Socket Bore | Depth Socket | Bore dia |
B | J | D | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
1/2 | 5.95 5.20 |
4.80 | 19.5 |
3/4 | 6.95 6.05 |
5.55 | 22.5 |
1 | 7.90 6.95 |
6.35 | 27 |
1.1/4 | 7.90 6.95 |
6.35 | 32 |
1.1/2 | 8.90 7.80 |
7.15 | 38 |
2 | 10.90 9.50 |
8.75 | 41 |
DESCRIPTION | PRICE / PIECE | QUANTITY | TOTAL |
1/4" EQUAL TEE SOCKET WELD ASTM A105 CS, CL3000# | £19.05 | 12 | £228.60 |
3/8" EQUAL TEE SOCKET WELD 3000LB, CARBON STEEL, ASME B16.11 | INR £15.91 | 5 | £79.55 |
1/2" SOCKET WELDING EQUAL TEE CARBON STEEL MATERIAL | £23.95 | 10 | £239.50 |
3/4 inch FORGED CARBON STEEL SOCKET WELD STRAIGHT TEE | £29.39/ Unit | 30 | £881.70 |
1" SOCKET WELD (SW) EQUAL TEE 3000LB CARBON STEEL | £53.77 | 3 | £161.31 |
CARBON STEEL 1-1/4" SOCKET WELD TEE 6000# | £98.74 | 50 | £4,937.00 |
1-1/2" SW EQUAL TEE LOW CARBON STEEL A350 | £120.94 | 12 | £1,451.28 |
2" CARBON STEEL FORGED SOCKET WELD STRAIGHT TEE | £158.98 | 100 | £15,898.00 |
Nominal Size | Approximate Weight/kg | |||
DN | NPS | 3000 LB | 6000 LB | 9000 LB |
6 | 1/8 | 0.13 | 0.22 | |
8 | 1/4 | 0.13 | 0.22 | |
10 | 3/8 | 0.16 | 0.45 | |
15 | 1/2 | 0.35 | 0.55 | 1.15 |
20 | 3/4 | 0.4 | 0.9 | 1.8 |
25 | 1 | 0.66 | 1.46 | 2.25 |
32 | 1 1/4 | 1 | 1.9 | 3.95 |
40 | 1 1/2 | 1.4 | 3.4 | 4.87 |
50 | 2 | 2.2 | 3.7 | 8.89 |
65 | 2 1/2 | 4 | 7.2 | |
80 | 3 | 6.15 | 10.7 | |
100 | 4 | 14.3 |
