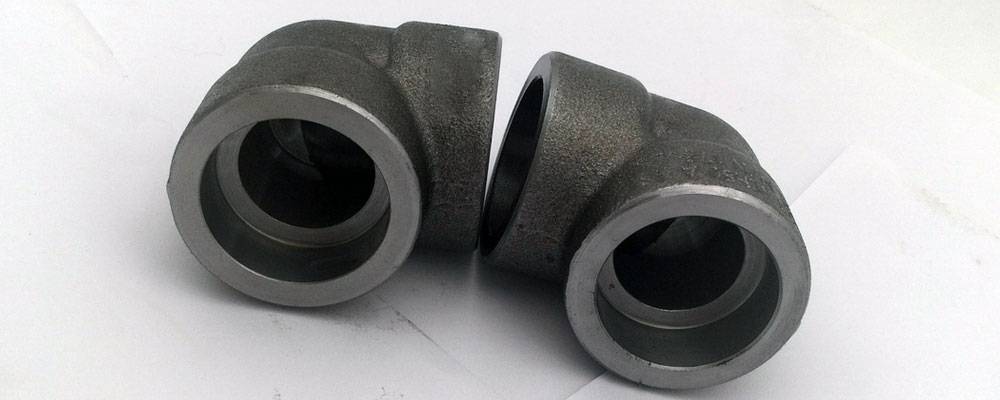

Carbon Steel 90 Deg Socket weld Elbow is one of the many goods that Rajdhan Metal offers to its clients. Carbon Steel 90 Deg Socket weld Elbow allows for 90° direction adjustments in the pipeline. There are two varieties of this socket welded 90° elbows: short radius elbow and long radius elbow. Due to impact, reacceleration, and friction, these fittings cause additional pressure losses in the system.
What is a Carbon Steel 90 Deg Socket weld Elbow?
With the help of a short pipe that joins two pipes with the same nominal diameter at an angle to change the direction of the main pipe. To create a plumbing system, Carbon Steel Socket weld Elbow changes the direction of the pipe run by 90°. Socket Weld at 90 degrees Elbows is used to create piping systems by turning 90 degrees inside of a pipe's length. Assemble welding spine joints, suspended joints, and connecting joints to associate the pipe. It can be separated into welding elbows, punching elbows, casting elbows, etc. according to the era handle. a meddle fitting that is frequently used in the pipe foundation for connecting a pipe bend. To make the pipe turn 90 degrees, put two identically sized pipes through a 90-degree elbow.
Materials including Nickel Alloy, Copper Alloy, Carbon Steel, Alloy Steel, Hastelloy, Monel, Inconel, Titanium, Incoloy, Alloy 20, 254 SMO, Mild Steel(MS), and Brass are utilized in the production of various varieties of Carbon Steel 90 Deg Socket weld Elbow. CS 90 Deg Socket weld Elbow is designed for extensive use across a variety of sectors, including petrochemical, chemical processing, and oil refineries. To join the pipe to valves, fittings, and other sections of the pipe, filet-type seal welds should be used. Due to influence, grinding, and re-acceleration, Carbon Steel 90 Deg Socket weld Elbow increases pressure disasters to the framework.
Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB |
Types | Socketweld Fittings |
Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Supplier and Exporter of Black Forged Steel SW 90 Degree Elbow in Mumbai, India. Check socket weld 90 degree elbow dimensions.

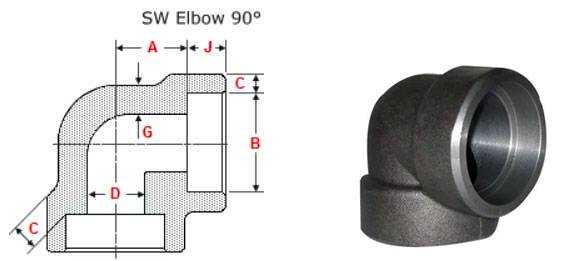

NPS 1/2 to 4 – Class 3000 Socket Weld 90 Degree Elbow Dimensions
NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
B | J | D | C | G | |
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 |
1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 |
1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 |
2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 |
NPS 1/2 to 2 – Class 6000 Socket Weld 90 Degree Elbow Dimensions
NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket WT |
Body WT |
B | J | D | C | G | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 |
1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 |
1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 |
Socket weld 90 degree Elbow Price | 90 Deg Socket weld Elbow Price in India | 90° Socket weld Elbow Price in USD | 90° Socket weld Elbow Price in UAE Dirham |
ASTM A105 CS FORGED SW 90 DEGREE ELBOW, 1/2 NPS, CL3000# | INR 1,242 / Unit | USD $ 15.77 /Unit | UAE Dirham 65.23 |
90° ELBOW: 1 NPS, 2 NPS, ASTM A105, CARBON STEEL, ASME B16.11 | INR 843 / Unit | USD $ 12.45 / Unit | UAE Dirham 43.18 |
SOCKET WELDING 90 DEGREE ELBOW CARBON STEEL MATERIAL | INR 7,219 / Unit | USD $ 110.10 / Unit | UAE Dirham 410.56 |
90 DEGREE ELBOW WITH SOCKET WELD END, 90DEGREE, DIA. 16MM X 1/2 | INR 2,524 / Unit | USD $ 36.09 / Unit | UAE Dirham 139.82 |
Type | Forged Socket Welding Fitting
ANSI B16.11 - BS 3799 Classes 3000 - 6000 - 9000 LBS Weight (kg) |
|||||||||||
90° Elbows | Class | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 ¼" | 1 ½" | 2" | 2 ½" | 3" | 4" |
3000 | 0.082 | 0.115 | 0.235 | 0.290 | 0.480 | 0.750 | 0.950 | 1.65 | 2.50 | 4.30 | 9.70 | |
6000 | 0.165 | 0.300 | 0.430 | 0.660 | 1.14 | 1.60 | 2.70 | 2.95 | 3.75 | 7.50 | 13.00 | |
9000 | 0.850 | 1.50 | 2.25 | 3.35 | 3.90 | 4.25 |
