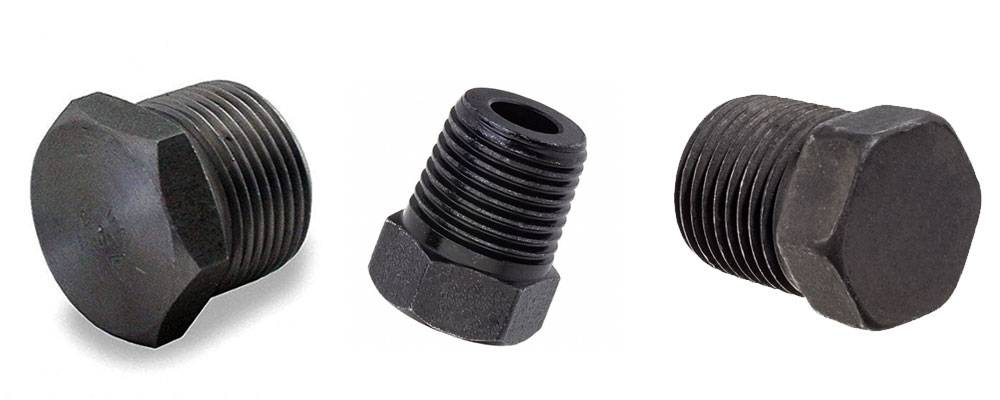

Rajdhan Metal is one of the recognized manufacturers and stockists of Carbon Steel Hex Head Plugs, which are highly used in various industries, owing to their strength and durability. Mild carbon steel threaded hex head plugs can withstand continuous temperatures of 1150°C and intermittent temperatures of 1035°C. The ASTM A105 Carbon Steel Threaded Hex Head Plug offers a complete solution for the customers while being tensile strength tested. Carbon Steel Forged Threaded Hex Head Plugs have a long service life and require little maintenance because they are made from raw materials and the highest grade stainless alloys that are purchased from reputable specialists in the field. Customers have access to Carbon Steel Threaded Hex Head Plugs in a range of sizes, shapes, and other criteria.
What is Hex Head Plug?
Hexagon Plug is another name for a carbon steel hex head plug. This type of ANSI B16.11 Hex Plug is a crucial pipe fitting. Its primary objective is to stop the flow. This plug's top has a hexagonal shape. These plugs are thought to be a quick and affordable way to plug a pipe. Modern technology was used in its creation, and customers may easily install and maintain it. It offers the best performance and is resistant to cracking.
The plug is a piece of common hardware used in a pipeline. In the course of inspections and repairs, it is used to seal off pipe openings. They function as a temporary seal to halt fluid flow inside a pipe. To prevent dirt and other impurities from entering the pipe during building projects, the ASME B16.11 Plug is also used for leak testing, bypassing the flow, and blocking the ends of the pipe. Each threaded plug has a specific purpose and is constructed from a different material. For instance, the aluminum threaded plug is frequently used in the oil and gas industries and has anti-corrosive qualities. The Threaded Copper Plug, on the other hand, is renowned for its robustness and is utilized as needed in numerous sectors.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8″ NB TO 4″ NB |
Thread | NPT, BSPT, BSPP (Male / Female) |
Types | Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Manufacturers Of Carbon Steel Hex Head Plug with NPT, ISO/BSP, and SAE Threads, Stockists of ASME B16.11 Plug Hex In Mumbai. Check the Dimensions and Price of Forged Screwed Hex Head Plugs in India.

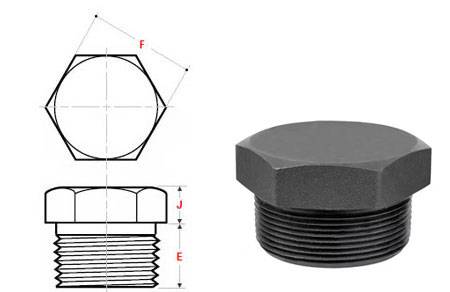

NPS | Min Length E |
Min Hex Height J |
Nominal |
1/2 | 14 | 8 | 22 |
3/4 | 16 | 10 | 27 |
1 | 19 | 10 | 35 |
1.1/4 | 21 | 14 | 44.5 |
1.1/2 | 21 | 16 | 51 |
2 | 22 | 18 | 63.5 |
2.1/2 | 27 | 19 | 76 |
3 | 28 | 21 | 89 |
4 | 32 | 25 | 117.5 |
Size | Material | Price |
1/4" Hex Head Plug | Carbon Steel | $1.06 |
3/8" Hex Head Plug | Low Carbon Steel | $1.08 |
1/2" Hex Head Plug | Medium Carbon Steel | $2.57 |
1" Hex Head Plug | High Carbon Steel | $3.35 |
1- 1/4" Hex Plug | Carbon Steel A105 | $4.16 |
1-1/2" Hex Head Plug | LTCS A350 LF2 | $3.26 |
2" Hexagonal Head Plug | Carbon ASTM A105N | $6.55 |
Size | A | B | Approximate
Weight (in Pounds) |
⅛ | 0.63 | 0.44 | 0.03 |
¼ | 0.69 | 0.62 | 0.05 |
⅜ | 0.81 | 0.69 | 0.09 |
½ | 0.87 | 0.88 | 0.16 |
¾ | 1.00 | 1.06 | 0.27 |
1 | 1.13 | 1.38 | 0.48 |
1 ¼ | 1.37 | 1.75 | 0.95 |
1 ½ | 1.43 | 2.00 | 1.32 |
2 | 1.57 | 2.50 | 2.23 |
2 ½ | 1.81 | 3.00 | 3.81 |
3 | 1.93 | 3.50 | 4.75 |
4 | 2.25 | 4.62 | 13.0 |
