Rajdhan Metal is a leading manufacturer, supplier, and stockist of Carbon Steel 45 Degree Threaded Elbow in Mumbai, India. We manufacture these Carbon Steel 45 Degree Threaded Elbows in various sizes, specifications, forms, and also in customized specifications as per the requirements of the clients at the most reasonable prices.
What is Carbon Steel 45 Degree Threaded Elbow?

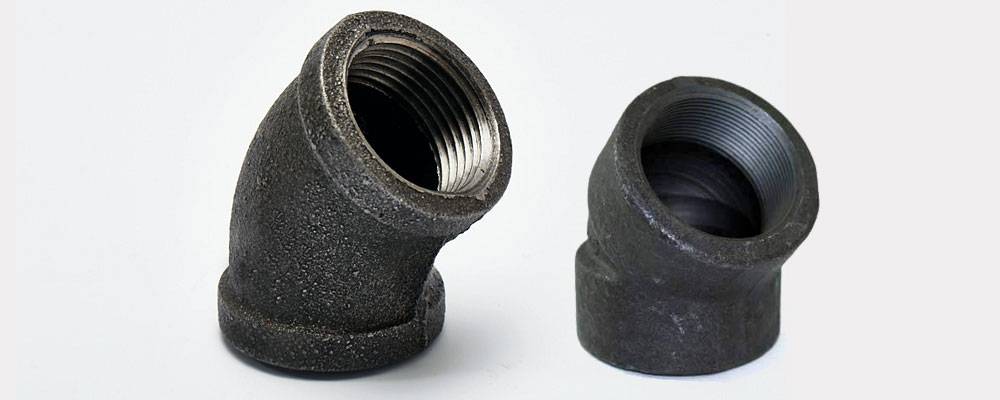

A Carbon Steel 45 Degree Threaded Elbow is an elbow joint made of carbon steel, allowing for a 45-degree angle turn. This elbow features internal threads that run along its circumference and are used to connect pipes together.
Our 45 Degree Threaded Elbow provides a reliable elbow joint for tubing systems. This elbow is designed to be resistant to corrosion and can withstand high pressure and temperature ranges. Its carbon steel construction makes it perfect for use in waterworks, petrochemical, and other applications where durability is crucial. With its threaded ends, this elbow allows for simple installation into the existing piping system with minimal effort. It also comes with an excellent seal that ensures no leaks or spills occur at the elbow joint.
The elbow has the ability to withstand high pressures due to its construction with heavy-duty carbon steel, making it suitable for a variety of applications such as industrial piping and HVAC systems. It also provides flexibility when connecting two pipes of different diameters since the elbow can be tightened or loosened by turning the nut at either end of the elbow. In addition, this elbow is resistant to corrosion and rust, making it ideal for use in outdoor environments where exposure to moisture is likely. The Carbon Steel 45 Degree Threaded Elbow is a reliable and cost-effective solution for connecting pipes in any setting.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8″ NB TO 4″ NB |
Thread | NPT, BSPT, BSPP (Male / Female) |
Types | Socketweld Fittings, Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Supplier and Exporter of Black Forged Steel Screwed 45 Degree Elbow in Mumbai, India. Check the dimensions of our NPT and BSPP 45 degree threaded elbow fittings.

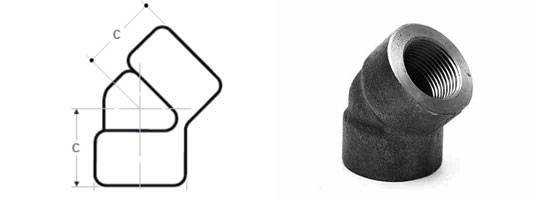

45 degree Threaded Elbow Dimensions NPS 1/2 to 4 Class 2000
NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | |
B | J | D | G | 45° C |
|
1/2 | 10.9 | 13.6 | 33 | 3.18 | 22 |
3/4 | 12.7 | 13.9 | 38 | 3.18 | 25 |
1 | 14.7 | 17.3 | 46 | 3.68 | 28 |
1.1/4 | 17 | 18 | 56 | 3.89 | 33 |
1.1/2 | 17.8 | 18.4 | 62 | 4.01 | 35 |
2 | 19 | 19.2 | 75 | 4.27 | 43 |
2.1/2 | 23.6 | 28.9 | 92 | 5.61 | 52 |
3 | 25.9 | 30.5 | 109 | 5.99 | 64 |
4 | 27.7 | 33 | 146 | 6.55 | 79 |
45 Deg Threaded Pipe Elbow Dimensions Class 3000 - NPS 1/2 to 4
NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | |
B | J | D | G | 45° C |
|
1/2 | 10.9 | 13.6 | 38 | 4.09 | 25 |
3/4 | 12.7 | 13.9 | 46 | 4.32 | 28 |
1 | 14.7 | 17.3 | 56 | 4.98 | 33 |
1.1/4 | 17 | 18 | 62 | 5.28 | 35 |
1.1/2 | 17.8 | 18.4 | 75 | 5.56 | 43 |
2 | 19 | 19.2 | 84 | 7.14 | 44 |
2.1/2 | 23.6 | 28.9 | 102 | 7.65 | 52 |
3 | 25.9 | 30.5 | 121 | 8.84 | 64 |
4 | 27.7 | 33 | 152 | 11.18 | 79 |
Threaded 45 Elbow Dimensions NPS 1/2 to 4 Class 6000
NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | |
B | J | D | G | 45° C |
|
1/2 | 10.9 | 13.6 | 46 | 8.15 | 28 |
3/4 | 12.7 | 13.9 | 56 | 8.53 | 33 |
1 | 14.7 | 17.3 | 62 | 9.93 | 35 |
1.1/4 | 17 | 18 | 75 | 10.59 | 43 |
1.1/2 | 17.8 | 18.4 | 84 | 11.07 | 44 |
2 | 19 | 19.2 | 102 | 12.09 | 52 |
2.1/2 | 23.6 | 28.9 | 121 | 15.29 | 64 |
3 | 25.9 | 30.5 | 146 | 16.64 | 79 |
4 | 27.7 | 33 | 152 | 18.67 | 79 |
Size | Class | Type Material | Price In India |
1 NPS | 2000# | ASTM A105 | 180.45 |
1-1/2 NPS | 3000# | ASTM A105 | 67.98 |
1/2 NPS | 3000# | ASTM A105N | 75.93 |
3/4 NPS | 6000# | ASTM A350 | 134 |
2 NPS | 3000# | A350 LF2 | 272.5 |

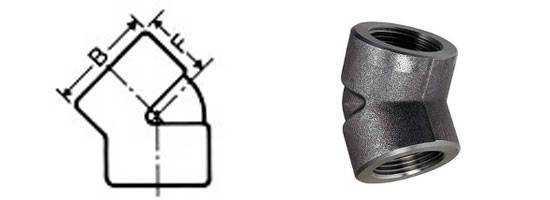

Class 2000 | Nominal Pipe Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
F | – | 3/4 | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 2 1/16 | 2 1/2 | 3 1/8 | |
Weight | – | 0.188 | 0.236 | 0.435 | 0.74 | 1.058 | 1.375 | 1.74 | 2.883 | 7.75 | 11.313 | 19.125 | |
Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
F | 3/4 | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 1 3/4 | 2 1/16 | 2 1/2 | 3 1/8 | |
Weight | 0.25 | 0.29 | 0.5 | 0.75 | 1.188 | 1.988 | 2.235 | 3 | 4.93 | 7.375 | 13.588 | 19.063 | |
Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | – | |
F | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 5/16 | 1 3/8 | 1 11/16 | 1 3/4 | 2 1/16 | 2 1/2 | 3 1/8 | – | |
Weight | 0.25 | 0.64 | 0.5 | 1.438 | 2.188 | 2.785 | 4.688 | 5.75 | 9.5 | 15 | 30.563 | – |
