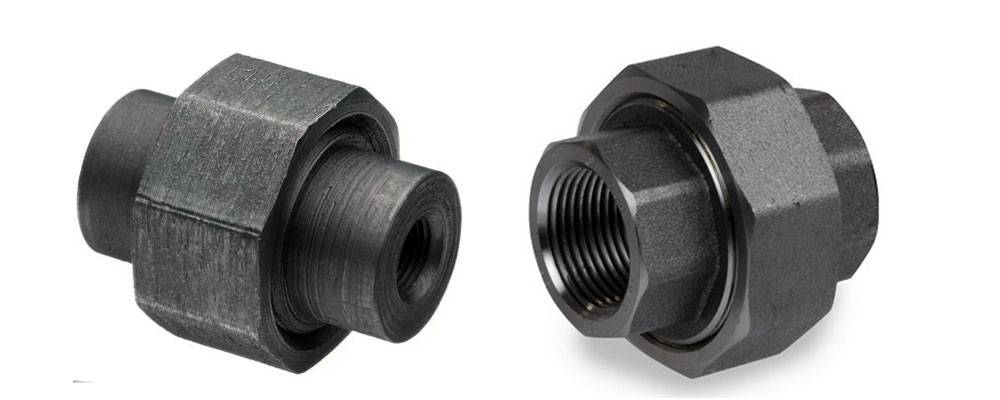

The Rajdhan Metal Carbon Steel Threaded Union consists of three parts: a nut, a female end, and a male end. The useful future detachment of pipes for support or installation replacement is made possible by our stated Threaded Fittings Union contrasted to a connection. Threaded unions made of carbon steel in accordance with ASTM A105 are easy to connect and disconnect at any time.
What is a Union Fitting?
A type of fitting device known as an ASME B16.11 Threaded Union is designed to connect two pipes that are constrained without deforming the channels in any way. A pipe union is used to bridge any kind of small gap between piping connections that calls for a strong seal and quick assembly and disassembly. Forged pipe flanges, forged fittings, valves, and other items intended for use in high-temperature applications are all covered by this specification for ASME B16.11 Threaded Union. These forgings must be chilled to a particular temperature after being hot worked to create the Threaded Union Dimensions. The ASTM A105 Carbon Steel Threaded Unions must be cooled before being subjected to heat treatment, which must also be carried out in accordance with specific guidelines. The Alloy Steel Forged Screwed Union has factors like heat treatment method, austenitizing/solution temperature, cooling media, and quenching according to the specification. The materials for Threaded Fittings Union are designed to meet the necessary chemical composition for carbon, molybdenum, columbium, titanium, manganese, phosphorus, silicon, nickel, and chromium. The material for the BS3799 Screwed Forged Union must meet the specifications for the grade requested, including the requirements for yield strength, tensile strength, elongation, and Brinell hardness. The average grain size of all H grades and grade F 63 for the Screwed Union must be tested. Steel Alloy Dielectric Galvanic corrosion is prevented by forging screws with dielectric insulation out of distinct, unrelated metals like copper and galvanized steel. With a plastic liner between its halves, a dielectric Forged Threaded Union often breaks the electrical channel and prevents galvanic corrosion. Rotary 3000LB Threaded Unions prevent leakage while allowing mechanical rotation of one of the attached parts.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Union Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Union Size | 1/8″ NB TO 4″ NB |
Union Thread | types of threads - NPT, BSPT, BSPP (Male / Female) |
Union Types | Socketweld Fittings, Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Unions, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
3000 lbs ASTM A105 Union manufacturers, ASME B16.11 Screwed Union exporter in India, Check Forged Carbon Steel NPT Male / Female Threaded Union Price in India.

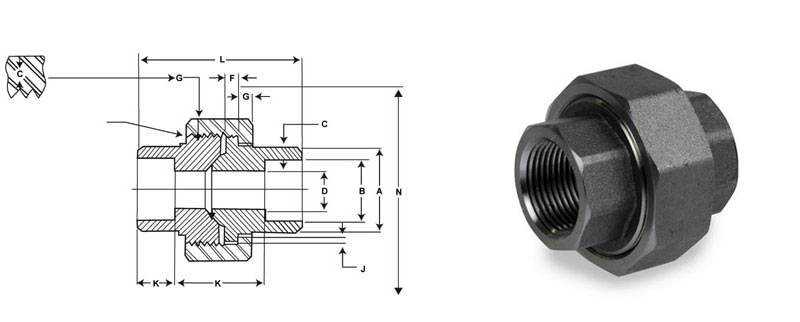

DIMENSIONS OF THREADED UNION (BS3799) (in mm) |
||||||||||||
Nom. Pipe Size | Pipe End Min | Socket Bore Dia. | Socket Wall Min. | Water Way Bore | Laying Length | Male Flange Min. | Nut Min. | Threads Per 25.4 Max | Bearing Min. | Depth of Socket Min. | Length Assem. Nominal | Clear Assem. Nut |
A | B | C | D | E | F | G | H | J | K | L | N | |
1/8 | 21.8 | 10.92 10.67 |
3.17 | 6.83 6.43 |
22.4 19.0 |
3.17 | 3.17 | 16 | 1.24 | 9.6 | 41.1 | 49.0 |
¼ | 21.8 | 14.22 13.97 |
3.30 | 9.85 9.45 |
22.4 19.0 |
3.17 | 3.17 | 19 | 1.24 | 9.6 | 41.4 | 49.0 |
3/8 | 25.9 | 17.78 17.53 |
3.48 | 13.92 13.51 |
26.9 20.6 |
3.43 | 3.43 | 14 | 1.37 | 9.6 | 46.0 | 55.0 |
½ | 31.2 | 21.84 21.59 |
4.06 | 17.47 17.07 |
26.9 20.6 |
3.68 | 3.68 | 14 | 1.50 | 9.6 | 49.0 | 57.0 |
¾ | 37.1 | 27.18 26.92 |
4.27 | 21.79 21.39 |
31.8 25.4 |
4.06 | 4.06 | 11 | 1.68 | 12.7 | 56.9 | 67.0 |
1 | 45.5 | 34.04 33.78 |
4.95 | 28.14 27.74 |
34.3 26.2 |
4.57 | 4.44 | 11 | 1.85 | 12.7 | 62.0 | 79.0 |
11/4 | 54.9 | 42.67 42.42 |
5.28 | 35.76 35.36 |
40.6 32.5 |
5.33 | 5.21 | 11 | 2.13 | 12.7 | 71.1 | 94.0 |
11/2 | 61.5 | 48.77 48.51 |
5.54 | 41.61 41.20 |
42.2 34.0 |
5.84 | 5.59 | 10 | 2.31 | 12.7 | 75.5 | 111.0 |
2 | 75.2 | 61.47 61.21 |
6.05 | 52.53 52.12 |
45.3 37.3 |
6.60 | 6.35 | 10 | 2.69 | 15.8 | 86.1 | 132.0 |
21/2 | 91.7 | 74.17 73.66 |
7.65 | 64.72 64.31 |
61.7 52.1 |
7.49 | 7.11 | 8 | 3.07 | 15.8 | 102.4 | 148.0 |
3 | 109.2 | 90.17 89.66 |
8.31 | 77.67 77.27 |
63.8 53.6 |
8.25 | 8.00 | 8 | 3.53 | 15.8 | 109.0 | 175.0 |
S.NO. | Description | Quantity | PRICE IN US($) |
1. | 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1),CL.3000#, ASME B16.11 - THREADED UNION | 10 NOS | $73.00 |
2. | 1-1/2 NPS, ASTM A350, NPT (F) THRD (ASME B1.20.1), CL.3000#, GALV., ASME B16.11 - HEXAGONAL UNION | 11 NOS | $89.00 |
3. | 1/2 NPS, ASTM A105N, (ASME B1.20.1),CL.3000#, FEMALE BSPT TAPER THREADED END, BS3799 PIPE UNION | 12 NOS | $91.00 |
4. | 1 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1),CL.3000#, GALV.TO A153, ASME B16.11 UNION | 13 NOS | $95.00 |
5. | MSS-SP-83, CARBON STEEL FORGED THREADED HEX UNION FITTING, ASME B16.11 | 14 NOS | $98.00 |
DN SIZE | CLASS 3000 (Threaded) | DN SIZE | CLASS 6000 (Threaded) | ||
Union | Union | ||||
kg | Lb | kg | Lb | ||
1/2 | .34 | .73 | 1/2 | .62 | 1.35 |
3/4 | .48 | 1.19 | 3/4 | .92 | 2.01 |
1 | .77 | 1.66 | 1 | 1.45 | 3.17 |
1 1/4 | 1.03 | 2.66 | 1 1/4 | 1.79 | 3.92 |
1 1/2 | 1.63 | 3.42 | 1 1/2 | 3.02 | 6.60 |
2 | 2.43 | 5.36 | 2 | 4.62 | 10.12 |
2 1/2 | 3.63 | 9.12 | 2 1/2 | 6.37 | 14.00 |
3 | 5.27 | 12.58 | 3 | - | - |
