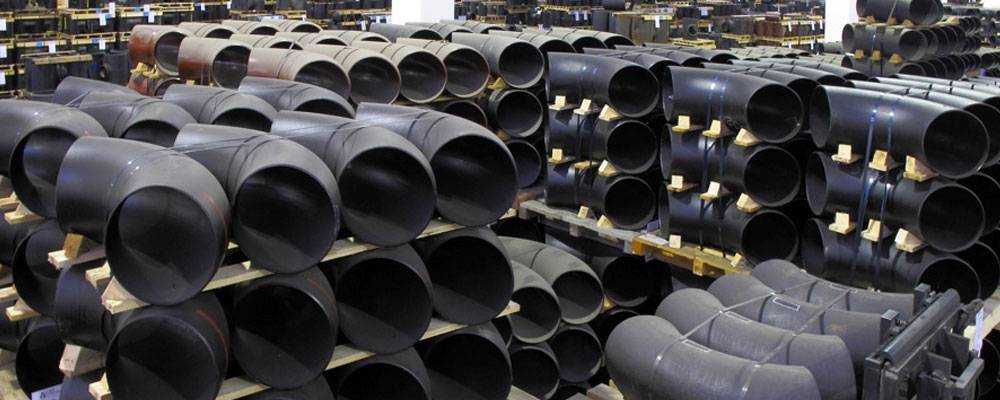

Carbon Steel Seamless Fittings
ASTM A234 WPB Seamless Fittings, ASTM A420 LTCS Seamless Fittings, CS SMLS Fittings, Carbon Steel Seamless Fittings Suppliers, CS Seamless Fittings, CS Seamless Buttweld Fittings, Carbon Steel Seamless Pipe Fittings Manufacturers in India.
At Rajdhan Metal, we manufacture, supply, and stock these CS Seamless Fittings in various types, sizes, and specifications and also in customized specifications as per the requirements of our clients at the most reasonable prices.
- What is Carbon Steel Seamless Fittings?
- Carbon Steel Seamless Fittings Specification
- Types of Carbon Steel Seamless Pipe Fittings
- Dimensions Of Carbon Steel Seamless Fittings
- Dimensional Tolerances of Carnon Steel Seamless Fittings
- Schedule 40 SMLS Pipe Fttings Dimensions
- Schedule 80 Black Seamless Fittings Dimensions
- Carbon Steel Seamless Fittings Working Pressure
- CS ASME B16.9 Fittings Pressure-Temperature Ratings
- Factory-Made Wrought Buttweld Fittings Size Chart Carbon Steel
- Specialized in Following ANSI B16.9 CS Seamless Fittings
- Carbon Steel Seamless Fittings Price List
- CS Seamless Fittings Industrial Applications
Carbon Steel Seamless Pipe Elbow, Low Temperature Carbon Steel A420 WPL6 Seamless Tee, Carbon Steel Seamless Fittings Manufacturer, ASTM A234 Carbon Steel Seamless Reducers, Carbon Steel Seamless BW Fittings Suppliers In Mumbai.
Carbon steel seamless fittings are designed for use in high-pressure applications and offer superior reliability, durability, and strength. They are suitable for a variety of industries including oil & gas, chemical processing, power generation, and food processing plants. These fittings come in a variety of shapes such as elbows, tees, reducers, crosses, and caps to meet the needs of different types of projects. Carbon steel seamless fittings are highly resistant to corrosion thus providing excellent resistance to extreme temperatures. They also have great weldability which makes them an ideal choice for various engineering projects. These fittings provide a superior pressure rating compared to other materials with minimal maintenance costs due to their low-friction surfaces which reduce wear and tear. Carbon steel seamless fittings are easy to install and are the preferred choice for many professionals. They offer a cost-effective solution for various applications in both residential and industrial settings. With its superior qualities, carbon steel seamless fittings are an ideal option to meet your specific needs.
ANSI B16.9 CS Seamless Stub End, ASTM A860 High Yield Carbon Steel Seamless Pipe Nipple, CS Seamless Cross, Carbon Steel Seamless Cap, Carbon Steel Seamless Fittings Exporter in India, Manufacturer of Carbon Steel Seamless Fittings in Mumbai, India.
Carbon Steel Seamless Fittings Material Specification
| Standard | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ |
| Schedule | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Wall Thickness | from 2 to 40 mm |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / ERW / Welded |
| Carbon Steel Seamless Fittings | ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Seamless Fittings | ASTM A420 WPL3 / A420 WPL6 |
| Form | 90 Elbow, 45 Elbow, Long Radius Elbow' Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, Concentric Reducer,End Cap, Dish Cap, Lap-joint Stub Ends |
Types of Carbon Steel Seamless Pipe Fittings
Call us to get the latest price list for Carbon Steel Seamless Pipe Fitttings in Mumbai, Maharashtra. We have special offers available for CS SMLS Fittings with the best price.
Dimensions Of Carbon Steel Seamless Fittings
| ASME b16.9 Fittings Normal Pipe Size |
ANSI b16 9 Pipe Fitting O D Y |
Wall Thickness T (Pipe Elbow Sch.) |
LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight |
LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| millimeter | inch. | millimeter | millimeter | Schedule | millimeter | kilogram | millimeter | kilogram | millimeter | kilogram |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Dimensional Tolerances of Carnon Steel Seamless Fittings
All Fittings |
90˚ & 45˚ Elbows Tees Crosses Laterals |
Caps |
180˚ Returns |
Lap-Joint Stub Ends and Reducers |
Lap-Joint StubEnds |
||||||||
NPS |
Outside1 Diameter at Bevel O.D. |
Inside Diameter at End i.D. |
Wall Thickness |
Center to End A,B,C,M |
Overall Length E |
Center to Center H |
Back to Face K |
Parallelity of Planes of Ends |
Overall Length F,L |
Outside Diameter of Lap |
Thickness of Lap |
Fillet Radius of Lap |
Outside Diameter of |
DN |
|||||||||||||
1/2 - 2 1/2 |
+.06 |
±.03 |
Not less than 87 1/2% of nominal thickness |
±.06 |
±.12 |
±.25 |
±.25 |
±.03 |
±.06 |
+0 |
+.06 |
+0 |
Refer to page 21. |
15 - 65 |
±1 |
±8 |
±2 |
±4 |
±7 |
±7 |
±1 |
±2 |
+0 |
+2 |
+0 |
||
3 - 3 1/2 |
±.06 |
±.06 |
±.06 |
±.12 |
±.25 |
±.25 |
±.03 |
±.06 |
+0 |
+.06 |
+0 |
||
80 - 90 |
±1 |
±1.6 |
±2 |
±4 |
±7 |
±7 |
±1 |
±2 |
+0 |
+2 |
+0 |
||
4 |
±.06 |
±.06 |
±.06 |
±.12 |
±.25 |
±.25 |
±.03 |
±.06 |
+0 |
+.06 |
+0 |
||
100 |
+2 |
±1.6 |
±2 |
±4 |
±7 |
±7 |
±1 |
±2 |
+0 |
+2 |
+0 |
||
5 - 6 |
+.09 |
±.06 |
±.06 |
±.25 |
±.25 |
±.25 |
±.03 |
±.06 |
+0 |
+.06 |
+0 |
||
125 - 150 |
+3 |
±1.6 |
±2 |
±7 |
±7 |
±7 |
±1 |
±2 |
+0 |
+2 |
+0 |
||
8 |
+.09 |
±.06 |
±.06 |
±.25 |
±.25 |
±.25 |
±.03 |
±.06 |
+0 |
+.06 |
+0 |
||
200 |
±2 |
±1.6 |
±2 |
±7 |
±7 |
±7 |
±1 |
±2 |
+0 |
+2 |
+0 |
||
10 |
+.16 |
±.12 |
±.09 |
±.25 |
±.38 |
±.25 |
±.06 |
±.09 |
+0 |
+.06 |
+0 |
||
250 |
+4 |
±3.2 |
±2 |
±7 |
±10 |
±7 |
±2 |
±2 |
+0 |
+2 |
+0 |
||
12 - 18 |
+.16 |
±.12 |
±.09 |
±.25 |
.38 |
±.25 |
±.06 |
±.09 |
+0 |
+.06 |
+0 |
||
300 - 450 |
+4 |
±3.2 |
±3 |
±7 |
±10 |
±7 |
±2 |
±3 |
+0 |
+2 |
+0 |
||
20 - 24 |
±.25 |
±.19 |
±.09 |
±.25 |
±.38 |
±.25 |
±.06 |
±.09 |
+0 |
+.06 |
+0 |
||
500 - 600 |
+6 |
±4.8 |
±3 |
±7 |
±10 |
±7 |
±2 |
±3 |
+0 |
+2 |
+0 |
||
26 - 30 |
+.25 |
±.19 |
+.12 |
+.38 |
|
|
|
±.19 |
|
|
|
||
650 - 750 |
+7 |
±4.8 |
±3 |
±10 |
|
|
|
±5 |
|
|
|
||
32 - 48 |
±.25 |
±.19 |
±.19 |
±.38 |
|
|
|
±.19 |
|
|
|
||
800 - 1200 |
+7 |
±4.8 |
±5 |
±10 |
|
|
|
±5 |
|
|
|
||
Schedule 40 SMLS Pipe Fttings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Schedule 80 Black Seamless Fittings Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Diameter) | Ave. I.D. (Inside Diameter) |
Mani. WALL |
Normal Weight |
Maxi. W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Carbon Steel Seamless Fittings Working Pressure
| Service | Pressure Temperature Limits | Pressure Limits |
|---|---|---|
| condensate & Steam | maximam 366oF (186oC), minimam 0oF (-18oC) | 150 psig (1000 kPa) |
| gases & vapors, Air | maximam 200oF (93oC), minimam 0oF (-18oC) | 150 psig (1000 kPa) |
| Nonflammable Liquids | maximam 250oF (121oC), minimam 0oF (-18oC) | 350 psig (2300 kPa) |
CS ASME B16.9 Fittings Pressure-Temperature Ratings
| Pressure-Temperature ratings for ASME B16.9 Seamless fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
Factory-Made Wrought Buttweld Fittings Size Chart Carbon Steel
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 |
0.540 |
1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
|
1-21/32 |
1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
