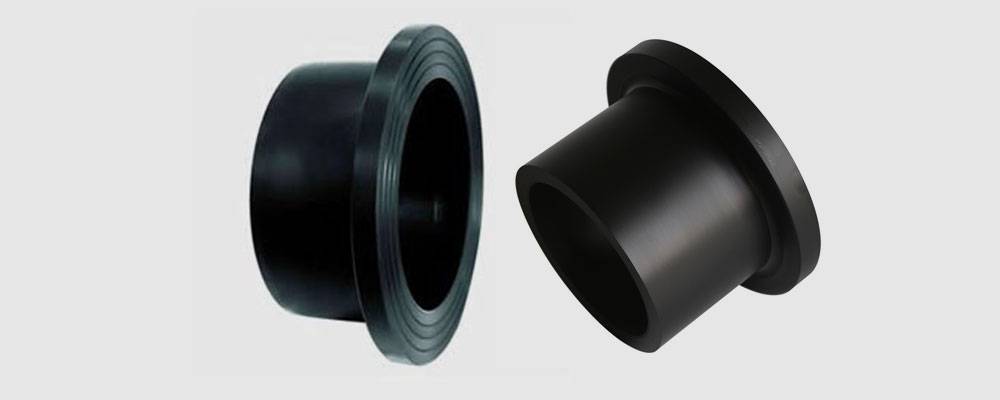

Carbon Steel Lap Joint Stub End
CS Lap Joint Stub Ends, Carbon Steel Lap Joint Stub Ends Suppliers, Carbon Steel Seamless Lap Joint Stub Ends, ASTM A234 Carbon Steel Lap Joint Stub End, ASTM A420 LTCS Lap Joint Stub Ends, Carbon Steel Butt weld Lap Joint Stub Ends Manufacturers in India.
Carbon Steel Lap Joint Stub End is suitable for a wide range of applications. It is most commonly used in the marine and offshore industries, as well as for other heavy-duty industrial applications such as pipelines and oil & gas processing systems. The Lap joint stub end allows for easy installation and has superior corrosion resistance, making it a reliable choice for any setting.
Table of Content
- What is Carbon Steel Lap Joint Stub End?
- Carbon Steel Lap Joint Stub End Specification
- Carbon Steel Lap Joint Stub End Dimensions
- CS Dimensional Tolerances of ASME B16 9 Lap Joint Stub Ends
- Specialized in Following ASME B16.9 Carbon Steel Lap Joint Stub Ends
- Carbon Steel Buttweld Lap Joint Stub End Price List
- Carbon Steel Lap Joint Stub End Schedule Std
- Carbon Steel Lap Joint Stub End Schedule XS
- CS BW Lap Joint Stub Ends Industrial Applications
- Carbon Steel BW Lap Joint Stub End Manufacturing Process
Carbon Steel BW Lap Joint Stub End, Carbon Steel Buttweld Lap Joint Stub End, Low Temperature Carbon Steel A420 WPL6 Lap Joint Stub End, Carbon Steel Lap Joint Stub End Manufacturer, ASTM A234 WPB Lap Joint Stub End, Carbon Steel Lap Joint Stub End Suppliers In Mumbai.
The Carbon Steel Lap Joint Stub End features include a full-face gasket connection design which ensures secure sealing between pipes and fittings; a reinforced ribbed design to reduce stress concentration points; withstands high pressure up to 6000 psi; and it can be manufactured in various sizes according to customer requirements. Additionally, its lap joint construction provides greater flexibility when connecting two pipes of different materials.
The Carbon Steel Lap Joint Stub End is an ideal choice for a variety of industries, from power generation to construction and industrial manufacturing. It is perfect for any application requiring high-pressure and high-performance sealing solutions. With its superior durability and corrosion resistance, the Carbon Steel Lap Joint Stub End is sure to provide reliable, long-lasting performance in even the most demanding conditions.
Its robust design also makes it suitable for extreme temperature environments, making it a great option for applications in highly corrosive environments such as offshore platforms or chemical processing plants. The Carbon Steel Lap Joint Stub End also features advanced welding technology which allows precise welding without compromising structural integrity.
Carbon Steel Lap Joint Stub End Exporter in India, CS Buttweld Lap Joint Stub End, CS SMLS Lap Joint Stub End, ANSI B16.9 CS Lap Joint Stub End, ASTM A860 High Yield Carbon Steel Lap Joint Stub End, Manufacturer of Carbon Steel Buttweld Lap Joint Stub End in Mumbai, India.
Carbon Steel Lap Joint Stub End Material Specification
| Specifications | ASTM A234, A860, A420 / ASME SA234, SA860, SA420 |
| Dimensions | ANSI B16.9, ANSI B16.28, JIS B2312, JIS B2313 |
| Size | 1/2"NB TO 36 "NB IN |
| Schedule | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Type | Seamless / ERW / Welded / Fabricated |
| Carbon Steel Grades | ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low Temperature Steel: A420 WPL3 / A420 WPL6 / A420 WPL9 |
Call us to get the latest price list for Carbon Steel Buttweld Lap Joint Stub End in Mumbai, Maharashtra. We have special offers available for Carbon Steel Lap Joint Stub End with the best price.

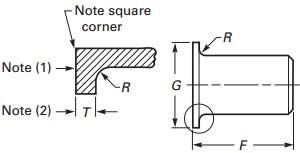

Carbon Steel Lap Joint Stub End Dimensions
| Nominal Size | Outside Diameter of Barrel | Long Pattern Length, F | Short Pattern Length, F | Radius of Fillet, R | Diameter of Lap, G |
|
|---|---|---|---|---|---|---|
| NPS | Max. mm. in. | Min. mm. in. | mm. in. | mm. in. | mm. in. | mm. in. |
| 1/2 | 22.8 0.896 | 20.5 0.809 | 76 3.00 | 51 2.00 | 3 0.12 | 35 1.38 |
| 3/4 | 28.1 1.106 | 25.9 1.019 | 76 3.00 | 51 2.00 | 3 0.12 | 43 1.69 |
| 1 | 35.0 1.376 | 32.6 1.284 | 102 4.00 | 51 2.00 | 3 0.12 | 51 2.00 |
| 1 1/4 | 43.6 1.716 | 41.4 1.629 | 102 4.00 | 51 2.00 | 5 0.19 | 64 2.50 |
| 1 1/2 | 49.9 1.965 | 47.5 1.869 | 102 4.00 | 51 2.00 | 6 0.25 | 73 2.88 |
| 2 | 62.4 2.456 | 59.5 2.344 | 152 6.00 | 64 2.50 | 8 0.31 | 92 3.62 |
| 2 1/2 | 75.3 2.966 | 72.2 2.844 | 152 6.00 | 64 2.50 | 8 0.31 | 105 4.12 |
| 3 | 91.3 3.596 | 88.1 3.469 | 152 6.00 | 64 2.50 | 10 0.38 | 127 5.00 |
| 3 1/2 | 104.0 4.096 | 100.8 3.969 | 152 6.00 | 76 3.00 | 10 0.38 | 140 5.50 |
| 4 | 116.7 4.593 | 113.5 4.469 | 152 6.00 | 76 3.00 | 11 0.44 | 157 6.19 |
| 5 | 144.3 5.683 | 140.5 5.532 | 203 8.00 | 76 3.00 | 11 0.44 | 186 7.31 |
| 6 | 171.3 6.743 | 167.5 6.594 | 203 8.00 | 89 3.50 | 13 0.50 | 216 8.50 |
| 8 | 222.1 8.743 | 218.3 8.594 | 203 8.00 | 102 4.00 | 13 0.50 | 270 10.62 |
| 10 | 277.2 10.913 | 272.3 10.719 | 254 10.00 | 127 5.00 | 13 0.50 | 324 12.75 |
| 12 | 328.0 12.913 | 323.1 12.719 | 254 10.00 | 152 6.00 | 13 0.50 | 381 15.00 |
| 14 | 359.9 14.170 | 354.8 13.969 | 305 12.00 | 152 6.00 | 13 0.50 | 413 16.25 |
| 16 | 411.0 16.180 | 405.6 15.969 | 305 12.00 | 152 6.00 | 13 0.50 | 470 18.50 |
| 18 | 462.0 18.190 | 456.0 17.969 | 305 12.00 | 152 6.00 | 13 0.50 | 533 21.00 |
| 20 | 514.0 20.240 | 507.0 19.969 | 305 12.00 | 152 6.00 | 13 0.50 | 584 23.00 |
| 22 | 565.0 22.240 | 558.0 21.969 | 305 12.00 | 152 6.00 | 13 0.50 | 641 25.25 |
| 24 | 616.0 24.240 | 609.0 23.969 | 305 12.00 | 152 6.00 | 13 0.50 | 692 27.25 |
CS Dimensional Tolerances of Lap Joint Stub Ends ASME B16.9
| Nominal Pipe Size | 1/2 to 2.1/2 | 3 to 3.1/2 | 4 | 5 to 8 | 10 to 18 | 20 to 24 |
| Outside Diameter at Welding End (OD) | + 1.6 - 0.8 |
1.6 | 1.6 | + 2.29 - 1.6 |
+ 4.06 - 3.05 |
+ 6.35 - 4.83 |
| Overall Length (F) | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 |
| Outside Diameter of Lap (G) | + 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 1.6 |
+ 0 - 1.6 |
| Thickness of Lap (T) | + 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
| Fillet Radius of Lap (R) | + 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 1.6 |
+ 0 - 1.6 |
+ 0 - 1.6 |
+ 0 - 1.6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||||
Searching for a trusted ASME B16.9 Lap Joint Stub End manufacturer in India? buy from oldest Carbon Steel Lap Joint Stub End manufacturers in Mumbai. Check Carbon Steel Buttweld Lap Joint Stub End, CS Butt Weld Lap Joint Stub End Suppliers
Specialized in Following ASME B16.9 Carbon Steel Lap Joint Stub End
- Carbon Steel BW Lap Joint Stub End Supplier
- Stockist of Carbon Steel Lap Joint Stub Ends
- Standard Carbon Steel Butt Weld Lap Joint Stub End
- Buy Carbon Steel Lap Joint Stub Ends
- Carbon Steel Lap Joint Stub End Manufacturers in Mumbai
- Carbon Steel Industrial Lap Joint Stub Ends
- ASTM A234 CS Lap Joint Stub End Manufacturer
- CS Lap Joint Stub End at Best Price In India
- Low Temperature Steel A420 WPL3 Lap Joint Stub End
- High Yield CS A860 Butt weld Lap Joint Stub End
- A234 Gr.WPB Carbon Steel Lap Joint Stub End
- Carbon Steel ASTM A234 Lap Joint Stub End Suppliers
- Buttweld Carbon Steel Lap Joint Stub End
- Carbon Steel Buttweld Lap Joint Stub End Supplier in India
- Supplier of Carbon Steel Buttweld Lap Joint Stub End
- Carbon Steel Pipe Lap Joint Stub End Dealer
- Exporter of Carbon Steel Buttweld Lap Joint Stub End
- A860 High-Yield Carbon Steel Lap Joint Stub End Suppliers
- Carbon Steel Dimensions Lap Joint Stub End ASME B16.9
- A234 Carbon Steel Lap Joint Stub End Supplier
- A420 Low Temperature Carbon Steel Lap Joint Stub End
- CS Buttweld Lap Joint Stub End Manufacturer
- Carbon Steel SMLS Lap Joint Stub End
- CS ANSI/ASME B16.9 Buttweld Lap Joint Stub End
- Carbon Steel Lap Joint Stub End Manufacturer In India
- ASTM A420 LTCS Lap Joint Stub End Wholesaler
Carbon Steel Lap Joint Stub End Price List
| astm a234 wpb carbon steel butt weld lap joint stub end | FOB Price: US$ 0.20 - 40.00 / Piece |
| carbon steel a234 wpb lap joint stub end dimensions | FOB Price: US$ 5.70 - 18.00 / Piece |
| low temperture carbon steel lap joint stub end | FOB Price: US$ 2.00 - 6.00 / Piece |
| carbon steel asme b16.9 lap joint stub ends | FOB Price: US$ 1.00 - 8.00 / Piece |
| asme b16.9 dimension of cs lap joint stub end | FOB Price: US$ 2.00 - 600.00 / Piece |
| carbon steel lap joint stub ends pipe fittings | FOB Price: US$ 3.00 - 150.00 / Piece |
| lap joint stub ends high yield carbon steel | FOB Price: US$ 14.00 / 220.00 Piece |
| astm a234 grade wpb carbon steel lap joint stub ends | FOB Price: US$ 20.00 / 210.00 Piece |
| astm a420 wpl6 low temperature steel lap joint stub end | FOB Price: US$ 5.00 - 600.00 / Piece |
Carbon Steel Eccentric Schedule Std
| NPS | OD | T | G | F | R | kg |
| 1/2 | 21.3 | 2.77 | 34.9 | 76.2 | 3.18 | 0.16 |
| 3/4 | 26.7 | 2.87 | 42.9 | 76.2 | 3.18 | 0.23 |
| 1 | 33.4 | 3.38 | 50.8 | 101.6 | 3.18 | 0.29 |
| 1.1/4 | 42.2 | 3.56 | 63.5 | 101.6 | 4.76 | 0.45 |
| 1.1/2 | 48.3 | 3.68 | 73 | 101.6 | 6.35 | 0.54 |
| 2 | 60.3 | 3.91 | 92.1 | 152.4 | 7.94 | 1 |
| 2.1/2 | 73 | 5.16 | 104.8 | 152.4 | 7.94 | 1.5 |
| 3 | 88.9 | 5.49 | 127 | 152.4 | 9.53 | 2.1 |
| 3.1/2 | 101.6 | 5.74 | 139.7 | 152.4 | 9.53 | 2.5 |
| 4 | 114.3 | 6.02 | 157.2 | 152.4 | 11.11 | 3 |
| 5 | 141.3 | 6.55 | 185.7 | 203.2 | 11.11 | 5.4 |
| 6 | 168.3 | 7.11 | 215.9 | 203.2 | 12.70 | 7.3 |
| 8 | 219.1 | 8.18 | 269.9 | 203.2 | 12.70 | 11.6 |
| 10 | 273.1 | 9.27 | 323.9 | 254 | 12.70 | 18 |
| 12 | 323.9 | 9.53 | 381 | 254 | 12.70 | 21 |
| 14 | 355.6 | 9.53 | 412.8 | 304.8 | 12.70 | 28 |
| 16 | 406.4 | 9.53 | 469.9 | 304.8 | 12.70 | 34 |
| 18 | 457.2 | 9.53 | 533.4 | 304.8 | 12.70 | 39 |
| 20 | 508 | 9.53 | 584.2 | 304.8 | 12.70 | 44 |
| 24 | 609.6 | 9.53 | 692.2 | 304.8 | 12.70 | 57 |
Carbon Steel Eccentric Schedule XS
| NPS | OD | T | G | F | R | kg |
| 1/2 | 21.3 | 3.73 | 34.9 | 76.2 | 3.18 | 0.2 |
| 3/4 | 26.7 | 3.91 | 42.9 | 76.2 | 3.18 | 0.3 |
| 1 | 33.4 | 4.55 | 50.8 | 101.6 | 3.18 | 0.4 |
| 1.1/4 | 42.2 | 4.85 | 63.5 | 101.6 | 4.76 | 0.6 |
| 1.1/2 | 48.3 | 5.08 | 73 | 101.6 | 6.35 | 0.7 |
| 2 | 60.3 | 5.54 | 92.1 | 152.4 | 7.94 | 1.4 |
| 2.1/2 | 73 | 7.01 | 104.8 | 152.4 | 7.94 | 2 |
| 3 | 88.9 | 7.62 | 127 | 152.4 | 9.53 | 2.9 |
| 3.1/2 | 101.6 | 8.08 | 139.7 | 152.4 | 9.53 | 3.4 |
| 4 | 114.3 | 8.56 | 157.2 | 152.4 | 11.11 | 4.1 |
| 5 | 141.3 | 9.53 | 185.7 | 203.2 | 11.11 | 7.5 |
| 6 | 168.3 | 10.97 | 215.9 | 203.2 | 12.70 | 10 |
| 8 | 219.1 | 12.70 | 269.9 | 203.2 | 12.70 | 16 |
| 10 | 273.1 | 12.70 | 323.9 | 254 | 12.70 | 24 |
| 12 | 323.9 | 12.70 | 381 | 254 | 12.70 | 29 |
| 14 | 355.6 | 12.70 | 412.8 | 304.8 | 12.70 | 38 |
| 16 | 406.4 | 12.70 | 469.9 | 304.8 | 12.70 | 43 |
| 18 | 457.2 | 12.70 | 533.4 | 304.8 | 12.70 | 49 |
| 20 | 508 | 12.70 | 584.2 | 304.8 | 12.70 | 63 |
| 24 | 609.6 | 12.70 | 692.2 | 304.8 | 12.70 | 76 |
Are you in search of a reliable manufacturer of Carbon Steel Lap Joint Stub End in Mumbai, India? We offer high-quality Carbon Steel Buttweld Lap Joint Stub End at competitive prices.

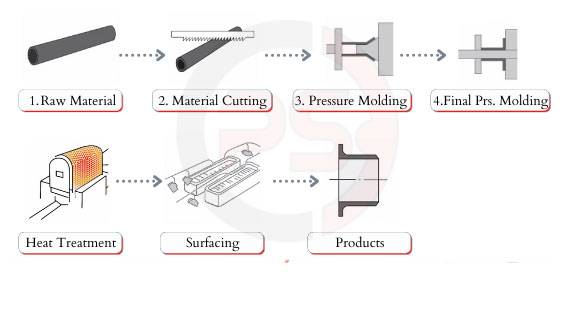

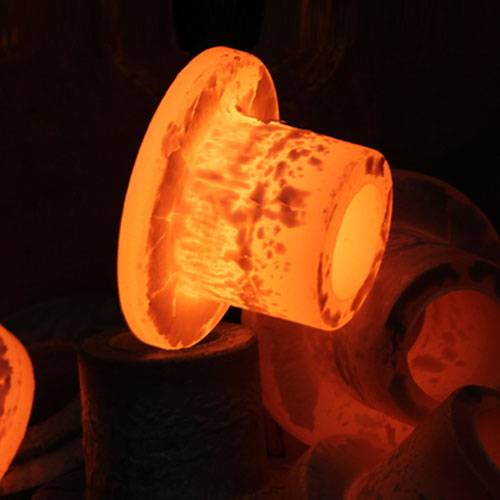

Carbon Steel Buttweld Lap Joint Stub End Manufacturing Process
