Rajdhan Metal is a well-known exporter, supplier, and producer of Carbon Steel socket weld Unequal Cross that offers to our respected clients on a large scale. Due to the expertise of our very skilled professionals, we are able to provide a superior quality range of socket weld unequal cross that is extensively used in huge industries. The benefits of this item include a simple plan, straightforward installation, superb wrap-up, and more. We provide this lofty evaluation of fixtures with creative highlights and higher productivity while taking into account the constantly changing needs of our esteemed clients.

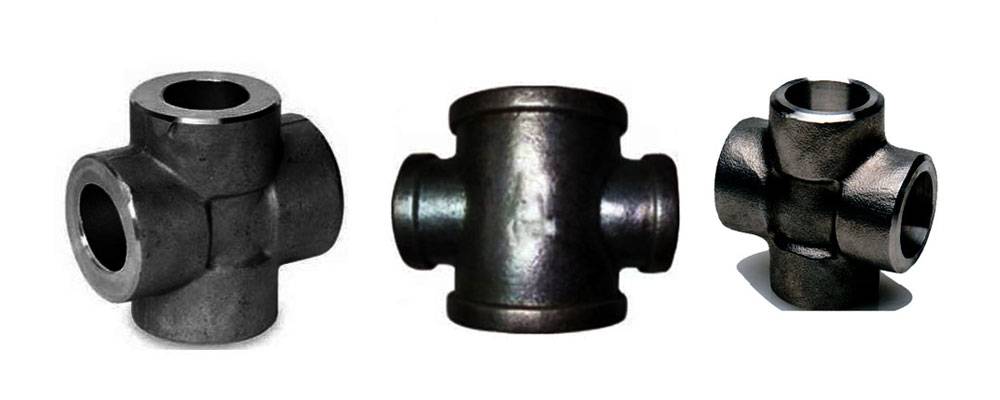

What is a Carbon Steel Socket weld Unequal Cross?
Another name for the Carbon Steel socket weld Unequal Cross is a four-way pipe fitting. Three outlets and one inlet are present in an Unequal Cross 3000lb Socket Weld. Cross fittings that have three inlets and one outlet can also be produced. In process pipes, these Carbon Steel socket weld Unequal Cross are often not used to transport fluid because they aren't regarded as acceptable for that purpose. And in the fire water sprinkler line, Carbon Steel socket weld Unequal Cross are quite popular.
Carbon Steel socket weld Unequal Cross has holes that aren't equal; often, one is in one dimension and the other three are in another. By using various materials the Socket Weld Reducing Cross’ strength can be controlled. Due to the fluid mechanics in a 4-way fluid flow, the applications of Carbon Steel socket weld Unequal Cross are restricted to low pressure, low cost, and low liquid flow systems. Under high pressures, the connection becomes unstable and the fluid flow may change. For this reason, lower diameter pipelines for water, gas, and other home use as well as socket welding are used. There are greater pressure versions available for special circumstances, such as the Unequal Cross 3000lb Socket Weld, which is made to handle the conditions under special requirements.
Specifications | ASTM A105 / ASME SA105 / A350 LF 2 |
Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8” NB to 4” NB |
Types | Socketweld Fittings |
Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Socket Weld 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Supplier and exporter of black forged steel socket weld fittings reducing cross in Mumbai, India, with various types and dimensions available to meet asme b16.11 standards.

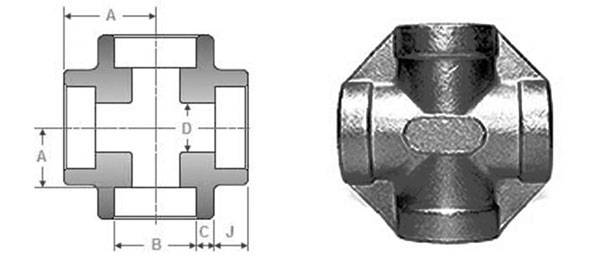

NPS 1/2 to 4 – Class 3000 Socket Weld Unequal Cross Dimensions
Normal Pipe Sizes | Socket Bore |
Socket Depth |
Bore dia. |
Socket Wall Thick. |
Body Wall Thick. |
Center to bottom of Cocket |
---|---|---|---|---|---|---|
B | J | D | C | G | A | |
1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
3.75 | 15.5 |
3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
3.90 | 19.5 |
1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
4.55 | 22 |
1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
4.85 | 27 |
1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
5.10 | 32 |
2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
5.55 | 38 |
2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
7.00 | 41.5 |
3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
7.60 | 57.5 |
4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
8.55 | 66.5 |
NPS 1/2 to 2 – Class 6000 Socket Weld Unequal Cross Dimensions
Normal Pipe Sizes | Socket Bore |
Depth Socket |
Bore Dia. |
Socket wall thick. |
Body wall thick. |
Center to bottom of socket |
---|---|---|---|---|---|---|
B | J | D | C | G | A | |
1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 19.5 |
3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 22.5 |
1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 27 |
1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 32 |
1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 38 |
2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 41 |
DESCRIPTION | QTY | PRICE IN US($) PRICE PER PIECE |
RED: CROSS: 3/4 x 1/2 NPS, ASTM A 105N, SW, CL.6000#, NACE MR-0175/ ISO 15156, ASME B16.11 | 4 NOS | $46.06 |
UNEQUAL CROSS: 3/4 x 1/2 NPS, FORGED STEEL SOCKET WELD CARBON STEEL MATERIAL | 5 NOS | $92.10 |
REDUCING CROSS: 1 X 1/2 NPS, ASTM A 105, FORGED SOCKET WELD , CL.3000#, ASME B16.11 | 7 NOS | $76.43 |
REDUCING CROSS: 2 X 1 NPS, SW, ASTM A 105, CL.3000#, GALV.TO A153, ASME B16.11 | 6 NOS | $86.01 |
REDUCING CROSS: 1/2 NPS, ASTM A105, SW CL.3000#, NACE MR-0175, ASME B16.11 | 7 NOS | $87.60 |
UNEQUAL CROSS: 1/2 NPS, ASTM A 105N, SW CL.6000#, ISO 15156, ASME B16.11 | 8 NOS | $91.10 |
UNEQUAL CROSS: 3/4 NPS, ASTM A105 N, SW CL.3000#, NACE MR-0175/ ISO 15156, ASME B16.11 | 3 NOS | $20.19 |
UNEQUAL CROSS: 3/4 NPS, CARBON STEEL ASME SA 105, SW CL.6000#, ASME B16.11 | 9 NOS | $10.40 |
REDUCING CROSS: 1 NPS, ASTM A 105 N, SW CL.6000#, ASME B16.11 CARBON STEEL | 3 NOS | $ 12.03 |
CLASS | DIMENSIONS | SIZES(INCHES) | |||||||||||
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/1 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | ||
3000 | A | 15/16 | 15/16 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 1/4 | 3 3/4 | 4 1/2 |
B | 1 1/16 | 1 1/16 | 1 1/15 | 15/16 | 19/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 4 | 4 3/4 | 6 | |
C | 0.420 | 0.555 | 0.690 | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | 4.545 | |
D MIN. | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 3/4 | |
E | 7/16 | 7/16 | 17/32 | 5/8 | 3/4 | 7/8 | 1 1/6 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 5/8 | |
WEIGHT | 0.25 | 0.25 | 0.42 | 0.72 | 1.17 | 1.49 | 2.38 | 3.25 | 5.08 | 15.78 | 24.73 | 40.00 | |
6000 | A | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | ||||
B | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | |||||
C | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | 2.906 | 3.535 | |||||
D MIN. | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | |||||
E | 3/4 | 7/8 | 1 1/16 | 1 1/4 | 1 1/2 | 1 5/8 | 2 1/4 | 2 1/2 | |||||
WEIGHT | 1.55 | 2.31 | 3.74 | 5.25 | 8.80 | 9.66 | 16.75 | 23.00 | |||||
9000 | A | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | ||||||
B | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 2 11/32 | 4 | |||||||
C | 0.855 | 1.065 | 1.330 | 1.675 | 1.915 | 2.406 | |||||||
D MIN. | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 5/8 | |||||||
E | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 2 1/8 | |||||||
WEIGHT | 1.75 | 4.12 | 5.25 | 5.12 | 8.75 | 22.19 |
