Carbon Steel Threaded 90 Deg Elbow
ASTM A105 Carbon Steel Screwed 90 Deg Elbows, Carbon Steel Forged Threaded 90 Deg Elbow, Carbon Steel 90° Threaded Pipe Elbow Supplier in Mumbai, CS NPT 90 Degree Elbows, Carbon Steel 90 Deg Threaded Elbow Manufacturers in India.
Rajdhan Metal is a leading manufacturer, supplier, and stockist of Carbon Steel 90 Degree Threaded Elbow in Mumbai, India. The 90 Degree Threaded Elbow comes in various sizes, materials, and configurations that are designed to meet the needs of specific applications. This includes a wide range of pressure ratings from low-pressure applications to those requiring high-pressure containment capabilities. Additionally, this product features corrosion resistance and is available as galvanized or black-coated carbon steel.
- What is Carbon Steel 90 Degree Threaded Elbow
- Carbon Steel Threaded 90 Deg Elbow Specification
- Carbon Steel 90 Degree Threaded Elbow Dimensions
- Carbon Steel Threaded 90 Degree Street Elbow Dimensions
- Specialized in Following ASME B16.11 90 Degree Carbon Steel Threaded Elbow
- Carbon Steel Threaded 90 Deg Elbow Price List
- Carbon Steel Threaded 90 Deg Elbow Weight Chart
- Carbon Steel 90 Deg Screwed Elbow Industrial Applications
Carbon Steel BSP 90 Deg Elbow, CS 90 Degree Street Elbow Suppliers, Carbon Steel Screw 90 Degree Elbow Fitting, Black Steel Threaded 90° Elbow Supplier in India, Carbon Steel Threaded Elbow Manufacturer.
What is Carbon Steel 90 Degree Threaded Elbow?
The Carbon Steel 90 Degree Threaded Elbow is a 90-degree elbow joint that provides an angled change of direction when connecting two pipes. It features a 90-degree bend and threading, making it suitable for use in various industrial applications such as water engineering, plumbing systems, and chemical transfer. The 90-degree elbow drawing is based on the standard dimensions of American National Standard Institute, ANSI B16.11-2009 standards, ensuring proper fitment into most pipe sizes available today. With its easy installation and durable construction, this 90-degree threaded elbow makes for an ideal choice for all your piping needs.
This elbow joint provides a reliable connection and is used in many industries, including plumbing, machinery, and industrial piping systems. It allows for tight connections with greater reliability than standard butt-weld fittings. The 90 Degree Threaded Elbow is easy to install and provides a secure connection without the need for welding or other specialized tools. This makes it an ideal choice for plumbing, machinery, and industrial piping systems needing a reliable connection. The elbow joint also ensures that pipes can be connected in tight spaces while maintaining their strength and functionality. With its superior corrosion resistance, this product is designed to provide long-lasting results even in demanding environments.
Overall, Carbon Steel 90 Degree Threaded Elbow offers quick installation, reliable performance, and lasting durability making it an essential component of any piping system. Rajdhan Metal precision-designed threaded elbow ensures secure connections between pipes and provides excellent sealing capabilities. Its versatility and durability make it suitable for use in a range of applications, while its range of sizes and pressure ratings ensure it can meet the needs of different industries.
Carbon Steel A350 Gr LF2 Threaded Forged 90 Degree Elbow, Price List of CS Thread 90 Degree Elbows, Black 90 Degree Threaded Elbow Dimensions, Carbon Steel ASME B16.11 3000# Threaded Elbow 90 Deg Exporter in India.
Carbon Steel Threaded 90 Deg Elbow Material Specification
| Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Thread | NPT, BSPT, BSPP (Male / Female) |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
| Surface | Anti-rust Oil or Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Threaded 90 deg Elbow, 90 deg female threaded elbow, 90 deg male threaded elbow |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Supplier and Exporter of Black Forged Steel Screwed 90 Degree Elbow in Mumbai, India. Check the dimensions of our NPT and BSPP 90 degree threaded elbow fittings.

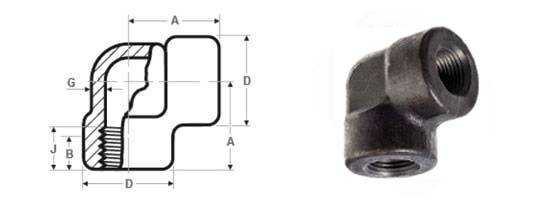

Carbon Steel 90 Degree Threaded Elbow Dimensions
90 degree Threaded Elbow Dimensions NPS 1/2 to 4 Class 2000
| NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 33 | 3.18 | 28 | 22 |
| 3/4 | 12.7 | 13.9 | 38 | 3.18 | 33 | 25 |
| 1 | 14.7 | 17.3 | 46 | 3.68 | 38 | 28 |
| 1.1/4 | 17 | 18 | 56 | 3.89 | 44 | 33 |
| 1.1/2 | 17.8 | 18.4 | 62 | 4.01 | 51 | 35 |
| 2 | 19 | 19.2 | 75 | 4.27 | 60 | 43 |
| 2.1/2 | 23.6 | 28.9 | 92 | 5.61 | 76 | 52 |
| 3 | 25.9 | 30.5 | 109 | 5.99 | 86 | 64 |
| 4 | 27.7 | 33 | 146 | 6.55 | 106 | 79 |
90 Deg Threaded Pipe Elbow Dimensions Class 3000 - NPS 1/2 to 4
| NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 38 | 4.09 | 33 | 25 |
| 3/4 | 12.7 | 13.9 | 46 | 4.32 | 38 | 28 |
| 1 | 14.7 | 17.3 | 56 | 4.98 | 44 | 33 |
| 1.1/4 | 17 | 18 | 62 | 5.28 | 51 | 35 |
| 1.1/2 | 17.8 | 18.4 | 75 | 5.56 | 60 | 43 |
| 2 | 19 | 19.2 | 84 | 7.14 | 64 | 44 |
| 2.1/2 | 23.6 | 28.9 | 102 | 7.65 | 83 | 52 |
| 3 | 25.9 | 30.5 | 121 | 8.84 | 95 | 64 |
| 4 | 27.7 | 33 | 152 | 11.18 | 114 | 79 |
Threaded 90 Elbow Dimensions NPS 1/2 to 4 Class 6000
| NPS | Min Length of Thread |
Outside Dia of Band |
Min WT |
Center to End | ||
| B | J | D | G | 90° A |
45° C |
|
| 1/2 | 10.9 | 13.6 | 46 | 8.15 | 38 | 28 |
| 3/4 | 12.7 | 13.9 | 56 | 8.53 | 44 | 33 |
| 1 | 14.7 | 17.3 | 62 | 9.93 | 51 | 35 |
| 1.1/4 | 17 | 18 | 75 | 10.59 | 60 | 43 |
| 1.1/2 | 17.8 | 18.4 | 84 | 11.07 | 64 | 44 |
| 2 | 19 | 19.2 | 102 | 12.09 | 83 | 52 |
| 2.1/2 | 23.6 | 28.9 | 121 | 15.29 | 95 | 64 |
| 3 | 25.9 | 30.5 | 146 | 16.64 | 106 | 79 |
| 4 | 27.7 | 33 | 152 | 18.67 | 114 | 79 |

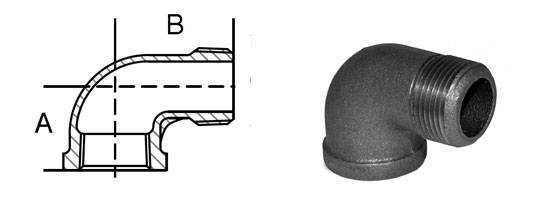

Carbon Steel Threaded 90 Degree Street Elbow Dimensions
| Size (inches) | A | B | Weight (lbs) |
| 1/8" | 0.69 | 1.00 | 0.04 |
| 1/4" | 0.83 | 1.18 | 0.07 |
| 3/8" | 0.91 | 1.52 | 0.11 |
| 1/2" | 1.12 | 1.69 | 0.20 |
| 3/4" | 1.24 | 1.83 | 0.29 |
| 1" | 1.48 | 2.09 | 0.52 |
| 1-1/4" | 1.77 | 2.48 | 0.72 |
| 1-1/2" | 1.83 | 2.72 | 0.92 |
| 2" | 2.38 | 3.35 | 1.79 |
| 2-1/2" | 2.62 | 4.13 | 2.73 |
| 3" | 3.09 | 4.43 | 3.87 |
| 4" | 3.82 | 5.04 | 6.07 |
Rajdhan Metal offers high-quality and cost-effective carbon steel threaded 90 degree elbow fittings in India. View 90 degree elbow weight chart and price list.
Specialized in Following ASME B16.11 90 Degree Carbon Steel Threaded Elbow
- 90 Deg Carbon Steel Threaded Elbow for Piping Connection
- 3000lb, 1" BSPT Galvanised Carbon Steel 90 Degree Elbow
- Carbon Steel NPT Threaded 90° Elbows Trader
- Buy Black Steel 2" NPT 90 Degree Elbow Threaded
- Carbon Steel 90 Deg Screwed Elbows Suppliers
- Carbon Steel Industrial Forged Threaded 90 Degree Elbow
- Carbon Steel Class 6000 90 Degree Pipe Thread Elbow
- ASME B16.11 CS 90 Deg Elbow Female Threaded
- Carbon Steel NPT 90 Deg Threaded Street Elbow
- Carbon Steel Screwed BSPP 90 Degree Elbow
- Low Carbon Steel 90 Deg Threaded Elbow
- Stockists of Carbon Steel BSPT 90 Deg Elbow
- A350 LF2 Low Temperature Steel Thread 90 Deg Elbow
- BSP Carbon Steel Threaded 90 Deg Elbow
- Threaded Black Iron 90 Deg Elbow Stockist
- CS Threaded BSP 90 Degree Elbow
- Carbon Steel Threaded Reducing 90 Degree Elbow
- Class 2000, Carbon Steel Screwed 90 Degree Elbow
- Carbon Steel ASTM A105 90 Degree Threaded Elbow
- Carbon Steel 90 Degree Street Elbow Threaded
- Carbon Steel 90 Deg Street Elbow Stockholder
- High Carbon Class 6000 Screw 90 Deg Elbows
- Carbon Steel 90 Degree NPT Elbow Wholesaler
- Carbon Steel Screwed 90 Degree Elbow
- Manufacturers of CS NPT Threaded 90 Deg Elbows
- ASME B16.11 Black Steel 90 Degree Elbow Fitting
- Carbon Steel BSP Threaded Forged 90 Deg Elbows
- Exporter of Carbon Steel 90 Degree Elbow
- Carbon Steel Threaded 90 Deg Elbow Stock
- Cast Iron 90 Deg Threaded Elbow Dealer
- Carbon Steel BSPP Threaded 90 Deg Elbow
- CS High Pressure Forged Threaded 90 Deg Pipe Elbow
- Carbon Steel BSP Screwed 90 Degree Elbow Supplier
- Black Iron 90 Degree Street Elbow Distributor
Carbon Steel Threaded 90 Deg Elbow Price List
| Threaded 90 degree elbow | 90 Deg Threaded Elbow Price in India | 90° Threaded Elbow Price in USD | 90° Threaded Elbow Price in UAE Dirham |
| ASTM A105 CS FORGED SCREWED 90 DEGREE ELBOW, 1/2 NPS, CL3000# | INR 1,245 / Unit | USD $ 16.66 /Unit | UAE Dirham 64.25 |
| 90° ELBOW: 1 NPS, 2 NPS, ASTM A105, NPT (F) THRD (ASME B1.20.1), ASME B16.11 | INR 834 / Unit | USD $ 10.45 / Unit | UAE Dirham 41.18 |
| 90 DEGREE ELBOW WITH MALE THREAD CARBON STEEL ELBOW MATERIAL | INR 7,319 / Unit | USD $ 100.10 / Unit | UAE Dirham 406.56 |
| 90 DEGREE ELBOW WITH FEMALE THREAD, 90DEGREE, DIA. 16MM X 1/2 | INR 2,642 / Unit | USD $ 39.09 / Unit | UAE Dirham 149.82 |
Carbon Steel Threaded 90 Deg Elbow Weight Chart
| Nominal Size | Approx. Weight/Kg | |||
| DN | NPS | 2000# | 3000# | 6000# |
| 6 | 1/8 | 0.08 | 0.1 | 0.18 |
| 8 | 1/4 | 0.08 | 0.15 | 0.3 |
| 10 | 3/8 | 0.13 | 0.3 | 0.45 |
| 15 | 1/2 | 0.22 | 0.45 | 0.72 |
| 20 | 3/4 | 0.32 | 0.7 | 1.2 |
| 25 | 1 | 0.5 | 1.2 | 1.65 |
| 32 | 1 1/4 | 0.8 | 1.5 | 2.7 |
| 40 | 1 1/2 | 0.9 | 2.6 | 3.3 |
| 50 | 2 | 1.6 | 3 | 6.05 |
| 65 | 2 1/2 | 3 | 5.8 | 9.9 |
| 80 | 3 | 5.6 | 8.9 | 16.4 |
| 100 | 4 | 10.5 | 13.5 | 23.5 |
