Rajdhan Metal is renowned for making and supplying Carbon Steel Hex Nipple, a medium carbon austenitic steel used in high temperature applications including furnace parts and heat treatment machinery. We rank among the top exporters of these premium qualities Mild Steel Forged Threaded Hex Nipples. They are constructed from steel that is of the highest quality. Our forged threaded hex nipples made of carbon steel are used in fabrications to lighten them up, which is important for things like pressure vessels, storage tanks, and structural applications like bridges. These CS Forged Threaded Hex Nipples have a perfect design thanks to the expertise of our skilled workers, allowing for maximum performance. We are the industry's top producer and supplier of Carbon Steel A105 Forged Threaded Hex Nipples, which are utilized in the mechanical and engineering sectors and are excellent for connecting pipes.
What is Hex Nipple?
We are a reputable manufacturer and distributor of CS Nipple, a material that has proven to be
well-formed in a range of fabrications. If this Carbon Steel Hexagon Reducing Nipple is utilized, it
is conceivable that material thicknesses for a project may be decreased, lowering costs without
sacrificing quality. For our Carbon Steel Hexagon Nipple, we advise a maximum hot
forming temperature of between 2010 Degree F and 2100 Degree F. (1100 Degree C to 1150 Degree C). This
Carbon Steel One End Hex Threaded Nipple may have edges that are noticeably cooler than the center of
the work piece's shape is not compact, increasing the likelihood that these cooler areas would crack.
For our Carbon Steel Eccentric Swaged Nipple, which requires tooling and work surfaces to be carefully
cleaned before use, Ganpat Industrial Corporation is one of the first dealers and exporters. This CS
Hex Nipple has a microstructure that contains between 40% and 50% ferrite when it is solution annealed
at a temperature of roughly 1925 degrees Fahrenheit. Our CS Hex Reducing Nipple's high strength,
nevertheless, may be problematic.
Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Size | 1/8″ NB TO 4″ NB |
Thread | NPT, BSPT, BSPP (Male / Female) |
Types | Screwed-Threaded Fittings |
Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
Surface | Anti-rust Oil or Galvanized |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees |
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
NPT, ISO/BSP, SAE threads Hex Nipple Manufacturers, ASME B16.11 Hexagon Nipple Stockist in Mumbai, Check the Dimensions and Price of Forged Screwed Hex Nipples in India.

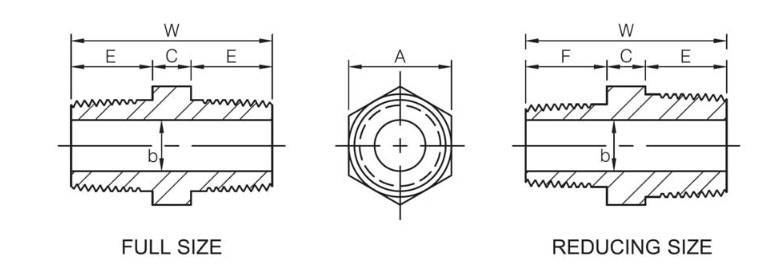

Nominal Size |
A (Min) |
W (Min) |
E (Min) |
b |
C (Min) |
F (Min) |
||
DN | Inch | 3000Lb | 6000Lb | |||||
6 | 1/8” | 11 | 26 | 10 | 5 | 2 | 6 | - |
8 | 1/4” | 15 | 36 | 15 | 8 | 6 | 6 | - |
8x6 | 1/4”x1/8” | 15 | 31 | 15 | 5 | 2 | 6 | 10 |
10 | 3/8” | 18 | 40 | 16 | 11 | 8 | 8 | - |
10x8 | 3/8”x1/4” | 18 | 39 | 16 | 8 | 6 | 8 | 15 |
15 | 1/2” | 22 | 48 | 20 | 14 | 11 | 8 | - |
15x10 | 1/2”x3/8” | 22 | 44 | 20 | 11 | 8 | 8 | 16 |
15x8 | 1/2”x1/4” | 22 | 43 | 20 | 8 | 6 | 8 | 15 |
20 | 3/4” | 27 | 52 | 21 | 19 | 13 | 10 | - |
20x15 | 3/4”x1/2” | 27 | 50 | 21 | 14 | 11 | 9 | 20 |
20x10 | 3/4”x3/8” | 27 | 46 | 21 | 11 | 8 | 9 | 16 |
25 | 1” | 35 | 60 | 25 | 24 | 17 | 10 | - |
25x20 | 1”x3/4” | 35 | 56 | 25 | 19 | 13 | 10 | 21 |
25x15 | 1”x1/2” | 35 | 55 | 25 | 14 | 11 | 10 | 20 |
40 | 1-1/2” | 50 | 68 | 26 | 38 | 30 | 16 | - |
40x25 | 1-1/2”x1” | 50 | 67 | 26 | 24 | 17 | 16 | 25 |
40x20 | 1-1/2”x3/4” | 50 | 63 | 26 | 19 | 13 | 16 | 21 |
40x15 | 1-1/2”x1/2” | 50 | 62 | 26 | 14 | 11 | 16 | 20 |
50 | 2” | 62 | 71 | 27 | 49 | 39 | 17 | - |
50x40 | 2”x1-1/2” | 62 | 70 | 27 | 38 | 30 | 17 | 26 |
50x25 | 2”x1” | 62 | 70 | 27 | 24 | 17 | 18 | 25 |
50x20 | 2”x3/4” | 62 | 65 | 27 | 19 | 13 | 17 | 21 |
50x15 | 2”x1/2” | 62 | 65 | 27 | 14 | 11 | 18 | 20 |

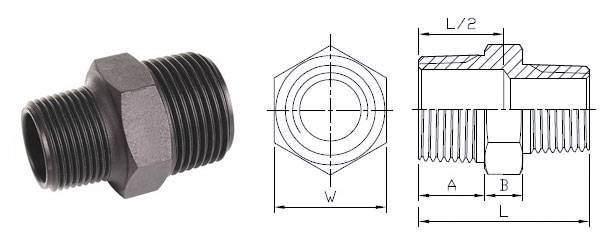

Normal Pipe Size (NPS) | A | B | L | W | |||||
Millimeter | Inches | Millimeter | Inches | Millimeter | Inches | Millimeter | Inches | ||
1/4″ | 1/8″ | 11 | 0.43 | 6 | 0.24 | 29 | 1.14 | 15 | 0.59 |
3/8″ | 1/8″ | 12 | 0.47 | 7 | 0.28 | 31 | 1.22 | 18 | 0.71 |
1/4″ | 12 | 0.47 | 7 | 0.28 | 32 | 1.26 | 18 | 0.71 | |
1/2″ | 1/8″ | 14 | 0.55 | 7 | 0.28 | 34 | 1.34 | 23 | 0.91 |
1/4″ | 14 | 0.55 | 7 | 0.28 | 35 | 1.38 | 23 | 0.91 | |
3/8″ | 14 | 0.55 | 7 | 0.28 | 36 | 1.42 | 23 | 0.91 | |
3/4″ | 1/8″ | 14 | 0.55 | 7 | 0.28 | 34 | 1.34 | 29 | 1.14 |
1/4″ | 14 | 0.55 | 7 | 0.28 | 35 | 1.38 | 29 | 1.14 | |
3/8″ | 14 | 0.55 | 7 | 0.28 | 36 | 1.42 | 29 | 1.14 | |
1/2″ | 14 | 0.55 | 7 | 0.28 | 39 | 1.54 | 29 | 1.14 | |
1″ | 1/4″ | 17.5 | 0.69 | 9 | 0.35 | 41 | 1.61 | 35 | 1.38 |
3/8″ | 17.5 | 0.69 | 9 | 0.35 | 42 | 1.65 | 35 | 1.38 | |
1/2″ | 17.5 | 0.69 | 9 | 0.35 | 45 | 1.77 | 35 | 1.38 | |
3/4″ | 17.5 | 0.69 | 9 | 0.35 | 45 | 1.77 | 35 | 1.38 | |
1-1/4″ | 1/4″ | 18 | 0.71 | 10 | 0.39 | 42 | 1.65 | 45 | 1.77 |
3/8″ | 18 | 0.71 | 10 | 0.39 | 43 | 1.69 | 45 | 1.77 | |
1/2″ | 18 | 0.71 | 10 | 0.39 | 46 | 1.81 | 45 | 1.77 | |
3/4″ | 18 | 0.71 | 10 | 0.39 | 46 | 1.81 | 45 | 1.77 | |
1″ | 18 | 0.71 | 10 | 0.39 | 50 | 1.97 | 45 | 1.77 | |
1-1/2″ | 1/4″ | 18.5 | 0.73 | 10.5 | 0.41 | 42.5 | 1.67 | 50 | 1.97 |
3/8″ | 18.5 | 0.73 | 10.5 | 0.41 | 43.5 | 1.71 | 50 | 1.97 | |
1/2″ | 18.5 | 0.73 | 10.5 | 0.41 | 46.5 | 1.83 | 50 | 1.97 | |
3/4″ | 18.5 | 0.73 | 10.5 | 0.41 | 46.5 | 1.83 | 50 | 1.97 | |
1″ | 18.5 | 0.73 | 10.5 | 0.41 | 50.5 | 1.99 | 50 | 1.97 | |
1-1/4″ | 18.5 | 0.73 | 10.5 | 0.41 | 50.5 | 1.99 | 50 | 1.97 | |
2″ | 3/8″ | 20 | 0.79 | 11 | 0.43 | 45 | 1.77 | 62 | 2.44 |
1/2″ | 20 | 0.79 | 11 | 0.43 | 48 | 1.89 | 62 | 2.44 | |
3/4″ | 20 | 0.79 | 11 | 0.43 | 48 | 1.89 | 62 | 2.44 | |
1″ | 20 | 0.79 | 11 | 0.43 | 52 | 2.05 | 62 | 2.44 | |
1-1/4″ | 20 | 0.79 | 11 | 0.43 | 52 | 2.05 | 62 | 2.44 | |
1-1/2″ | 20 | 0.79 | 11 | 0.43 | 52 | 2.05 | 62 | 2.44 | |
2-1/2″ | 3/4″ | 22.5 | 0.89 | 13 | 0.51 | 52.5 | 2.07 | 78 | 3.07 |
1″ | 22.5 | 0.89 | 13 | 0.51 | 56.5 | 2.22 | 78 | 3.07 | |
1-1/4″ | 22.5 | 0.89 | 13 | 0.51 | 56.5 | 2.22 | 78 | 3.07 | |
1-1/2″ | 22.5 | 0.89 | 13 | 0.51 | 56.5 | 2.22 | 78 | 3.07 | |
2″ | 22.5 | 0.89 | 13 | 0.51 | 57.5 | 2.26 | 78 | 3.07 | |
3″ | 1-1/2″ | 25 | 0.98 | 15 | 0.59 | 61 | 2.4 | 91 | 3.58 |
2″ | 25 | 0.98 | 15 | 0.59 | 62 | 2.44 | 91 | 3.58 | |
2-1/2″ | 25 | 0.98 | 15 | 0.59 | 64.5 | 2.54 | 91 | 3.58 | |
4″ | 2″ | 27 | 1.06 | 15 | 0.59 | 64 | 2.52 | 117 | 4.61 |
2-1/2″ | 27 | 1.06 | 15 | 0.59 | 66.5 | 2.62 | 117 | 4.61 | |
3″ | 27 | 1.06 | 15 | 0.59 | 69 | 2.72 | 117 | 4.61 |
Size | Material | Price |
1-1/2 X 1 NPS Hex Nipple | Carbon Steel | $1.06 / Piece |
2 NPS X 1/2 NPS Hex Nipple | Low Carbon Steel | $1.08 |
2 NPS X 1 NPS Hex Nipple | Medium Carbon Steel | $2.57 |
2 NPS X 1/3 NPS Hex Nipple | High Carbon Steel | $3.35 |
2 NPS X 1/4 NPS Hex Nipple Reducer | Carbon Steel A105 | $4.16 |
1 NPS X 1/2 NPS Reducing Hex Nipple | LTCS A350 LF2 | $3.26 |
1 NPS X 1/3 NPS Hexagonal Nipple | Carbon ASTM A105N | $6.55 |
1 NPS X 1/4 NPS Hexagona Nipple | Carbon ASTM A105N | $6.55 |
Size (inch) | Length of thread |
1/8 | 0.273 |
1/4 | 0.395 |
3/8 | 0.407 |
1/2 | 0.534 |
3/4 | 0.553 |
1 | 0.661 |
1 1/4 | 0.681 |
1 1/2 | 0.681 |
2 | 0.697 |
2 1/2 | 0.933 |
3 | 1.016 |
3 1/2 | 1.071 |
4 | 1.094 |
5 | 1.187 |
6 | 1.208 |
8 | 1.313 |
Nominal Size | Approx. Weight / Kg | ||
DN | NPS | SCH80 | SCH160 |
6 | 1/8 | 0.02 | 0.02 |
8 | 1/4 | 0.03 | 0.04 |
10 | 3/8 | 0.05 | 0.06 |
15 | 1/2 | 0.10 | 0.12 |
20 | 3/4 | 0.13 | 0.17 |
25 | 1 | 0.22 | 0.29 |
32 | 1 1/4 | 0.34 | 0.41 |
40 | 1 1/2 | 0.47 | 0.58 |
50 | 2 | 0.69 | 0.91 |
65 | 2 1/2 | 1.35 | 1.69 |
80 | 3 | 2.03 | 2.55 |
