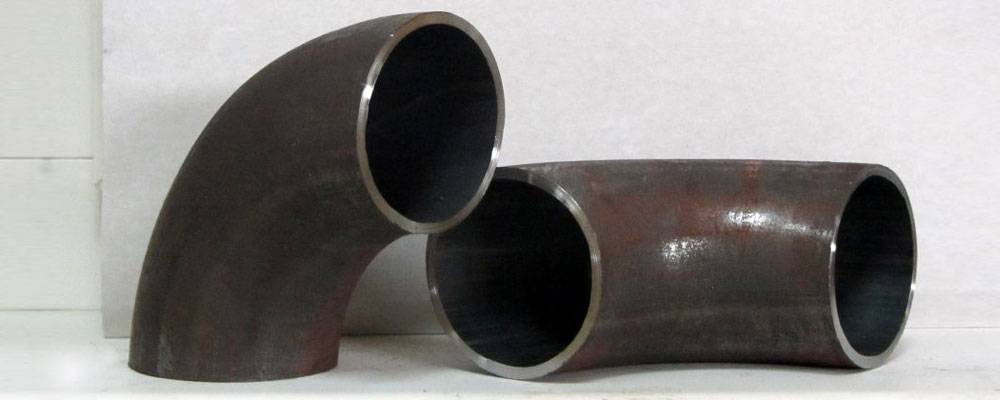

Carbon Steel 90° Short Radius Elbow
Rajdhan Metal, a certified ISO 9001:2015 company founded in 1999, has become India's leading manufacturer of Carbon Steel 90 Degree Short Radius Elbows. Renowned for craftsmanship and quality, our products embody industry excellence
Carbon Steel 90 Degree Short Radius Elbow Manufacturer in India, CS Short Radius Elbows Supplier, ASME B16.9 Buttweld 90° SR Elbow at Best Price in Mumbai.
- What is a Carbon Steel 90 Deg Short Radius Elbow?
- What size is a 90 degree short radius elbow?
- Short Radius 90 Degree Elbow Dimensions
- High-Pressure Applications and Transport Suitability
- Installation and Customization
- Specialized in Following ASME B16.9 CS 90° Short Radius Buttweld Elbow
- Carbon Steel 90° Short Radius Pipe Elbow Price List
What is a Carbon Steel 90 Deg Short Radius Elbow?
Carbon Steel 90 Deg Short Radius Elbows are fittings that help pipes turn 90 degrees in a small space. They're made to fit pipes perfectly since their bend radius is the same as the pipe's diameter. These elbows are strong for high-pressure jobs and can be used in tight spots, important in industries like oil refining or water treatment.
What size is a 90 degree short radius elbow?
The size of a 90 degree short radius elbow is based on its pipe. It's called the nominal pipe size (NPS). So, a 1/2 NPS elbow is about 21.3mm wide at its outer edge. A 1 1/2 NPS elbow is about 48.3mm wide, and a 2 NPS elbow is about 60.3mm wide. Also, the distance from the centre of these elbows to their end is about 38mm for a 1/2 NPS and 51mm for a 1 1/2 NPS. In simpler terms, imagine the elbow as a bend in a garden hose. The NPS number is like the width of the hose, and the measurement across the bend is the outside diameter. And yes, there are even bigger sizes, like the 20-inch elbow, which is a whopping 20 inches across!
Carbon Steel 90° Short Radius Elbow Specification
| Type | Butt weld (BW) |
|---|---|
| Standard | ASME / ANSI – B 16.9 API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| 90 Deg Short Radius Elbow Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Short Radius 90º Elbows Sizes | 1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”) |
| 90 Deg SR Elbow Thickness | SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Carbon Steel Butt Weld 90 Deg Short Radius Elbow | ASTM A234 Gr. WPB ASTM A420 Gr. WPL6 ASTM A105 ASTM A350 Gr. LF2 ASTM A234 Gr WPB ST37.2, ST35 ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| 90 Degree Short Radius Pipe Elbow Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Manufacturing process | Push, Press, forge, Cast, etc. |
| Application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
View ASME B16.9 Short Radius 90 degree Elbow Dimensions, and Price List .
Short Radius 90 Degree Elbow Dimensions
Each elbow manufactured by Rajdhan Metal adheres to precise short radius 90 degree elbow dimensions, which conform to the ASME B16.9 standard. This ensures that each piece is compatible with various piping systems, allowing for seamless integration and superior performance.
The technical drawing of ASME B16.9 90° short radius elbows
| NPS | O.D. D |
Center-to-End A |
| 1 | 33.4 | 25 |
| 1¼ | 42.2 | 32 |
| 1½ | 48.3 | 38 |
| 2 | 60.3 | 51 |
| 2½ | 73 | 64 |
| 3 | 88.9 | 76 |
| 3½ | 101.6 | 89 |
| 4 | 114.3 | 102 |
| 5 | 141.3 | 127 |
| 6 | 168.3 | 152 |
| 8 | 219.1 | 203 |
| 10 | 273 | 254 |
| 12 | 323.8 | 305 |
| 14 | 355.6 | 356 |
| 16 | 406.4 | 406 |
| 18 | 457 | 457 |
| 20 | 508 | 508 |
| 22 | 559 | 559 |
| 24 | 610 | 610 |
High-Pressure Applications and Transport Suitability
Carbon Steel 90 Degree SR elbows manufactured by Rajdhan Metal are engineered to endure high-pressure applications, which ensures integrity and reliability even in difficult conditions. The elbows are flexible and suitable for liquid and gas transportation, vital for industries ranging from water treatment to petrochemicals.
Installation and Customization
Installing the 90 Degree Short Radius Elbow is a task that requires technical knowledge that includes welding, which is the primary method to ensure a leak-proof and secure connection. Options for customization are readily offered that allow Rajdhan Metal to tailor elbows to specific specifications and provide an item that will meet your specific requirements.
Our Carbon Steel 90 Deg Short Radius Elbows offer accuracy and strength. We have diverse size options that precisely fit your pipe configuration, improving system performance and stability. As a reputable manufacturer, we provide high-quality products at affordable costs in India. Our SR elbows are expertly constructed for accuracy and personalization, so they fulfil project standards.
Specialized in Following ASME B16.9 CS 90° Short Radius Buttweld Elbow
- Carbon Steel Schedule 40 90° Short Radius Elbow
- Carbon Steel 90° Short Radius Elbow Dimensions
- Carbon Steel 90° Short Radius Elbow Material
- Stockist of CS ASTM A234 90 Degree SR Buttweld Elbow
- Carbon Steel Industrial 90 Degree Short Radius Elbow
- CS Butt Weld 90 Deg Short Radius Elbow
- CS A234 WPB 90 Deg Short Radius Elbow Supplier
- High Yield CS A860 90 Degree SR Buttweld Elbow
- CS A234 90° Short Radius Elbows Suppliers
- Manufacturer Of CS Sch 60 90 Deg Short Radius Elbow
- Buy Carbon Steel Buttweld 90 Deg SR Seamless Elbow
- LTCS ASTM A420 90 Deg Short Radius Elbow
- ASTM A234 CS 90° Short Radius Elbow Manufacturer
- Carbon Steel 90 Degree Short Radius Elbow Dimensions
- Carbon Steel 90 Degree Short Radius Elbow ANSI B16.9
- CS ASME B16.9 Buttweld 90° Short Radius Elbow
- Short Radius Carbon Steel 90 Degree Elbow
- Carbon Steel Short Radius Elbow 90 Degree
- CS 90° Short Radius Elbow Manufacturer In India
- Carbon Steel Butt Weld Elbow 90 Degree SR Manufacturer
- Carbon Steel 90 Degree Short Radius Weight Chart
- Carbon Steel 90 Deg. SR Elbow Manufacturers in India
- Carbon Steel 90 Degree Short Radius Pipe Elbows Dealer
- Supplier of CS 90 Deg Short Radius Elbows
- Exporter of Carbon Steel 90° Short Radius Buttweld Elbow
- ASTM A420 LTCS 90° Short Radius Elbow Wholesaler
- CS 90 Degree Short Radius Elbow
- Carbon Steel 90° SR Buttweld Elbow Supplier in India
- A234 Gr.WPB 90 Degree SR Carbon Steel Elbow
- A860 High Yield Carbon Steel 90 Deg. SR Elbow Suppliers
Carbon Steel 90° Short Radius Pipe Elbow Price List
| 3 inch Short Radius Schedule 80 90 Degree Carbon Steel Elbow | FOB Price: US$ 2.00 - 400.00 / Piece |
| CS 90 Degree Short Radius Elbow Buttweld Fittings | FOB Price: US$ 5.00 - 7.00 / Piece |
| DN50 Carbon Steel SR Pipe Elbow 90 Degree | FOB Price: US$ 0.20 - 88.00 / Piece |
| Carbon Steel Buttweld 90° Short Radius Elbow | FOB Price: US$ 10.00 - 9.00 / Piece |
| DIN DN15-DN2000 Carbon Steel 90 Deg. SR Buttweld Elbow | FOB Price: US$ 20.00 - 25.00 / Piece |
| Carbon Steel 90 Degree SR Pipe Elbow Big Size | FOB Price: US$ 3.00 - 500.00 / Piece |
| 5 inch 90 Deg. Short Radius Carbon Steel Pipe Elbow | FOB Price: US$ 5.00 - 8.00 / Piece |
| ASTM A420 WPL6 Low Temperature Carbon Steel 90° Short Radius Elbow | FOB Price: US$ 2.00 - 300.00 / Piece |
| Carbon Steel 90 Degree Short Radius Elbow 4″ | FOB Price: US$ 2.00 - 300.00 / Piece |
| Carbon Steel Butt Weld Short Radius Elbow 90 Degree | FOB Price: US$ 4.00 - 200.00 / Piece |
| Carbon Steel ASTM A234 WPB 90° SR Seamless Elbows | FOB Price: US$ 3.80 - 8.00 / Piece |
