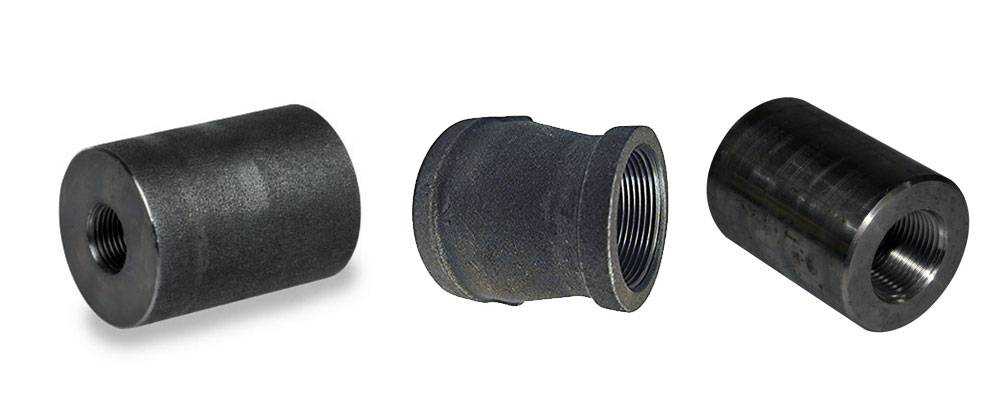

Carbon Steel Threaded Reducing Coupling
CS NPT Screwed Reducing Coupling, Carbon Steel Threaded Reducing Coupling Manufacturers in India, Carbon Steel Threaded Reducing Coupling Supplier in Mumbai, ASTM A105 Forged Steel Threaded Reducing Pipe Coupling.
Rajdhan Metal is one of the recognized manufacturers of Carbon Steel Threaded Reducing Coupling, which is robust and sturdy and is used by several industries. With a sizable customer base, we are the top providers and exporters of carbon steel forged threaded reducing coupling. Pipe fittings called reducing couplings are made to connect pipes with different diameters. These fittings are often utilized for installing small diameter fittings or when connecting small consumer or process feeder lines to large supply circuits. For the majority of common pipe types, such as steel, copper, and PVC, as well as a large variety of pipe size and design combinations, reducing couplings are readily accessible. Depending on the applicable application, these fittings may be screw-on, compression, brazing, or adhesive attachment types.
- What is a Reducing Coupling?
- Carbon Steel Threaded Reducing Coupling Specification
- Carbon Steel Threaded Reducing Pipe Coupling Dimensions
- Specialized in Following ASME B16.11 Carbon Steel Reducing Coupling Threaded
- Carbon Steel Thread Reducing Coupling Price List
- Carbon Steel Threaded Reducing Coupling Weight Chart
- Carbon Steel Screwed Pipe Reducing Coupling Industrial Applications
Carbon Steel Threaded Reducing Coupling Manufacturer, Black Steel Threaded Coupling Reducer Supplier in India, ASTM A350 LF2 LTCS Reducing Thread Coupling.
What is a Reducing Coupling?
A reducing coupling is needed to join pipes or tubing of different sizes. The purpose of these unique pipe joining fittings is to make it simple to couple a broad variety of pipe sizes while still retaining the integrity of the pipe circuit. Typical reducing couplings are just two-way couplers with a stepped-down profile and two entrances of different sizes. However, their designs can support numerous connections, elbows, or bends can be configured into Y, T, or cross junctions. There are a variety of general-purpose and application-specific reducer couplings available for the majority of pipe types, including copper, steel, and PVC.
Features of the Mild Carbon Steel Forged Threaded Reducing Coupling include high durability, sturdiness, simplicity of installation, compact design, resistance to corrosion and impact, and perfect dimension. The demand for our selection of CS Forged Threaded Reducing Coupling is high in numerous additional industrial sectors. The ASTM A105 CS Forged Threaded Reducing Coupling, which has a solid body construction and a long lifespan, offers the highest resistance to pressure and temperature. In conclusion, Carbon Steel Forged Threaded Reducing Coupling can be a very cost-effective solution to an engineering problem because of its stronger strength, longer component life cycle, and lower alloy composition.
ASME B16.11 Black Carbon Steel BSP Thread Reducing Coupling Price, 6000# CS Threaded Forged BSPP Reducing Coupling, Class 3000 CS NPTF Thread Reducing Coupling, Carbon Steel Threaded Reducing Coupling Suppliers.
Carbon Steel Threaded Reducing Coupling Specification
| Specifications | ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″ NB TO 4″ NB |
| Thread | NPT, BSPT, BSPP (Male / Female) |
| Types | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure Rating | 2000lb/ 3000lb/ 6000lbs |
| Surface | Anti-rust Oil or Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | Threaded 90 deg Elbows, Cross, Inserts, and Full Couplings, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Unions, Reducing Tees |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
NPT, ISO/BSP, SAE Thread Reducer Coupling Dimensions, Forged Carbon Steel Threaded Reducing Coupling Price in India, CS ASME B16.11 Screwed Reducing Coupling Exporter in India.

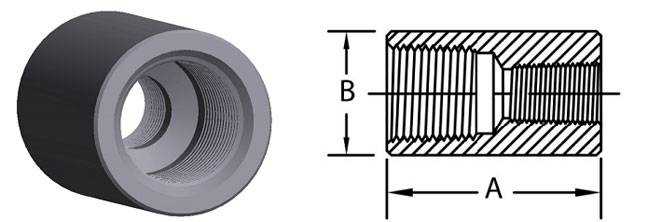

Carbon Steel Threaded Reducing Coupling Dimensions
| ASME B16.11 Threaded Reducing Coupling (Reducer) | ||||
| THREADED | Class 3000 | Class 6000 | ||
| A | B | A | B | |
| Size | ||||
| 1/4" X 1/8" | 1.38" | .75" | 1.38" | 1.06" |
| 3/8" X 1/8" 3/8" X 1/4" |
1.50" | .88" | 1.50" | 1.25" |
| 1/2" X 1/8" 1/2" X 1/4" |
1.88" | 1.13" | 1.88" | 1.50" |
| 1/2" X 3/8" | 1.88" | 1.25" | 1.88" | 1.50" |
| 3/4" X 1/8" 3/4" X 1/4" 3/4" X 3/8" 3/4" X 1/2" |
2.00" | 1.38" | 2.00" | 1.75" |
| 1" X 1/8" 1" X 1/4" 1" X 3/8" 1" X 1/2" 1" X 3/4" |
2.38" | 1.75" | 2.38" | 2.25" |
| 1-1/4" X 1/8" 1-1/4" X 1/4" 1-1/4" X 3/8" 1-1/4" X 1/2" 1-1/4" X 3/4" 1-1/4" X 1" |
2.63" | 2.25" | 2.63" | 2.50" |
| 1-1/2" X 1/8" 1-1/2" X 1/4" 1-1/2" X 3/8" 1-1/2" X 1/2" 1-1/2" X 3/4" 1-1/2" X 1" 1-1/2" X 1-1/4" |
3.13" | 2.50" | 3.13" | 3.00" |
| 2" X 1/8" 2" X 1/4" 2" X 3/8" 2" X 1/2" 2" X 3/4" 2" X 1" 2" X 1-1/4" 2" X 1-1/2" |
3.38" | 3.00" | 3.38" | 3.63" |
| 2-1/2" X 1/8" 2-1/2" X 1/4" 2-1/2" X 3/8" 2-1/2" X 1/2" 2-1/2" X 3/4" 2-1/2" X 1" 2-1/2" X 1-1/4" 2-1/2" X 1-1/2" 2-1/2" X 2" |
3.63" | 3.63" | 3.63" | 4.25" |
| 3" X 1/8" 3" X 1/4" 3" X 3/8" 3" X 1/2" 3" X 3/4" 3" X 1" 3" X 1-1/4" 3" X 1-1/2" 3" X 2" 3" X 2-1/2" |
4.25" | 4.25" | 4.25" | 5.00" |
| 4" X 1/8" 4" X 1/4" 4" X 3/8" 4" X 1/2" 4" X 3/4" 4" X 1" 4" X 1-1/4" 4" X 1-1/2" 4" X 2" 4" X 2-1/2" 4" X 3" 4" X 3-1/2" |
4.75" | 5.50" | 4.75" | 6.25" |
Rajdhan Metal is a manufacturer and supplier of threaded reducing couplings. Buy npt reducing couplings at the lowest cost in India.
Specialized in Following ASME B16.11 Threaded Carbon Steel Reducing Coupling
- CS Threaded BSP Reducing Coupling Trader
- Low Carbon Steel Threaded Reducing Coupling
- Carbon Steel Industrial Forged Threaded Reducing Coupling
- Stockists of Carbon Steel BSPT Reducing Coupling
- Carbon Forged Steel Threaded Reducing Couplings
- BSP Carbon Steel Threaded Reducing Coupling Suppliers
- Carbon Steel Screwed BSPP Reducing Coupling
- Galvanised Carbon Steel NPTF thread Reducing Coupling
- Carbon Steel Reducing Coupling Threaded
- Carbon Steel Reducing Threaded Rod Coupling
- Buy Black Steel 2" NPT Reducing Coupling Threaded, 3000lb
- Galvanised Steel Class 6000 Thread Reducing Coupling
- Threaded Black Iron Reducing Coupling Stockist
- Black Carbon Steel 1" BSPT Reducing Coupling Threaded
- ASME B16.11 CS Reducing Coupling Female Threaded
- A350 LF2 Low Temperature Steel Thread Reducing Coupling
- Carbon Steel NPT Threaded Reducing Coupling
- Carbon Steel Screwed Reducing Coupling Wholesaler
- Carbon Steel BSPP Threaded Reducing Coupling
- Exporter of Carbon Steel Threaded Reducing Coupling
- Carbon Steel Threaded Reducing Coupling Stock
- Black Iron Threaded Reducing Coupling Distributor
- Carbon Steel ASTM A105 Threaded Reducing Coupling
- Manufacturers of CS NPT Threaded Reducing Couplings
- Carbon Steel Reducing Threaded Pipe Coupling
- Carbon Steel Threaded Coupling Reducer
- High Carbon Class 6000 Screw Reducing Couplings
- Carbon Steel BSP Threaded Forged Reducing Couplings
- ASME B16.11 Black Threaded Reducing Couplings
- CS High Pressure Forged Threaded Reducing Coupling
- Carbon Steel BSP Screwed Reducing Coupling Supplier
- Class 2000, Carbon Steel Screwed Reducing Coupling
- Cast Iron Threaded Reducing Coupling Dealer
- CS Threaded Pipe Reducing Coupling Stockholder
Carbon Steel Threaded Reducing Coupling Price List
| Description | Material | Qty | Unit | Price |
| Threaded, BSPT 1/2″ Coupling Reducer | A105N | 10 | pcs | US $ 2.5 / Piece |
| 1/4″ BSPP Reducing Coupling | A105 | 61 | pcs | US$ 1.6-1.99 / Piece (FOB Price) |
| Reducing Coupling Threaded NPT, 1/2″, 6000lb, | SA105 | 160 | pcs | US$ 0.61-19.7 / Piece (FOB Price) |
| Reducing Coupling , 3/4″, NPT threaded | A350 | 100 | pcs | US$ 0.1-0.3 / Piece (FOB Price) |
| Reducing Coupling Threaded, 1″, 3000lb, BSPP | SA350 | 51 | pcs | US$ 1.2-180 / Piece (FOB Price) |
| 2″ Thread Reducer Coupling | A105 | 80 | pcs | US$ 1.25-26.7 / Piece (FOB Price) |
Carbon Steel Threaded Reducing Coupling Weight Chart
| Size (in) | Approx Weight (lbs) |
| 1/4 x 1/8 | 0.1 |
| 3/8 x 1/8 | 0.13 |
| 3/8 x 1/4 | 0.13 |
| 1/2 x 1/8 | 0.28 |
| 1/2 x 1/4 | 0.28 |
| 1/2 x 3/8 | 0.28 |
| 3/4 x 1/8 | 0.42 |
| 3/4 x 1/4 | 0.42 |
| 3/4 x 3/8 | 0.42 |
| 3/4 x 1/2 | 0.42 |
| 1 x 1/8 | 0.85 |
| 1 x 1/4 | 0.85 |
| 1 x 3/8 | 0.85 |
| 1 x 1/2 | 0.85 |
| 1 x 3/4 | 0.85 |
| 1-1/4 x 1/8 | 1.5 |
| 1-1/4 x 1/4 | 1.5 |
| 1-1/4 x 3/8 | 1.5 |
| 1-1/4 x 1/2 | 1.5 |
| 1-1/4 x 3/4 | 1.5 |
| 1-1/4 x 1 | 1.5 |
| 1-1/2 x 1/8 | 2.19 |
| 1-1/2 x 1/4 | 2.19 |
| 1-1/2 x 3/8 | 2.19 |
| 1-1/2 x 1/2 | 2.19 |
| 1-1/2 x 3/4 | 2.19 |
| 1-1/2 x 1 | 2.19 |
| 1-1/2 x 1-1/4 | 2.19 |
| 2 x 1/4 | 3.02 |
| 2 x 3/8 | 3.02 |
| 2 x 1/2 | 3.02 |
| 2 x 3/4 | 3.02 |
| 2 x 1 | 3.02 |
| 2 x 1-1/4 | 3.02 |
| 2 x 1-1/2 | 3.02 |
| 2-1/2 x 3/4 | 4.56 |
| 2-1/2 x 1 | 4.56 |
| 2-1/2 x 1-1/4 | 4.56 |
| 2-1/2 x 1-1/2 | 4.56 |
| 2-1/2 x 2 | 4.56 |
| 3 x 1-1/4 | 6.79 |
| 3 x 1-1/2 | 6.79 |
| 3 x 2 | 6.79 |
| 3 x 2-1/2 | 6.79 |
| 4 x 2 | 12 |
| 4 x 2-1/2 | 12 |
| 4 x 3 | 12 |
