Carbon Steel ASTM A105 Pipe Nipple

ASTM A105 Pipe Nipple, ASTM A105 Carbon Steel Pipe Nipples, Carbon Steel A105M Pipe Nipple, Carbon Steel A105 Screwed Pipe Nipple, ASTM A105 NPT Threaded Pipe Nipple, ASTM A105 Carbon Steel Nipple Manufacturers in India.

Low levels of silicon, manganese, and carbon are present in the ASTM A105 specification. In the forging process, fully dead carbon materials are used. For applications involving pressure in non-critical settings, carbon steel forged nipples conform to ASTM A105.

There is a great demand for ASTM A105 Carbon Steel Pipe Nipples. Between 1700- and 2200-degrees Fahrenheit are the temperatures at which the alloy in this case is forged. It is followed by the quenching and tempering processes. Manganese and silicon are present in the ASTM A105 fittings, which contribute to their higher quality.

Table of Content
Manufacturing of Pipe Nipple in Factory

Carbon Steel A105 Pipe Nipple Suppliers, ASTM A105 Npt Pipe Nipple TBE, Supplier of ASTM A105 CS Pipe Nipple, CS A105 Threaded Pipe Nipple, Carbon Steel A105 Pipe Nipple, A105M Screwed Nipple, ASTM A105 Pipe Nipple Manufacturer in Mumbai.

Rajdhan Metal is one of the leading producers of CS Forged Fittings, which are offered in a variety of shapes, sizes, and types in accordance with the required specifications. We make sure to produce them with a high degree of precision and correctness. We can deliver Carbon Steel A105 Forged Fittings to your door in the allotted time because we have a large inventory of them.

Applications for the ASTM A105 Pipe Nipple include refrigeration fittings that operate at a constant temperature. Many businesses employ various types of fittings that meet the specified requirements. They are renowned for their dependability, accessibility, and adaptability. The ability to be customized to the exact specifications of the client is one of the nicest things about carbon steel threaded pipe nipples. They also have increased machinability and weldability.

Carbon Steel A105 High Pressure Pipe Nipple Exporter, ASME B16.11 Carbon Steel Pipe Nipple, A105 Black Pipe Nipples, A105M Screwed Pipe Nipple, CS A105 Close Nipple, Manufacturer of Carbon Steel ASTM A105 Pipe Nipple in Mumbai, India.

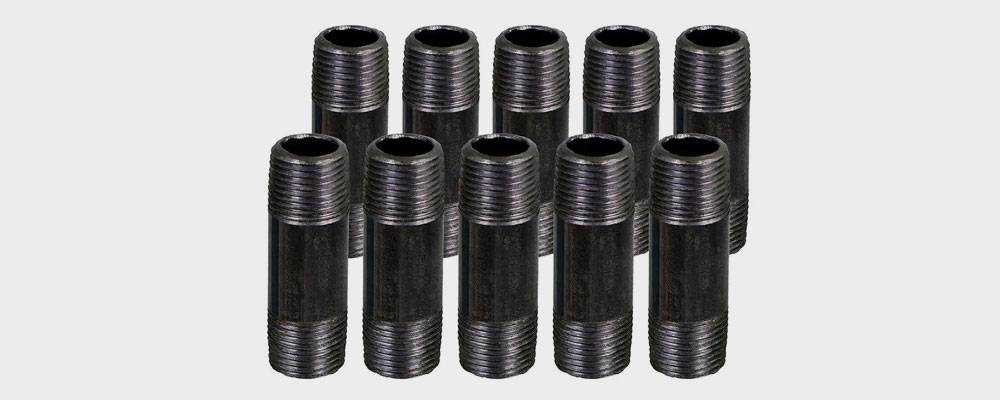

CS A105 Pipe Nipples
Rajdhan Metal

ASTM A105 Carbon Steel Pipe Nipple Specification

Specifications ASTM A105, ASME SA105
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pipe Nipple Size 1/8” NB to 4” NB
Thread NPT, BSPT, BSPP
Connection Forged / Socketweld / Screwed / Threaded Fittings
Pressure Rating 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type ASTM A105 Carbon Steel Pipe Nipples
Used Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects, etc.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of ASTM A105 Carbon Steel Pipe Nipple

Carbon Steel Hex Nipple

Carbon Steel Hex Nipple

Carbon Steel Barrel Nipple

Carbon Steel Barrel Nipple

Carbon Steel Swage Nipple

Carbon Steel Swage Nipple

ASTM A105 Pipe Nipples

ASME SA105 Carbon Steel Pipe Nipples

ASTM A105 Reducing Nipple

Carbon Steel Reducing Nipple

ASTM A105 Close Nipple

Carbon Steel Close Nipple

ASTM A105 Extension Nipple

Carbon Steel Extension Nipple

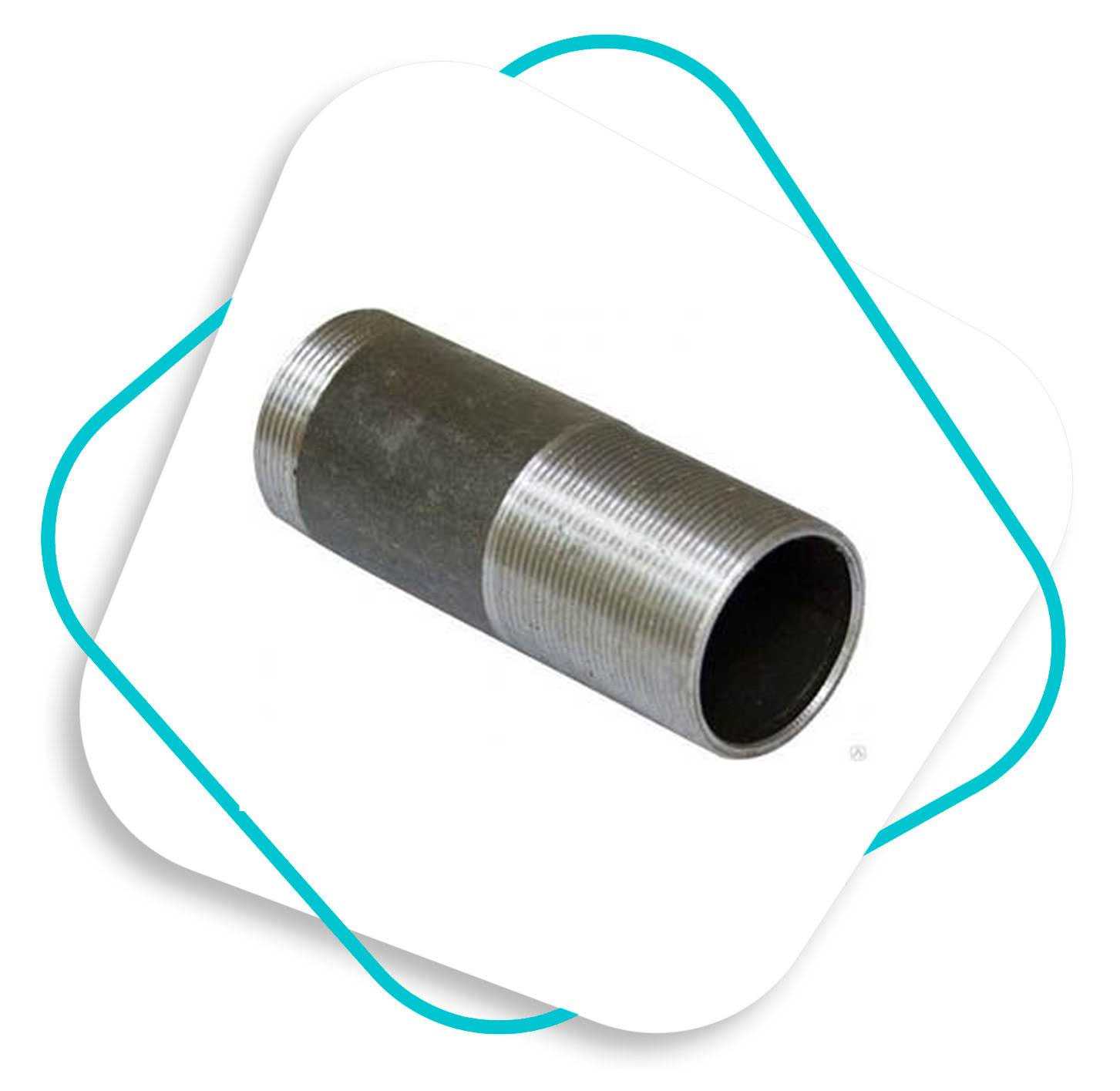

ASTM A105 Welding Nipple

Carbon Steel Pipe Welding Nipple

View dimensions for a/sa105M npt black steel threaded pipe nipples. we're a leading manufacturer of carbon steel forged socket weld pipe nipples.

ASTM A105 Forged Threaded Pipe Nipple Dimensions

Threaded Pipe Nipple Dimensions

Dimensions in Inch. (Plain End Weight (Kg)per meter)

Nom, Pipe Size L Weight
Close Nipple Short Nipple Long Nipple S40/STO S8O/ XS S160 XXS
1/8 3/4 1-1/2 2-12 0.37 0.47 - -
1/4 7/8 1-1/2 2-12 0.53 0.80 - -
3/8 1 1-1/2 2-12 0.84 1.10 - -
1/2 1-1/8 1-1/2 2-12 1.27 1.62 1.95 2.55
3/4 1-3/8 1-1/2 2-12 1.69 2.20 2.90 3.64
1 1-1/2 2 2-1/2-12 2.50 3.24 4.24 5.45
1-1/4 1-5/8 2 2-1/2-12 3.39 4.47 5.61 7.77
1-1/2 1-3/4 2 2-1/2-12 4.05 5.41 7.25 9.55
2 2 2-1/2 3-12 5.44 7.48 11.11 13.44
2-1/2 2-112 3 3-1/2-12 8.63 11.41 14.92 20.39
3 2-5/8 3 3-1/2-12 11.29 75.27 21.35 27.68
3-1/2 2-3/4 4 44/2-12 13.57 18.64 - -
4 2-718 4 4-1/2-12 16.08 22.32 33.54 41.03
5 3 4-1/2 5-12 21.77 30.97 49.12 57.43
5 3-1/8 4-1/2 5-12 28.26 42.56 67.57 79.22

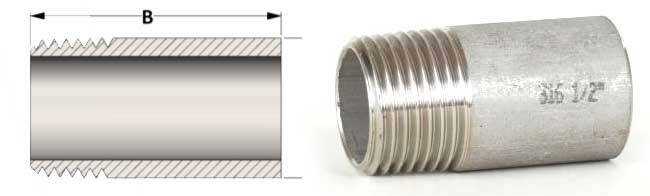

Carbon Steel ASTM A105 Standard Threaded Pipe Nipple Lengths

Threaded Pipe Nipple Dimensions

Dimensions in Inch. (Plain End Weight (Kg)per meter)



Pipe Size





A





















B

























Close





Short











Standard Lengths















































1/8





0.405





0.750





1.500



2.000

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



1/4





0.540





0.875





1.500



2.000

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



3/8





0.675





1.000





1.500



2.000

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



1/2





0.840





1.125





1.500



2.000

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



3/4





1.050





1.375





1.500



2.000

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



1





1.315





1.500





2.000



—

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



1-1/4





1.660





1.625





2.000



—

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000



1-1/2





1.900





1.750





2.000



—

2.500

3.000

3.500



4.000



4.500

5.000

5.500

6.000

2





2.375





2.000





2.500



—

—

3.000

3.500



4.000



4.500

5.000

5.500

6.000

2-1/2





2.875





2.500





3.000



—

—

—

—



4.000



4.500

5.000

5.500

6.000

3





3.500





2.625





3.000



—

—

—

—



4.000



4.500

5.000

5.500

6.000

3-1/2





4.000





2.750





4.000



—

—

—

—



—



4.500

5.000

5.500

6.000

4





4.500





2.875





4.000



—

—

—

—



—



4.500

5.000

5.500

6.000

5





5.563





3.000





4.500



—

—

—

—



—



—

5.000

5.500

6.000

6





6.625





3.125





4.500



—

—

—

—



—



—

5.000

5.500

6.000

ASTM A105 CS Pipe Nipple Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300

Our company specializes in manufacturing high-quality carbon steel screwed pipe nipples available in both TOE and TBE configurations, with threads in BSPP or NPT standards.

Specialized in Following ASME SA 105M Carbon Steel Pipe Nipple

  • CS ASME SA105M 2 in. 6000# Threaded NPT Pipe Nipple
  • 1 1/4 NPS, thread End, SA105 CS Pipe Nipple
  • Carbon Steel A105 TOE Pipe Nipple
  • ASTM A105 CS Pipe Nipple Suppliers
  • Carbon Steel A105 Pipe Nipple Wholesaler
  • Exporter of A105 Threaded Carbon Steel Pipe Nipple
  • Manufacturer of Carbon Steel Pipe Nipple
  • Supplier of A105M Carbon Steel NPT Threaded Pipe Nipple
  • Manufacturer of Carbon Steel A105 Threaded Pipe Nipple
  • Carbon Steel ASTM A105 BSP Pipe Nipple
  • Carbon Steel NPT Threaded Long Type Black Pipe Nippl
  • CS ASTM A105 Pipe Nipple Supplier in India
  • Class 6000, 2 Inch, ASTM A105 Pipe Nipple
  • Carbon Steel A105 Female Threaded Pipe Nipple
  • CS A105 NPT Threaded Pipe Nipple
  • 1 NPS, ASME SA105 Carbon Steel Pipe Nipple
  • Carbon Steel A105 High Pressure Forged Pipe Nipple
  • Carbon Steel A105 BSP Thread Pipe Nipple Dealer
  • Class 3000, 1 1/3 Inch ASTM A105 Pipe Nipple
  • Stockists of SA 105 CS BSPT Pipe Nipple
  • ASTM A105 CS Pipe Nipple
  • Buy A105M Carbon Steel Pipe Nipple
  • Carbon SA105 Male Threaded Pipe Nipple
  • CS A105 PBE Pipe Nipple
  • ASTM A105 Pipe Nipple Manufacturer in India
  • ASTM A105 Carbon Steel BSPP Pipe Nipple
  • CS A105 Pipe Nipple Supplier
  • ASTM A105 Black Steel Pipe Nipple Manufacturer
  • Carbon Steel A105 BSP Pipe Nipple
  • Carbon Steel ASTM A105 Industrial Pipe Nipple
  • 2000 LB, 1 1/2 Inch ASTM A105 CS Pipe Nipple
  • ASTM A105M 3000lbs CS NPT Pipe Nipple
  • Carbon Steel A105M Threaded Screw Pipe Nipple
  • SA 105 Galvanized Carbon Steel Pipe Nipple
  • ASME B16.11 Carbon Steel SA105 Pipe Nipple
  • Carbon A105 Screwed Pipe Nipple Suppliers

Carbon Steel ASTM A105 Pipe Nipple Price List

PIPES NIPPLES: 2 NPS X 1 NPS Class 3000 ASTM A105M $7
PIPES NIPPLES: 2 NPS X 1/3 NPS Class 3000 ASME SA105M $3.60
PIPES NIPPLES: 1 NPS X 1/3 NPS Class 6000 ASTM A105M $8.40
PIPES NIPPLES: 1 NPS X 1/4 NPS Class 6000 ASTM A105 $5.20
Size Class Material Price In US($)
PIPES NIPPLES: 1-1/2 X 1 NPS Class 3000 ASTM A105 $2.45
PIPES NIPPLES: 2 NPS X 1/2 NPS Class 3000 ASTM A105M $4.22
PIPES NIPPLES: 2 NPS X 1/4 NPS Class 3000 ASME SA105 $5.40
PIPES NIPPLES: 1 NPS X 1/2 NPS Class 6000 ASTM A105 $6.30

ASTM A105 Carbon Steel Forged Pipe Nipple Weight Chart

Nominal Size Weight/kg
DN NPS SCH80/ L=100 SCH160 / L= 100
6 1/8 0.05 –
8 1/4 0.08 –
10 3/8 0.11 –
15 1/2 0.16 0.2
20 3/4 0.22 0.3
25 1 0.33 0.5
32 1 1/4 0.45 0.6
40 1 1/2 0.55 0.75
50 2 0.76 1.1
65 2 1/2 1.15 1.5
80 3 1.55 2.2
100 4 2.25 3.5
Applications

Carbon Steel ASME SA105M Pipe Nipple Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
Rajdhan Metal Suppliers, Manufacturers, and Stockists of ASME SA 105 black pipe nipples with the latest price list in India.
