Carbon Steel ASTM A105 Forged Fittings

ASTM A105 Forged Fittings, ASTM A105 Carbon Steel Forged Fitting Suppliers, ASME SA 105 Forged Carbon Steel Fittings, A105N Fittings, A105N Forged Fittings Manufacturers in India.

Rajdhan Metal is a vital and dependable supplier of Carbon Steel A105 Forged Fittings for both local and worldwide partners. The A105 Forged Fittings are ideal for use in pressure systems, especially when temperatures range from ambient to high. Heat treatment is required for materials used in the fabrication of Forged A105 Forged Fittings. Processes such as annealing, normalising, tempering, and quenching are used to manufacture these fittings.

Carbon steel is used to manufacture A-105 Forged Fittings. Depending on the carbon steel grade utilised to manufacture these fittings, the specified material adheres to the chemistry. As a result, the alloyant content of the CS A105 Forged Fitting, such as carbon, copper, nickel, manganese, phosphorus, chromium, sulphur, silicon, molybdenum, and vanadium, must be appropriate for the application.

Table of Content
Manufacturing of Forged Fitting in Factory

ASTM A105 Fittings, ASTM A105 Forged Steel Fittings Manufacturer in Mumbai, Carbon Steel A105 Forged High Pressure Pipe Fittings, Supplier of ASTM A105 Pipe Fittings.

What is ASTM A105 Carbon Steel Forged Fittings?
Wherever possible, the required forged Carbon Steel A105 Fittings must be submitted to tension, hardness, and hydrostatic testing. Mechanical property criteria, such as tensile and yield strength, elongation, reduction of area, and hardness, must also be met by the carbon steel alloy. Manufacturers of the ASTM A105 Fitting are provided guidelines for retreatment, welding repair, and product branding.

We can deliver quick turnarounds on custom-made forged parts ranging from tiny items to large finished goods due to our vertical integration strategy. Carbon steel forged fittings are widely utilized in industries, with ASTM A105 as representative material grades. Forged fittings are used in pressure systems at low and high temperatures.

Carbon Steel ASTM A105 Forged Fittings are low carbon, manganese, and silicon-added fittings suitable for non-critical yet pressure applications such as refrigeration fittings that operate at steady temperatures. Forging uses only dead carbon steel material. To satisfy diverse forging requirements, this material might be in the shape of a bar or an ingot. They have excellent machinability and weldability.

Manufacturer of Carbon Steel ASTM A105 Socket Weld Fittings in Mumbai, India, ASTM A105 Threaded Fittings, ASME B16.11 3000# CS SA 105 NPT Screwed Coupling, Plug, Bushing Union, Exporter in India.

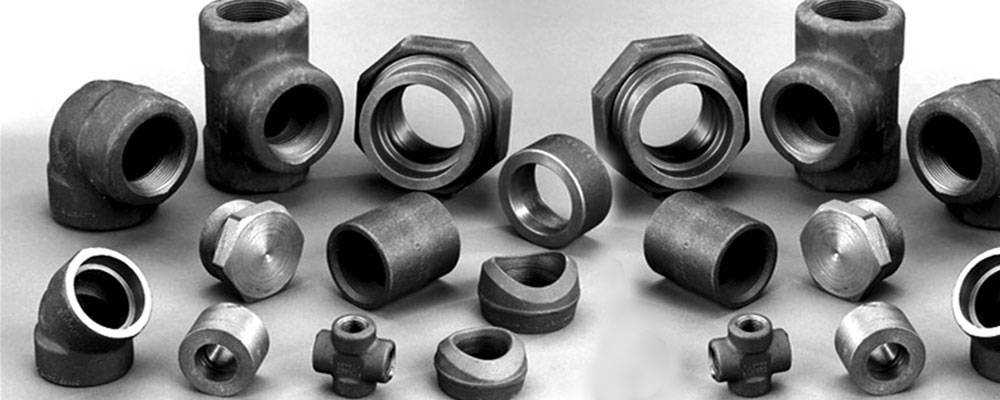

ASTM A105 Fittings
Rajdhan Metal

A105 Material Specification for Carbon Steel Fittings

Specifications ASTM A105 , ASME SA 105
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Thread NPT, BSPT, BSPP
Types Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating Threaded End-2000lb/ 3000lb/ 6000lbs
Socket-weld End-3000/ 6000/ 9000lbs
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Specialized manufacturer of Socket Weld and Threaded Pipe Fittings, 90 deg Elbows, Cross, Inserts, and Unions, Caps, 45 degree Elbows, Nipples, Couplings, Tees, Plugs, Equal Tees, Reducing Tees
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

Types of ASTM A105 Carbon Steel Forged Pipe Fittings

Carbon Steel ASTM A105 Elbow

Carbon Steel ASTM A105 Elbow

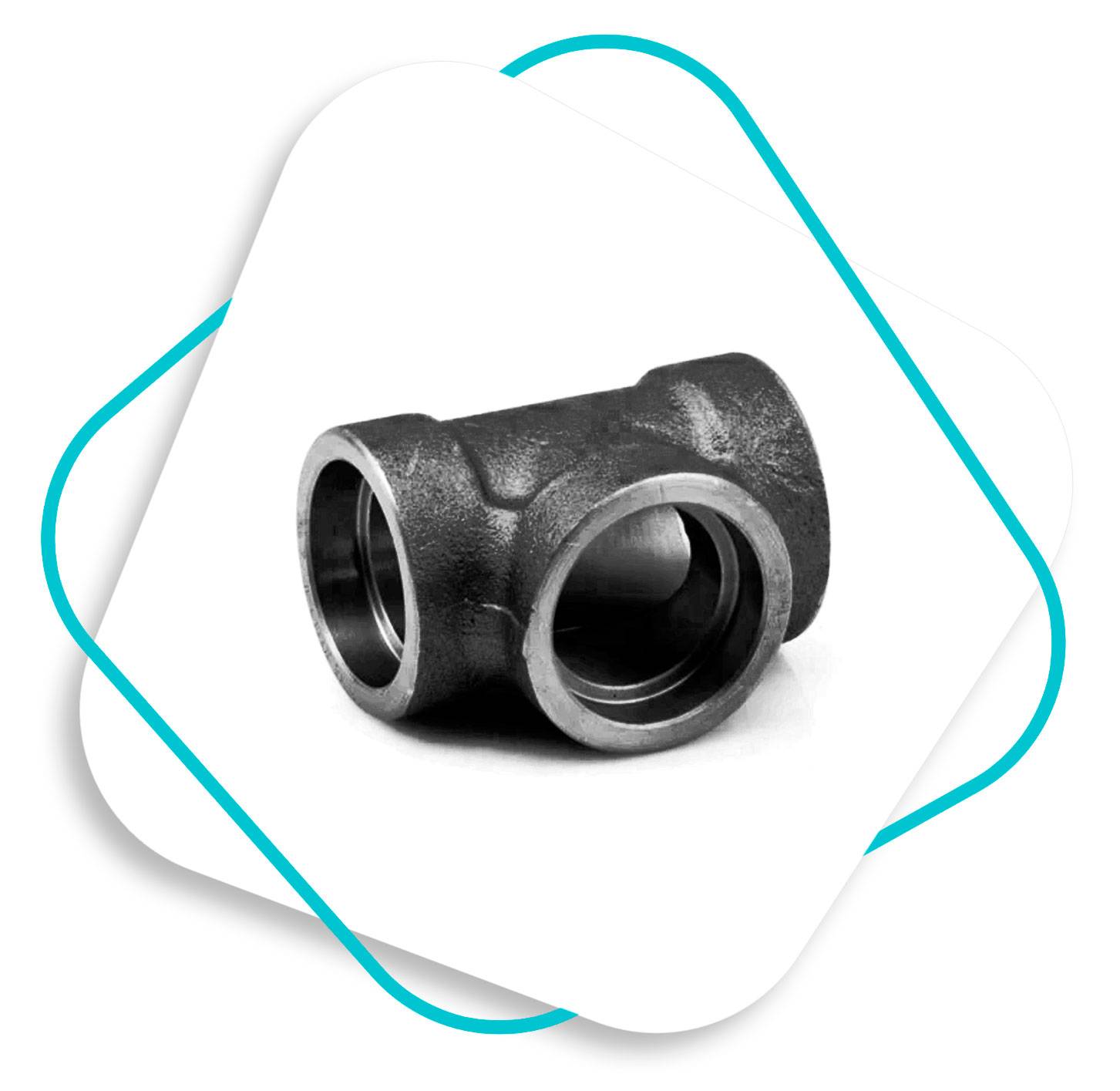

Carbon Steel A105 Forged Tee

CS ASTM A105 Forged Tee

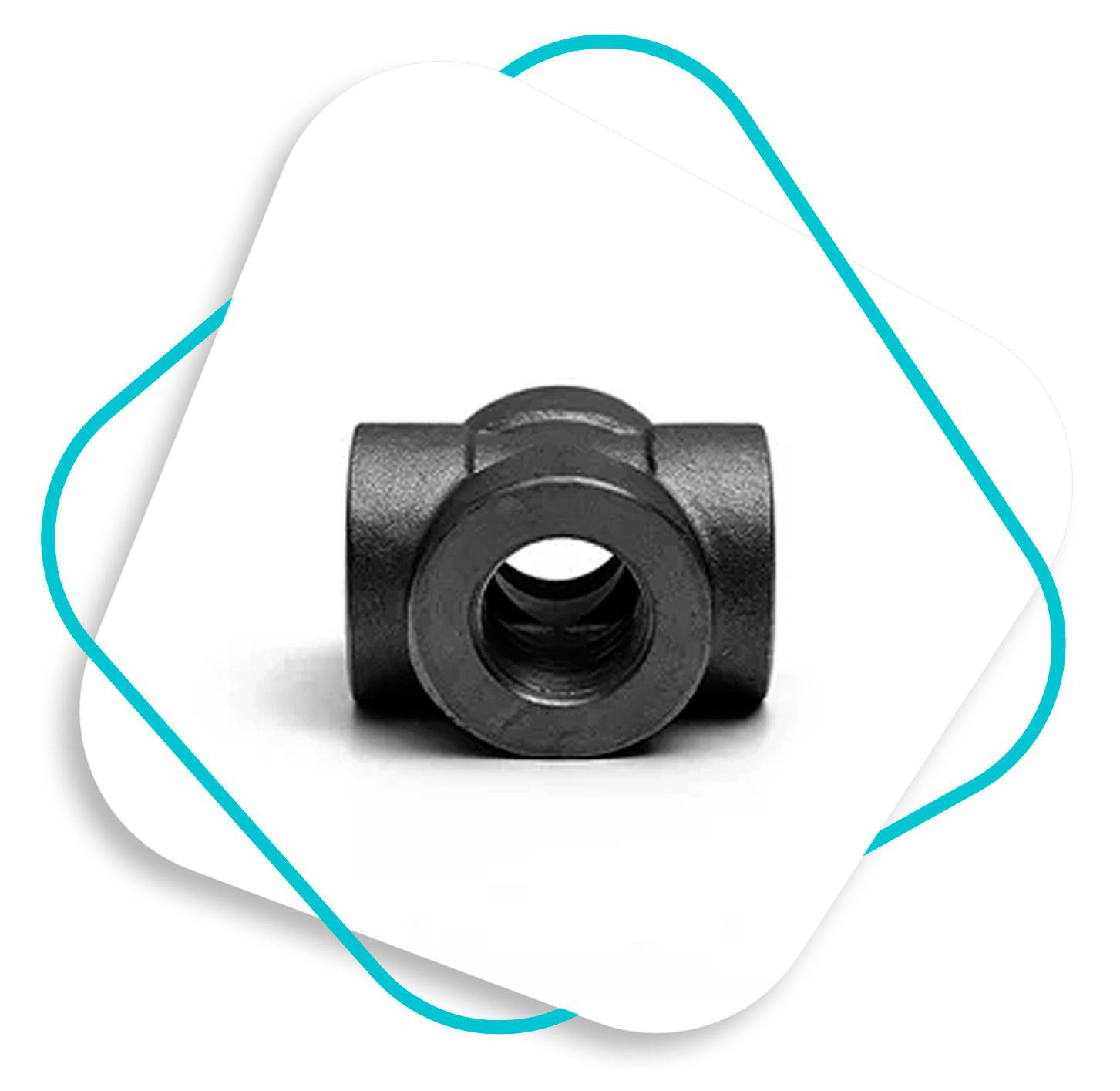

Carbon Steel A105 Forged Cross

Carbon Steel A105 Forged Cross

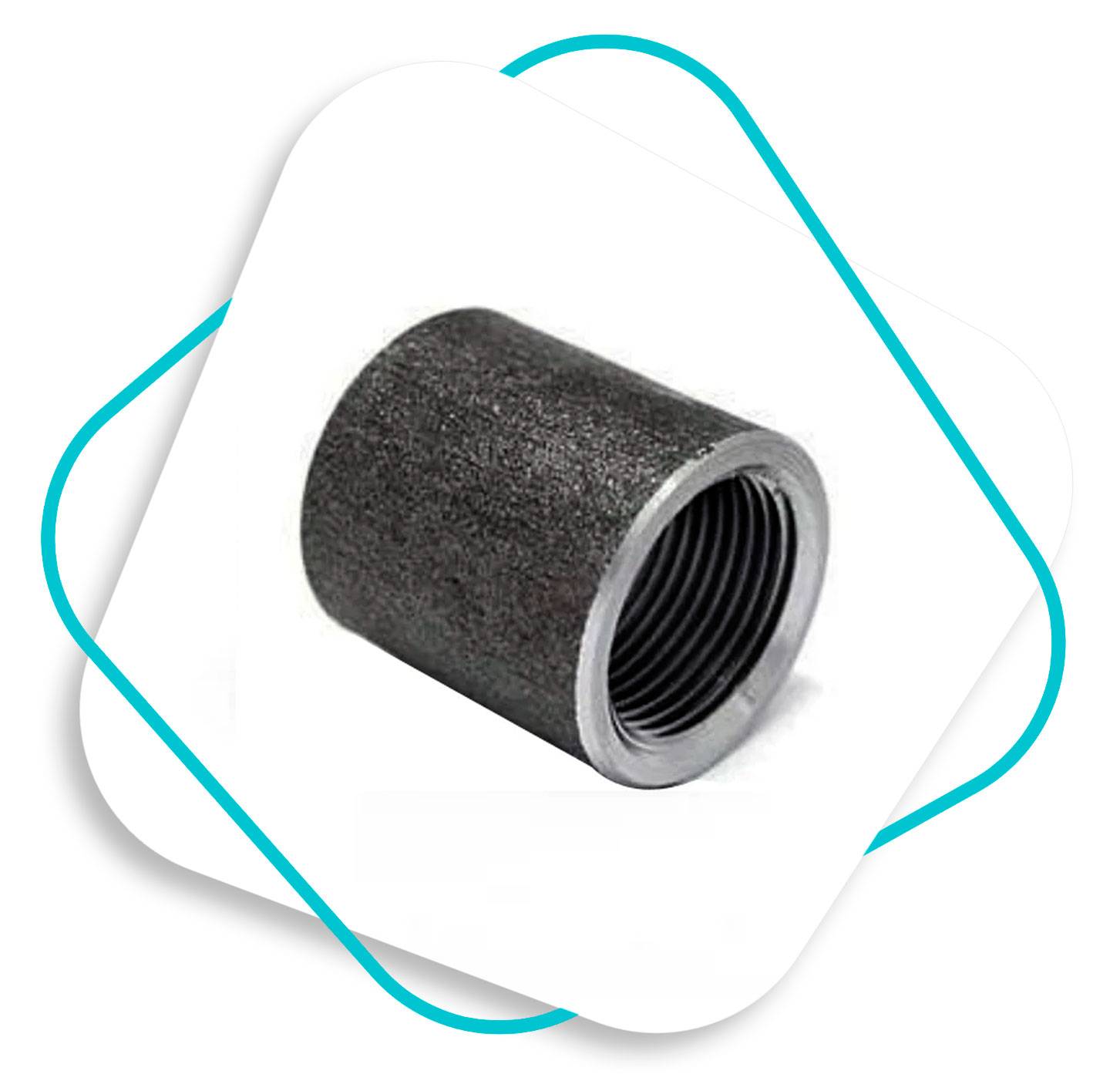

Carbon Steel A105 Forged Coupling

Carbon Steel A105 Forged Coupling

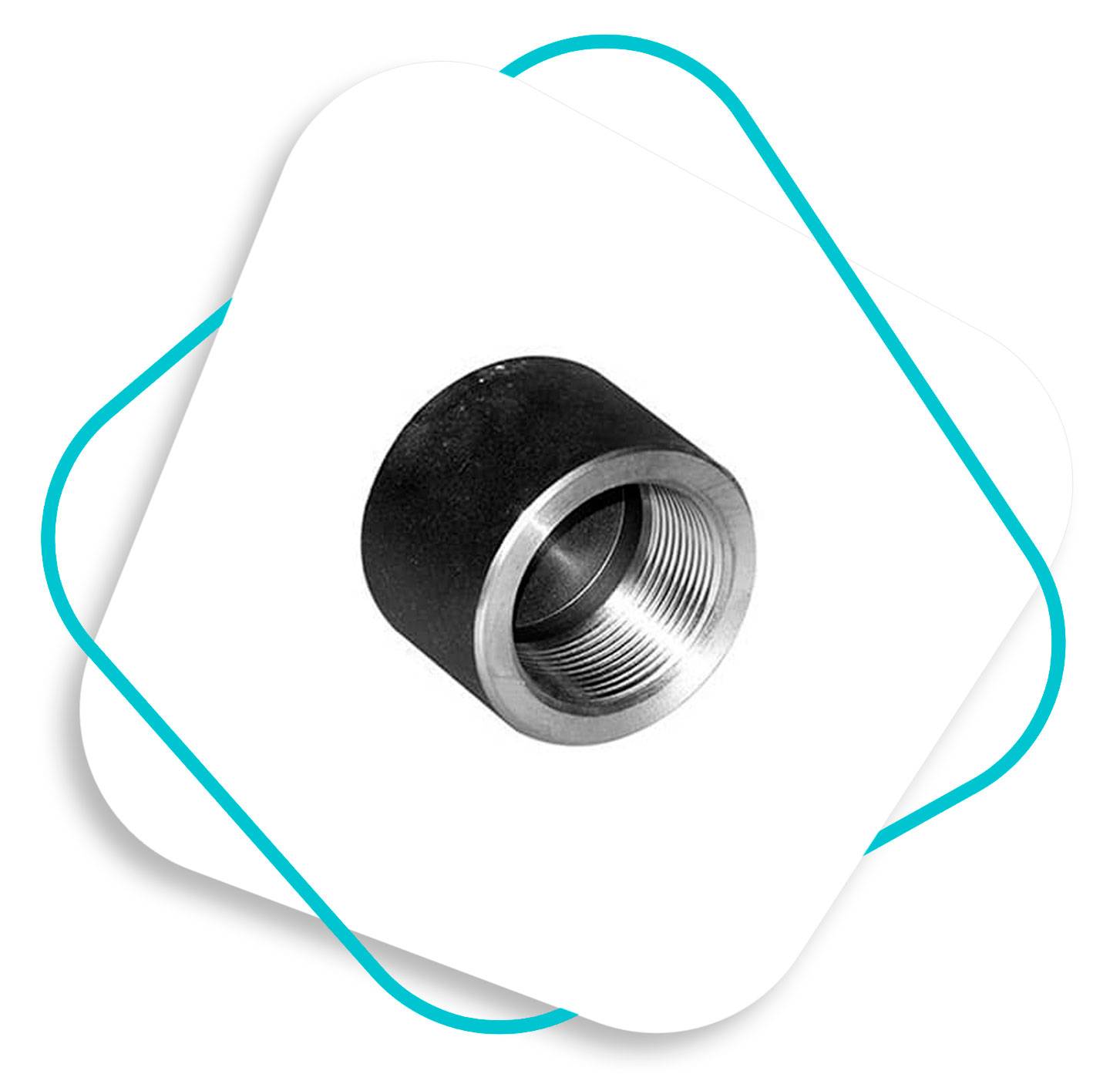

Carbon Steel A105 Forged Cap

Carbon Steel A105 Forged Cap

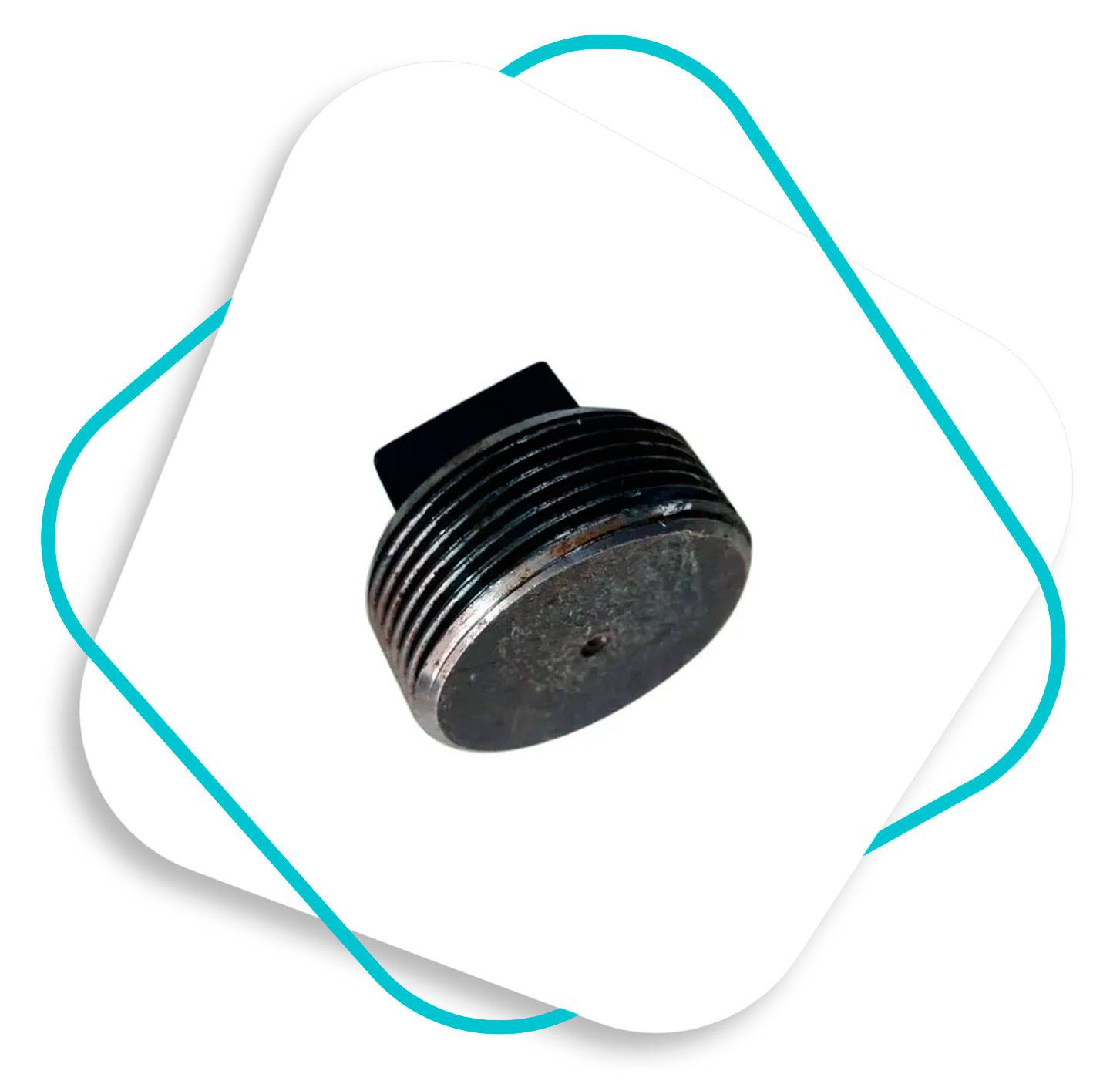

Carbon Steel A105 Forged Plug

Carbon Steel A105 Forged Plug

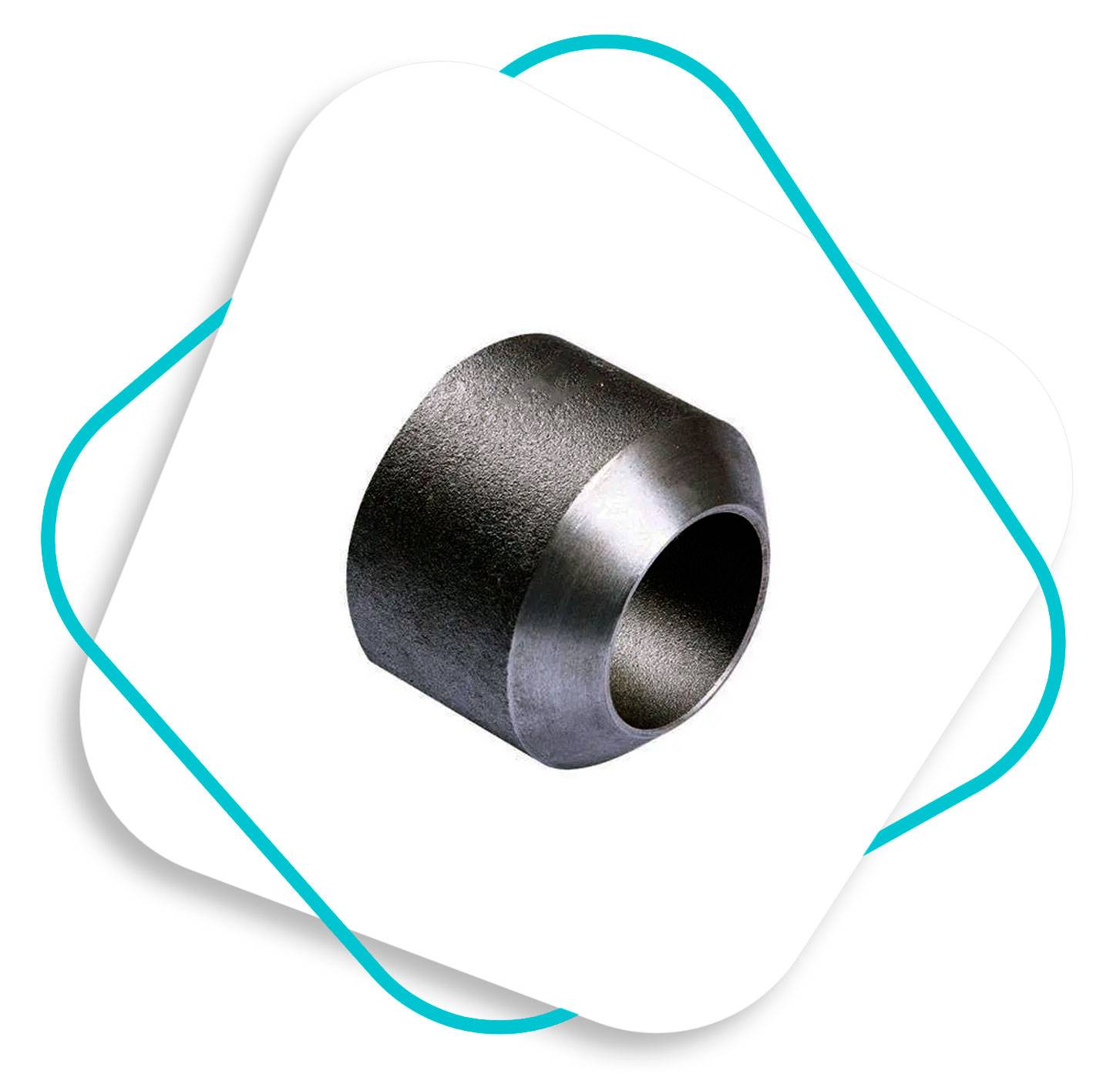

Carbon Steel A105 Forged Boss

Carbon Steel A105 Forged Boss

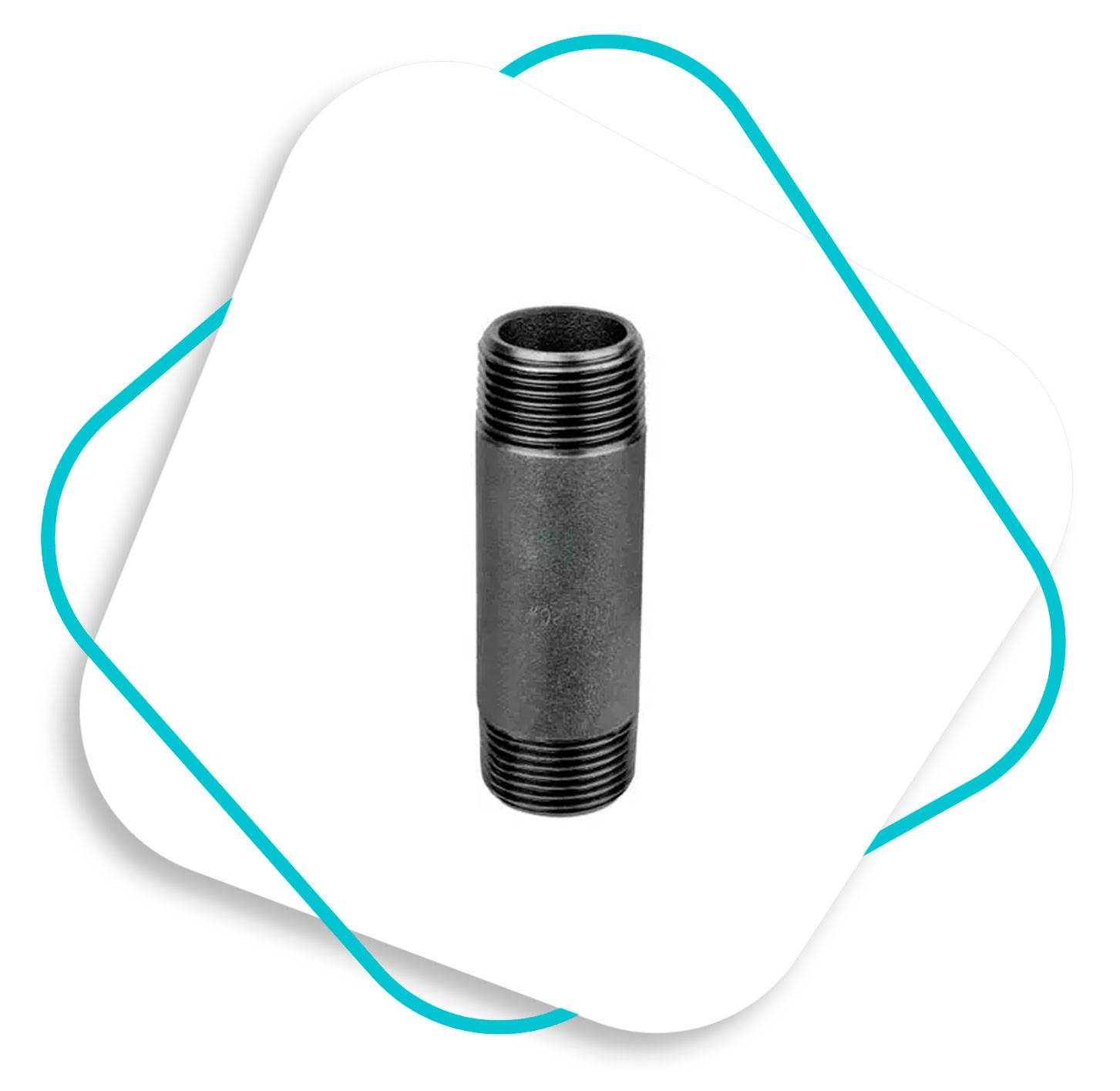

Carbon Steel A105 Forged Nipple

Carbon Steel A105 Forged Nipple

Carbon Steel ASTM A105 Socket weld Fittings

ASTM A105 Socket Weld Fittings

Carbon Steel ASTM A105 90 Deg Socket weld Elbow

ASTM A105 90 Deg Socket weld Elbow

Carbon Steel ASTM A105 45 Deg Socket weld Elbow

ASTM A105 45 Deg Socket weld Elbow

Carbon Steel A105 Socket weld Equal Tee

Carbon Steel A105N Socket weld Equal Tee

Carbon Steel A105 Socket weld Unequal Tee

SA105 Material Socket weld Unequal Tee

A/SA105N Forged Carbon Steel Socket weld Equal Cross

A/SA105N Socket weld Equal Cross

SA105 Socket weld Unequal Cross

Forged Steel A105 Socket weld Unequal Cross

Carbon Steel A105 Socket weld Cap

SA105N Forged Carbon Steel Socket weld Cap

Carbon Steel A105 Socket weld Union

Forged CS A105 Socket weld Union

ASTM A105 Socket weld Full Coupling

ASTM A105 Socket weld Full Coupling

ASME SA105 Socket weld Half Coupling

ASME SA105 Socket weld Half Coupling

A105 Steel Socket weld Reducing Coupling

CS A105 Socket weld Reducing Coupling

Carbon Steel A105 Threaded Fittings

ASTM A105 Forged Threaded Pipe Fittings

ASTM A105 90 Deg Threaded Elbow

ASTM A105 Forged 90 Deg Threaded Elbow

ASTM A105 45 Deg Threaded Elbow

A105 CS Forged 45 Deg Threaded Elbow

ASTM A105 Threaded Equal Tee

Carbon Steel A105 Threaded Equal Tee

Forged Steel A105 Threaded Unequal Tee

ASTM A105 Threaded Unequal Tee

ASTM A105 Threaded Equal Cross

Forged Steel A105 Threaded Equal Cross

ASTM A105 Threaded Unequal Cross

Carbon Steel A105 Threaded Unequal Cross

Carbon Steel ASTM A105 Threaded Pipe Cap

ASTM A105 Forged Steel Threaded Cap

Carbon Steel A105 Threaded Union

Carbon Steel ASTM A105 Threaded Union

ASTM A105 Threaded Full Coupling

Carbon A105 Threaded Full Coupling

ASTM A105 Threaded Half Coupling

Carbon Steel ASTM A105 Threaded Half Coupling

CS ASTM A105 Threaded Reducing Coupling

ASTM A105N Threaded Reducing Coupling

ASTM A105 Hex Nipple

Carbon Steel A105 Forged Hex Nipple

ASTM A105 Hex Head Plug

CS ASTM A105 Forged Hex Head Plug

ASTM A105 Hex Head Bushing

Carbon Steel A105 Hex Head Bushing

ASTM A105 Swage Nipple

Carbon Steel A105 Forged Swage Nipple

Check Price List and Dimensions of Black Carbon Steel A/SA105N NPT Threaded Fittings.

ASTM A105 Equivalent for Forged Steel Fittings

ASTM STANDARD UNS NO. KOREAN/JAPANESE GERMAN
KS/JIS Symbol KS/JIS Number DIN Type DIN Number Material Number
A105
Carbon Steel Forgings for Piping Components		 K03504 SFVC2A/SFVC2A D4122/G3202 19Mn5 17155 1.0482

ASTM A105 Forged Fittings Dimensions

Forged Socket Weld Fittings : 1/8" to 4" in class 3000 and 6000, 1/8" to 2-1/2" in class 9000
Forged Threaded Fittings : 1/8" to 4" in 2000#, 1/8" to 4" in class 3000, 1/8" to 2-1/2" in 6000 LBS, and 1/8" to 2" in class 9000
Forged Fittings Pressure Ratings: 2000 lbs, 3000 lbs, 6000 lbs, 9000 lbs

ASTM A105 Socket Weld Fittings Dimensions
Nominal Pipe Size 3000 PSI Rating 6000 PSI Rating
IN MM Socket Bore B • Socket Depth D Socket Thickness A Body Bore * G Socket Thickness A Body Bore * G
Average MIN Average MIN
1/4 06 14.1 09.65 3.78 3.30 11.2 10.0 3.02 04.60 4.00 13.5 07.10 3.68
3/8 10 17.5 09.65 4.00 3.50 13.5 13.3 3.20 05.03 4.37 15.8 09.90 4.00
1/2 15 21.7 09.65 4.67 4.10 15.8 16.6 3.75 05.97 5.18 19.0 12.06 4.78
3/4 20 27.0 09.65 4.90 4.27 19.0 21.7 3,91 06.96 6.05 22.3 1603 5.56
1 25 33.8 12.07 5.70 4.98 22.3 27.4 4.55 07.92 6.93 27.0 21.05 6.35
1 1/4 32 42.5 12.07 6.04 5.28 27.0 65.8 4.85 07.92 6.93 31.8 30.02 6.35
1 1/2 40 48.6 12.07 6.35 5.54 31.8 41.7 5.08 08.92 7.80 38.0 34.07 7.15
2 50 61.1 12.07 6.93 6,06 38.0 53.3 5.54 10.92 9.52 41.2 43.06 8.75
2 1/2 65 73.8 15.08 8.76 7.67 41.2 64.2 7.00
3 80 89.8 15.08 9.50 8.30 57.2 - 7.68
ASTM A105 Threaded Fittings Dimensions
ASTM A105 Forged High Pressure Class 3000 Fittings Dimensions
(NPS) Nominal Pipe Size Centre to End Elbows, Tees, Crosses A Centre to End 45 Deg Elbows C O.D. of Band H Min. Wall Thickness G Lengths of Thread Minimum
2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# B L2
1/8 13/16 13/16 31/32 11/16 11/16 3/4 7/8 7/8 1 .125 .125 .250 .25 .2639
1/4 13/16 31/32 1-1/8 11/16 3/4 7/8 7/8 1 1-5/16 .125 .130 .260 .32 .4018
3/8 3/32 1-1/8 1-5/16 3/4 7/8 1 1 1-5/16 1-1/2 .125 .138 .275 .36 .4078
1/2 1-1/8 1-5/16 1-1/2 7/8 1 1-1/8 1-5/16 1-1/2 1-13/16 .125 .161 .321 .43 .5337
3/4 1-5/16 1-1/2 1-3/4 1 1-1/8 1-5/16 1-1/2 1-13/16 2-3/16 .123 .168 .336 .50 .5457
1 1-1/2 1-3/4 2 1-1/8 1-5/16 1-3/8 1-13/16 2-3/16 2-7/16 .145 .196 .391 .58 .6828
1-1/4 1-3/4 2 2-3/8 1-15/16 1-3/8 1-11/16 2-3/16 2-7/16 2-31/32 .153 .208 .417 .67 .7068
1-1/2 2 2-3/8 2-1/2 1-3/8 1-11/16 1-23/32 2-7/16 2-31/32 3-5/16 .158 .218 .436 .70 .7235
2 2-3/8 2-1/2 3-3/4 1-11/16 1-23/32 2-1/16 2-31/32 3-5/16 4 .168 .238 .476 .75 .7565
2-1/2 3 3-1/4 3-3/4 2-1/16 2-1/16 2-1/2 3-5/8 4 4 .221 .301 .602 .932 1.138
3 3-3/8 3-3/4 4-3/16 2-1/2 2-1/2 3-1/8 4-5/16 4-3/4 4-3/4 .236 .327 .655 1.016 1.200
4 3-3/16 4-1/2 4-1/2 3-1/8 3-1/8 3-1/8 5-3/4 5 6 .258 .368 .735 1.094 1.300

ASTM A105 Pipe Fittings Pressure Rating

ASME B16.11 Pressure-Temperature
Temperature Class
150 300
1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300
ASTM A105 Carbon Steel Class 3000 Fittings Pressure Rating
Description Class Designation
3000 LBS 6000 LBS 9000 LBS
Elbows 45 and 90 deg,
Tee, Crosse, Coupling,
Half-Coupling,
End or Pipe Cap		 1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
Pipe Size
by Wall Thickness		 SCH 80 / XS SCH 160 XXS
Carbon Steel Class 6000 Fittings Pressure Rating

Carbon steel class 6000 fittings typically have a maximum pressure rating of 6000 pounds per square inch (psi) at room temperature.

Looking for Carbon Steel threaded fittings with BSPT or NPT connections? Rajdhan Metal is a renowned manufacturer and stockist of A105N fittings, available in Class 3000 or 6000 pressure ratings. Contact us for the best prices and a free quote.

Specialized in Following ASME B16.11, SA105 Forged Carbon Steel Fittings

  • Carbon Steel A105 Class 6000 Forged Fittings
  • ASME B16.11 Carbon Steel SA105 Threaded Plug
  • Carbon Steel A105 NPT Threaded Street Elbow
  • SA 105 Galvanized Carbon Steel Forged Fitting
  • ASTM A105N 3000lbs NPT Fittings
  • 2000 LB, 1 1/2 Inch ASTM A105 Elbow
  • Carbon Steel A105 BSP Fittings
  • Stockists of SA 105 Forged Steel BSPT Elbow
  • Carbon Steel ASTM A105 Fittings
  • ASTM A105 Socket Weld Pipe Fittings
  • Forged Carbon Steel A105 Screwed Fittings
  • Carbon Steel Forged A105 High Pressure Fittings
  • Carbon Steel ASTM A105 3000 LB Socket Weld Cap
  • Buy ASTM A105 Carbon Steel Square Head Plug
  • Carbon Steel ASTM A105 Screwed Fittings Suppliers
  • Forged Carbon Steel ASTM A105 Industrial Fittings
  • Supplier of A105N CS NPT Threaded Pipe Fittings
  • Carbon Steel A105 BSP Threaded Forged Fittings
  • Exporter of ASTM A105 Carbon Steel Forged Cap
  • BS3799 CS A105 Swage Nipples Dealer
  • A105 Forged Steel Fittings Supplier
  • CS ASTM A105 High Pressure Forged Fittings
  • Class 6000, 2 Inch, ASTM A105 Fitting
  • Manufacturer of Forged Carbon Steel A105 Fittings
  • Class 3000, 2 Inch A105 Carbon Forged Steel Fittings
  • ASTM A105 Forged Fittings Manufacturer In India
  • Carbon Steel A105 Socket weld Boss Wholesaler
  • Manufacturer of A105 Fittings
  • Carbon Steel ASTM A105 BSP Fittings
  • CS ASME SA105N Class 6000 Threaded Pipe Fittings
  • Carbon Steel Forged A105 45 Degree NPT Elbow
  • ASTM A105 Pipe Fittings Supplier in India

Forged Carbon Steel ASTM A105 Fittings Price List

Products Types Forged Fitting Size Price
ASME SA 105 CARBON STEEL FORGED FITTINGS SEMIFINISHED(PIPE FITTINGS OF IRON &STEEL)SIZE:24-900-WN-RF-1.125 WT-SC-B16.5-DRILLED-F65 45° Elbow 1/4 in x 1/4 in $6.65
3/8 in x 3/8 in $8.00
1/2 in x 1/2 in $16.13
3/4 in x 3/4 in $18.97
CARBON STEEL FORGED FITTINGS 1.5 150# WNRF SOLID, A105 (PIPE FITTINGS) 90° Elbow 1/2 in x 1/2 in $12.52
3/4 in x 3/4 in $22.59
1 in x 1 in $23.07
1 1/4 in x 1 1/4 in $59.67
B16.11-A105 GALV MTE - FORGED CARBON STEEL FITTINGS 1/2 PLUG HEX HEAD Cap 1/4 in $5.54
3/8 in $6.46
1/2 in $6.75
3/4 in $8.55
CARBON STEEL BLACK FITTINGS 1 CAP B16.11 3000# A 105 FT - FORGED Cross 1/2 in x 1/2 in x 1/2 in x 1/2 in $30.13
3/4 in x 3/4 in x 3/4 in x 3/4 in $43.80
1 in x 1 in x 1 in x 1 in $73.47
1 1/4 in x 1 1/4 in x 1 1/4 in x 1 1/4 in $46.22
CARBON STEEL A105N PIPE FITTING - FORGED MATERIAL Tee 3/8 in x 3/8 in x 3/8 in $13.87
1/2 in x 1/2 in x 1/2 in $18.47
3/4 in x 3/4 in x 3/4 in $30.30
1 in x 1 in x 1 in $30.39
PIPE FITTING CARBON STEEL A105 GALVANIZED FITTING Coupling 1/8 in x 1/8 in $5.43
1/4 in x 1/4 in $6.44
3/8 in x 3/8 in $8.39
1/2 in x 1/2 in $12.77
3/4 in x 3/4 in $17.67
CARBON STEEL GR A105 CONCENTRIC SWAGE NIPPLE CS CL1 FORGED 2X/12SCH160XSCH160 BLE(1PCS) Half Coupling 1/8 in x 1/8 in $3.66
1/4 in x 1/4 in $4.25
3/8 in x 3/8 in $4.24
1/2 in x 1/2 in $6.14
3/4 in x 3/4 in $8.86
ASTM A105N CS FORGED ELBOW 1/2CLS 6000 90 DEG SW ASME B16.11(6PCS) Union 1/8 in x 1/8 in $12.60
1/4 in x 1/4 in $14.96
3/8 in x 3/8 in $18.60
1/2 in x 1/2 in $20.14
CARBON STEEL GRADE SA105 2 ELBOW FORGED 1/2CLS 3000 90 DEG SW ASME B16.11(6PCS) Hex Bushing 1/4 in x 1/8 in $8.99
3/8 in x 1/8 in $10.81
3/8 in x 1/4 in $11.78

Carbon Steel A105 Forged Fittings Weight Chart

Type Weight (kg)
Class 1/4" 3/8" 1/2" 3/4" 1"  1 ¼" 1 ½" 2" 2 ½" 3" 4"
90° Elbows
2000
3000
6000
0.080
0.140
0.310
0.105
0.265
0.500
0.225
0.365
0.685
0.280
0.600
1.25
0.460
1.08
1.65
0.800
1.22
 2.75
1.00
2.45
3.22
1.60
2.50
6.25
2.30
5.25
10.00
4.35
7.40
17.00
10.25
13.00
14.50
Street Elbows 3000 0.131 0.225 0.325 0.530 0.940 1.30 1.47  2.30
45° Elbows
2000
3000
6000
0.100
0.130
0.250
0.110
0.250
0.350
0.210
0.360
0.600
0.240
0.530
0.950
0.390
0.780
1.22
0.700
1.02
1.35
0.850
1.70
2.55
1.23
2.35
5.60
3.00
5.40
8.00
3.50
6.00
15.50
9.00
10.50
13.00
Tees
2000
3000
6000
0.115
0.205
0.410
0.180
0.305
0.600
0.290
0.490
0.935
0.385
0.800
1.59
0.550
1.31
2.14
0.930
1.61
3.39
1.30
3.20
4.50
1.80
3.55
10.00
3.00
6.50
13.00
5.50
9.25
19.50
14.00
17.00
18.00
Crosses
2000
3000
6000
0.140
0.220
0.450
0.190
0.400
0.700
0.335
0.630
1.16
0.420
0.990
1.80
0.750
1.63
2.50
1.15
1.97
4.10
1.45
3.70
5.20
2.25
4.90
12.30
4.50
10.50
14.00
7.15
11.50
25.00
15.00
21.70
23.00
Couplings
3000
6000
0.056
0.105
0.066
0.115
0.140
0.370
0.200
0.450
0.390
1.00
0.730
1.65
1.03
1.85
1.35
2.80
2.30
4.00
3.15
5.50
5.80
10.00
Half Couplings
3000
6000
0.028
0.053
0.033
0.058
0.070
0.185
0.110
0.225
0.195
0.500
0.365
0.830
0.510
0.920
0.660
1.40
1.15
2.00
1.57
2.75
2.90
5.00
Caps
3000
6000
0.047
0.160
0.058
0.200
0.125
0.290
0.210
0.395
0.370
0.700
0.600
1.10
0.730
1.35
1.10
2.10
2.31
3.50
3.00
4.80
4.50
7.50
Male Plugs TQ. 3000TE. 6000
TT.
0.016
0.026
0.048
0.028
0.047
0.070
0.048
0.071
0.130
0.090
0.130
0.220
0.170
0.218
0.320
0.273
0.410
0.500
0.400
0.490
0.720
0.600
0.770
1.35
0.890
1.61
2.20
1.25
1.94
3.30
3.10
4.50
6.00
Hexagonal Bushing 6000
0.016




0.021
0.032



0.032
0.047
0.057


0.063
0.083
0.098
0.170

0.120
0.150
0.173
0.195
0.214
0.209
0.280
0.330
0.400
0.480
0.212
0.314
0.418
0.490
0.540
0.450
0.513
0.620
0.690
0.704
0.760
1.14
1.27
1.41
1.53
1.00
1.35
1.65
1.80
2.00
2.50
2.90
3.10
3.52
3.65
Hexagonal Nipples
2000 STD-XS
3000 SCH 160
6000 XXS
0.028
0.030

0.047
0.055

0.70
0.080
0.120
0.110
0.145
0.170
0.182
0.236
0.303
0.300
0.372
0.516
0.360
0.452
0.626
0.500
0.760
0.930
0.960
1.30
1.80
1.40
1.95
2.50
2.40
3.30
4.00
Unions
3000
6000
0.167
0.300
0.211
0.500
0.305
1.12
0.490
1.60
0.830
2.15
1.22
2.42
1.53
4.73
2.30
6.50
5.00
9.50
6.25
19.20
14.50
23.00
Pipe Nipples 100 mm Length
STD
XS
SCH 160
XXS
0.060
0.075


0.080
0.105


0.125
0.155
0.190
0.250
0.165
0.215
0.280
0.355
0.240
0.305
0.415
0.540
0.330
0.435
0.550
0.770
0.400
0.530
0.720
0.950
0.530
0.740
1.06
1.31
0.850
1.12
1.46
2.00
1.10
1.46
2.05
2.65
1.30
2.15
3.20
4.00

Refer astm a105 material properties for carbon steel forged socket weld and threaded pipe fittings.

A105 Chemical Composition of Carbon Steel Forged Fittings

Carbon (max) 0.35
Manganese* 0.60-1.05
Phosphorus (max) 0.035
Sulfur (max) 0.040
Silicon 0.10-0.35
Copper (max) 0.40
Nickel (max) 0.40
Chromium (max) 0.30
Molybdenum (max) 0.12
Vanadium (max) 0.08
Niobium (max) 0.02

ASTM A105 Mechanical Properties of Forged Carbon Steel Fitting

Tensile strength (psi) min 70,000 psi
Yield strength (psi) min 36,000 psi
Elongation in 2” (%) min 22%
Reduction of area (%) min 30%
Brinell Hardness (BHN) max 187
Applications

ASME SA105N Fittings Industrial Applications

  • Oil & Gas Industry
  • Power Plants
  • Refinery Industry
  • Petrochemical
  • Marine Industry
Looking for ASTM A105 Forged Carbon Steel Pipe Fittings manufacturer in Mumbai, India? We Sell High-quality ASME SA105 Black Steel Fittings at Low Prices!
whatsapp

Talk to us?
