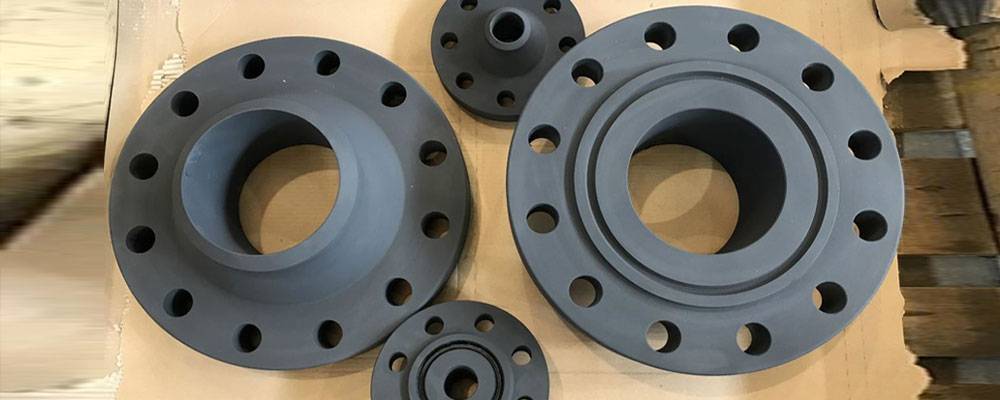

Carbon Steel ASTM A105 Flanges
ASTM A105 Carbon Steel Flanges Manufacturers in India, CS A105 Pipe Flange, ASTM A105 Flanges, ASME SA 105 Flange, ASTM A105N Material Flanges Suppliers, A105N Blind Flanges, ASTM A105 Carbon Steel Forged Flanges.
The ASTM A105 specification covers flanges and piping parts intended for high temperature and ambient temperature services. ASTM A105 Flanges fall under this specification. One of the top producers and suppliers of Carbon Steel A105 Pipe Flanges is Rajdhan Metal. The flanges are made of sturdy carbon steel with a minimum yield strength of 250 MPa and a minimum tensile strength of 585 MPa. The WNRF A105 carbon steel flange can be utilized in applications requiring significant wear and tear since it is robust and durable. The schedules and wall thickness of the ASME SA105 flange differ.
Table of Content
- What is A105 Steel Flanges?
- ASTM A105 Flange Specification
- Different Types of ASTM A105 Carbon Steel Flanges
- SA105N Material Equivalent for Flange
- ASTM A105 Material Properties for Flange
- ASTM A105 Flanges Dimensions
- Specialized in Following Carbon Steel A105 Flanges
- ASME SA105 Carbon Steel Flanged Fittings Price List
- ASTM A105 Carbon Steel Flange Weight Chart
- ASTM A105 Carbon Steel Flange Ratings
- ASTM A105N Carbon Steel Flanges Application
ASTM A105 Grades Flange, ASME SA 105N Black Flanges, ASTM A105 Flange Manufacturer, ASTM A105 Black Steel Flanges Price, ASME B16.5 Carbon Steel A105N SORF, WNRF, RTJ, Plate Flange Supplier in Mumbai, India.
What is ASTM A105 Flange?
The nominal bore sizes are 1/16 inches to 5/16 inches, while the wall thicknesses range from 1.6mm to 7.9mm. Utilized with seamless pipes is the ASTM A105 Slip on flange. For more effective connection placement, they allow the pipes to slide onto them. Comparing the dimensions of the two types of flanges, the seamless ones are likewise more precise. Welding is an option for the A105 Carbon Steel Flanges. In contrived circumstances, they arrive. To increase their strength, they can also be annealed.
There are various kinds of flanges. A connection is sealed using an ASTM A105 blind flange. It is included at the very end of a pipe. Blind flanges also come in a variety of types. Carbon, manganese, phosphorus, sulphur, silicon, copper, nickel, chromium, molybdenum, and vanadium are all present in the composition of ASTM A105 flange material. One of the varieties with a welded neck is the Weld Neck Flange ASTM A105. Maximum grip on the pipes is made possible by the welded neck. Please don't hesitate to get in touch with us if you have any questions about the many kinds, details, and measurements of flanges, like the ASTM A105 Class 300 flange, as well as the cost.
A105 Flange Material Manufacturer in Mumbai, CS ASTM A105 Flanges in Raised, RTJ and Flat Face, Carbon Steel Black ASME SA 105 Industrial Flanges, A105N Flanges Exporter in India.
SA105N Material Specification for Flanges
| Flanges Size | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Flanges Standard | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Flanges Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Flanges |
| Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Flanges |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Flanges |
| Types of flanges | Forged / Threaded / Screwed / Plate |
| JIS Flanges | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Flanges |
| UNI Flanges | 6Bar 10Bar 16Bar 25Bar 40Bar Flanges |
| EN Flanges | 6Bar 10Bar 16Bar 25Bar 40Bar Flanges |
| Flanges Manufacturers in india | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Flanges Uses & application |
|
| Production technique |
|
| Flange Connection / Flanges Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Flanges Special design | As per your custom drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM A105 Carbon Steel Flanges Types
Check ASTM A105N Flange Dimensions and Price List in India. ASTM A105 Flanges pressure rating as per DIN – EN1092-1 – EN1759-1 – NFE – BS10/BS4504 – ISO7005-1
ASTM A105 Material Equivalent for CS Flange
| Material Equivalent - ASTM A105 is a standard specification for carbon steel forgings for piping applications | |
|---|---|
| EN/DIN 1.0460 | JIS SS400 |
| ISO 2604-1 F1 | UNS K03504 |
| BS 970 080M40 | NF A35-553 XC42H1 |
ASTM A105 Material Properties for Flange
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| A105 | 0.035 | 0.6 – 1.05 | 0.1 – 0.35 | 0.035 | 0.04 | 0.3 | 0.12 | 0.4 |
ASTM A105 Flange Dimensions
| DIMENSIONS Dimensions |
EN 1092-1 PN10 («DIN») | ASME B16.5 Class 150 («ANSI») EN 1759 Class 150 | BS10 Table D («BS») | |||||||||
| DN | OD | PCD | ÆA | Nb/Nbr A | OD mm inch. |
PCD mm inch. |
ÆA mm inch. |
Nb/Nbr A | OD mm inch. |
PCD mm inch. |
ÆA mm inch. |
Nb/Nbr A |
| mm | mm | mm | mm | |||||||||
| 15 | 95 | 65 | 14 | 4 | 90 | 60,3 | 15,9 | 4 | 95,3 | 66,7 | 14,3 | 4 |
| 1/2" | 3" 1/2 | 2" 3/8 | 5/8" | 3" 3/4 | 2" 5/8 | 9/16 | ||||||
| 20 | 105 | 75 | 14 | 4 | 100 | 69,9 | 15,9 | 4 | 101,6 | 73 | 14,3 | 4 |
| 3/4" | 3" 7/8 | 2" 3/4 | 5/8" | 4" | 2" 7/8 | 9/16 | ||||||
| 25 | 115 | 85 | 14 | 4 | 110 | 79,4 | 15,9 | 4 | 114,3 | 82,6 | 14,3 | 4 |
| 1" | 4" 1/4 | 3" 1/8 | 5/8" | 4" 1/2 | 3" 1/4 | 9/16 | ||||||
| 32 | 140 | 100 | 18 | 4 | 115 | 88,9 | 15,9 | 4 | 120,7 | 87,3 | 14,3 | 4 |
| 1" 1/4 | 4" 5/8 | 3" 1/2 | 5/8" | 4" 3/4 | 3" 7/16 | 9/16 | ||||||
| 40 | 150 | 110 | 18 | 4 | 125 | 98,4 | 15,9 | 4 | 133,4 | 98,4 | 14,3 | 4 |
| 1" 1/2 | 5" | 3" 7/8 | 5/8" | 5" 1/4 | 3" 7/8 | 9/16 | ||||||
| 50 | 165 | 125 | 18 | 4 | 150 | 120,7 | 19 | 4 | 152,4 | 114,3 | 17,5 | 4 |
| 2" | 6" | 4" 3/4 | 3/4" | 6" | 4" 1/2 | 11/16 | ||||||
| 65 | 185 | 145 | 18 | 4 | 180 | 139,7 | 19 | 4 | 165,1 | 127 | 17,5 | 4 |
| 2" 1/2 | 7" | 5" 1/2 | 3/4" | 6" 1/2 | 5" | 11/16 | ||||||
| 80 | 200 | 160 | 18 | 8 | 190 | 152,4 | 19 | 4 | 184,2 | 146 | 17,5 | 4 |
| 3" | 7" 1/2 | 6" | 3/4" | 7" 1/4 | 5" 3/4 | 11/16 | ||||||
| 100 | 220 | 180 | 18 | 8 | 230 | 190,5 | 19 | 8 | 215,9 | 177,8 | 17,5 | 4 |
| 4" | 9" | 7" 1/2 | 3/4" | 8" 1/2 | 7" | 11/16 | ||||||
| 125 | 250 | 210 | 18 | 8 | 255 | 215,9 | 22,2 | 8 | 254 | 209,6 | 17,5 | 8 |
| 5" | 10" | 8" 1/2 | 7/8" | 10" | 8" 1/4 | 11/16 | ||||||
| 150 | 285 | 240 | 22 | 8 | 280 | 241,3 | 22,2 | 8 | 279,4 | 235 | 17,5 | 8 |
| 6" | 11" | 9" 1/2 | 7/8" | 11" | 9" 1/4 | 11/16 | ||||||
| 200 | 340 | 295 | 22 | 8 | 345 | 298,5 | 22,2 | 8 | 336,6 | 292,1 | 17,5 | 8 |
| 8" | 13" 1/2 | 11" 3/4 | 7/8" | 13" 1/4 | 11" 1/2 | 11/16 | ||||||
| 250 | 395 | 350 | 22 | 12 | 405 | 362 | 25,4 | 12 | 406,4 | 355,6 | 22,2 | 8 |
| 10" | 16" | 14" 1/4 | 1" | 16" | 14" | 7/8 | ||||||
| 300 | 445 | 400 | 22 | 12 | 485 | 431,8 | 25,4 | 12 | 457,2 | 406,4 | 22,2 | 12 |
| 12" | 19" | 17" | 1" | 18" | 16" | 7/8 | ||||||
| 350 | 505 | 460 | 22 | 16 | 535 | 476,3 | 28,6 | 12 | 527 | 469,9 | 25,4 | 12 |
| 14" | 21" | 18" 3/4 | 1" 1/8 | 20" 3/4 | 18" 1/2 | 1" | ||||||
| 400 | 565 | 515 | 22 | 16 | 595 | 539,8 | 28,6 | 16 | 578 | 520,7 | 25,4 | 12 |
| 16" | 23" 1/2 | 21" 1/4 | 1" 1/8 | 22" 3/4 | 20" 1/2 | 1" | ||||||
| 450 | 615 | 565 | 26 | 20 | 635 | 577,9 | 31,8 | 16 | 641 | 584,2 | 25,4 | 12 |
| 18" | 25" | 22" 3/4 | 1" 1/4 | 25" 1/4 | 23" | 1" | ||||||
| 500 | 670 | 620 | 26 | 20 | 700 | 635 | 31,8 | 20 | 705 | 641,4 | 25,4 | 16 |
| 20" | 27" 1/2 | 25" | 1" 1/4 | 27" 3/4 | 25" 1/4 | 1" | ||||||
| 600 | 780 | 725 | 30 | 20 | 815 | 749,3 | 34,9 | 20 | 826 | 755,6 | 28,6 | 16 |
| 24" | 32" | 29" 1/2 | 1" 3/8 | 32" 1/2 | 29" 3/4 | 1" 1/8 | ||||||
ASTM A105 Class 150 Flange Dimensions in mm
| Class/Table | Flange O.D. | PCD | Bolts | Bolt Size | Hole Size | Minimum Flange Thickness* | |||
|---|---|---|---|---|---|---|---|---|---|
| Cast Iron | Ductile Iron | Copper Alloy | Steel | ||||||
| ASME Class 150 B16.5/B16.42 | 11″ / 279mm | 9 1/2″ / 241.3mm | 8 | 3/4″ | 7/8″ / 22mm | 25mm | |||
Looking for astm a105 carbon steel flange price in India? Get free quote from Rajdhan Metal is one of the renowned manufacturers and stockist of sa105n black flanges used in piping systems
Specialized in Following Carbon Steel A105 Flanges
- Carbon Steel A105 Flanges Stockholder
- A105 Flange Material for Piping Connection
- ASTM A105 Flanges Manufacturers in India
- Stockists of ASTM A105 Carbon Steel Flange Fittings
- A105N Carbon Steel Flanged Pipe Fitting
- Carbon Steel A105 Flangeolet
- SA 105 Carbon Steel Custom Flanges
- Carbon Steel A105 AWWA C207 Flange
- Carbon Steel A105N 600# Flanges
- Galvanized ASTM A105 Carbon Steel Flanges
- Forged Carbon Steel ASTM A105 Flanges Suppliers
- Carbon Steel A105 Industrial Pipe Flanges
- Carbon Steel SA 105 300 LB Flange Manufacturer
- ASME B16.5 Black Carbon Steel SA105 Flanges
- Carbon Steel ASTM A105 Black Iron Pipe Flanges
- ASTM A105 Forged Carbon Steel Flange
- Carbon Steel SA 105 BS 4504 Flanges Distributor
- ASTM A105 Carbon Steel DIN Flange Fitting
- Carbon Steel SA105N 1500 Class Flange
- Class 900 SA105N Carbon Steel Flanges
- Exporter of CS SA 105 Exhaust Flanges
- A105 Carbon Steel Large Diameter Flanges
- Carbon Steel A105 GOST Flanges
- Carbon Steel ASTM A105N Flanges
- A105 Grades Carbon Steel AWWA Flanges
- Carbon Steel ASTM A105 MSS SP-44 Flanges
- Carbon Steel A105 Reducing Flange
- A105N Carbon Steel Flange Wholesaler
- ASTM A105 Carbon Steel Flange Connection
- Carbon Steel ASME SA105N Square Flanges
- ASTM A105 Carbon Steel EN Flanges Dealer
- Carbon Steel A105N Spectacle Blind Flanges
ASTM A105 Carbon Steel Flanges Price List
| A105 Flange Material Price | Size | FOB INR |
CIF INR |
FOB USD |
CIF USD |
FOB GBP |
CIF GBP |
FOB EURO |
CIF EURO |
| ASTM A105N Carbon Steel Threaded Flange | 15mm | ₹ 388.70 | ₹ 422.50 | $ 5.889 | $ 6.402 | £ 3.966 | £ 4.311 | € 7.067 | € 7.682 |
| ASME SA105 Carbon Steel Blind Flange Price | 20mm | ₹ 465.75 | ₹ 506.25 | $ 7.057 | $ 7.670 | £ 4.753 | £ 5.166 | € 8.468 | € 9.205 |
| ASTM A105 Carbon Steel Weld Neck Flange Price Per | 25mm | ₹ 838.35 | ₹ 911.25 | $ 12.702 | $ 13.807 | £ 8.555 | £ 9.298 | € 15.243 | € 16.568 |
| ASME SA105N Carbon Steel Slip-On Flange Price List | 32mm | ₹ 931.50 | ₹ 1012.50 | $ 14.114 | $ 15.341 | £ 9.505 | £ 10.332 | € 16.936 | € 18.409 |
| Forged ASTM A105 Carbon Steel Flange | 40mm | ₹ 1009.70 | ₹ 1097.50 | $ 15.298 | $ 16.629 | £ 10.303 | £ 11.199 | € 18.358 | € 19.955 |
| Galvanised Carbon Steel ASTM A105 Flanges | 50mm | ₹ 1785.95 | ₹ 1941.25 | $ 27.060 | $ 29.413 | £ 18.224 | £ 19.809 | € 32.472 | € 35.295 |
| Carbon Steel ASTM A105N Material Flanges | 65mm | ₹ 2367.85 | ₹ 2573.75 | $ 35.877 | $ 38.996 | £ 24.162 | £ 26.263 | € 43.052 | € 46.795 |
| Flange ASTM A105 Carbon Steel | 80MM | ₹ 3493.70 | ₹ 3797.50 | $ 52.935 | $ 57.538 | £ 35.650 | £ 38.750 | € 63.522 | € 69.045 |
| Carbon Steel SA105 Flange | 100mm | ₹ 4036.50 | ₹ 4387.50 | $ 61.159 | $ 66.477 | £ 41.189 | £ 44.770 | € 73.391 | € 79.773 |
| ASTM A105 CS Black Flange Material | 125mm | ₹ 5123.25 | ₹ 5568.75 | $ 77.625 | $ 84.375 | £ 52.278 | £ 56.824 | € 93.150 | € 101.250 |
| CS A105 Material Flanges Price | 150mm | ₹ 6210.00 | ₹ 6750.00 | $ 94.091 | $ 102.273 | £ 63.367 | £ 68.878 | € 112.909 | € 122.727 |
| ASTM A105 Carbon Steel Lap Joint Flanges | 200mm | ₹ 13972.50 | ₹ 15187.50 | $ 211.705 | $ 230.114 | £ 142.577 | £ 154.974 | € 254.045 | € 276.136 |
| ASTM A105 Grade Carbon Steel Large Flanges | 250mm | ₹ 15525.00 | ₹ 16875.00 | $ 235.227 | $ 255.682 | £ 158.418 | £ 172.194 | € 282.273 | € 306.818 |
ASTM A105 Carbon Steel Flange Weight Chart
| NPS | Dimensions In MM | Weight In Kilogram | ||||
|---|---|---|---|---|---|---|
| Normal Pipe Size (Inch.) |
DN (Millimeter) | FLANGES O.D. MM |
FLANGE Thickness. D MM |
SORF SW |
WNRF | BLRF |
| 1/2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
ASTM A105 Carbon Steel Flange Pressure Ratings
| Flanges pressure rating in psig for common ASTM A105 Carbon Steel Flanges | |||||||
| Temperature (F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
